Jeep Liberty KJ. Manual - part 1304





4. Close the swing gate and grab the beltline. Confirm minimal for/aft movement and that closing effort is not exces-

sive. Readjust as required.

23 - 116

SWING GATE

KJ

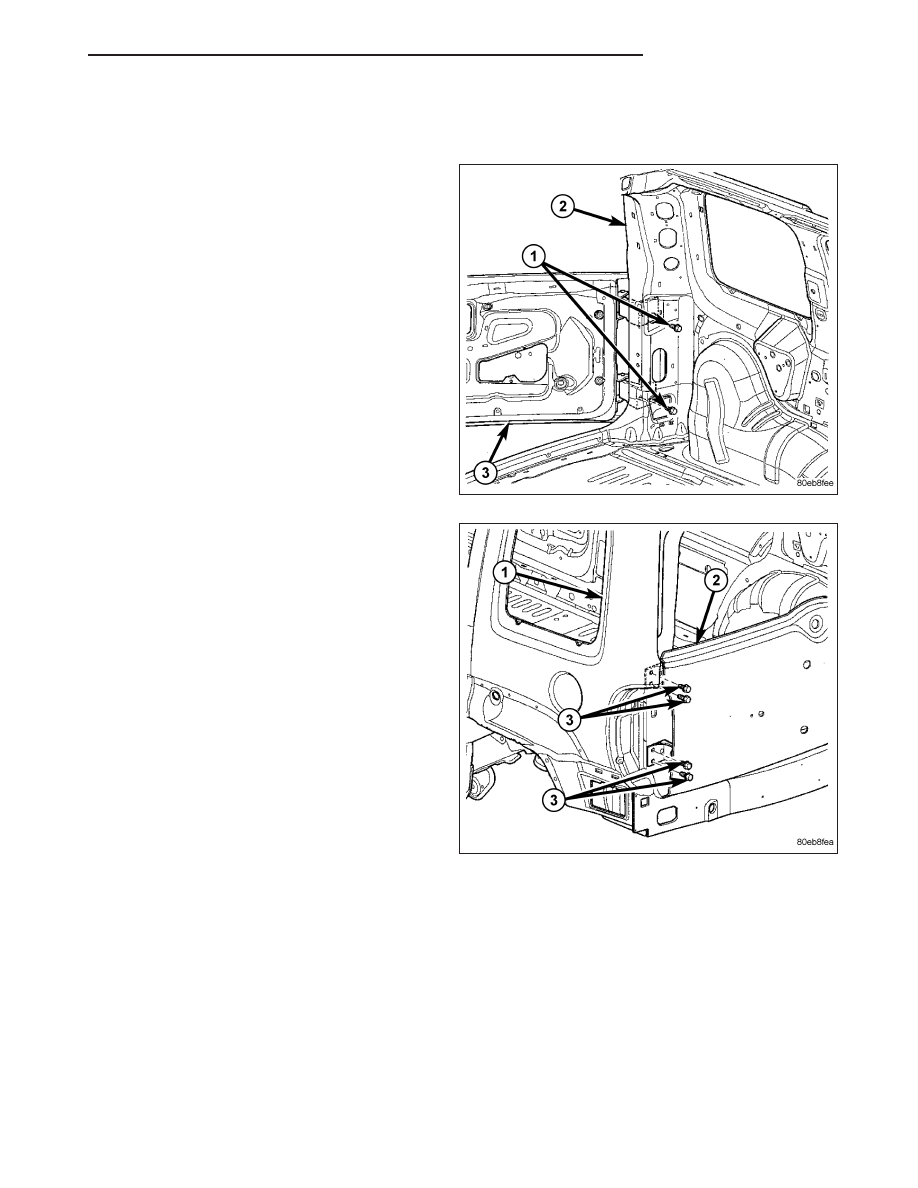

HINGE

REMOVAL

1. Remove the swing gate (3). (Refer to 23 - BODY/

SWING GATE/SWING GATE - REMOVAL)

2. Using a grease pencil or equivalent, mark the orig-

inal location of the hinges to aid installation.

3. Remove the bolts (1) from inside the quarter panel.

4. Remove the outer hinge bolts (3) and remove the

hinges.

KJ

SWING GATE

23 - 117

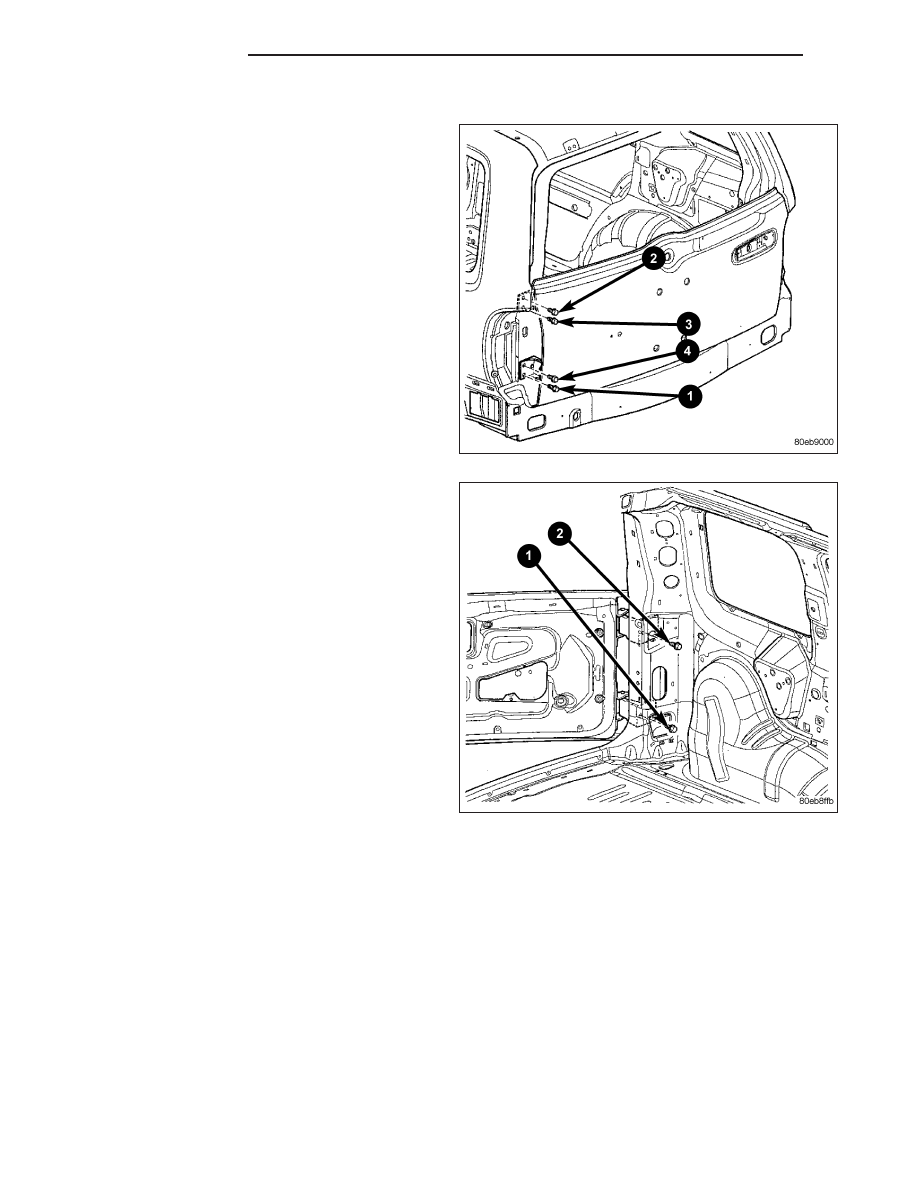

INSTALLATION

1. Install the hinges and install the inner and outer

fasteners.

2. Tighten the outer fasteners to 31 N·m (23 ft. lbs.)

using the sequence indicated.

3. Tighten the inner fasteners to 31 N·m (23 ft. lbs.)

using the sequence indicated.

4. Install the swing gate. (Refer to 23 - BODY/SWING

GATE/ SWING GATE - INSTALLATION)

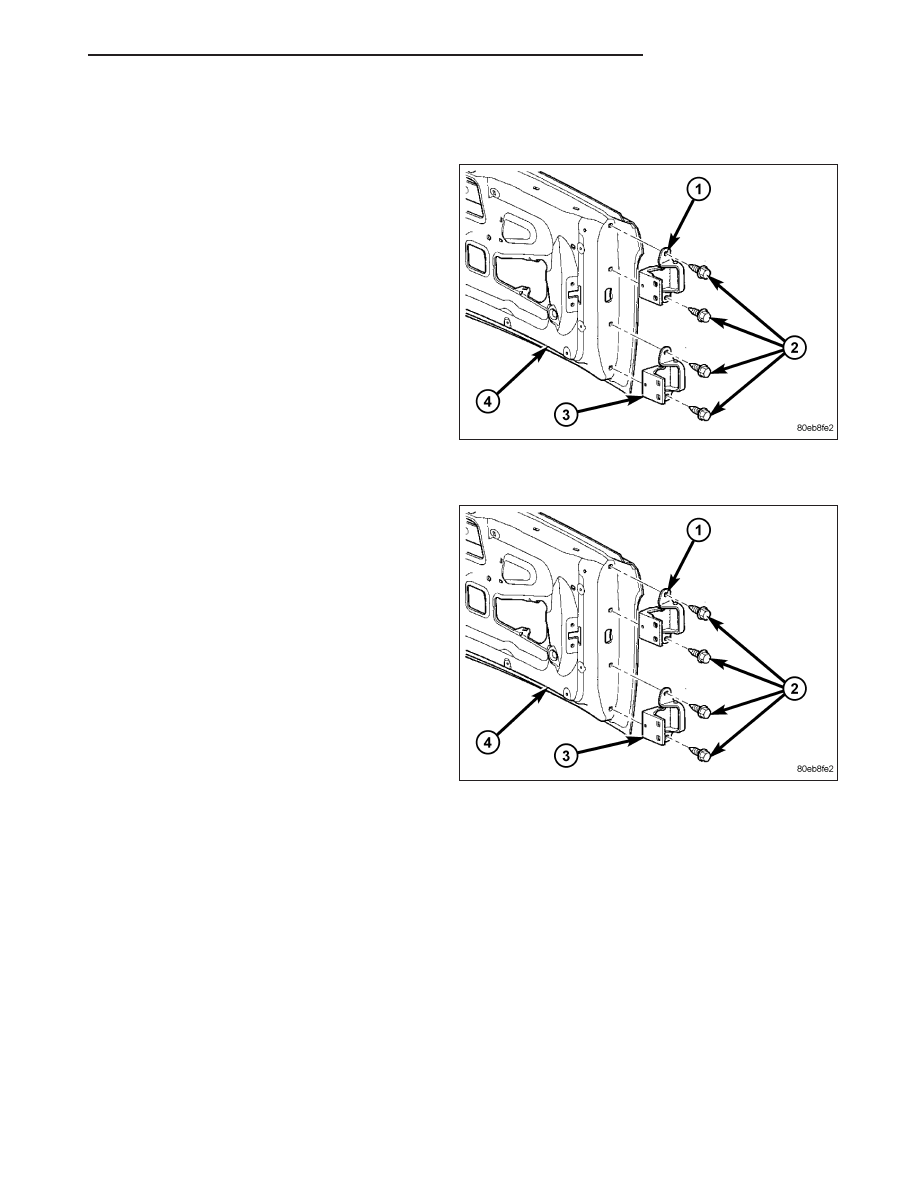

23 - 118

SWING GATE

KJ

SWING GATE

REMOVAL

1. Remove the spare tire. (Refer to 22 - TIRES/

WHEELS/TIRES/SPARE TIRE - REMOVAL)

2. Remove the quarter trim panel. (Refer to 23 -

BODY/INTERIOR/QUARTER

TRIM

PANEL

-

REMOVAL)

3. Support the swing gate with a suitable lifting

device.

4. Disconnect the wire harness.

5. Disconnect the check strap from the D-pillar. (Refer

to 23 - BODY/SWING GATE/CHECK STRAP -
REMOVAL)

6. Remove the bolts (2) and remove the swing gate.

INSTALLATION

1. Install the swing gate (4) and install the bolts (2).

2. Tighten the bolts to 31 N·m (23 ft. lbs.).

3. Adjust the swing gate as needed adding 3 mm on

the right side to compensate for sag after the spare
tire is installed. (Refer to 23 - BODY/SWING GATE/
SWING GATE - ADJUSTMENTS)

4. Connect the wire harness electrical connector.

5. Connect the check strap. (Refer to 23 - BODY/

SWING GATE/CHECK STRAP - INSTALLATION)

6. Install the quarter trim panel. (Refer to 23 - BODY/

INTERIOR/QUARTER TRIM PANEL - INSTALLA-
TION)

7. Install the spare tire. (Refer to 22 - TIRES/

WHEELS/TIRES/SPARE TIRE - INSTALLATION)

ADJUSTMENTS

ADJUSTMENT

NOTE: Swing gate adjustment measurements should be taken from stationary or welded body panels like
the roof, rocker or quarter panels.

During adjustment procedures, it is recommended that all the hinge fasteners be loosened except for the
upper most fasteners. Adjustments can be made using the upper bolts to hold the door with final torque
of the fasteners occurring after correct door positioning is achieved.

A suitable body sealant should be used when removing or moving the hinges.

1. Remove the spare tire. (Refer to 22 - TIRES/WHEELS/TIRES/SPARE TIRE - REMOVAL)

IN/OUT

NOTE: In/out swing gate adjustment is done by loosening the hinge to gate fasteners one hinge at a time
and moving the door to the correct position.

KJ

SWING GATE

23 - 119
