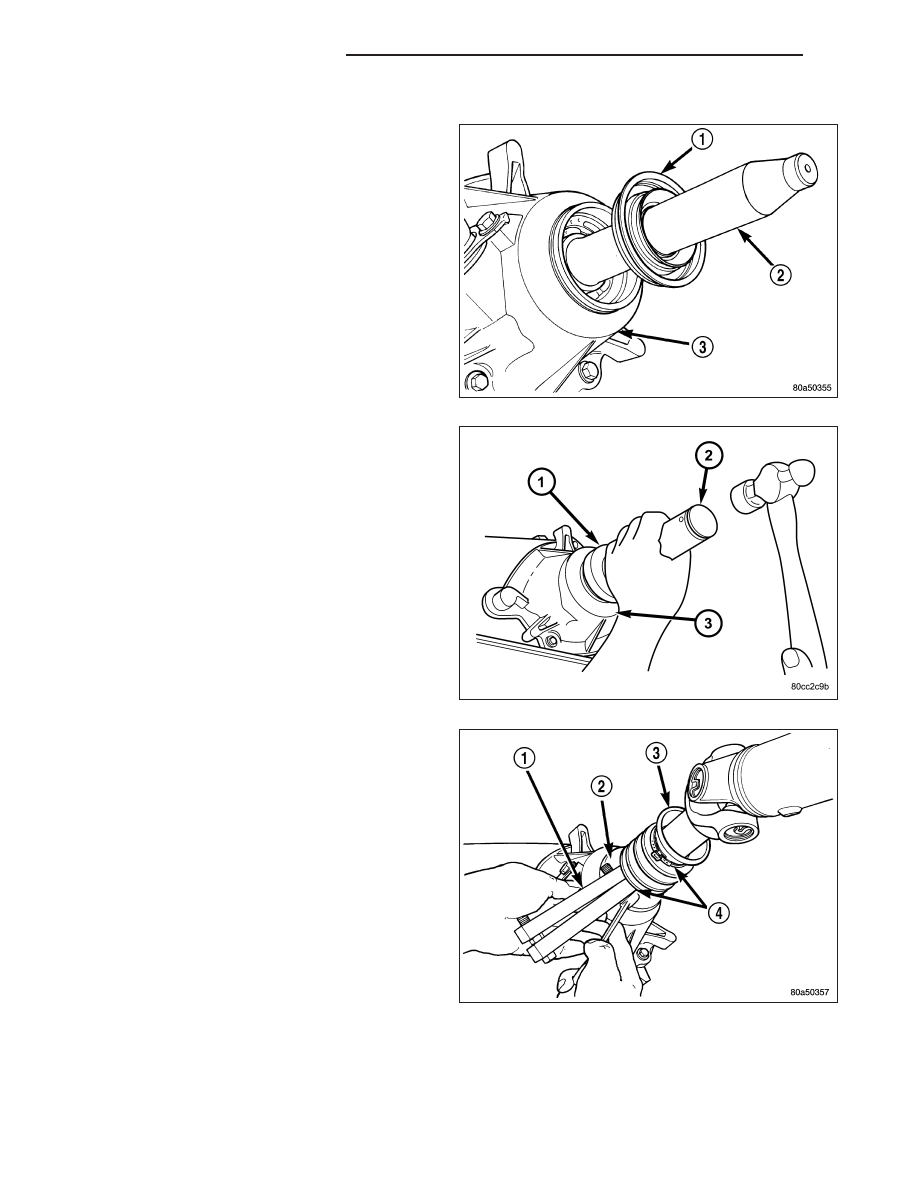

INSTALLATION

1. Apply liberal quantity of petroleum jelly to new rear

seal and to output shaft. Petroleum jelly is needed
to protect seal lips during installation.

2. Slide seal onto Seal Protector 8824 (2). Slide seal

protector and seal onto output shaft.

3. Slide Installer 8691 (1) onto seal and mainshaft.

Drive seal into rear bearing retainer.

4. Install a new output shaft rear slinger with Installer

9023.

5. Install boot (3) on output shaft slinger and crimp

retaining clamp with tool C-4975-A (1).

6. Slide the slip yoke on the transmission/transfer

case output shaft. Align installation reference marks
at the axle yoke and install the propeller shaft.

7. Tighten the U-joint strap/clamp bolts at the axle

yoke to 19 N·m (14 ft. lbs.).

8. Crimp clamp with Clamp Tool C-4975A to hold dust

boot to propeller shaft yoke.

9. Remove support and lower the vehicle.

21 - 952

TRANSFER CASE - NV242

KJ

LEVER-SHIFT

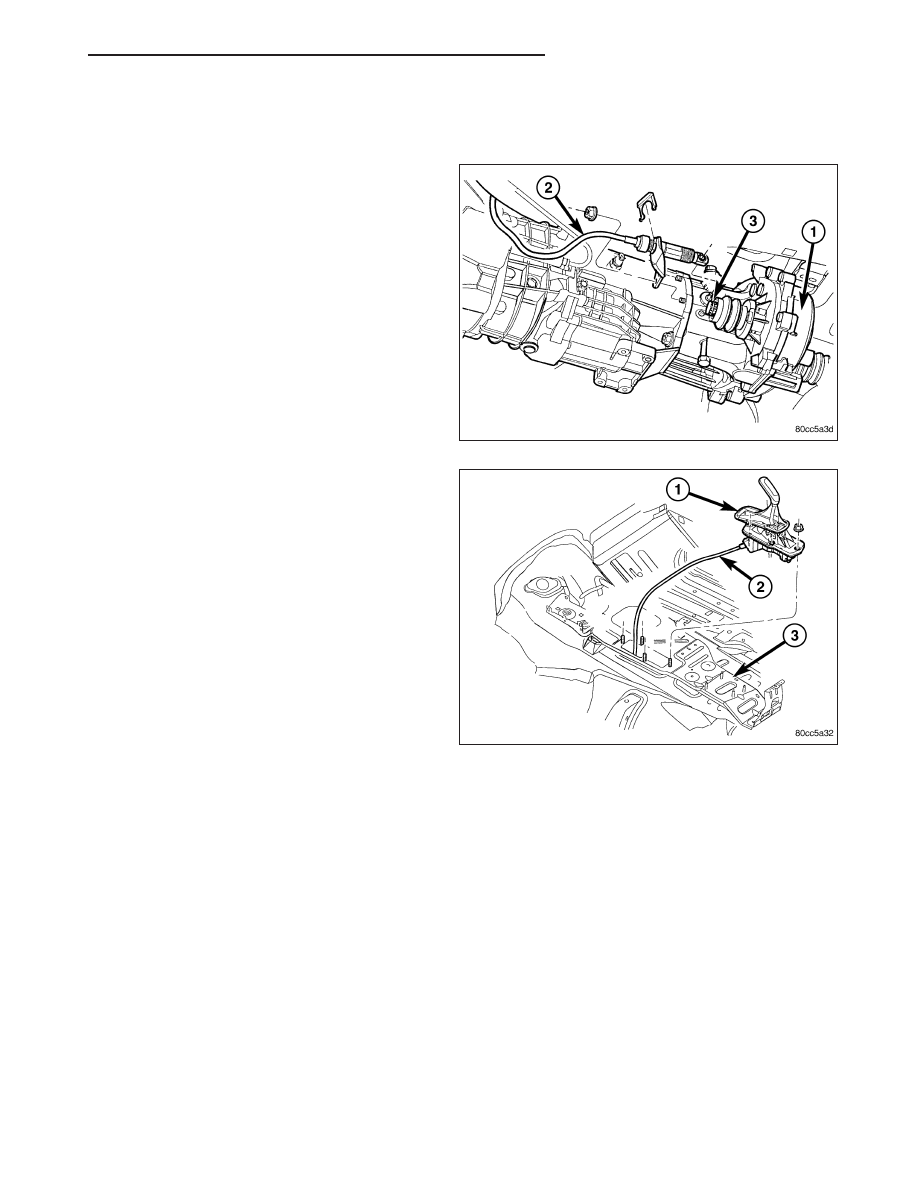

REMOVAL

1. Shift transfer case into 4L.

2. Raise vehicle.

3. Remove clip securing the transfer case shift cable

(2) to the shift cable support bracket.

4. Disengage any additional shift cable routing clips, if

necessary.

5. Disengage the shift cable from the transfer case

manual lever.

6. Lower vehicle.

7. Remove the floor console as necessary to access

the shifter mechanism. (Refer to 23 - BODY/INTE-
RIOR/FLOOR CONSOLE - REMOVAL)

8. Remove the nuts attaching lever assembly (1) to

floorpan and remove assembly and shift cable (2).

9. Remove the shifter mechanism and cable assem-

bly from the vehicle.

INSTALLATION

1. Route the shift cable through the opening in the floor pan.

2. Position the shift mechanism over the shifter retaining studs on the floor pan.

3. Install the nuts to hold the shifter mechanism to the floor pan. Tighten the nuts to 11.86 N·m (105 in.lbs.).

4. Install any floor console components previously removed. (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE -

INSTALLATION)

5. Verify that the floor shifter is in the 4L position.

6. Raise vehicle.

7. Route the shift cable through the opening in the shift cable support bracket.

8. Install the cable and a new spring clip into the slot in the support bracket.

9. Install any additional routing clips on the shift cable.

10. Verify that the transfer case is in the 4L position. The 4L position for the transfer case is with the manual lever

to the full rearward position.

11. Attach the shift cable to the transfer case manual lever.

12. Lower vehicle and check for proper transfer case shifter operation.

KJ

TRANSFER CASE - NV242

21 - 953

TIRES/WHEELS

TABLE OF CONTENTS

page

page

TIRES/WHEELS - ELECTRICAL DIAGNOSIS . . . . . . 1

TIRES/WHEELS - SERVICE INFORMATION . . . . . 61

TIRES/WHEELS - ELECTRICAL DIAGNOSIS

TABLE OF CONTENTS

page

page

TIRE PRESSURE MONITORING SYSTEM -

ELECTRICAL DIAGNOSIS
DIAGNOSIS AND TESTING

C0077- LOW TIRE PRESSURE . . . . . . . . . . . . . . . . 3
C1501–TIRE PRESSURE SENSOR 1

INTERNAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

C1502–TIRE PRESSURE SENSOR 2

INTERNAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

C1503–TIRE PRESSURE SENSOR 3

INTERNAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

C1504–TIRE PRESSURE SENSOR 4

INTERNAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

C1505–TIRE PRESSURE SENSOR 5

INTERNAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

C1506–LEFT FRONT TIRE PRESSURE

TRIGGER MODULE PERFORMANCE. . . . . . . . . 20

C1507–RIGHT FRONT TIRE PRESSURE

TRIGGER MODULE PERFORMANCE. . . . . . . . . 24

C1509–RIGHT REAR TIRE PRESSURE

TRIGGER MODULE PERFORMANCE. . . . . . . . . 28

C150A–LEFT FRONT TIRE PRESSURE

TRIGGER MODULE VOLTAGE HIGH

. . . . . . . . . . 32

C150B–RIGHT FRONT TIRE PRESSURE

TRIGGER MODULE VOLTAGE HIGH

. . . . . . . . . . 35

C150C–RIGHT REAR TIRE PRESSURE

TRIGGER MODULE VOLTAGE HIGH

. . . . . . . . . . 38

TIRE SENSOR 1 LOW PRESSURE ALERT . . . . 41
TIRE SENSOR 1 TRANSMIT FAILURE . . . . . . . . 43
TIRE SENSOR 2 LOW PRESSURE ALERT . . . . 45
TIRE SENSOR 2 TRANSMIT FAILURE . . . . . . . . 47
TIRE SENSOR 3 LOW PRESSURE ALERT . . . . 49
TIRE SENSOR 3 TRANSMIT FAILURE . . . . . . . . 51
TIRE SENSOR 4 LOW PRESSURE ALERT . . . . 53
TIRE SENSOR 4 TRANSMIT FAILURE . . . . . . . . 55
PRNDL MESSAGE MISSING . . . . . . . . . . . . . . . . . 57
VEHICLE SPEED MESSAGE MISSING . . . . . . . . 59

KJ

TIRES/WHEELS

22 - 1
