SEAL-FRONT OUTPUT SHAFT

REMOVAL

1. Raise vehicle.

2. Remove front propeller shaft. (Refer to 3 - DIFFER-

ENTIAL & DRIVELINE/PROPELLER SHAFT/PRO-
PELLER SHAFT - REMOVAL)

3. Remove front output shaft companion flange.

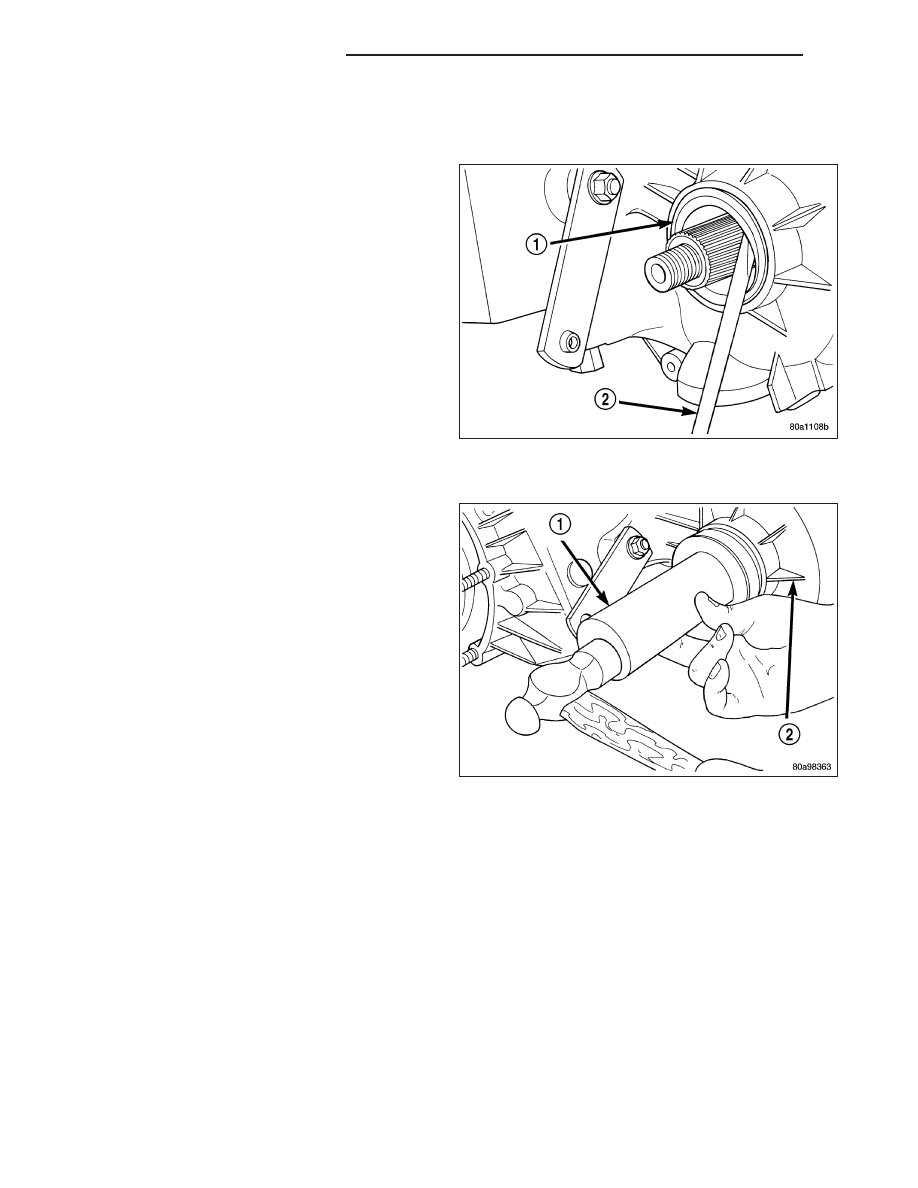

4. Remove seal (1) from front case with pry tool (2).

INSTALLATION

1. Install new front output seal in front case (2) with

Installer Tool 6952-A (1) as follows:

a. Place new seal on tool. Garter spring on seal

goes toward interior of case.

b. Start seal in bore with light taps from hammer.

Once seal is started, continue tapping seal into
bore until installer tool seats against case.

2. Install the front output shaft companion flange.

Tighten the companion flange nut to 149 N·m (110
ft.lbs.).

3. Install the front propeller shaft. (Refer to 3 - DIF-

FERENTIAL & DRIVELINE/PROPELLER SHAFT/
PROPELLER SHAFT - INSTALLATION)

21 - 948

TRANSFER CASE - NV242

KJ

SENSOR-POSITION

DESCRIPTION

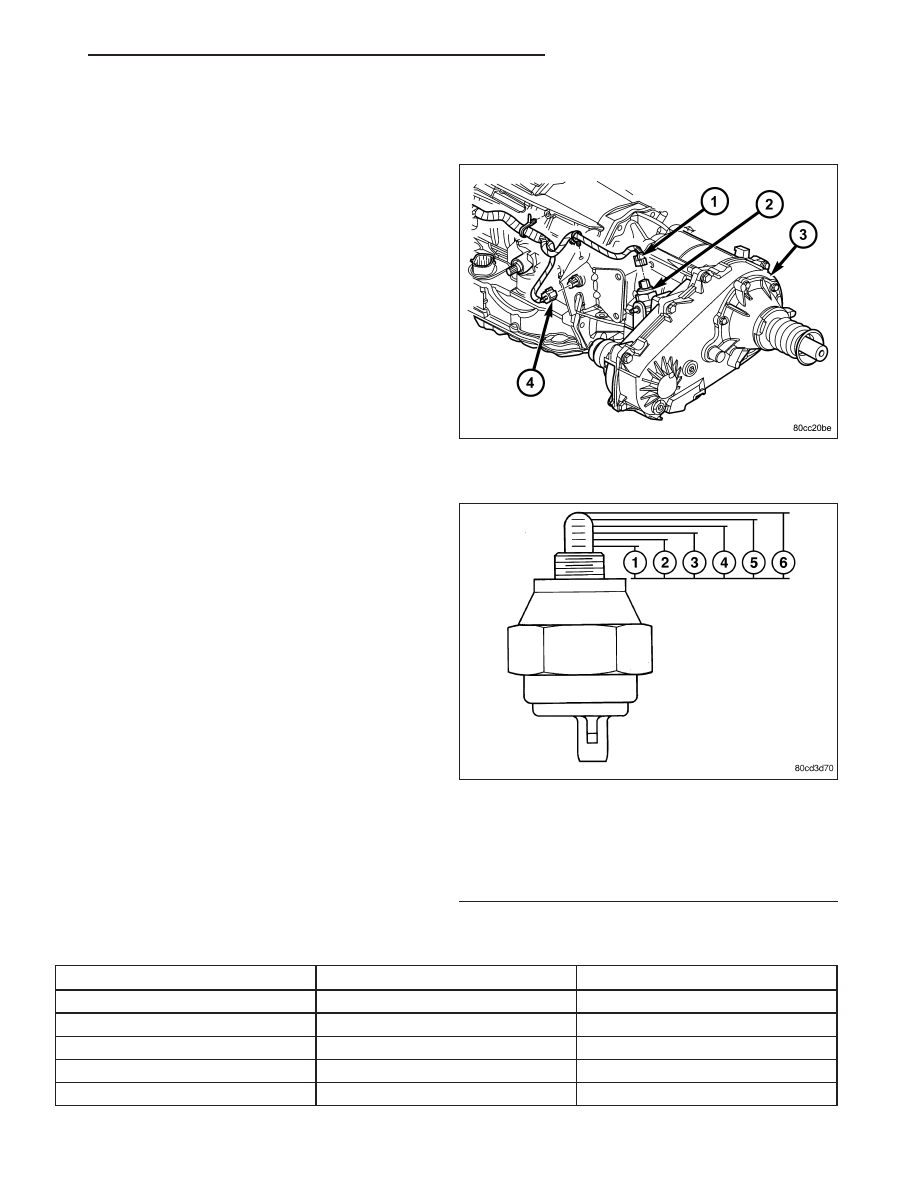

The transfer case position sensor (2) is an electronic
device whose output can be interpreted to indicate the
transfer case’s current operating mode. The sensor
consists of a five position, resistive multiplexed circuit
which returns a specific resistance value to the Pow-
ertrain Control Module (PCM) for each transfer case
operating mode. The sensor is located on the top of
the transfer case, just left of the transfer case center-
line and rides against the sector plate roostercomb.
The PCM supplies 5VDC (+/- 0.5V) to the sensor and
monitors the return voltage to determine the sector
plate, and therefore the transfer case, position.

OPERATION

During normal vehicle operation, the Powertrain Con-
trol Module (PCM) monitors the transfer case position
sensor return voltage to determine the operating mode
of the transfer case. Refer to the Operating Mode Ver-
sus Resistance table for the correct resistance for
each position.

Operating Mode Versus Resistance

SENSOR POSITION

OPERATING MODE

SENSOR RESISTANCE (ohms)

1

2WD

1124-1243

2

4WD PART TIME

650-719

3

4WD FULL TIME

389-431

4

NEUTRAL

199-221

5

4WD LOW

57-64

Position Sensor Linear Movement

1 - POSITION 1 - 10mm ±0.5mm
2 - POSITION 2 - 12mm ±0.5mm
3 - POSITION 3 - 14mm ±0.5mm
4 - POSITION 4 - 16mm ±0.5mm
5 - POSITION 5 - 18mm ±0.5mm
6 - POSITION 6 - 20mm±0.5mm - FULL EXTENSION

KJ

TRANSFER CASE - NV242

21 - 949

REMOVAL

1. Raise and support the vehicle.

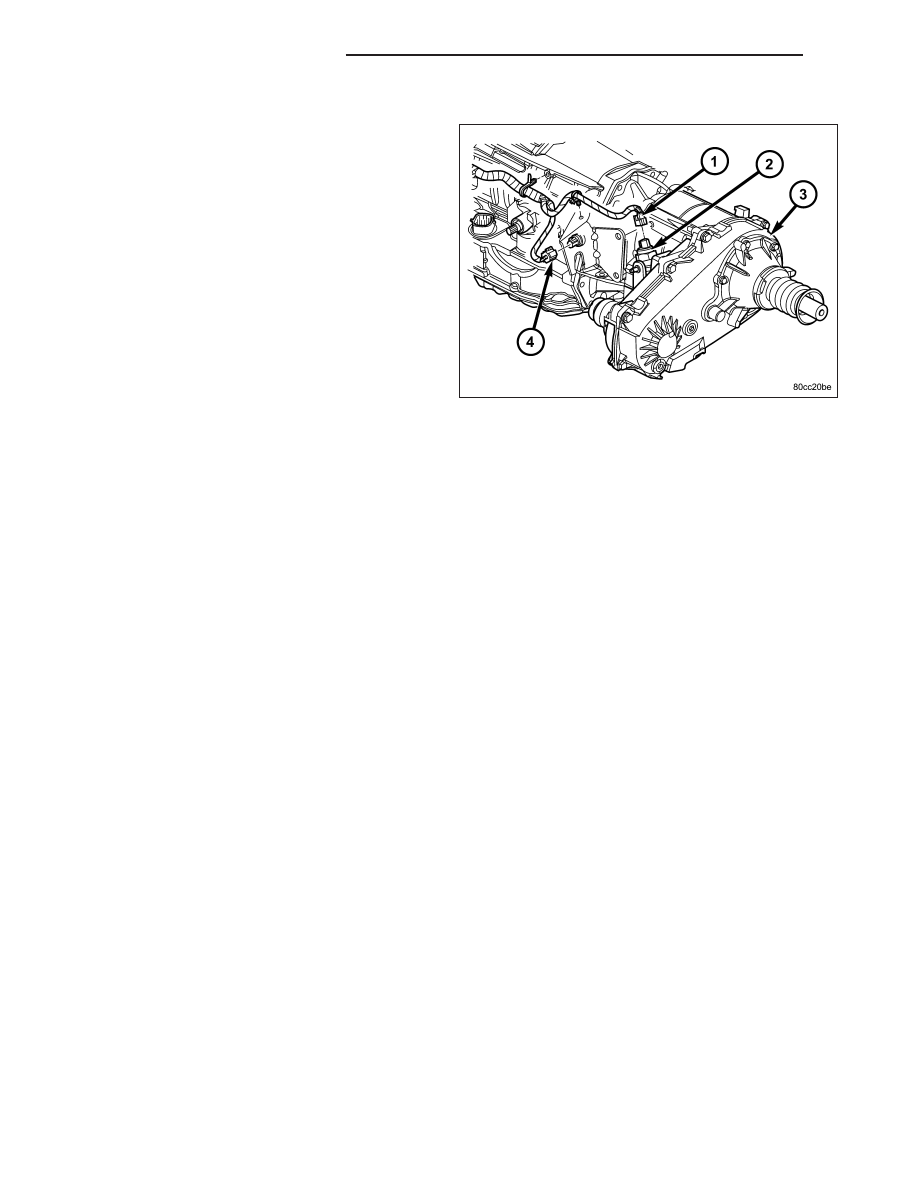

2. Disengage the transfer case position sensor con-

nector from the position sensor (2).

3. Remove the position sensor from the transfer case.

INSTALLATION

1. Inspect the o-ring seal on the transfer case position sensor. Replace the o-ring if necessary.

2. Install the transfer case position sensor into the transfer case. Torque the sensor to 27 N·m (20 ft.lbs.).

3. Engage the transfer case position sensor connector to the position sensor.

4. Lower vehicle.

5. Verify proper sensor operation.

21 - 950

TRANSFER CASE - NV242

KJ

SEAL-REAR OUTPUT SHAFT

REMOVAL

1. Shift the transmission and transfer case into NEU-

TRAL.

2. Raise and support vehicle.

3. Mark a line across the pinion shaft and at each end

of the propeller shaft for installation reference.

4. Remove the U-joint strap bolts at the pinion shaft

yoke.

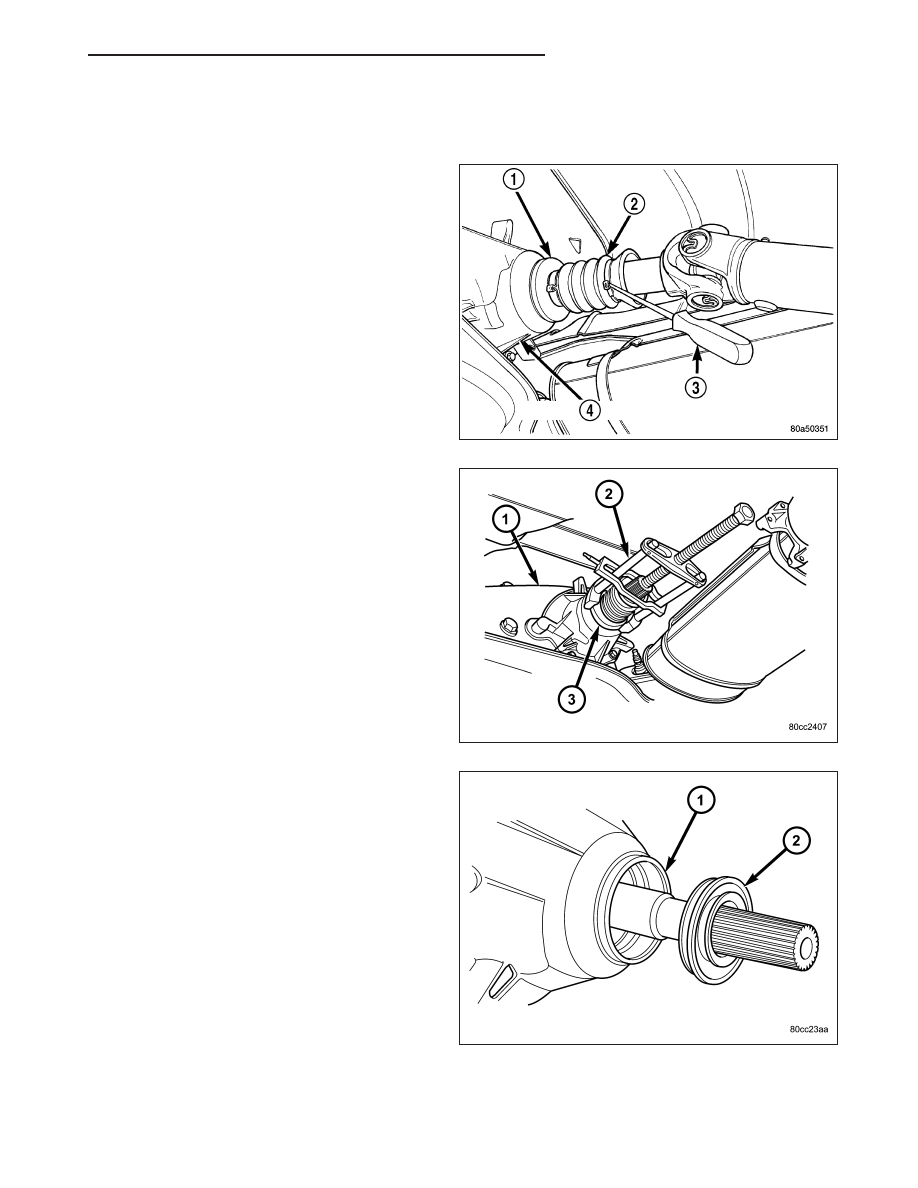

5. Pry open clamp holding the dust boot (2) to propel-

ler shaft yoke.

6. Slide the slip yoke off of the transmission/transfer

case output shaft and remove the propeller shaft.

7. Spread band clamp which holds output shaft boot

to the output shaft slinger with a suitable awl, or
equivalent.

8. Remove output shaft boot from slinger and output

shaft.

9. Remove the output shaft rear slinger (3) using

Puller MD-998056-A (2).

10. Use a suitable pry tool, or a slide hammer

mounted screw, to remove the seal (2) from the
rear retainer (1).

KJ

TRANSFER CASE - NV242

21 - 951
