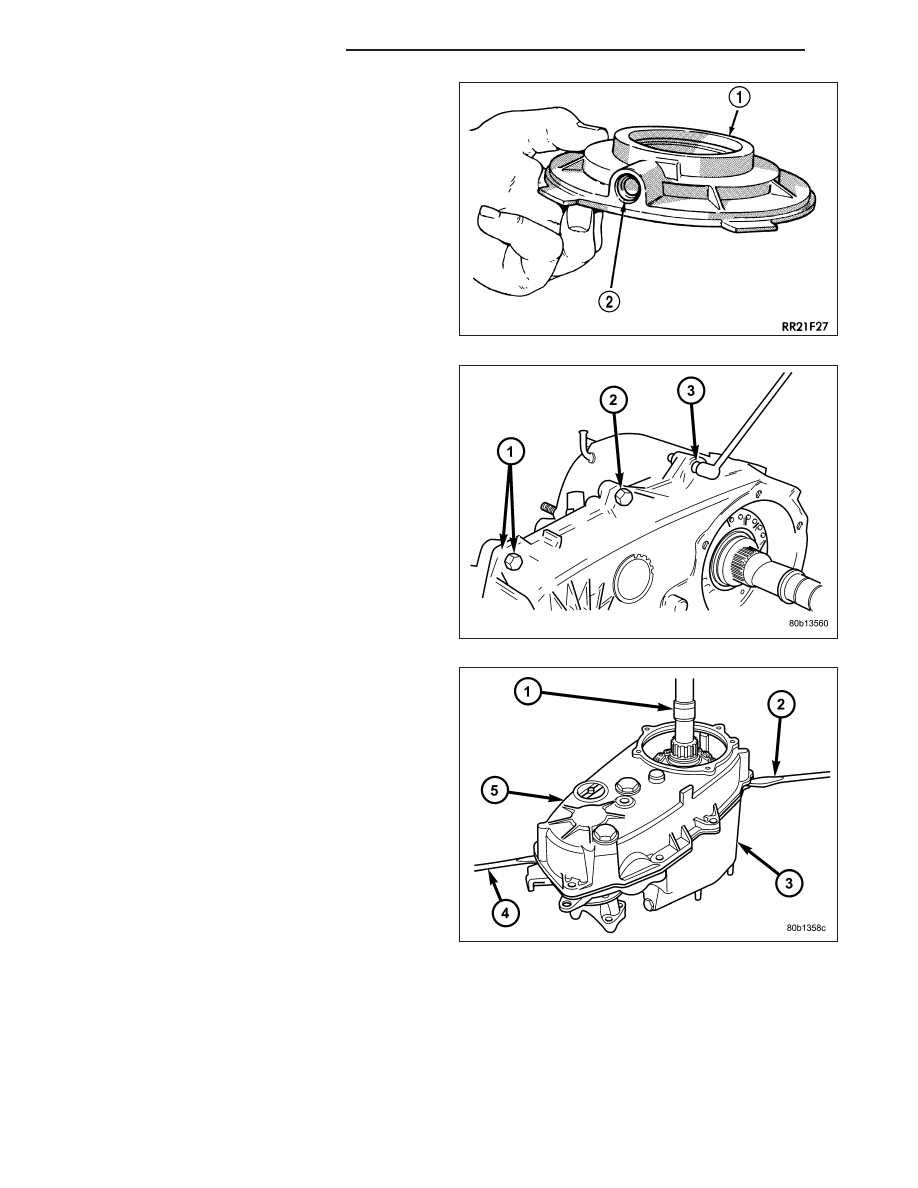

8. Remove pickup tube O-ring (2) from pump (1) but

do not disassemble pump; it is not a serviceable
part.

9. Remove bolts (2) attaching rear case to front case.

Note position of the two black finish bolts (1) at
each end of the case. These bolts go through the
case dowels and require a washer under the bolt
head.

CAUTION: Do not pry on the sealing surface of
either case half as the surfaces will become dam-
aged.

10. Remove rear case (5) from front case (3). Insert

screwdrivers into slots cast into each end of case.
Then pry upward to break sealer bead and
remove rear case.

21 - 908

TRANSFER CASE - NV242

KJ

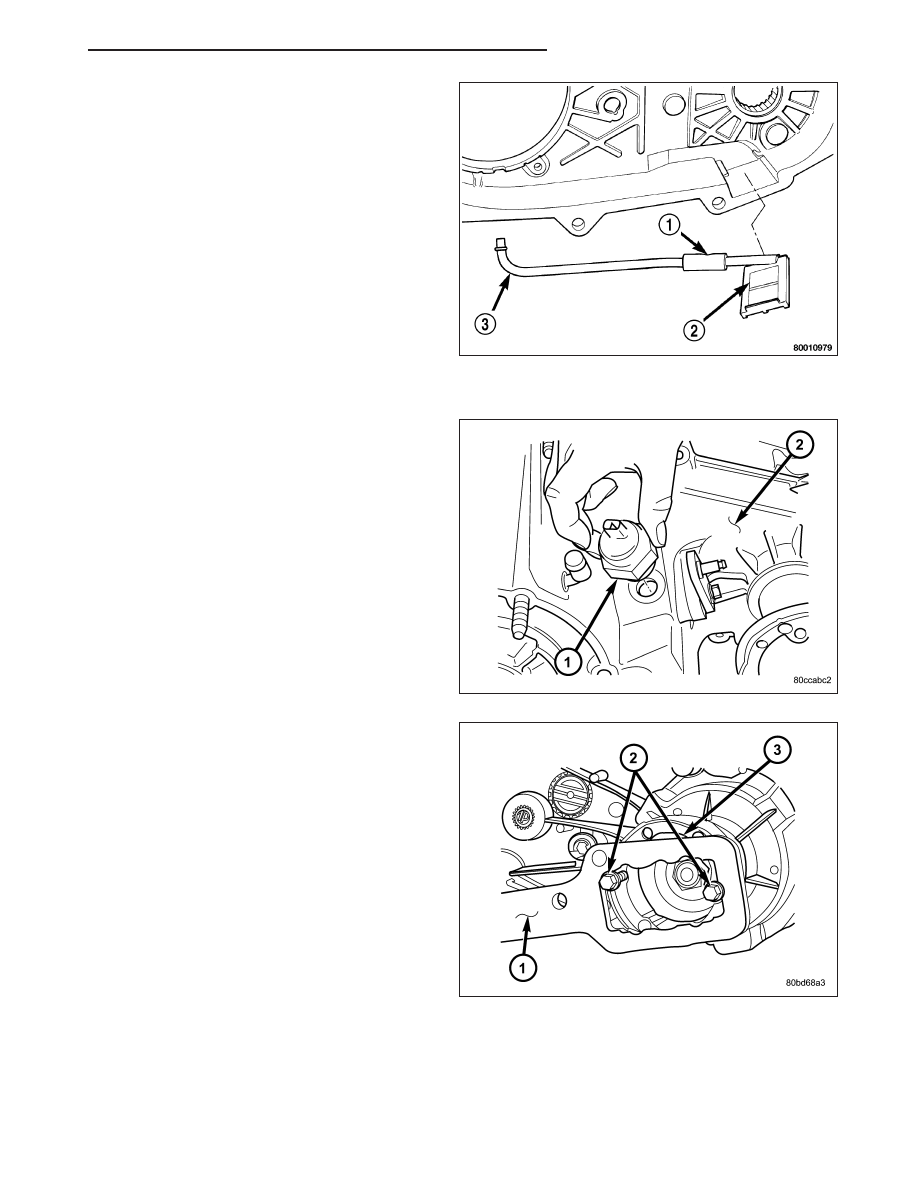

11. Remove oil pickup tube (3) and screen (2) from

rear case.

COMPANION FLANGE AND RANGE LEVER

1. Remove transfer case position sensor (1).

2. Install two bolts (2) partially into the propeller shaft

companion flange, 180° from each other.

3. Install the rectangular end of the Flange Holder

C-3281 (1) over the bolts to hold the companion
flange (3) stationary and remove the nut holding
the companion flange to the output shaft.

KJ

TRANSFER CASE - NV242

21 - 909

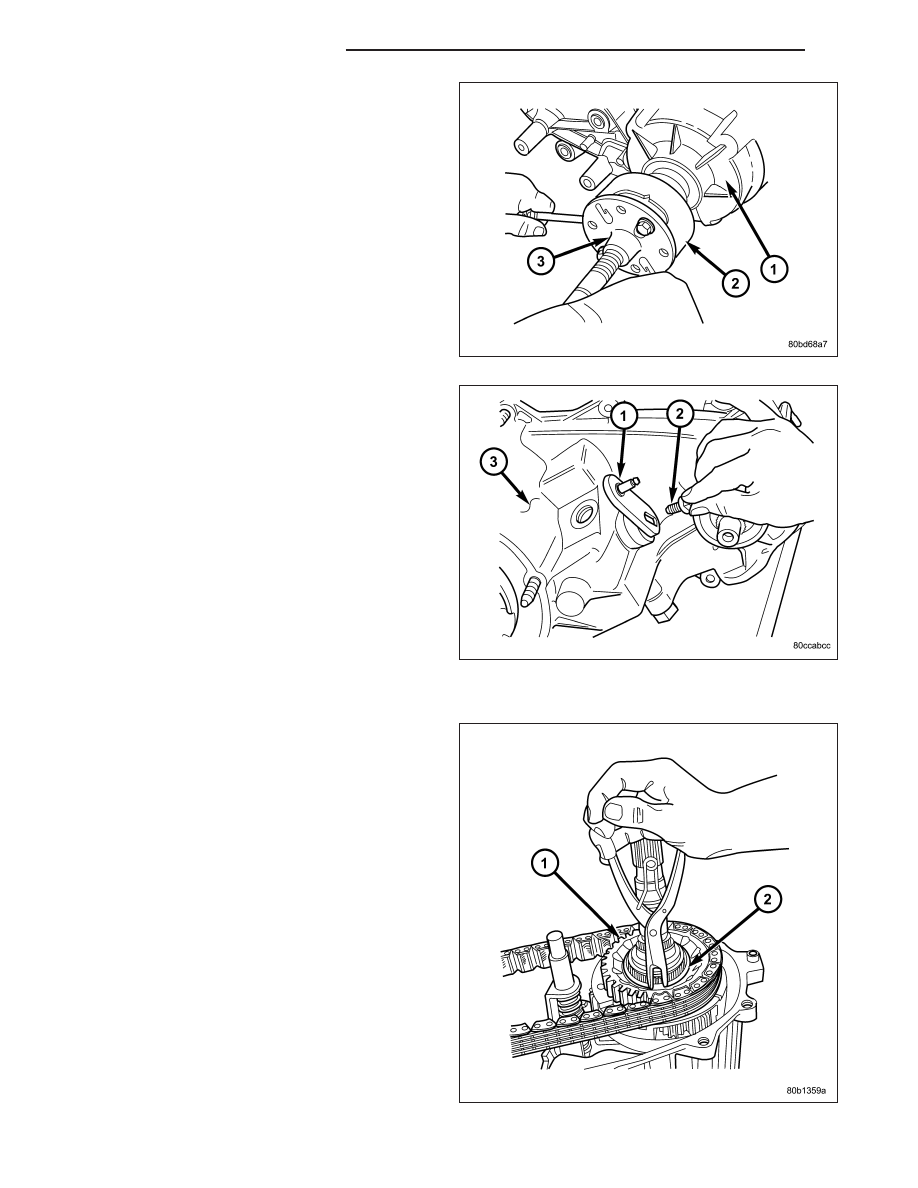

4. Use Remover C-452 (3) to remove the companion

flange (2).

NOTE: Be sure to note the orientation of the range
lever (lever up or down) so that it may be re-in-
stalled in the same direction.

5. Remove seal washer from front output shaft. Dis-

card washer as it should not be reused.

6. Remove the bolt (2) that attaches the range lever

(1) to sector shaft. Then move sector to neutral
position and remove range lever from shaft.

FRONT OUTPUT SHAFT AND DRIVE CHAIN

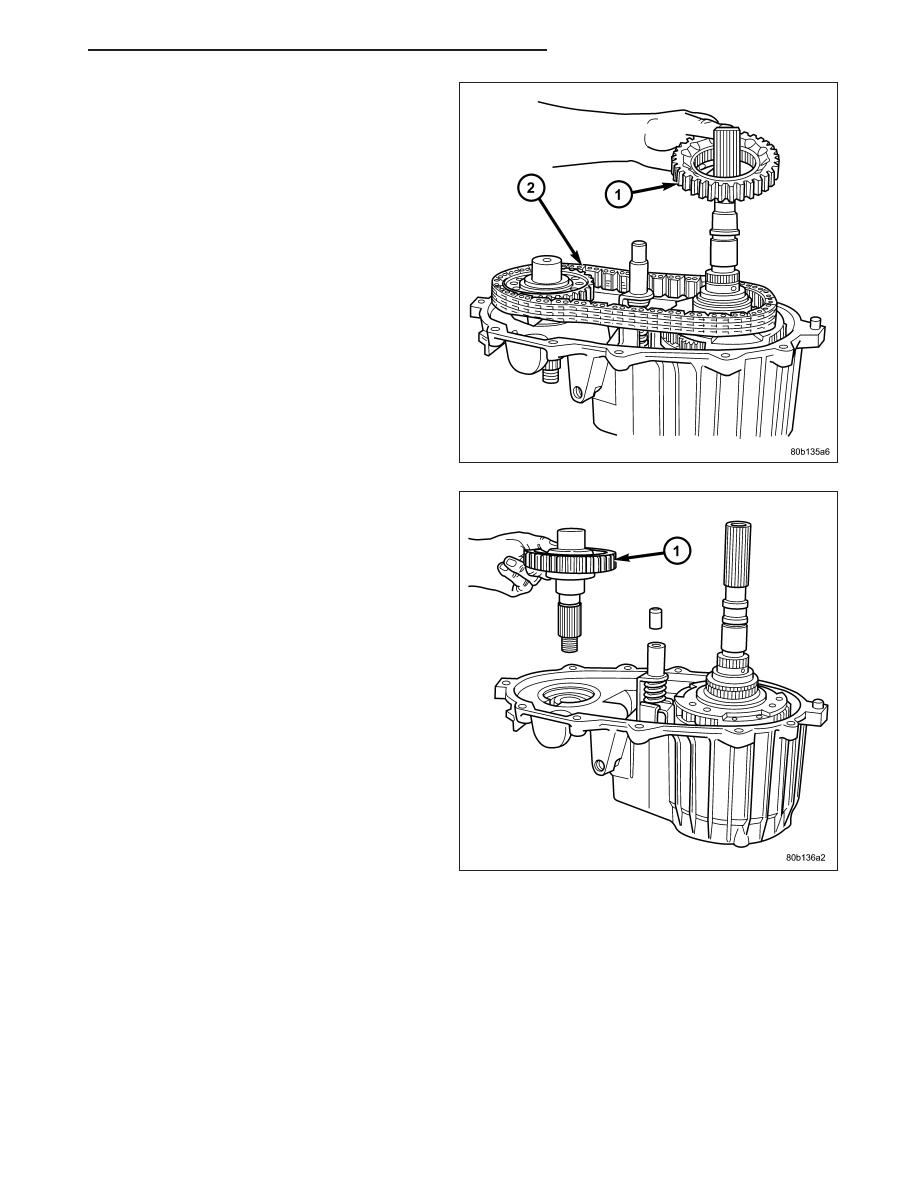

1. Remove drive sprocket (1) snap-ring (2).

21 - 910

TRANSFER CASE - NV242

KJ

2. Remove drive sprocket (1) and chain (2).

3. Remove front output shaft (1).

KJ

TRANSFER CASE - NV242

21 - 911
