SPECIFICATIONS

TORQUE - GAS

DESCRIPTION

N-m

Ft. Lbs.

In. Lbs.

Starter Solenoid Battery

Cable Nut

11

-

100

Starter Mounting Bolts -

2.4L

54

40

-

Starter Mounting Bolts

-3.7L

54

40

-

Starter Heat Shield

Mounting Bolts

6

-

55

TORQUE - DIESEL

DESCRIPTION

N-m

Ft. Lbs.

In. Lbs.

Starter Solenoid Battery

Cable Nut

11

-

100

Starter Mounting Bolts

27

20

-

8F - 54

STARTING SYSTEM

KJ

STARTER MOTOR - GAS POWERED

Starter Motor and Solenoid

Engine Application

2.4L / 3.7L

Power Rating

1.4 Kilowatt (1.9 Horsepower)

Voltage

12 Volts

** Number of Permanent Magnets

6

Number of Brushes

4

Drive Type

Planetary Gear Reduction

Free Running Test Voltage

11.2 Volts

Free Running Test Maximum Amperage Draw

90 Amperes

Free Running Test Minimum Speed

2400 rpm

Solenoid Closing Maximum Voltage Required

7.8 Volts

* Cranking Amperage Draw Test

160 Amperes

*Test at operating temperature. Cold engine, tight (new) engine, or heavy oil will increase starter amperage draw.

**The starter is equipped with permanent magnets. Never strike the starter case to attempt to loosen a sticking/
stuck armature as permanent magnets may crack or break.

TORQUE - DIESEL

ITEM

SPECIFICATION

ENGINE

TURBO DIESEL

RATED VOLTAGE

12 VOLTS

NUMBER OF FIELDS

4

NUMBER OF POLES

4

NUMBER OF BRUSHES

4

DRIVE TYPE

GEAR REDUCTION

FREE RUNNING TEST VOLTAGE

11.5 VOLTS

FREE RUNNING TEST MAXIMUM

AMPERAGE DRAW

160 AMPS

FREE RUNNING TEST MINIMUM SPEED

5500 RPM

SOLENOID CLOSING MAXIMUM VOLTAGE

7.8 VOLTS

MAXIMUM CRANKING AMPERAGE DRAW

* 500 AMPS

* A COLD OR NEW ENGINE WILL INCREASE STARTER AMPERAGE DRAW. THE USE OF HEAVY WEIGHT

ENGINE OIL WILL ALSO INCREASE STARTER AMPERAGE DRAW.

KJ

STARTING SYSTEM

8F - 55

STARTER MOTOR

DIAGNOSIS AND TESTING - STARTER MOTOR

Correct starter motor operation can be confirmed by performing the following free running bench test. This test can
only be performed with starter motor removed from vehicle. Refer to Specifications for starter motor specifications.

1. Remove starter motor from vehicle. Refer to Starter Motor Removal and Installation.

2. Mount starter motor securely in a soft-jawed bench vise. The vise jaws should be clamped on the mounting

flange of starter motor. Never clamp on starter motor by field frame.

3. Connect a suitable volt-ampere tester and a 12-volt battery to starter motor in series, and set ammeter to 100

ampere scale. See instructions provided by manufacturer of volt-ampere tester being used.

4. Install jumper wire from solenoid terminal to solenoid battery terminal. The starter motor should operate. If starter

motor fails to operate, replace faulty starter motor assembly.

5. Adjust carbon pile load of tester to obtain free running test voltage. Refer to Specifications for starter motor free

running test voltage specifications.

6. Note reading on ammeter and compare reading to free running test maximum amperage draw. Refer to Speci-

fications for starter motor free running test maximum amperage draw specifications.

7. If ammeter reading exceeds maximum amperage draw specification, replace faulty starter motor assembly.

STARTER SOLENOID

This test can only be performed with starter motor
removed from vehicle.

1. Remove starter motor from vehicle. Refer to Starter

Motor Removal and Installation.

2. Disconnect wire from solenoid field coil terminal.

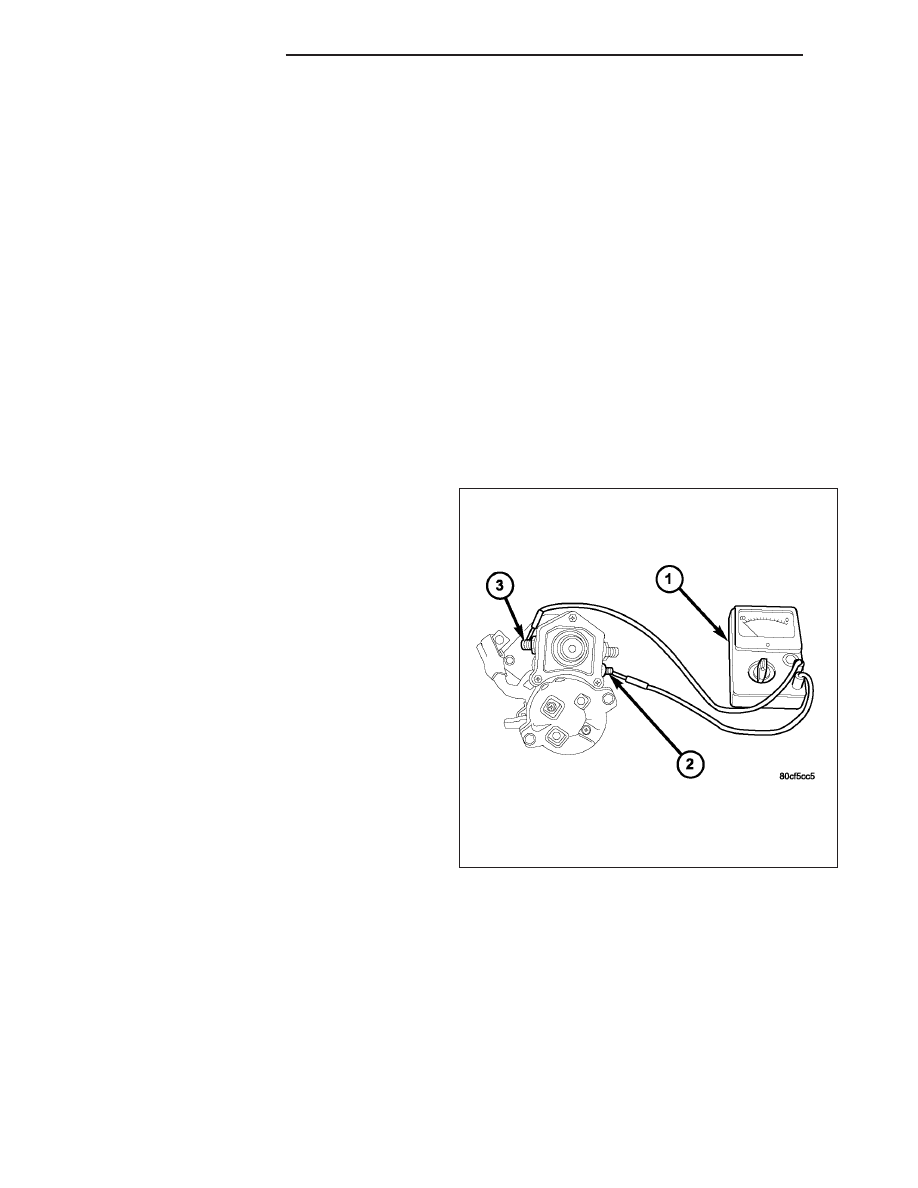

3. Check for continuity between solenoid terminal (3)

and solenoid field coil terminal (2) with a continuity
tester (1). There should be continuity. If OK, go to
Step 4. If not OK, replace faulty starter motor
assembly.

8F - 56

STARTING SYSTEM

KJ

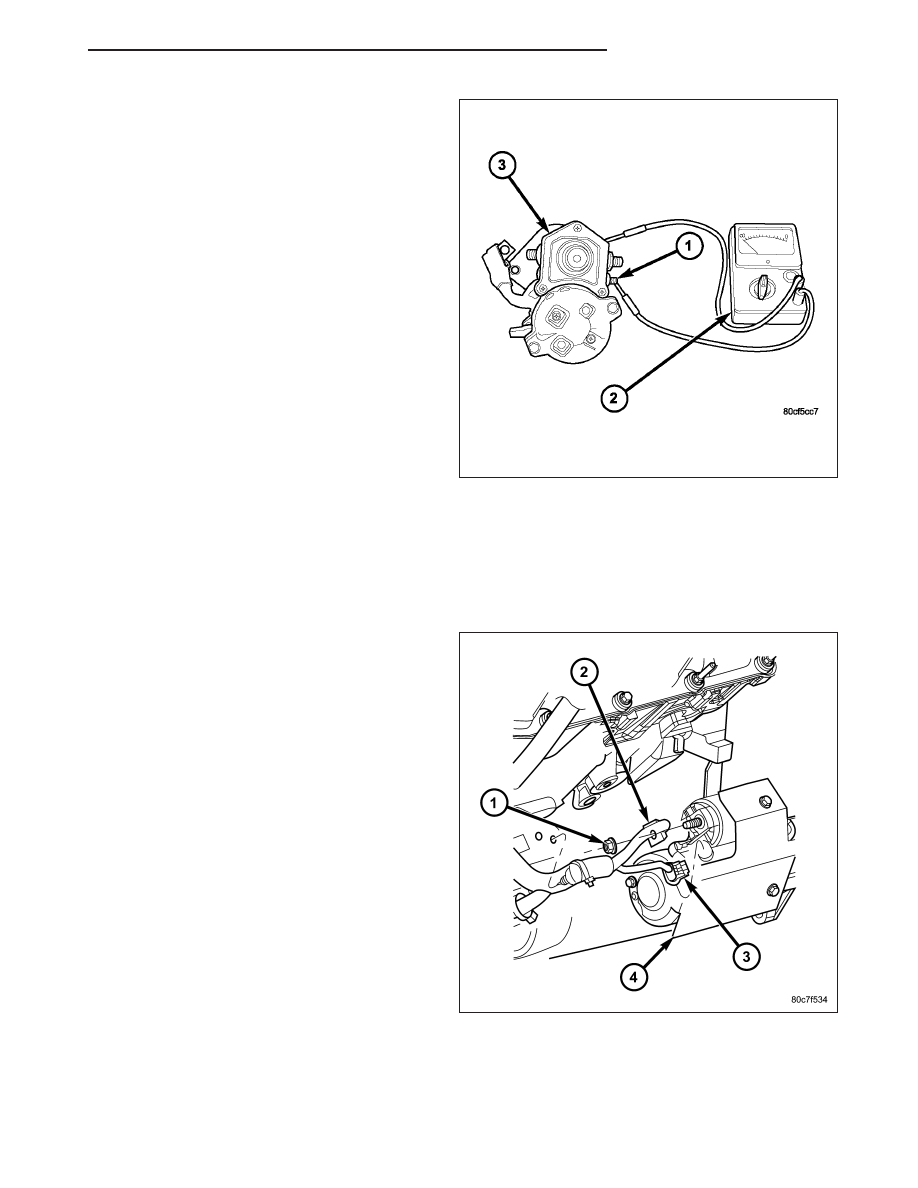

4. Check for continuity between solenoid terminal (1)

and solenoid case. There should be continuity. If
not OK, replace faulty starter motor assembly.

REMOVAL

2.4L

1. Disconnect and isolate negative battery cable.

2. Raise and support vehicle.

3. Remove solenoid wire connector (3) from solenoid

terminal.

4. Remove battery cable eyelet (2) from stud on

starter solenoid.

KJ

STARTING SYSTEM

8F - 57
