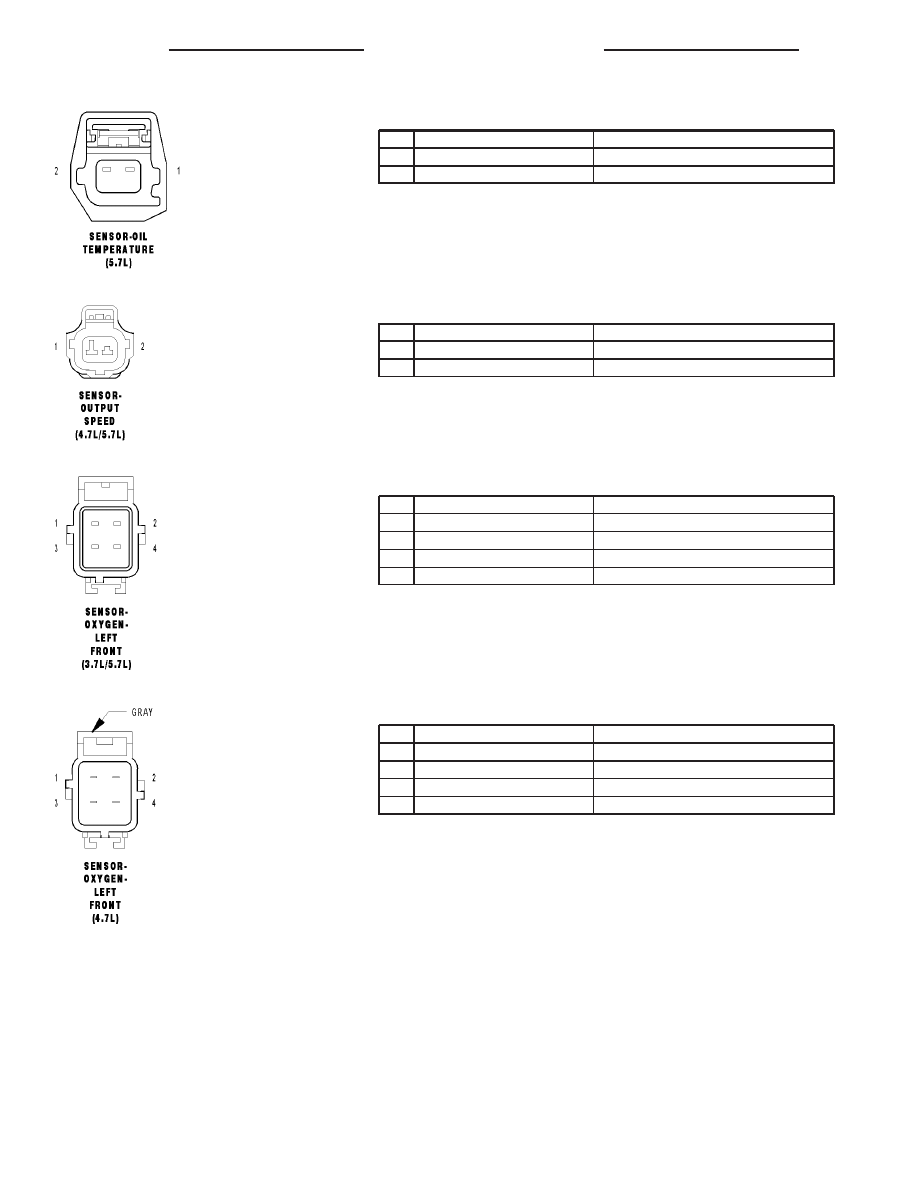

SENSOR-OIL TEMPERATURE (5.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

G224 20VT/YL

ENGINE OIL TEMPERATURE SIGNAL

2

K900 20DB/DG

SENSOR GROUND

SENSOR-OUTPUT SPEED (4.7L/5.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

T14 20DG/BR

OUTPUT SPEED SENSOR SIGNAL

2

T13 20DG/VT

SENSOR GROUND

SENSOR-OXYGEN-LEFT FRONT (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K99 20OR/TN

O2 1/1 HEATER CONTROL

3

K902 20BR/DG

02 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

SENSOR-OXYGEN-LEFT FRONT (4.7L) - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K99 20OR/TN

O2 1/1 HEATER CONTROL

3

K902 20BR/DG

02 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

8W - 80 - 104

8W-80 CONNECTOR PIN-OUTS

WK

SENSOR-OXYGEN-LEFT REAR (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K299 18BR/OR

O2 1/2 HEATER CONTROL

3

K904 20DB/WT

O2 RETURN (DOWNSTREAM)

4

K141 20DB/YL

02 1/2 SIGNAL

SENSOR-OXYGEN-LEFT REAR (4.7L) - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K299 18BR/OR

O2 1/2 HEATER CONTROL

3

K904 20DB/WT

O2 RETURN (DOWNSTREAM)

4

K141 20DB/YL

02 1/2 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K199 18BR/PK (3.7L)

O2 2/1 HEATER CONTROL

2

K199 18BR/GY (5.7L)

O2 2/1 HEATER CONTROL

3

K902 20BR/DG

02 RETURN (UPSTREAM)

4

K43 20DB/PK

O2 2/1 SIGNAL

SENSOR-OXYGEN-RIGHT FRONT (4.7L) - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K199 18BR/PK

O2 2/1 HEATER CONTROL

3

K902 20BR/DG

02 RETURN (UPSTREAM)

4

K43 20DB/PK

O2 2/1 SIGNAL

WK

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 105

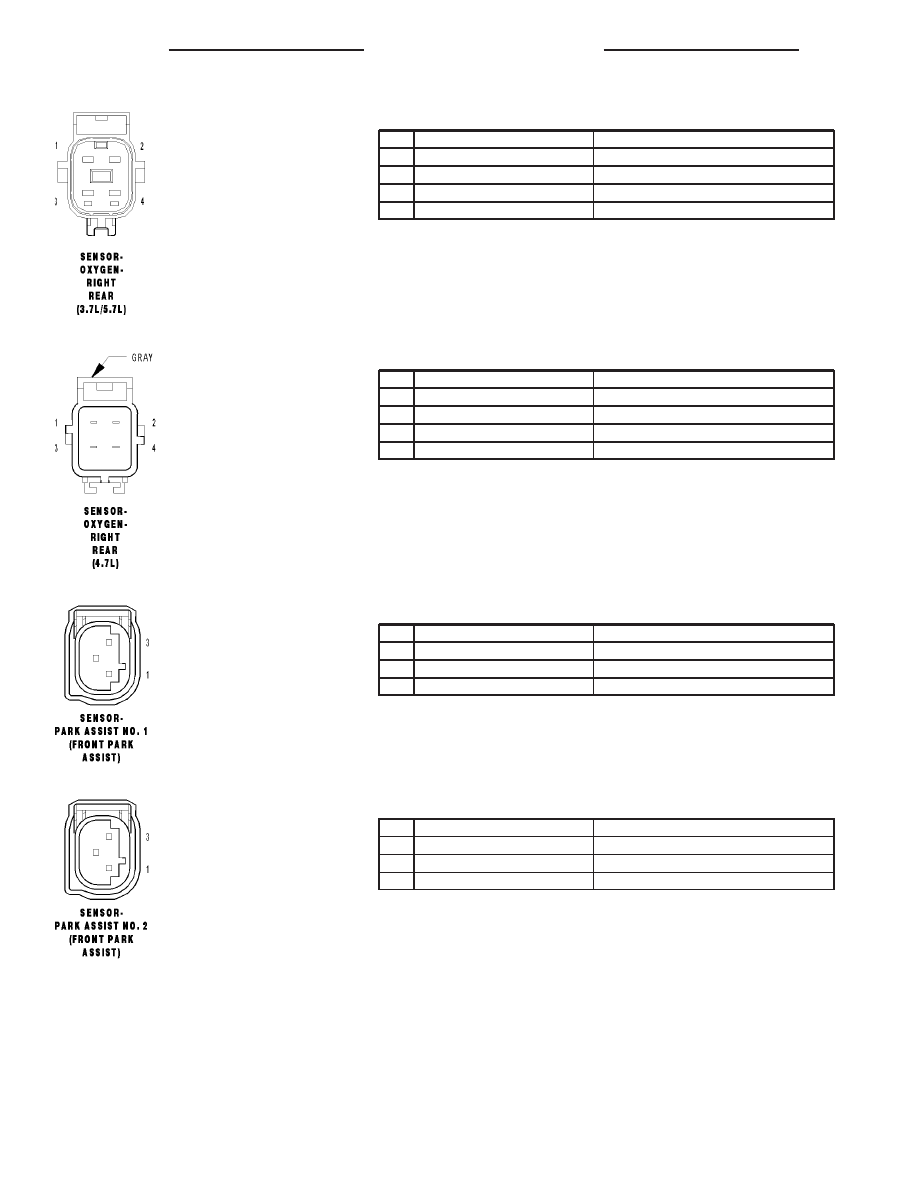

SENSOR-OXYGEN-RIGHT REAR (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K399 18BR/GY

O2 2/2 HEATER CONTROL

3

K904 20DB/WT

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-OXYGEN-RIGHT REAR (4.7L) - GRAY 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z42 18BK/LG

GROUND

2

K399 18BR/GY

O2 2/2 HEATER CONTROL

3

K904 20DB/WT

O2 RETURN (DOWNSTREAM)

4

K243 20BR

O2 2/2 SIGNAL

SENSOR-PARK ASSIST NO. 1 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D702 20WT/YL

PARK ASSIST SENSOR NO. 1 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

SENSOR-PARK ASSIST NO. 2 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D705 20WT/OR

PARK ASSIST SENSOR NO. 2 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

8W - 80 - 106

8W-80 CONNECTOR PIN-OUTS

WK

SENSOR-PARK ASSIST NO. 3 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D706 20WT/TN

PARK ASSIST SENSOR NO. 3 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

SENSOR-PARK ASSIST NO. 4 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D707 20WT/LG

PARK ASSIST SENSOR NO. 4 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

SENSOR-PARK ASSIST NO. 5 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D708 20WT/LB

PARK ASSIST SENSOR NO. 5 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

SENSOR-PARK ASSIST NO. 6 (FRONT PARK ASSIST) - 3 WAY

CAV

CIRCUIT

FUNCTION

1

D709 20WT/BR

PARK ASSIST SENSOR NO. 6 SIGNAL

2

Z169 20BK/LG

GROUND

3

X702 20GY/LB

FRONT PARK ASSIST SENSOR SUPPLY

WK

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 107
