DATA LINK CONNECTOR - 16 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

-

-

4

Z111 20BK/WT

GROUND

5

Z11 20BK/LG

GROUND

6

D72 20WT/LB

CAN C DIAGNOSTIC (+)

7

D223 20WT/VT

SCI TRANSMIT

8

-

-

9

D16 20WT/OR

SCI RECEIVE (TCM)

10

-

-

11

-

-

12

D118 20LG/WT

SCI RECEIVE

13

-

-

14

D71 20WT/DB

CAN C DIAGNOSTIC (-)

15

D15 20BR/WT

SCI TRANSMIT (TCM)

16

A108 20LG/RD

FUSED B(+)

DIODE - 2 WAY

CAV

CIRCUIT

FUNCTION

1

F942 20PK/LG

FUSED IGNITION SWITCH OUTPUT (RUN-START)

2

F945 20PK/LG

FUSED IGNITION SWITCH OUTPUT (RUN-START)

DIODE-ZENER NO. 1 - 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z387 18BK

GROUND

2

A15 16RD/TN

FUSED ASD RELAY OUTPUT

DIODE-ZENER NO. 2 - 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z387 18BK

GROUND

2

A109 16OR/RD

FUEL PUMP RELAY OUTPUT

8W - 80 - 48

8W-80 CONNECTOR PIN-OUTS

WK

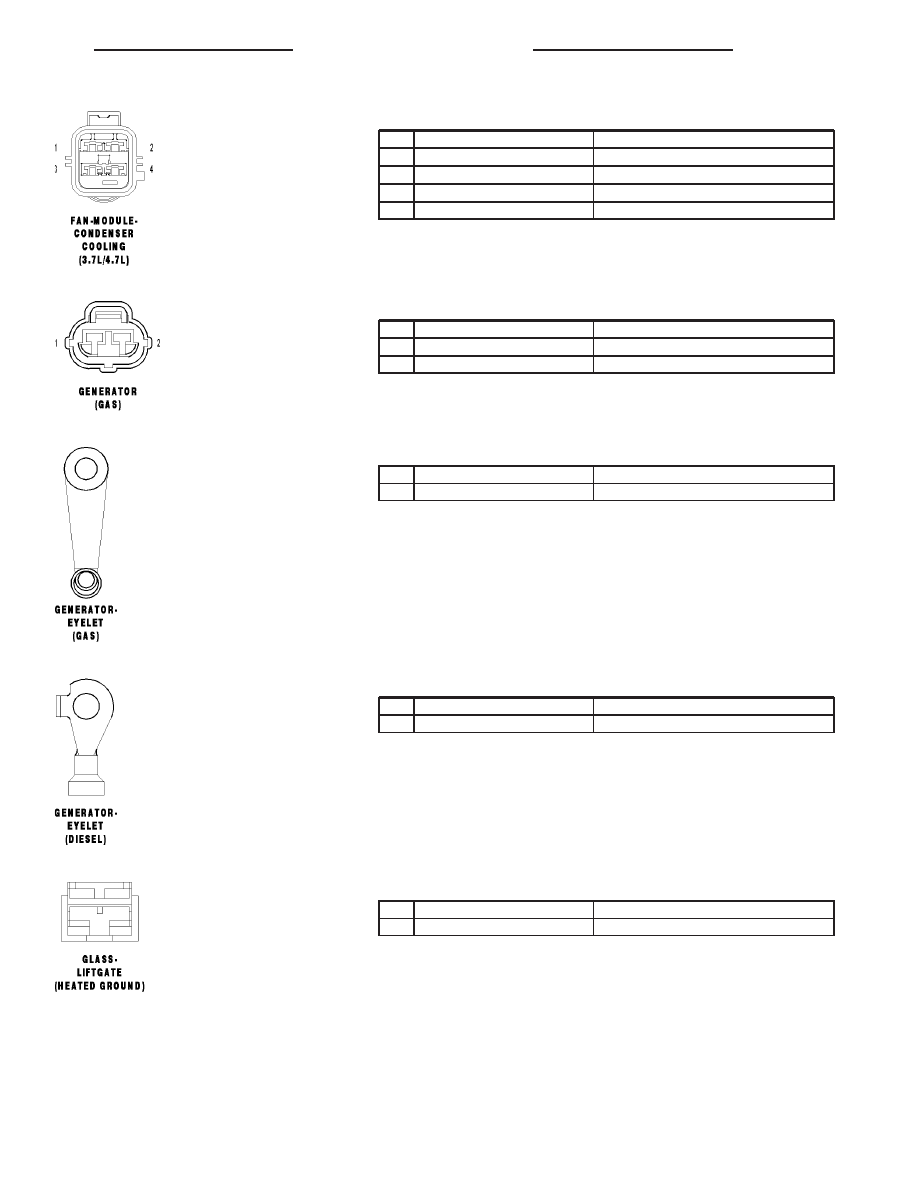

FAN MODULE-CONDENSER COOLING (3.7L/4.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

N24 10DG/DB

LOW SPEED RADIATOR FAN RELAY OUTPUT

2

Z823 12BK/DG

GROUND

3

N23 10DB/DG

HIGH SPEED RADIATOR FAN RELAY OUTPUT

4

-

-

GENERATOR (GAS) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K125 16BR/DG

GEN FIELD CONTROL

2

Z385 18BK

GROUND

GENERATOR-EYELET (GAS) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

A11 06BR/RD

FUSED B(+)

GENERATOR-EYELET (DIESEL) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

A11 04BR/RD

FUSED B(+)

GLASS-LIFTGATE (HEATED GROUND) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

Z800 12BK

GROUND

WK

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 49

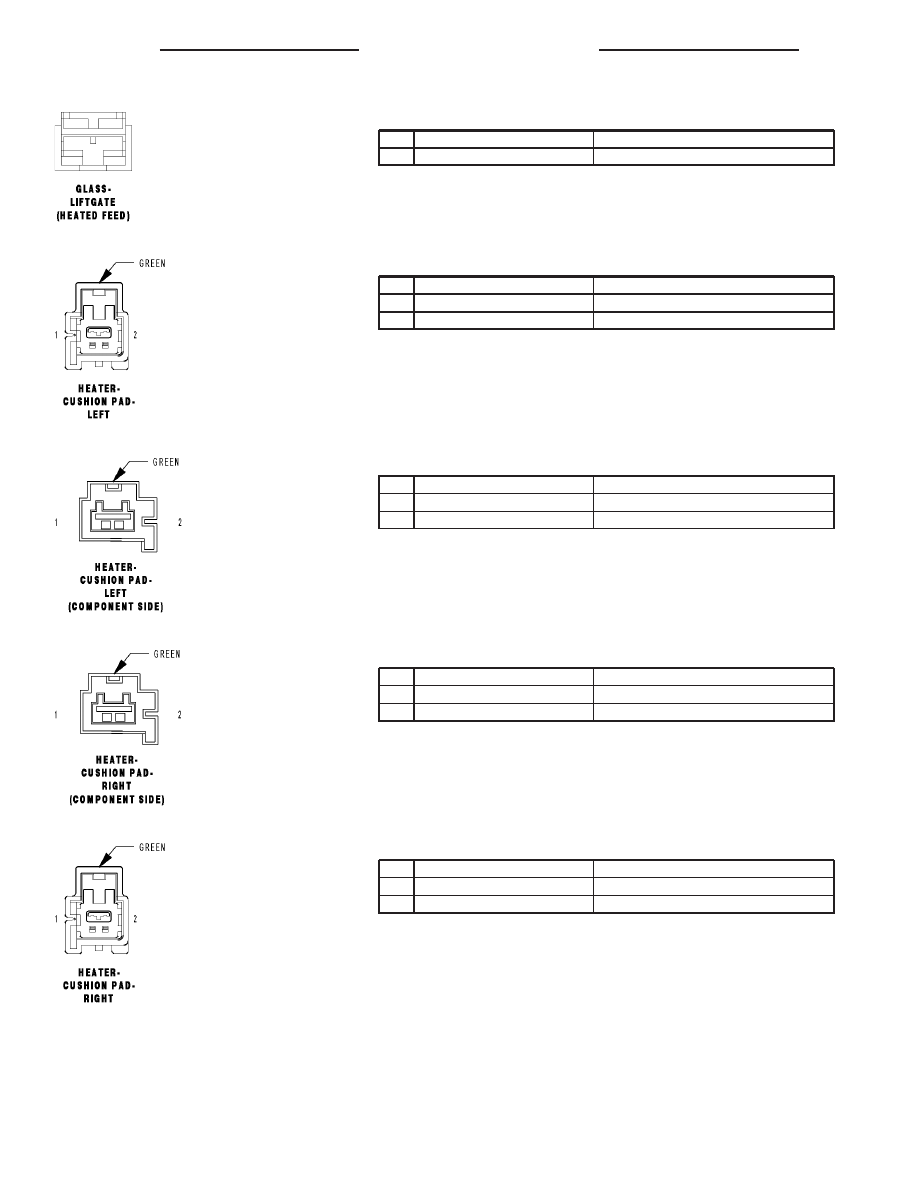

GLASS-LIFTGATE (HEATED FEED) - 1 WAY

CAV

CIRCUIT

FUNCTION

1

C515 12BK

REAR WINDOW DEFOGGER RELAY OUTPUT

HEATER-CUSHION PAD-LEFT - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

P187 16LG/BR

LEFT SEAT HEATER B(+) DRIVER

2

Z911 16BK

GROUND

HEATER-CUSHION PAD-LEFT (COMPONENT SIDE) - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

18YL

LEFT SEAT HEATER B(+) DRIVER

2

18YL

GROUND

HEATER-CUSHION PAD-RIGHT (COMPONENT SIDE) - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

18YL

RIGHT SEAT HEATER B(+) DRIVER

2

18YL

GROUND

HEATER-CUSHION PAD-RIGHT - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

P188 16LG/VT

RIGHT SEAT HEATER B(+) DRIVER

2

Z909 16BK

GROUND

8W - 80 - 50

8W-80 CONNECTOR PIN-OUTS

WK

HEATER-SEAT BACK-LEFT (COMPONENT SIDE) - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

18BK

GROUND

2

18LG/RD

LEFT SEAT HEATER B(+) DRIVER

HEATER-SEAT BACK-LEFT - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

P187 16LG/BR

LEFT SEAT HEATER B(+) DRIVER

2

Z911 16BK

GROUND

HEATER-SEAT BACK-RIGHT (COMPONENT SIDE) - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

18BK

GROUND

2

18LG/RD

RIGHT SEAT HEATER B(+) DRIVER

HEATER-SEAT BACK-RIGHT - GREEN 2 WAY

CAV

CIRCUIT

FUNCTION

1

P188 16LG/VT

RIGHT SEAT HEATER B(+) DRIVER

2

Z909 16BK

GROUND

HORN-NO. 1 - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

Z384 18BK

GROUND

2

X2 18DG/OR

HORN RELAY OUTPUT

WK

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 51
