OPERATION

The front wiper blades are moved back and forth across the glass by the front wiper arms when the wipers are
being operated. The wiper blade superstructure is the flexible frame that grips the wiper blade element and evenly
distributes the force of the spring-loaded wiper arm along the length of the element. The combination of the wiper
arm force and the flexibility of the superstructure makes the element conform to and maintain proper contact with
the glass, even as the blade is moved over the varied curvature that may be encountered across the glass surface.
The wiper element flexor provides the claws of the blade superstructure with a rigid, yet flexible component on the
element which can be gripped. The rubber element is designed to be stiff enough to maintain an even cleaning
edge as it is drawn across the glass, yet resilient enough to conform to the glass surface and flip from one cleaning
edge to the other each time the wiper blade changes directions.

REMOVAL

NOTE: The notched end of the wiper element
flexor should always be oriented towards the end
of the wiper blade that is nearest to the wiper
pivot.

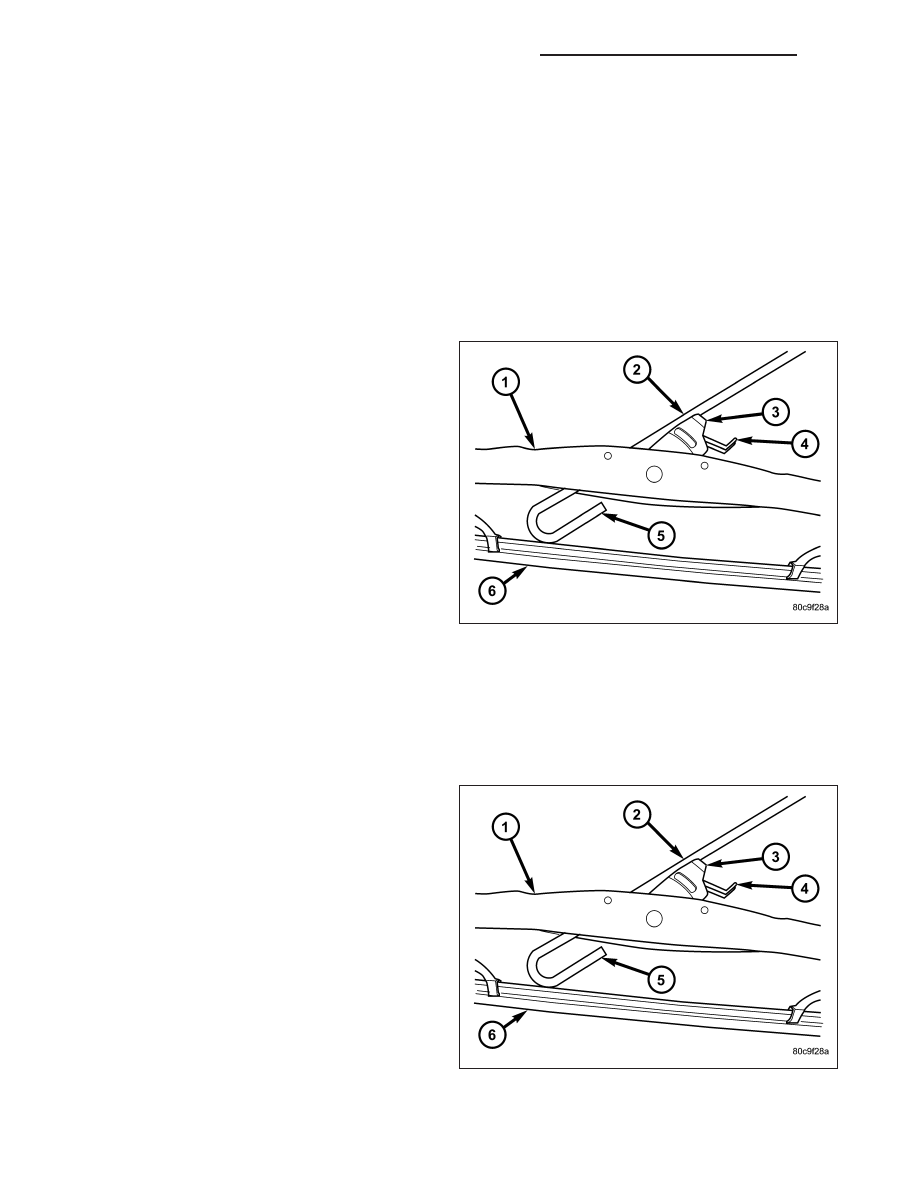

1. Lift the front wiper arm (2) to raise the superstruc-

ture (1) and element (6) off of the glass, until the
wiper arm hinge is in its over-center position.

2. Depress the release tab (4) and slide the super-

structure away from the tip of the wiper arm until
the pivot block (3) is disengaged from the hook (5)
on the end of the wiper arm.

CAUTION: Do not allow the wiper arm to spring
back against the glass without the wiper blade in
place or the glass may be damaged.

3. Extract the hook of the wiper arm from the opening in the wiper blade superstructure and remove the wiper blade

and.

4. Gently lower the tip of the wiper arm back onto the windshield glass.

INSTALLATION

NOTE: The notched end of the wiper element
flexor should always be oriented towards the end
of the wiper blade that is nearest to the wiper
pivot.

1. Lift the front wiper arm (2) off of the windshield

glass, until the wiper arm hinge is in its over-center
position.

2. Position the front wiper blade near the hook (5)

located on the tip of the wiper arm with the notched
end of the wiper element (6) oriented towards the
end of the arm that is nearest to the wiper pivot.

3. Insert the wiper arm hook through the opening in

the wiper blade superstructure (1) ahead of the
pivot block (3) far enough to engage the pivot block
with the hook.

4. Slide the pivot block up into the hook until the latch release tab (4) snaps into the locked position. Latch engage-

ment will be accompanied by an audible click.

8R - 42

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

5. Gently lower the wiper blade onto the windshield glass.

FRONT WIPER MODULE

DESCRIPTION

The front wiper module is secured to the cowl plenum
panel beneath the cowl plenum cover/grille panel. The
ends of the wiper pivot shafts protrude through dedi-
cated openings in the cowl plenum cover/grille panel
to drive the wiper arms and blades and are the only
visible components of the front wiper module.

The front wiper module consists of the following major components:

Bracket - The front wiper module bracket (1) consists of a long tubular steel main member that has a stamped
pivot bracket formation near each end where the two wiper pivots (2) are secured. The front wiper module
bracket is secured with three bolts through rubber insulators (3). A stamped steel mounting plate (6) for the
wiper motor (4) is secured with welds near the center of the main member.

Crank Arm - The front wiper motor crank arm (5) is a stamped steel unit with a slotted hole on the driven end
that is secured to the wiper motor output shaft with a nut, and a ball stud secured to the drive end.

Linkage - Two stamped steel drive links (7) connect the wiper motor crank arm to the wiper pivot lever arms
(8). The right side drive link has a plastic socket-type bushing on each end. The left side drive link has a
plastic socket-type bushing on one end, and a plastic sleeve-type bushing on the other end. The socket-type
bushing on one end of each drive link is snap-fit over the ball stud on the lever arm of its respective pivot. The
left side drive link sleeve-type bushing end is then fit over the motor crank arm ball stud, and the other socket-
type bushing of the right side drive link is snap-fit over the exposed end of the wiper motor crank arm ball stud.

Motor - The front wiper motor is secured with three bolts to the motor mounting plate near the center of the
wiper module bracket. The wiper motor output shaft passes through a hole in the module bracket, where a nut
secures the wiper motor crank arm to the motor output shaft. The two-speed permanent magnet wiper motor
features an integral transmission, an internal park switch, and an internal automatic resetting circuit breaker.

Pivots - The two front wiper pivots are secured to the ends of the wiper module bracket. The lever arms that
extend from the bottom of the pivot shafts each have a ball stud on their end. The upper end of each pivot
shaft where the wiper arms will be fastened each is tapered and serrated with a threaded stud formation at the
tip.

The front wiper module cannot be adjusted or repaired. If any component of the module is faulty or damaged, the
entire front wiper module unit must be replaced. The reinforcement bracket and stud plate are available for individ-
ual service replacement.

OPERATION

The front wiper module operation is controlled by the battery current inputs received by the wiper motor from the
wiper on/off and wiper high/low relays. The wiper motor speed is controlled by current flow to either the low speed
or the high speed set of brushes. The park switch is a single pole, single throw, momentary switch within the wiper

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 43

motor that is mechanically actuated by the wiper motor transmission components. The park switch alternately closes
the wiper park switch sense circuit to ground or to battery current, depending upon the position of the wipers on the
glass. This feature allows the motor to complete its current wipe cycle after the wiper system has been turned Off,
and to park the wiper blades in the lowest portion of the wipe pattern. The automatic resetting circuit breaker pro-
tects the motor from overloads. The wiper motor crank arm, the two wiper linkage members, and the two wiper
pivots mechanically convert the rotary output of the wiper motor to the back and forth wiping motion of the wiper
arms and blades on the glass.

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Remove both front wiper arms (Refer to 8 - ELEC-

TRICAL/FRONT

WIPERS/WASHERS/FRONT

WIPER ARMS - REMOVAL).

3. Remove the cowl plenum cover/grille panel (Refer

to

23

-

BODY/EXTERIOR/COWL

GRILLE

-

REMOVAL).

4. Remove the nut (1) and the two bolts (2) that

secure the front wiper module to the cowl plenum
panel.

5. Disconnect the wire harness connector (4) from the

front wiper motor (3).

6. Remove the front wiper module from the cowl

plenum.

INSTALLATION

1. Position the front wiper module to the cowl plenum

and connect the wire harness connector (4) to the
wiper motor (3).

2. Loosely install the one nut (1) and the two bolts (2)

that secure the front wiper module to the cowl ple-
num panel.

3. Working from left to right, tighten the two bolts and

one nut to 5 N·m (45 in. lbs.).

4. Install the cowl plenum cover/grille panel (Refer to

23 - BODY/EXTERIOR/COWL GRILLE - INSTAL-
LATION).

5. Install the front wiper arms (Refer to 8 - ELECTRI-

CAL/FRONT WIPERS/WASHERS/FRONT WIPER
ARMS - INSTALLATION).

6. Reconnect the negative battery cable.

8R - 44

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

RAIN SENSOR MODULE

DESCRIPTION

The rain sensor module is the primary component of
the automatic wiper system and is located on the
inside of the windshield, just to the right of the rear
view mirror mounting button.

Sliding cam locks (6) on each side of the sensor hous-
ing (5) (either side of the connector) secures the sen-
sor to the mounting bracket (2) which is bonded (1) to
the windshield glass. A small screwdriver can be used
to push in on the tabs until the slider protrudes from
the opposing side of the sensor housing. Concealed
within the sensor housing is the electronic circuitry of
the module, which includes four infrared diodes (3),
four photocells (4), and a microprocessor (7) and con-
nector wiring (10). The electronic circuity components
are held together by screws (8) and housing bezel (9).

The rain sensor software is Flash compatible, which
means it can be reprogrammed using Flash repro-
gramming procedures. However, if any of the hard-
ware of the sensor is damaged or faulty, the entire
rain sensor module must be replaced. The rain sensor
bracket is avalable for service replacement.

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 45
