Jeep Grand Cherokee WK. Manual - part 704

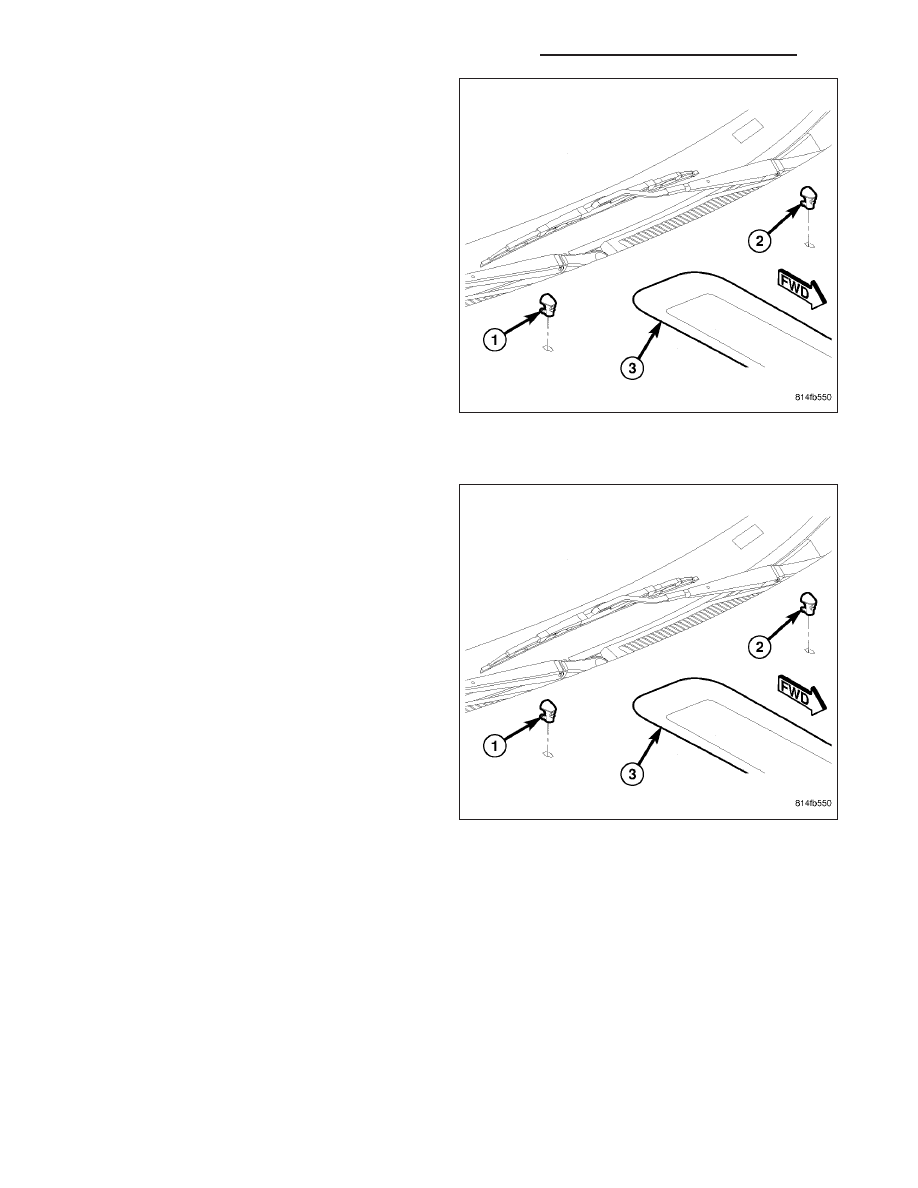

2. From the underside of the hood (3), release the

integral snap features of the front washer nozzles
(1 and 2) and push the nozzles out through the
mounting hole toward the top side of the hood as
required.

INSTALLATION

1. From the top of the hood (3) , position the nipple

end of the front washer nozzles (1 and 2) through
the mounting hole as required and engage the anti-
rotation tab of the nipple into the anti-rotation notch
in the mounting hole.

2. Push firmly and evenly on the top of the front

washer nozzle until the integral snap features lock
into place on the underside of the hood.

8R - 38

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

3. From the underside of the hood (4), reconnect the

washer hose (1) to the barbed nipple of the front
washer nozzles (2 and 3) as required.

FRONT WIPER ARM

DESCRIPTION

The front wiper arms are the rigid members located
between the wiper pivots that protrude from the cowl
plenum cover/grille panel near the base of the wind-
shield and the wiper blades on the windshield glass.
These wiper arms feature an over-center hinge (6)
that allows easy access to the windshield glass for
cleaning. The wiper arm has a die cast metal pivot
end (4) with a large tapered mounting hole (5) at one
end. A molded black plastic cap fits over the wiper
arm retaining nut to conceal the nut and this mounting
hole following wiper arm installation.

The wide end of a tapered, stamped steel channel (3)
hinges on and is secured with a hinge pin to the blade
end of the wiper arm pivot end. One end of a long,
rigid, stamped steel strap (2), with a small hole near
its pivot end, is riveted and crimped within the narrow
end of the stamped steel channel. The tip of the wiper
blade end of this strap is bent back under itself to form a small hook (1). Concealed within the stamped steel chan-
nel is a long tension spring (7) which is engaged with a wire hook to the underside of the die cast pivot end and is
hooked through a small hole in the steel strap. The entire wiper arm has a satin black finish applied to all of its
visible surfaces.

A wiper arm cannot be adjusted or repaired and, if faulty or damaged, it must be replaced.

OPERATION

The front wiper arms are designed to mechanically transmit the motion from the wiper pivots to the wiper blades.
The wiper arm must be properly indexed to the wiper pivot in order to maintain the proper wiper blade travel on the
glass. The tapered mounting hole in the wiper arm pivot end interlocks with the serrations on the tapered outer
circumference of the wiper pivot shaft, allowing positive engagement and finite adjustment of this connection. The
mounting nut locks the wiper arm to the threaded stud of the wiper pivot shaft. The spring-loaded wiper arm hinge
controls the down-force applied through the tip of the wiper arm to the wiper blade on the glass. The hook formation
on the tip of the wiper arm provides a cradle for securing and latching the wiper blade pivot block to the wiper arm.

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 39

REMOVAL

1. Lift the front wiper arm (1) to its over-center posi-

tion to relieve the spring tension on the wiper pivot
shaft connection.

2. Using a trim stick C-4755 or equivalent, carefully

pry off the plastic cap (2) from the pivot end of the
wiper arm.

3. Remove the nut (3) that secures the wiper arm to

the wiper pivot shaft (4).

4. If necessary, use a suitable battery terminal puller

(3) to disengage the wiper arm (1) from the wiper
pivot shaft (2).

5. Disengage the front wiper arm pivot from the wiper

pivot shaft and remove the front wiper arm.

8R - 40

FRONT WIPERS/WASHERS - SERVICE INFORMATION

WK

INSTALLATION

NOTE: Be certain that the wiper motor is in the
park position before attempting to install the front
wiper arms. Turn the ignition switch to the On
position and move the right (wiper) multi-function
switch control knob to its Off position. If the wiper
pivots move, wait until they stop moving, then
turn the ignition switch back to the Off position.
The wiper motor is now in its park position.

1. The front wiper arms (1) must be indexed to the

wiper pivot shafts (4) with the wiper motor in the
park position to be properly installed. Position the
front wiper arm pivot ends onto the wiper pivot
shafts so that the lower edge of the blade is
aligned with the wiper alignment lines (5) as shown
in the illustration.

2. Once the wiper blade is aligned, lift the wiper arm away from the windshield slightly to relieve the spring tension

on the pivot end and push the pivot hole on the end of the wiper arm down firmly and evenly over the wiper pivot
shaft.

3. Install the nut (3) that secures the wiper arm to the wiper pivot shaft. Tighten the nut to 22 N·m (16 ft. lbs.).

4. Wet the windshield glass, then operate the front wipers. Turn the front wipers Off, then check for the correct

wiper arm position and readjust as required.

5. Install the plastic cap (2) onto the wiper arm pivot.

FRONT WIPER BLADE

DESCRIPTION

Each front wiper blade is secured by an integral pivot
pin (5) and a pivot block (3) with a release tab (4) to
the hook formation on the tip of the front wiper arms.
The front wiper blades rest on the glass near the base
of the windshield when the wipers are not in opera-
tion. Each wiper blade consists of the following com-
ponents:

Superstructure - The superstructure (1) includes
several stamped steel bridges and links with
claw formations that grip the wiper blade element
(2). Also included in this unit is the latching,
molded plastic pivot block that secures the
superstructure to the wiper arm.

Element - The wiper blade element is the resil-
ient rubber member of the wiper blade that con-
tacts the glass

Flexor - The flexor (7) is a rigid metal component running along the length of each side of the wiper element
where it is gripped by the claws (6) of the superstructure.

All Grand Cherokee models have two 52.50 centimeter (20.67 inch) long windshield wiper blades with non-replace-
able rubber elements (squeegees). The wiper blades cannot be adjusted or repaired and, if faulty, worn, or dam-
aged, the entire wiper blade unit must be replaced.

WK

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 41
