Jeep Grand Cherokee WK. Manual - part 477





B1839–PASSENGER DOORS UNLOCK CONTROL CIRCUIT LOW– CLUSTER (CONTINUED)

For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Cluster senses a low condition on the (P292) Passenger Doors Unlock Relay Control circuit for over
10 seconds, this code will set.

Possible Causes

(P292) PASSENGER DOORS UNLOCK RELAY CONTROL CIRCUIT SHORT TO GROUND

JUNCTION BLOCK

INSTRUMENT CLUSTER

Theory of Operation

If the (P292) Door Unlock Relay Control circuit has been shorted to ground for any length of time, the door latch
solenoids will probably be damaged. Check the door latches after the short is repaired..

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Operate the door locks several times.

Cycle the ignition from on to off.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display PASSENGER DOORS UNLOCK CONTROL CIRCUIT LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

8N - 68

POWER LOCKS - ELECTRICAL DIAGNOSTICS

WK

B1839–PASSENGER DOORS UNLOCK CONTROL CIRCUIT LOW– CLUSTER (CONTINUED)

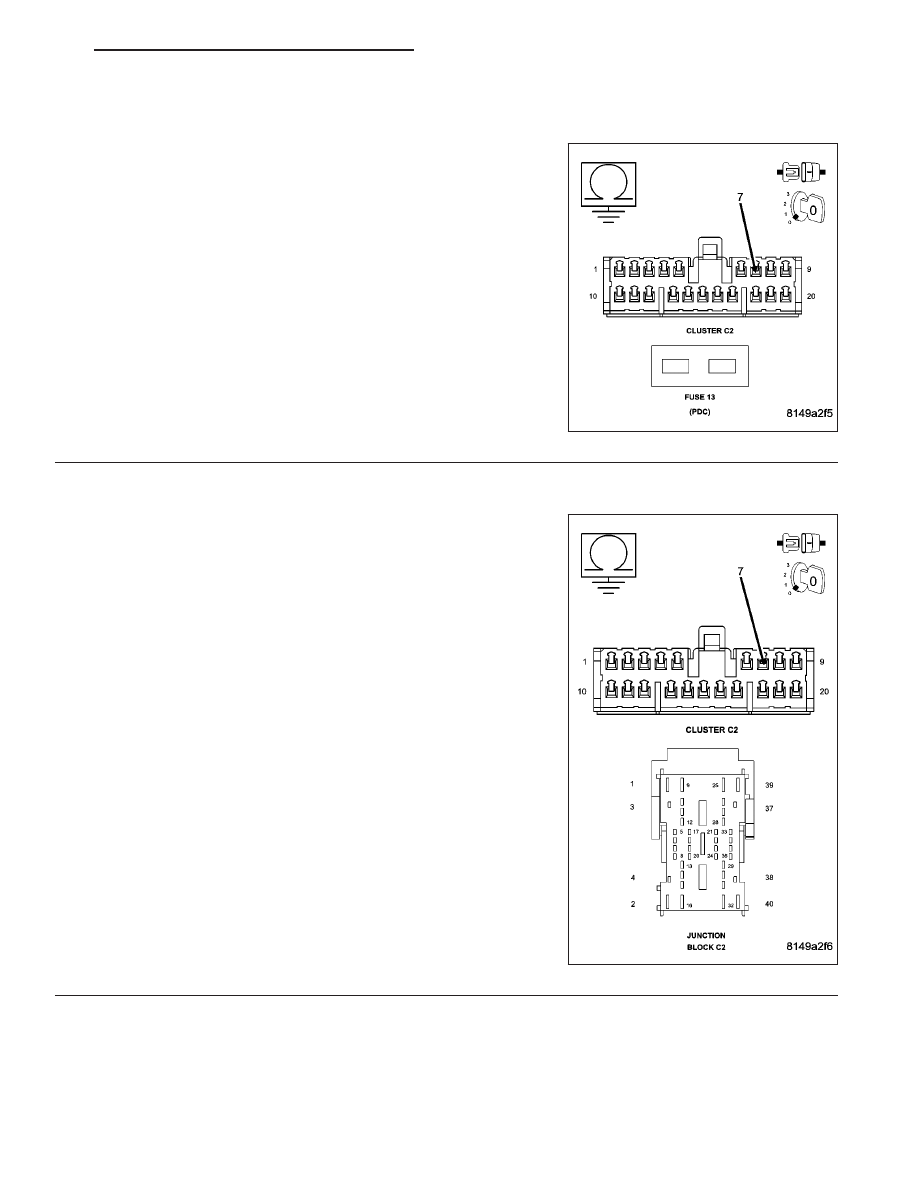

2.

DOOR UNLOCK RELAY SHORTED

Turn the ignition off.

Remove the PDC fuse #13.

Disconnect the Cluster C2 connector.

Measure the resistance between ground and the (P292) Door Unlock
Relay Control circuit in the Cluster C2 connector

Is the resistance below 10000.0 ohms?

No

>> Replace the Instrument Cluster in accordance with service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

Yes

>> Go To 3

3.

(P292) DOOR UNLOCK RELAY CONTROL CIRCUIT SHORT TO GROUND

Disconnect the Junction Block C2 connector (on top of junction block).

Measure the resistance between ground and the (P292) Door Unlock
Relay Control circuit in the Cluster C2 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (P292) Door Unlock Relay Control circuit for a

short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Replace the Junction Block in accordance with service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

WK

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 69

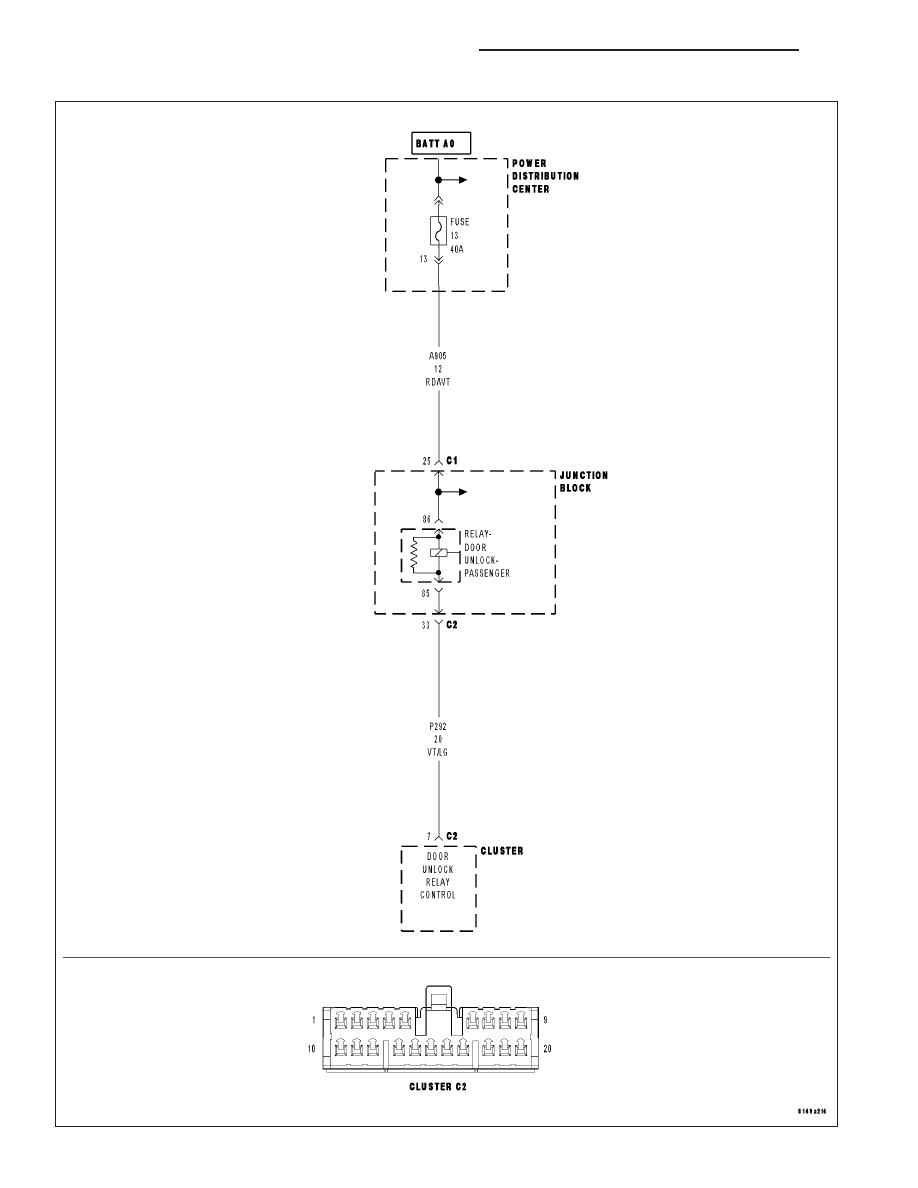

B183A–PASSENGER DOORS UNLOCK CONTROL CIRCUIT HIGH– CLUSTER

8N - 70

POWER LOCKS - ELECTRICAL DIAGNOSTICS

WK

B183A–PASSENGER DOORS UNLOCK CONTROL CIRCUIT HIGH– CLUSTER (CONTINUED)

For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Cluster senses a high condition on the (P292) Door Unlock Relay Control circuit for over 10 sec-
onds, this code will set.

Possible Causes

(P292) DOOR UNLOCK RELAY CONTROL CIRCUIT SHORT TO BATTERY

JUNCTION BLOCK

INSTRUMENT CLUSTER

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s.

Operate the door locks several times.

Cycle the ignition from on to off.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display PASSENGER DOORS UNLOCK CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

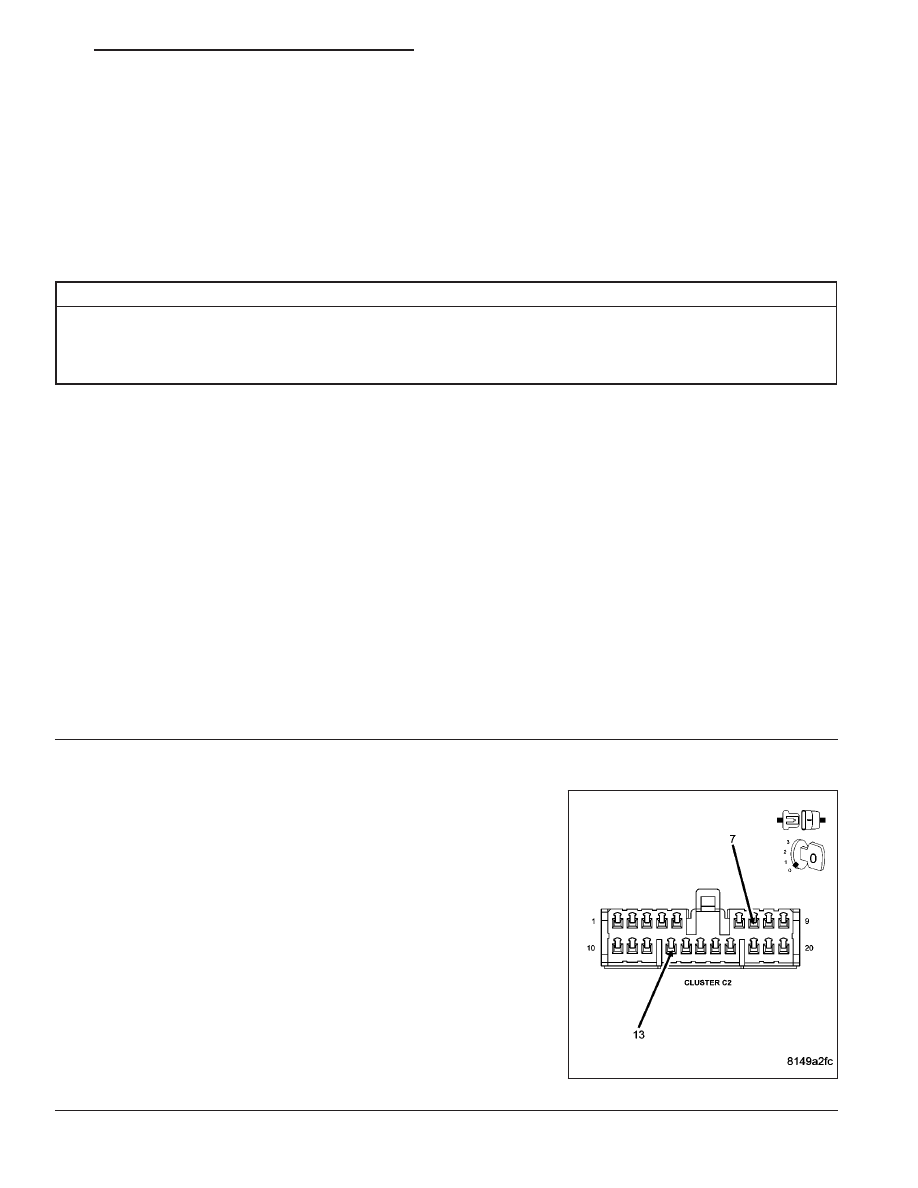

2.

DOOR UNLOCK RELAY SHORTED TO BATTERY

NOTE: Ensure the windows are down before proceeding.
Turn the ignition off.

Lock the all doors.

Disconnect the Cluster C2 connector.

Momentarily connect a jumper wire between the (P292) Door Unlock
Relay Control circuit and the (Z905) Ground circuit in the Cluster C2
connector.

Did the doors unlock?

Yes

>> Replace the Instrument Cluster in accordance with service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE)

No

>> Go To 3

WK

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 71
