2. Connect the new heating element electrical con-

nectors (3&4).

3. Connect the battery negative cable.

4. Verify heated seat system operation.

5. Install the appropriate seat cushion, (Refer to 23 -

BODY/SEATS/SEAT CUSHION COVER - INSTAL-
LATION) or seat back trim cover, (Refer to 23 -
BODY/SEATS/SEAT BACK CUSHION / COVER -
INSTALLATION).

NOTE: Make certain the seat wire harness is cor-
rectly routed through the seat and seat back. The
excess wire between the cushion and back ele-
ments should be securely tucked between the rear
of the cushion foam and the rear carpet flap of the
trim cover.

MODULE-HEATED SEATS

DESCRIPTION

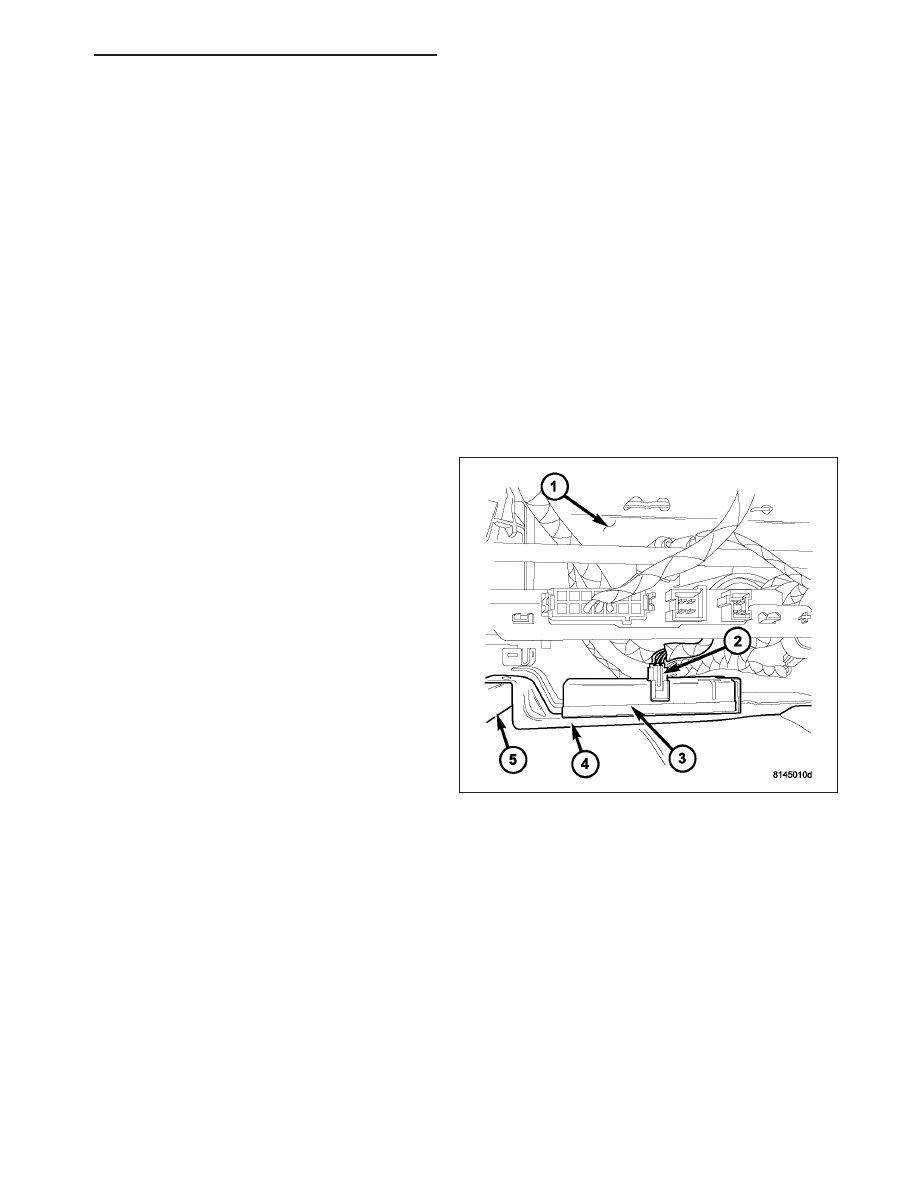

The heated seat module (3) is located under the right
front seat (1). It has a single electrical connector (2)
and four locking tabs that secure it to the mounting
bracket (4). The module can be accessed from under
the front right seat with the seat in the full back posi-
tion. The mounting bracket (4) is bolted to the seat
frame assembly (5)

The heated seat module is a microprocessor designed
to use Controller Area Network (CAN) data bus mes-
sages from the instrument cluster also known as the
Cabin Compartment Node (CCN). The CCN receives
inputs from the heated seat switches and in turn sig-
nals the heated seat module to operate the heated
seat elements for both front seats.

OPERATION

The heated seat module operates on fused battery current received from the ignition switch. The module is
grounded to the body at all times through the electrical connector. Inputs to the module include Controller Area
Network (CAN) data bus messages and standard hardwired 12volt power and ground. In response to the CAN
inputs the heated seat module will control the battery current to the appropriate heated seat elements.

When a heated seat switch CAN data bus signal is received by the heated seat module, the module energizes the
selected heated seat element. The Low heat set point is about 38C (100.4°F), and the High heat set point is about
42C (107.6°F).

8G - 62

HEATED SEATS - SERVICE INFORMATION

WK

If the heated seat module detects a heated seat element OPEN or SHORT circuit, it will record and store the appro-
priate diagnostic trouble code (DTC).

DIAGNOSIS AND TESTING

HEATED SEAT MODULE

In order to obtain conclusive testing, the heated seat system and the Controller Area Network (CAN) data bus circuit
must be checked. Any diagnosis of the heated seat system should begin with, the use of a scan tool and the
appropriate diagnostic service information.

Refer to the appropriate wiring information for complete circuit schematic or connector pin-out information.

NOTE: Vehicles equipped with the heated seat option utilize a low voltage cut-off feature. This feature turns
off power to the heated seat system anytime vehicle voltage is below 11.7v or above 15.5v. Be certain to
check the vehicle electrical system for proper voltage anytime the power seat system appears inoperative.

Before any testing of the heated seat system is attempted, the battery should be fully-charged.

REMOVAL

CAUTION: The Heated Seat Module mounting tabs
can be damaged during module removal and
installation. Use care to properly align tabs to pre-
vent binding that could result in tab breakage.

1. Position the right front seat to the full rearward

position.

2. Disconnect and isolate the battery negative cable.

3. Disconnect the wire harness connector (2) from the

heated seat module (3).

4. Unsnap the heated seat module retaining clips

from the mounting bracket (4).

5. Remove the heated seat module (3) from the

vehicle.

WK

HEATED SEATS - SERVICE INFORMATION

8G - 63

INSTALLATION

CAUTION: The Heated Seat Module mounting tabs
can be damaged during module removal and
installation. Use care to properly align tabs to pre-
vent binding that could result in tab breakage.

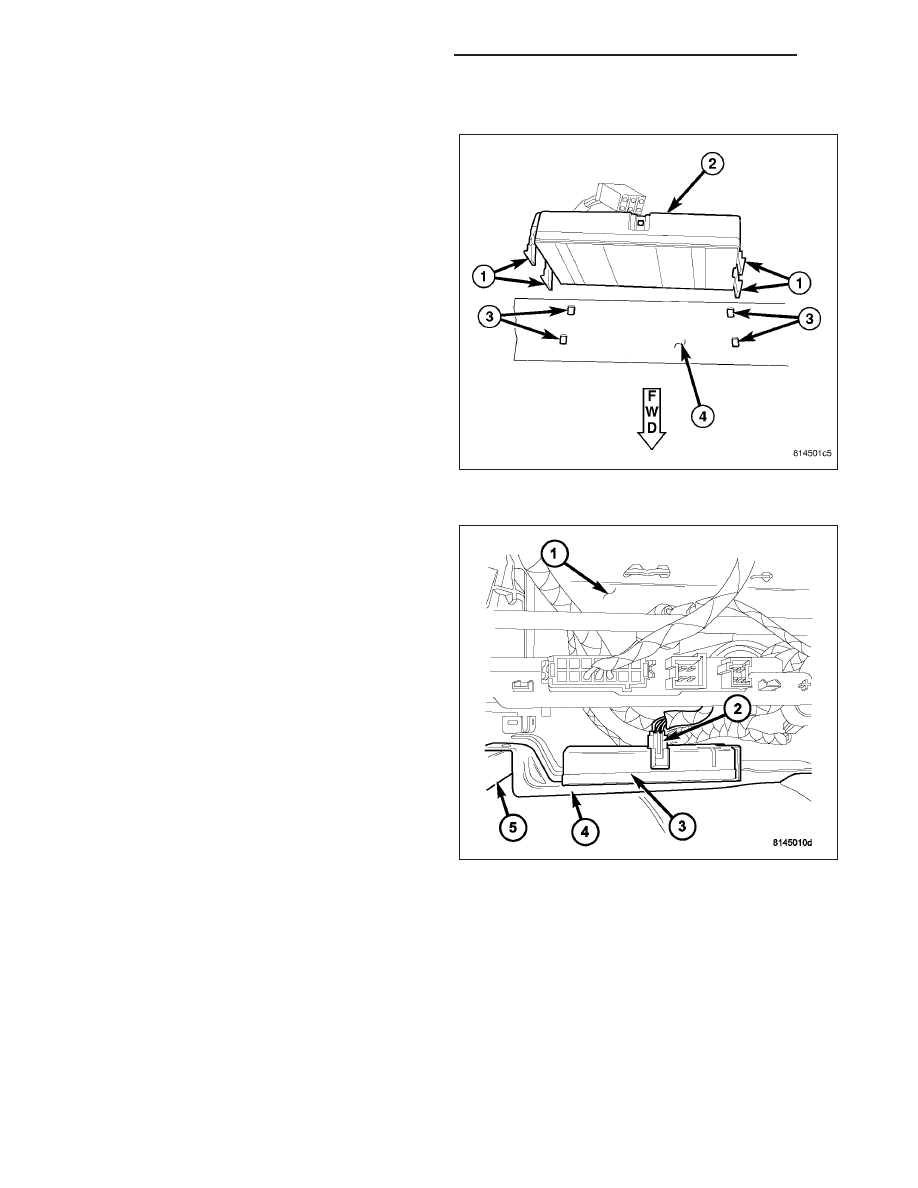

1. Install the heated seat module (2) into the vehicle.

2. Position the retaining clips (1) with the retaining

holes (3) in the mounting bracket (4). Firmly apply
even pressure to the module (2) until all four retain-
ing clips (1) snap into place.

3. Connect the wire harness connector (2) to the

heated seat module (3).

4. Connect the battery negative cable.

5. Check for proper heated seat system operation.

8G - 64

HEATED SEATS - SERVICE INFORMATION

WK

SWITCH-HEATED SEAT

DESCRIPTION

The heated seat switches are both mounted in the
instrument panel. The two switches are part of the
lower instrument panel switch pod assembly. If either
of the switches is damaged or inoperative the com-
plete switch pod assembly must be replaced.

Each heated seat switch provides a resistor-multi-
plexed signal to the Cab Compartment Node (CCN).
Amber Light Emitting Diodes (LEDS) in the top portion
of each switch indicate the level of heat in use: Two
LEDs are illuminated for high, one for low, and none
for off. Pressing the switch once will select high-level
heating. Pressing the switch a second time will select
low-level heating. Pressing the switch a third time will
shut the heating elements off.

The LED indicator lamps in each heated seat switch cannot be repaired. If the LED lamps are inoperative or dam-
aged, or the switch is inoperative or damaged the complete switch pod assembly must be replaced.

OPERATION

The heated seat switches receive battery current through a fused ignition switch output (run) circuit when the igni-
tion switch is in the On position. Depressing the heated seat switch provides a hard-wired resistor multiplexed signal
to the Cabin Compartment Node (CCN). The CCN is responsible for supplying the Controller Area Network (CAN)
data bus message to the heated seat module, signaling the module to power the heated seat element of the
selected seat and maintain the temperature setting.

If the heated seat switch is depressed to a different position (Low or High) than the currently selected state, the
CCN will go through the process again to change the temperature setting. If a heated seat switch is depressed a
second time to the same position as the currently selected state, the CCN and heated seat module interprets the
second input as a request to turn the seat heater OFF. The CCN will then signal the heated seat module to turn the
heated seat elements for that seat off.

DIAGNOSIS AND TESTING

HEATED SEAT SWITCH

In order to obtain conclusive testing, the heated seat system and the Controller Area Network (CAN) data bus circuit
must be checked. Any diagnosis of the heated seat system should begin with, the use of a scan tool and the
appropriate diagnostic service information.

Refer to the appropriate wiring information for complete circuit schematic or connector pin-out information.

NOTE: Vehicles equipped with the heated seat option utilize a low voltage cut-off feature. This feature turns
off power to the heated seat system anytime vehicle voltage is below 11.0v or above 15.5v. Be certain to
check the vehicle electrical system for proper voltage anytime the power seat system appears inoperative.

Before any testing of the heated seat system is attempted, the battery should be fully-charged.

WK

HEATED SEATS - SERVICE INFORMATION

8G - 65
