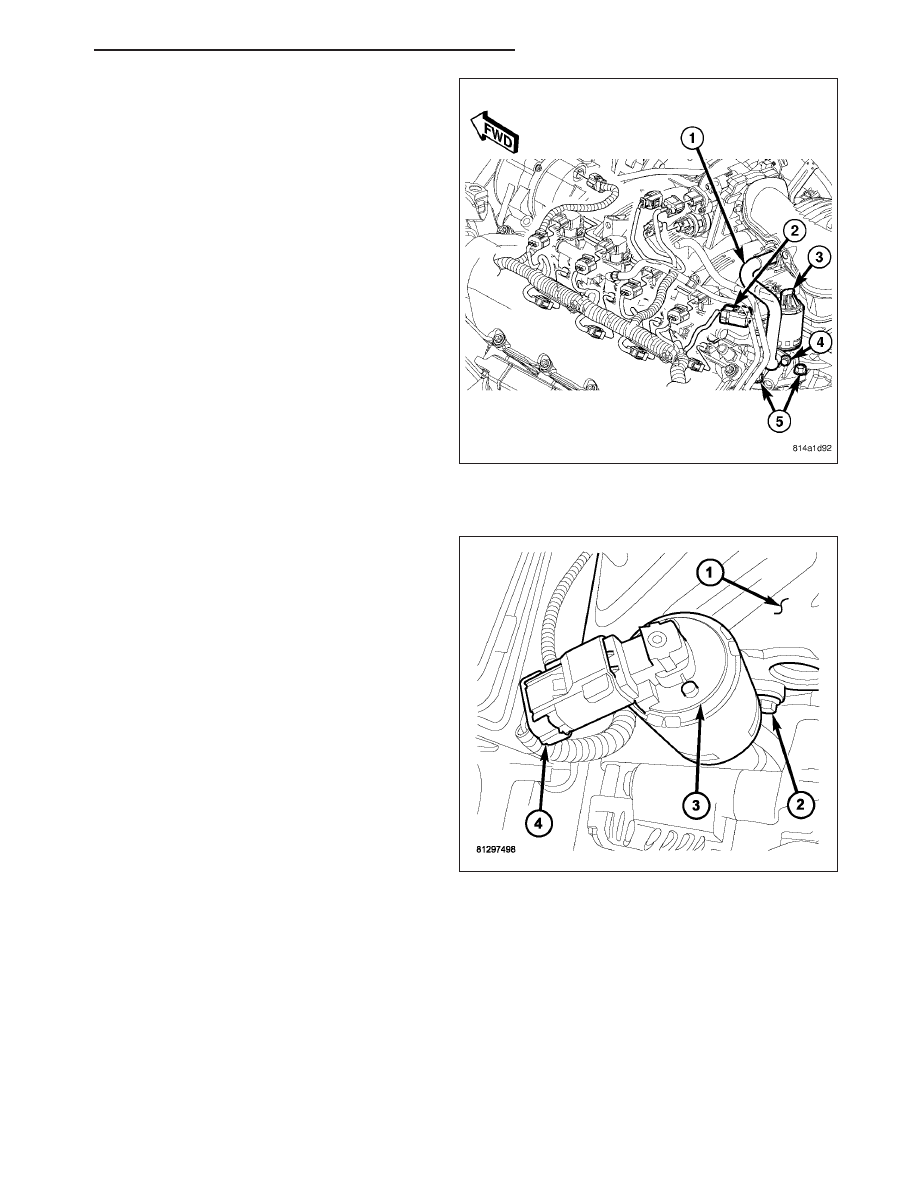

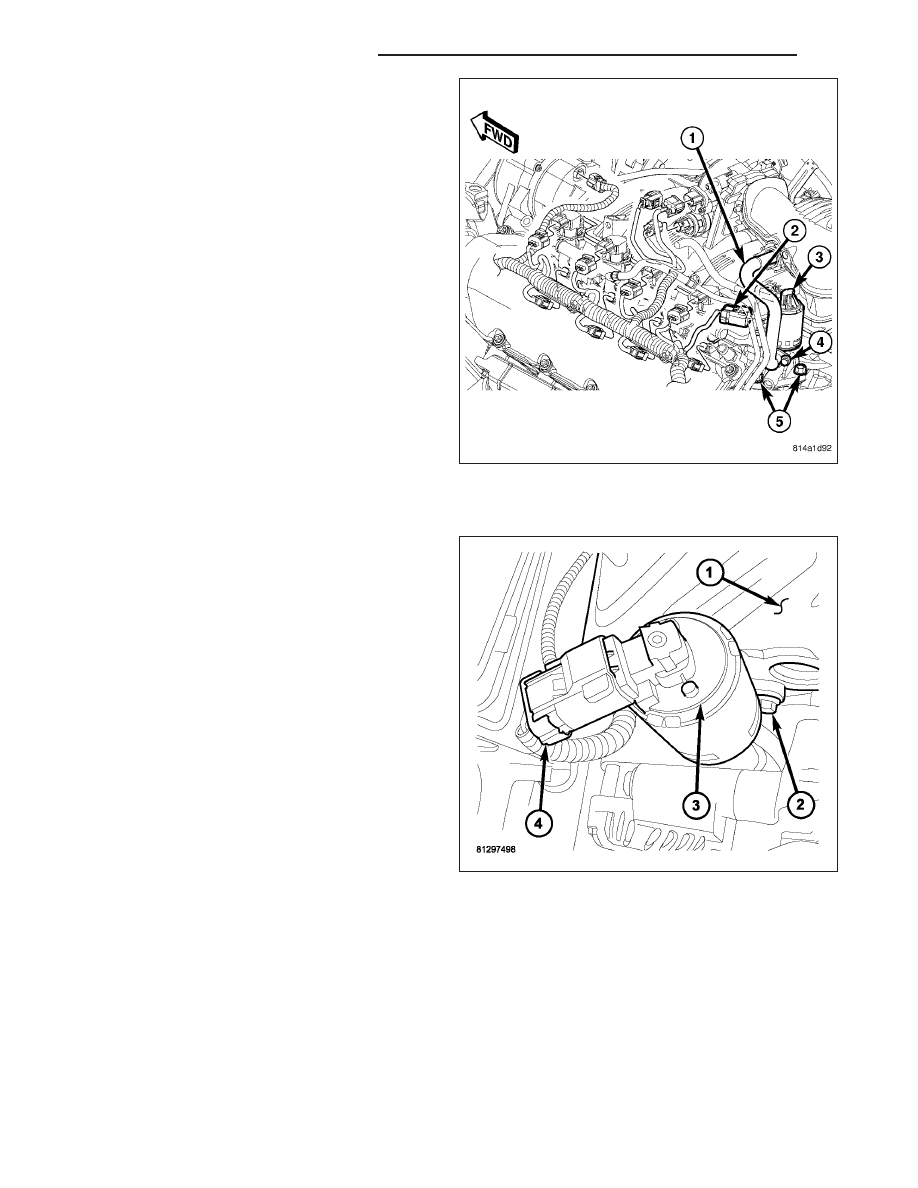

3. Remove two bolts (4) connecting EGR tube (1) to

valve assembly.

4. Remove gasket located between EGR tube flange

and EGR valve assembly.

5. Remove two EGR valve mounting bolts (5).

6. Separate valve assembly (3) from engine.

7. Remove and discard metal gasket located between

cylinder head and valve assembly.

5.7L Engine

The electronic EGR valve and solenoid assembly (3)
is attached to the front of the right cylinder head (1).
An exhaust gas routing tube connects the EGR valve
to the intake manifold.

25 - 32

EXHAUST GAS RECIRCULATION

WK

1. Disconnect electrical connector (1) from EGR sole-

noid (2).

2. Remove two bolts (3) connecting EGR tube (4) to

valve assembly.

3. Remove gasket located between EGR tube flange

and EGR valve assembly.

4. Remove two mounting bolts (2).

5. Separate valve assembly (3) from cylinder head

(1).

6. Remove and discard metal gasket located between

cylinder head and valve assembly.

WK

EXHAUST GAS RECIRCULATION

25 - 33

INSTALLATION

4.7L Engine

1. Clean area at rear of left cylinder head where it

joins base of EGR valve.

2. Clean EGR tube where it joins EGR valve.

3. Position new gasket between EGR valve and cylin-

der head.

4. Position EGR valve to cylinder head. Install and

tighten two bolts (5). Refer to Torque Specifica-
tions.

5. Position new gasket between EGR tube flange and

EGR valve assembly.

6. Position EGR tube (1) to side of EGR valve and

into intake manifold. Install two bolts (4) finger tight
(temporarily).

7. Install EGR tube flange bolt (1) at intake manifold.

Tighten bolt. Refer to Torque Specifications.

8. Connect electrical connector (5) to top of EGR

valve solenoid (2).

25 - 34

EXHAUST GAS RECIRCULATION

WK

9. Do a final tightening of two EGR tube bolts (4).

Refer to Torque Specifications.

5.7L Engine

1. Position a new metal gasket between cylinder head

(1) and valve assembly (3).

2. Install two mounting bolts (2) and tighten. Refer to

Torque Specifications.

WK

EXHAUST GAS RECIRCULATION

25 - 35
