Jeep Grand Cherokee WK. Manual - part 1709





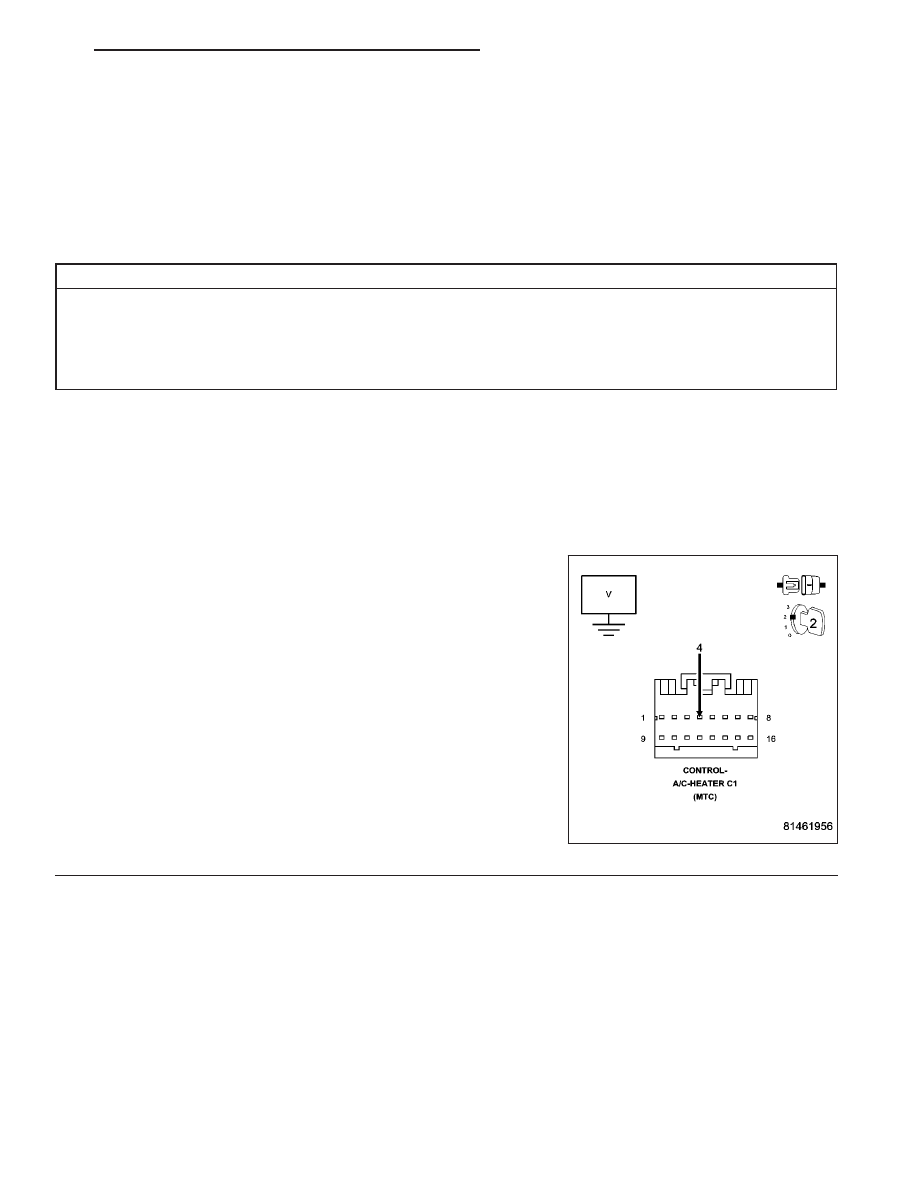

74–AC REQUEST OUTPUT SIGNAL TOO LOW (MTC)

24 - 184

HVAC - ELECTRICAL DIAGNOSTICS

WK

74–AC REQUEST OUTPUT SIGNAL TOO LOW (MTC) (CONTINUED)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the A/C Heater Control detects voltage below 1.51 volts on the (C221) A/C Switch Sense circuit.

Possible Causes

(C221) A/C SWITCH SENSE CIRCUIT SHORTED TO GROUND

(C221) A/C SWITCH SENSE CIRCUIT OPEN

INSTRUMENT CLUSTER (CCN)

A/C HEATER CONTROL

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures.

Diagnostic Test

1.

CHECK (C221) A/C SWITCH SENSE CIRCUIT VOLTAGE AT A/C HEATER CONTROL C1 HARNESS
CONNECTOR

Turn the ignition off.

Disconnect the A/C Heater Control C1 harness connector.

Turn the ignition on.

Measure the voltage of the (C221) A/C Switch Sense circuit.

Is the voltage below 4.8 volts?

Yes

>> Go To 2

No

>> Replace the A/C Heater Control in accordance with the

Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 185

74–AC REQUEST OUTPUT SIGNAL TOO LOW (MTC) (CONTINUED)

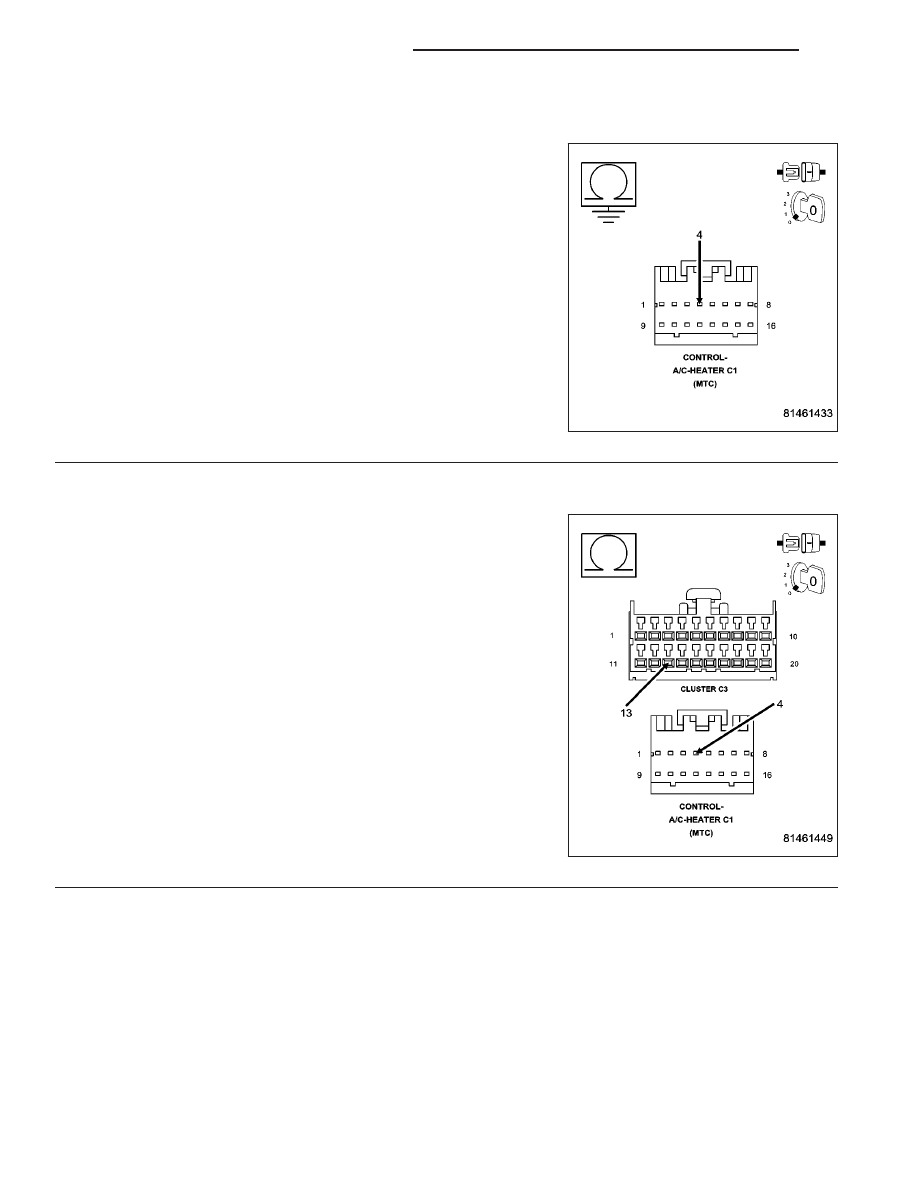

2.

CHECK (C221) A/C SWITCH SENSE CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the Instrument Cluster C3 harness connector.

Measure the resistance of the (C221) A/C Switch Sense circuit
between ground and the A/C Heater Control C1 harness connector.

Is the resistance below 10K ohms?

Yes

>> Repair the (C221) A/C Switch Sense circuit for a short to

ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Go To 3

3.

CHECK (C221) A/C SWITCH SENSE CIRCUIT FOR AN OPEN

Measure the resistance of the (C221) A/C Switch Sense circuit
between the A/C Heater Control C1 harness connector and the Instru-
ment Cluster C3 harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Instrument Cluster (CCN) in accordance with

the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

No

>> Repair the (C221) A/C Switch Sense circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8
- ELECTRICAL/ELECTRONIC CONTROL MODULES -
STANDARD PROCEDURE).

24 - 186

HVAC - ELECTRICAL DIAGNOSTICS

WK

75–AC REQUEST OUTPUT SIGNAL HIGH WHEN DRIVEN LOW (MTC)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the A/C Heater Control detects voltage above 4.49 volts on the (C221) A/C Switch Sense circuit with the A/C
switched on.

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures.

Refer to 73–AC REQUEST OUTPUT SIGNAL TOO HIGH for the diagnostic test procedure.

76–AC REQUEST OUTPUT SIGNAL LOW WHEN DRIVEN HIGH (MTC)

For the Manual Temperature Control (MTC) circuit diagram (Refer to 24 - HEATING & AIR CONDITIONING - SCHE-
MATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
If the A/C Heater Control detects voltage below 1.51 volts on the (C221) A/C Switch Sense circuit when the
A/C is switched off.

NOTE: This DTC must be active for the results of this test to be valid. Do not perform this test if this DTC
is stored. Refer to HVAC System Test (MTC) for stored DTC test procedures.

Refer to 74–AC REQUEST OUTPUT SIGNAL TOO LOW for the diagnostic test procedure.

WK

HVAC - ELECTRICAL DIAGNOSTICS

24 - 187
