8. Remove the pinch bolt (2).

9. Remove the column support bolts (1).

10. Remove the column cross bolt (1) and slide the

column (2) downward off the bracket and remove
the steering column.

11. Remove the nuts (1) attaching the instrument

panel to the pedal support bracket.

23 - 82

INSTRUMENT PANEL

WK

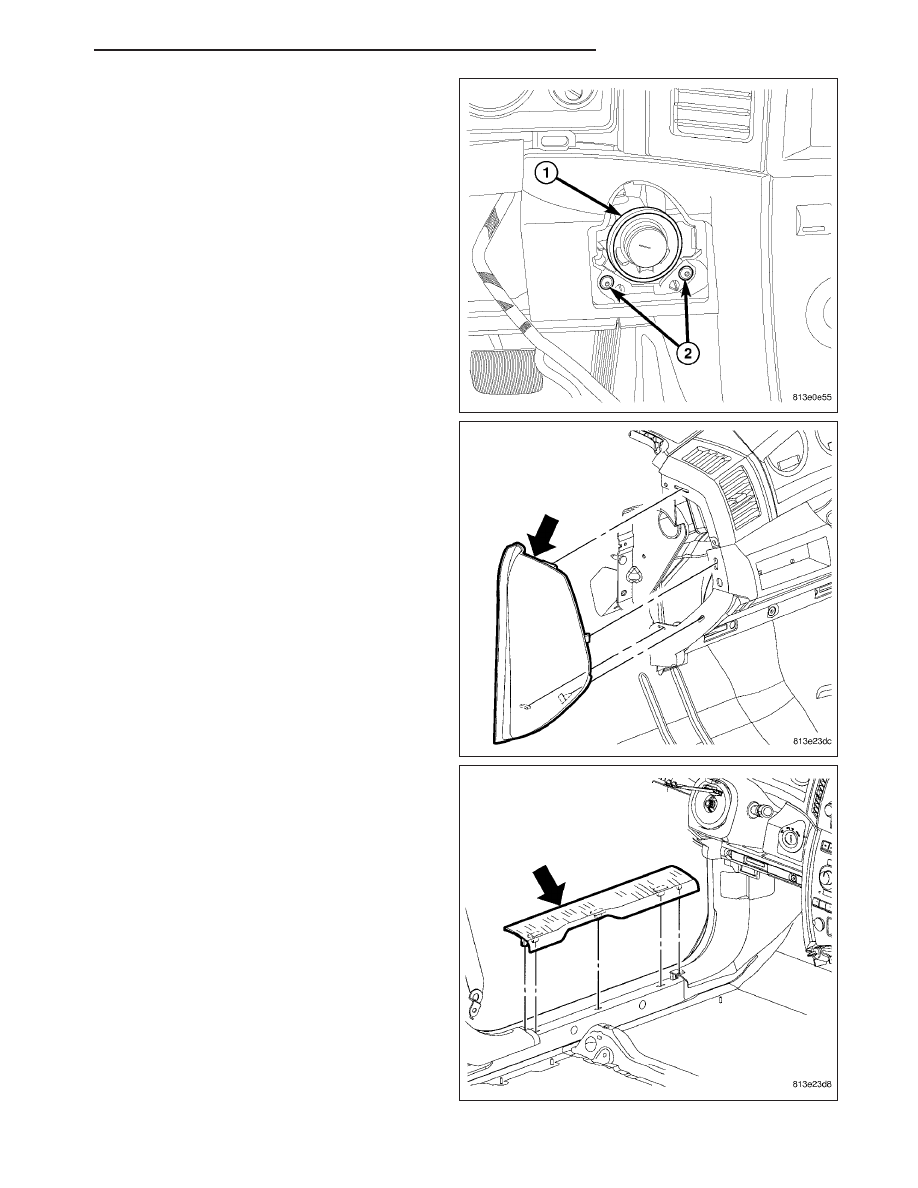

12. Using a trim stick C-4755 or equivalent, remove

the ignition cylinder bezel.

13. Remove the screws (2) and remove the ignition

cylinder (1).

14. Disconnect the electrical connector.

15. Using a trim stick C-4755 or equivalent, remove

the left side cover.

16. Remove the left side door sill trim.

WK

INSTRUMENT PANEL

23 - 83

17. Remove the drivers side cowl trim panel.

18. Disconnect the electrical connectors.

19. Disconnect the electrical connectors.

23 - 84

INSTRUMENT PANEL

WK

20. Remove the bolts and disconnect the ground

wires within the steering column opening to the
left of the steering column.

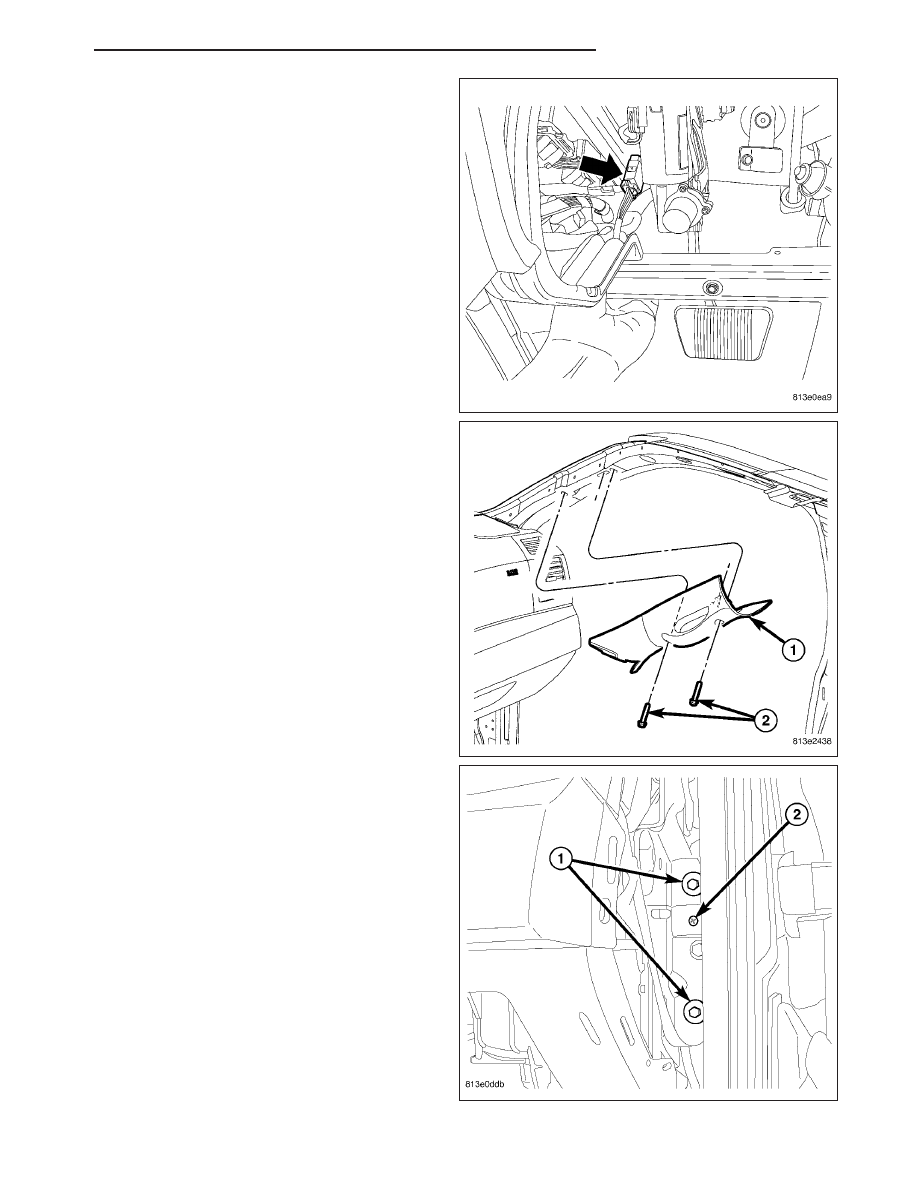

21. Disconnect the white adjustable pedal electrical

connector.

22. Remove the bolts (2) and remove the left a-pillar

trim.* Right side shown, left side similar.

23. Remove the two left side bolts and one screw at

the a-pillar support.* Right side shown, left side
similar.

WK

INSTRUMENT PANEL

23 - 85
