Jeep Grand Cherokee WK. Manual - part 1604





INSTALLATION

1. If removed, install the upper ball stud onto the

hood and the lower ball stud (1) onto the fender
rail. Install the ball studs securely.

CAUTION: Do not push on the hood support cylin-
ders at the middle of the support cylinder during
installation. Failure to follow this caution can
result in damage to the hood support cylinders.

NOTE: Install the hood support cylinders with the
cylinder end connected to the hood as shown.

NOTE: If required, only release each retaining clip
enough to install the ball socket onto the ball
stud.

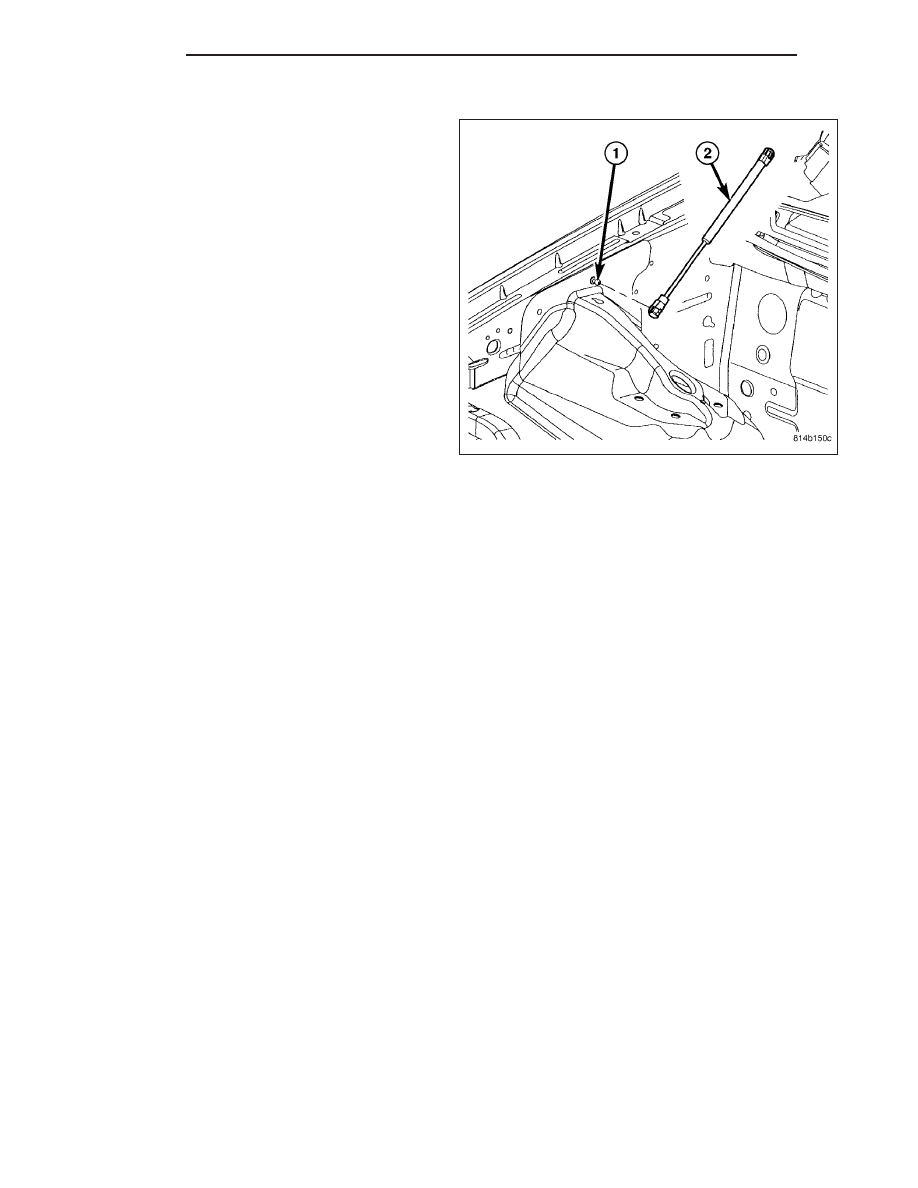

2. Install the hood support cylinder (2) over the upper

and lower ball studs (1) and fully engage the
retaining clips.

23 - 74

HOOD

WK

INSTRUMENT PANEL

TABLE OF CONTENTS

page

page

INSTRUMENT PANEL

WARNING

RESTRAINT SYSTEM

. . . . . . . . . . . . . . . . . . 75

BEZEL-CENTER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 76

BEZEL-CLUSTER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 77

GLOVE BOX ASSEMBLY

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 78

COVER-STEERING COLUMN OPENING

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 79

ASSEMBLY-INSTRUMENT PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 92

INSTRUMENT PANEL

WARNING

RESTRAINT SYSTEM

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the daimlerchrysler
mopar parts catalog.

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death on vehicles equipped with airbags, before performing any
welding operations disconnect and isolate the battery negative (ground) cable and disconnect all wire har-
ness connectors from the airbag control module (acm). Failure to take the proper precautions could result
in accidental airbag deployment and other possible damage to the supplemental restraint system circuits
and components.

WARNING: To avoid personal injury or death, do not attempt to dismantle an airbag unit or tamper with its
inflator. Do not puncture, incinerate, or bring into contact with electricity. Do not store at temperatures
exceeding 93° c (200° f). An airbag inflator unit may contain sodium azide and potassium nitrate. These
materials are poisonous and extremely flammable. Contact with acid, water, or heavy metals may produce
harmful and irritating gases (sodium hydroxide is formed in the presence of moisture) or combustible com-
pounds. An airbag inflator unit may also contain a gas canister pressurized to over 2500 psi.

WK

INSTRUMENT PANEL

23 - 75

WARNING: To avoid personal injury or death, when handling a seat belt tensioner retractor, proper care
should be exercised to keep fingers out from under the retractor cover and away from the seat belt webbing
where it exits from the retractor cover.

WARNING: To avoid personal injury or death, replace all restraint system components only with parts spec-
ified in the daimlerchrysler mopar parts catalog. Substitute parts may appear interchangeable, but internal
differences may result in inferior occupant protection.

WARNING: To avoid personal injury or death, the fasteners, screws, and bolts originally used for the
restraint system components must never be replaced with any substitutes. These fasteners have special
coatings and are specifically designed for the restraint system. Any time a new fastener is needed, replace
it with the correct fasteners provided in the service package or specified in the daimlerchrysler mopar parts
catalog.

WARNING: To avoid personal injury or death, when a steering column has an airbag unit attached, never
place the column on the floor or any other surface with the steering wheel or airbag unit face down.

BEZEL-CENTER

REMOVAL

1. Using a trim stick C-4755 or equivalent, separate the clips and the center bezel.

2. Disconnect the electrical connectors.

INSTALLATION

1. Connect all electrical connectors as necessary.

2. Position the center bezel in place and seat the clips fully.

BEZEL-CLUSTER

REMOVAL

1. Tilt the steering wheel down.

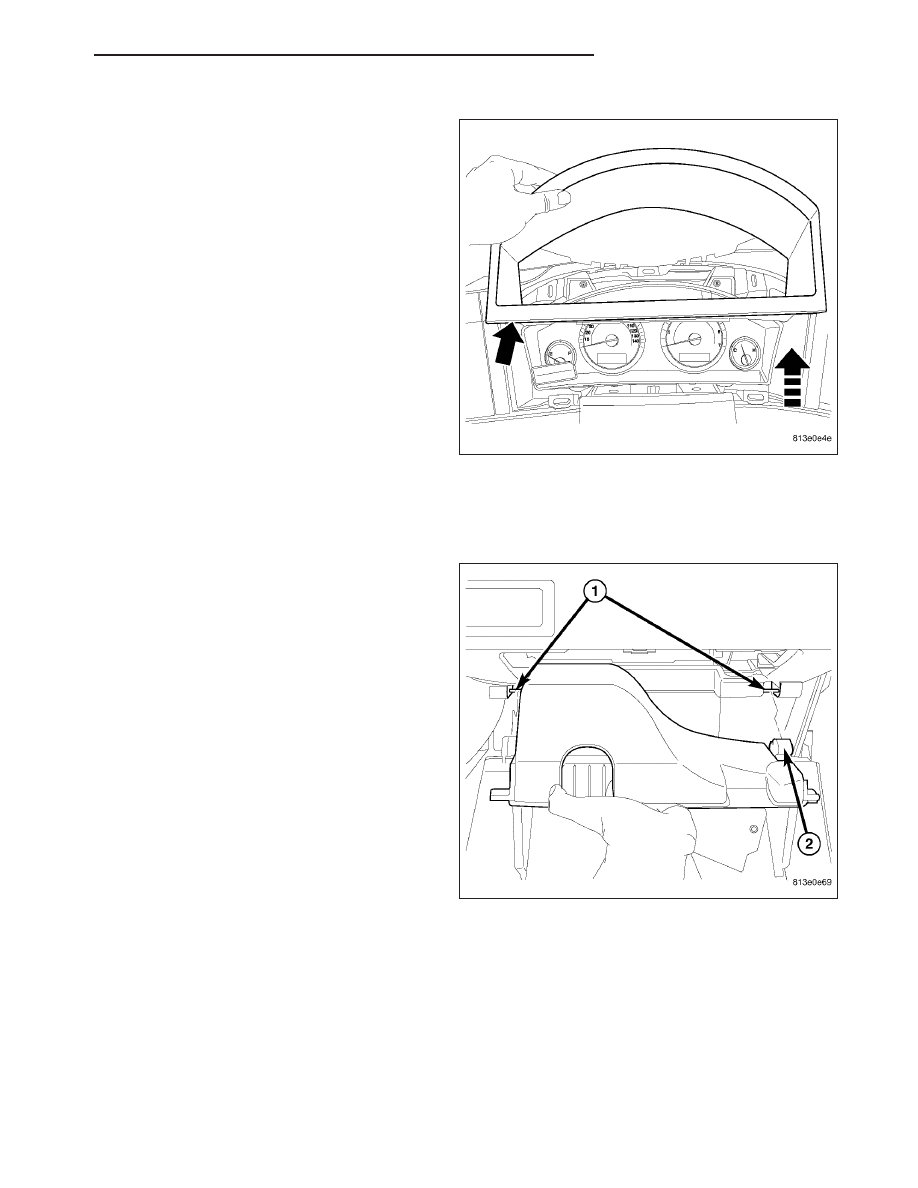

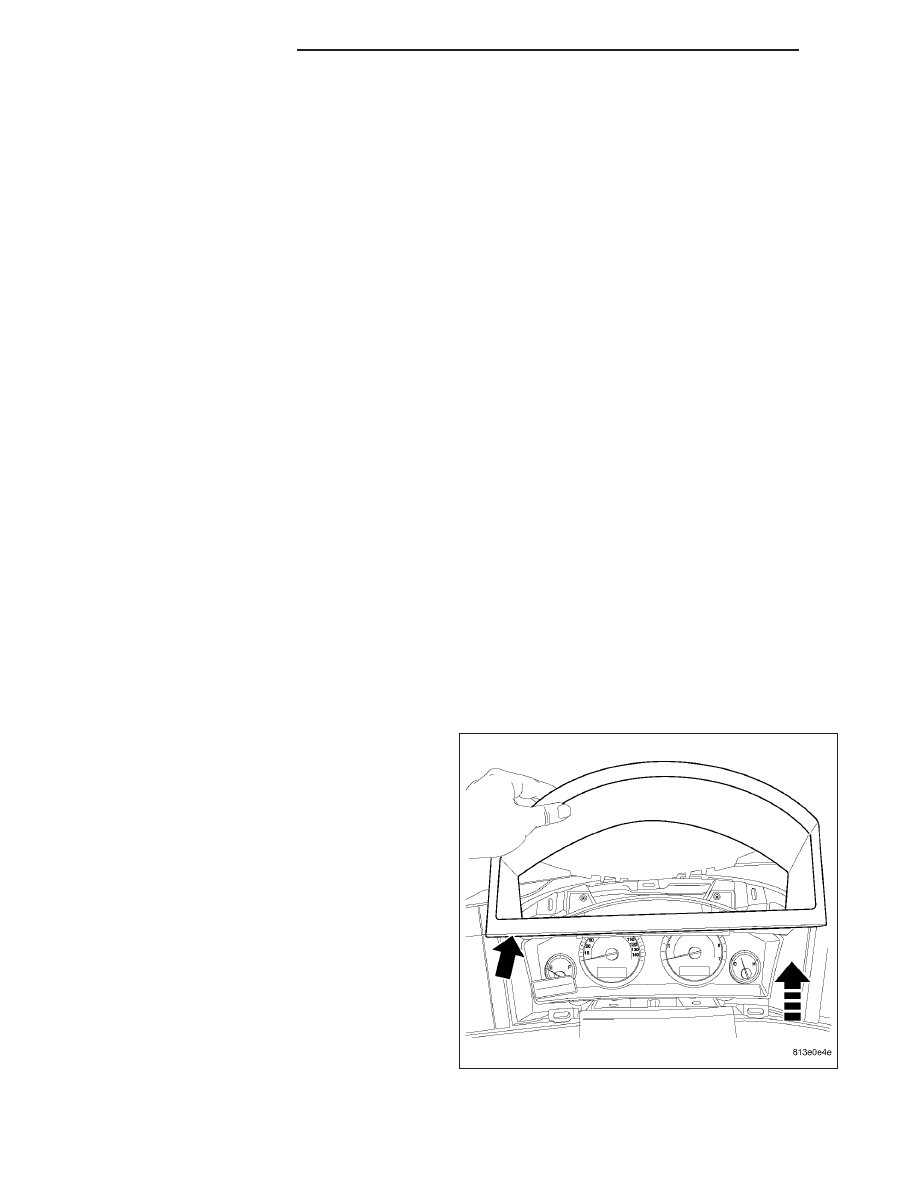

2. Grasp the upper edge of the cluster bezel and pull

up and rearward.

23 - 76

INSTRUMENT PANEL

WK

INSTALLATION

1. Align the cluster bezel over the slots and firmly

press into place.

GLOVE BOX ASSEMBLY

REMOVAL

1. Open the glove box and push the stop tabs down

to drop the glove box out of the instrument panel.

2. Rotate the box down and release the door hinges

(2) at the bottom and remove the glove box.
