C2112–DRIVETRAIN SENSOR SUPPLY CIRCUIT HIGH (FDCM)

21 - 970

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C2112–DRIVETRAIN SENSOR SUPPLY CIRCUIT HIGH (FDCM) (CONTINUED)

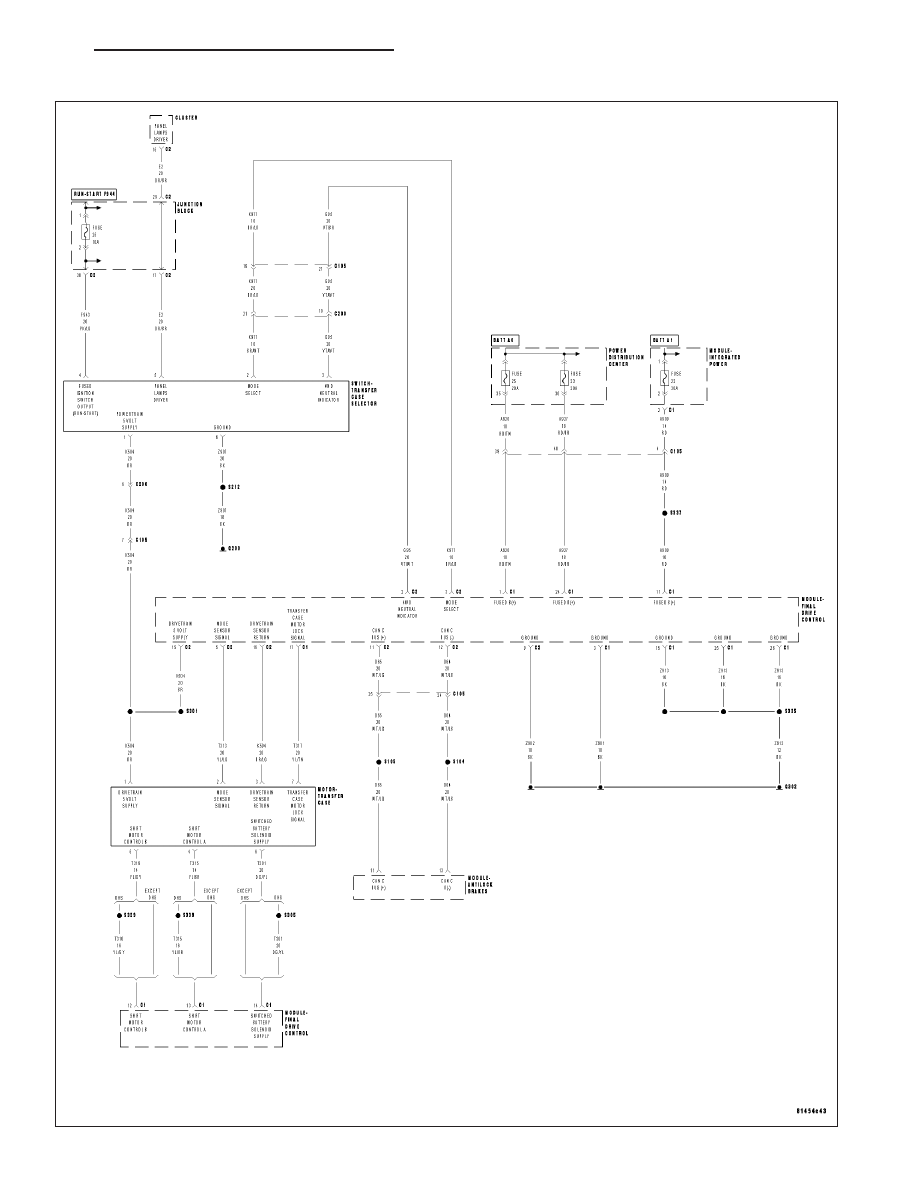

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on and no system undervoltage or overvoltage condition present.

Set Condition:
The Final Drive Control Module detects that the Drivetrain Sensor Supply voltage is above 7.5 volts for 300
mS

Possible Causes

INTERMITTENT DRIVETRAIN SENSOR SUPPLY CIRCUIT HIGH

DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORT TO VOLTAGE

FINAL DRIVE CONTROL MODULE

Diagnostic Test

1.

5 VOLT SUPPLY (REFERENCE) VOLTAGE IS ABOVE 5.2 VOLTS

Ignition on.

With the scan tool, select Data Display in the FDCM.

Monitor the 5 Volt Supply (Reference) Voltage.

Is the voltage above 5.2 volts?

Yes

>> Go to 2

No

>> Go to 4

2.

(K504) DRIVETRAIN 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Transfer Case Motor harness connector.

Disconnect the Final Drive Control Module C2 harness connector.

Turn the ignition on.

Measure the voltage of the (K504) Drivetrain 5 Volt Supply circuit.

Is there any voltage present?

Yes

>> Repair the (K504) Drivetrain 5 Volt Supply circuit for a

short to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1.

No

>> Go to 3

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 971

C2112–DRIVETRAIN SENSOR SUPPLY CIRCUIT HIGH (FDCM) (CONTINUED)

3.

FINAL DRIVE CONTROL MODULE

View repair.

Repair

Replace the Final Drive Control Module in accordance with the Service information.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

4.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

While monitoring the scan tool data relative to this circuit, wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Were any problems found?

Yes

>> Repair as necessary.

Perform the TRANSFER CASE VERIFICATION TEST-VER 1.

No

>> Test complete.

21 - 972

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

WK

C2113–DRIVETRAIN SENSOR SUPPLY VOLTAGE CIRCUIT OPEN (FDCM)

WK

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 973
