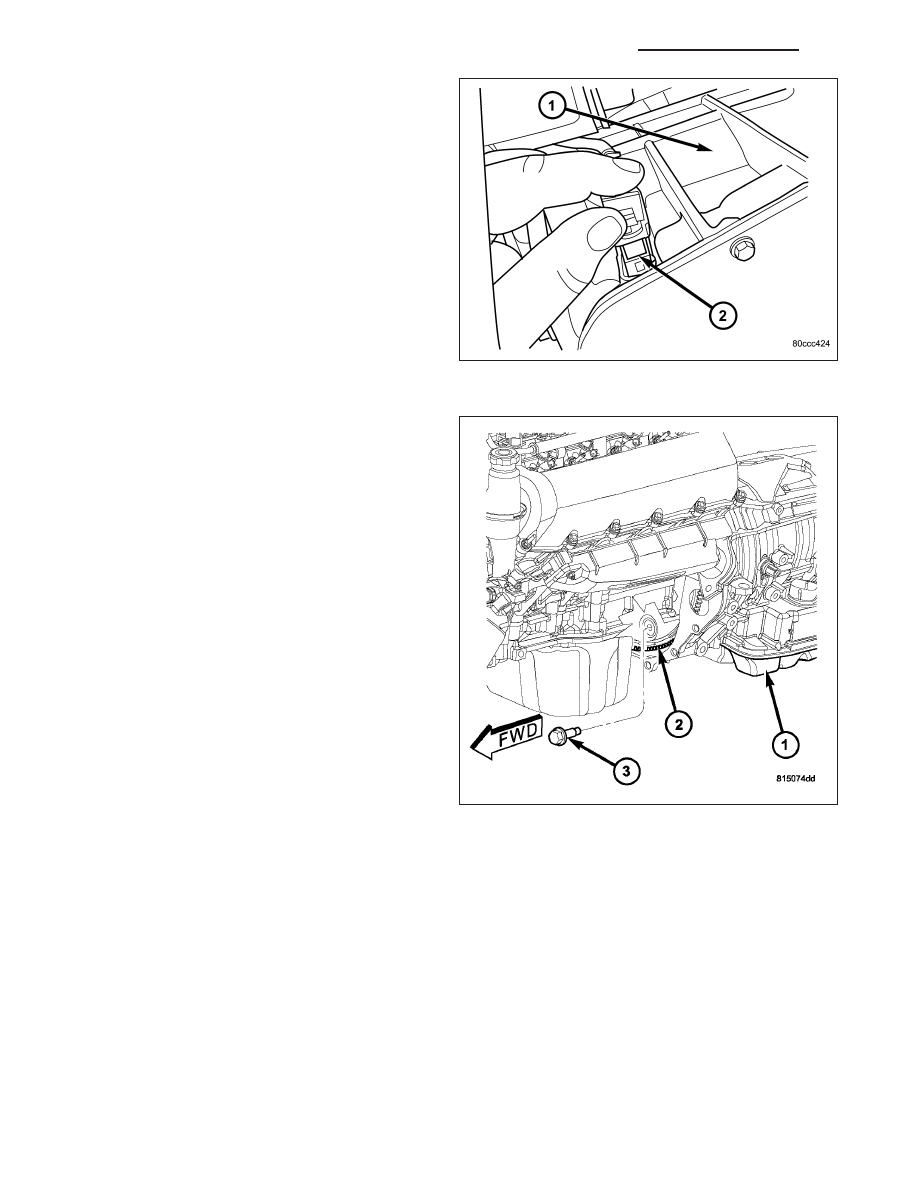

29. Connect wires to the line pressure sensor (2). Be

sure transmission harnesses are properly routed.

CAUTION: It is essential that correct length bolts
be used to attach the converter to the driveplate.
Bolts that are too long will damage the clutch sur-
face inside the converter.

30. Install all torque converter-to-driveplate bolts (3)

by hand.

31. Verify that the torque converter is pulled flush to

the driveplate. Tighten bolts to 31 N·m (270 in.
lbs.).

21 - 338

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

32. Install the structural cover (1), 5.7L shown. (Refer

to 9 - ENGINE/ENGINE BLOCK/STRUCTURAL
COVER - INSTALLATION)

33. If necessary, install the NV140 transfer case (1).

(Refer to 21 - TRANSMISSION/TRANSAXLE/
TRANSFER CASE - INSTALLATION)

34. If necessary, install the NV245 transfer case (1).

(Refer to 21 - TRANSMISSION/TRANSAXLE/
TRANSFER CASE - INSTALLATION)

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 339

35. Install starter motor. (Refer to 8 - ELECTRICAL/STARTING/STARTER MOTOR - INSTALLATION)

36. Install exhaust components.

37. Align and connect propeller shaft(s). (Refer to 3 - DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PRO-

PELLER SHAFT - INSTALLATION)

38. Adjust gearshift cable if necessary. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/

545RFE/GEAR SHIFT CABLE - ADJUSTMENTS)

39. Lower vehicle.

40. Fill transmission with appropriate fluid. (Refer to LUBRICATION & MAINTENANCE/FLUID TYPES -

DESCRIPTION)

21 - 340

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

WK

SCHEMATICS AND DIAGRAMS

HYDRAULIC SCHEMATICS

HYDRAULIC

FLOW

IN

P

ARK/NEUTRAL

WK

AUTOMATIC TRANSMISSION - 545RFE - SERVICE INFORMATION

21 - 341
