B1D56–ADJUSTABLE PEDAL SENSOR CIRCUIT LOW (CONTINUED)

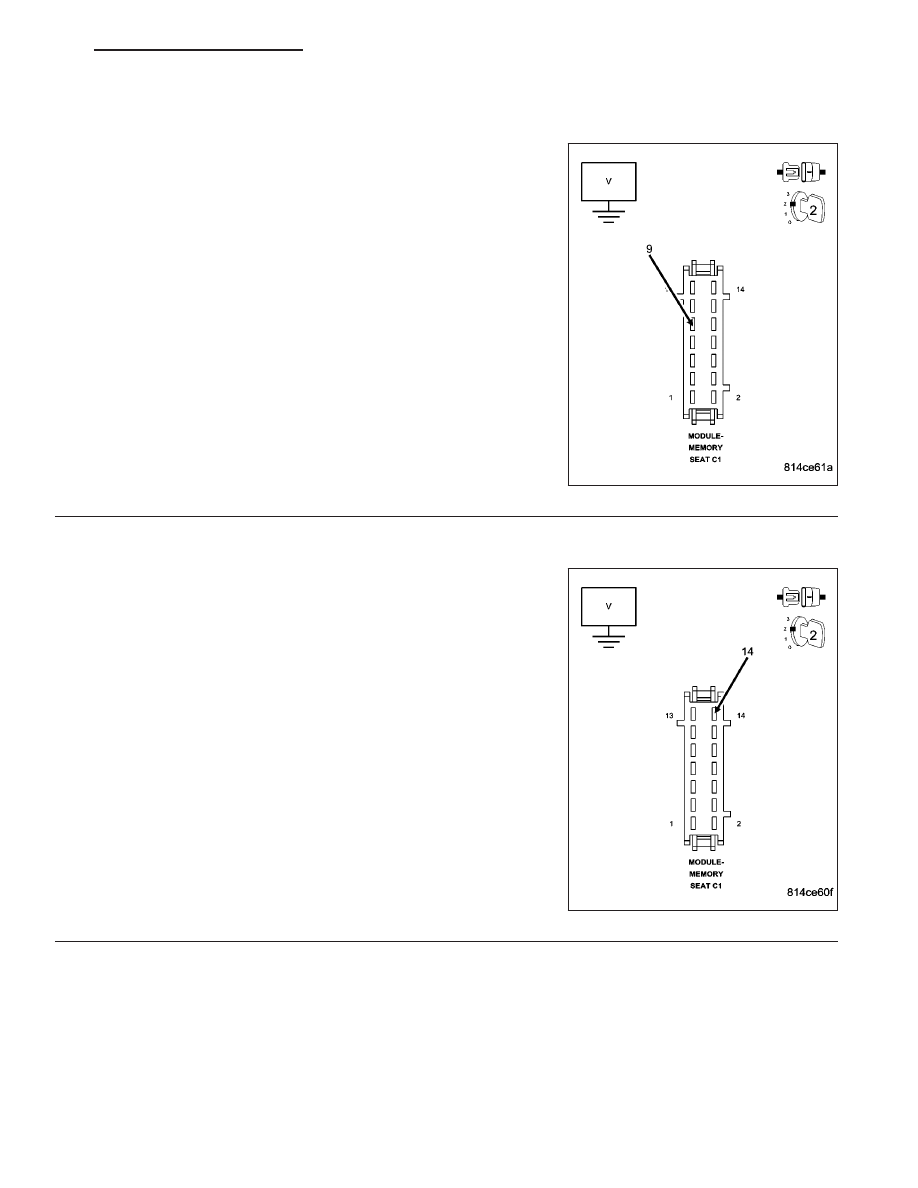

7.

CHECK ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT VOLTAGE

Connect the Memory Seat Module harness connector.

Turn the ignition on.

Measure the voltage between the Adjustable Pedals Sensor Supply circuit and ground at the Adjustable Pedal Motor
harness connector.

Is the voltage between 4.0 and 5.2 volts?

Yes

>> Go To 8

No

>> Replace and reprogram the Memory Seat Module in accordance with the Service Information.

Perform APS VERIFICATION TEST - VER 1.

8.

CHECK ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT VOLTAGE

Measure the voltage of the Adjustable Pedals Sensor Signal circuit in the Memory Seat Module harness connector.

Is the voltage above 0.5 volts?

Yes

>> Replace and reprogram the Memory Seat Module in accordance with the Service Information.

Perform APS VERIFICATION TEST - VER 1.

No

>> Replace the Adjustable Pedals Sensor in accordance with the Service Information.

Perform APS VERIFICATION TEST - VER 1.

5 - 114

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

B1D57–ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 115

B1D57–ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH (CONTINUED)

For the Adjustable Pedal System circuit diagram. (Refer to 5 - BRAKES - SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
The Adjustable Pedal Motor is in active operation.

Set Condition:
The Memory Seat Module detects a high signal circuit voltage that is not within voltage specification from the
Adjustable Pedal Sensor.

Possible Causes

CONNECTOR/TERMINAL DAMAGE

ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT SHORTED TO VOLTAGE

ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

ADJUSTABLE PEDALS SENSOR - INTERNAL FAULT

MEMORY SEAT MODULE - INTERNAL FAULT

Diagnostic Test

1.

CHECK FOR DTC B1D57–ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH

NOTE: This DTC must be active for the results of this test to be valid.
Turn the ignition on.

With the scan tool, record and erase DTC’s.

Cycle the ignition switch from off to on.

Cycle the Adjustable Pedals Switch forward and rearward.

With the scan tool, read DTC’s

Does the scan tool display: B1D57–ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH?

Yes

>> Go To 2

No

>> Refer to the INTERMITTENT CONDITION diagnostic procedure.

Perform APS VERIFICATION TEST - VER 1.

2.

CHECK CONNECTOR/TERMINAL FOR DAMAGE

NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.
Turn the ignition off.

Inspect the Memory Seat Module harness connector and the Adjustable Pedal Motor harness connector.

Is there any connector or terminal damaged?

Yes

>> Repair as necessary.

Perform APS VERIFICATION TEST - VER 1.

No

>> Go To 3

5 - 116

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

WK

B1D57–ADJUSTABLE PEDAL SENSOR CIRCUIT HIGH (CONTINUED)

3.

CHECK ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the Memory Seat Module harness connector.

Disconnect the Adjustable Pedal Motor harness connector.

Turn the ignition on.

Measure the voltage between the Adjustable Pedals Sensor Supply
circuit and ground.

Is voltage present?

Yes

>> Repair the Adjustable Pedals Sensor Supply circuit for a

short to voltage.

Perform APS VERIFICATION TEST - VER 1.

No

>> Go To 4

4.

CHECK ADJUSTABLE PEDALS SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE

Measure the voltage between the Adjustable Pedals Sensor Signal cir-
cuit and ground.

Is voltage present?

Yes

>> Repair the Adjustable Pedals Sensor Signal circuit for a

short to voltage.

Perform APS VERIFICATION TEST - VER 1.

No

>> Go To 5

WK

BRAKES - BRAKE CONTROLLER ELECTRICAL DIAGNOSTICS

5 - 117
