6. Remove the caliper adapter mounting bolts (3).

INSTALLATION

1. Install the caliper adapter mounting bolts (3).

Tighten the mounting bolts to 169 N·m (125 ft.lbs).

2. Install the inboard and outboard pads. (Refer to 5 -

BRAKES/HYDRAULIC/MECHANICAL/BRAKE
PADS/SHOES - INSTALLATION).

3. Install the caliper (1) (Refer to 5 - BRAKES/HY-

DRAULIC/MECHANICAL/DISC BRAKE CALIPERS
- INSTALLATION).

4. Install the tire and wheel assembly. (Refer to 22 -

TIRES/WHEELS/WHEELS

-

STANDARD

PROCEDURE).

5 - 54

BRAKES - BASE - SERVICE INFORMATION

WK

SUPPORT PLATE

REMOVAL

1. Remove wheel and tire assembly.

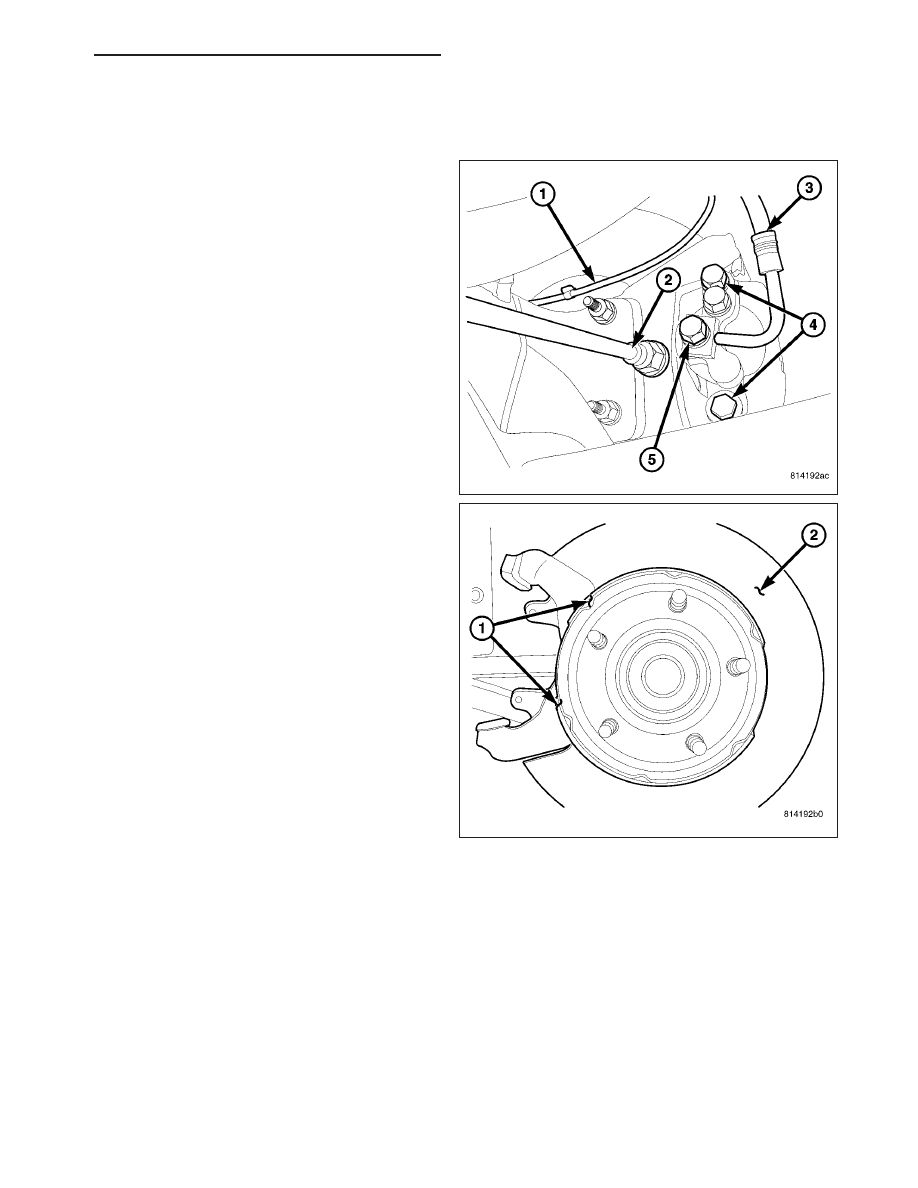

2. Remove the disc brake caliper slide bolts (4) (Refer

to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC
BRAKE CALIPERS - REMOVAL).

3. Remove the rotor (Refer to 5 - BRAKES/HYDRAU-

LIC/MECHANICAL/ROTORS - REMOVAL).

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 55

4. Remove the wheel speed sensor (2).

5. Remove the axle flange nuts (1).

6. Remove the axle shaft (1) (Refer to 3 - DIFFER-

ENTIAL & DRIVELINE/REAR AXLE - C213R/AXLE
SHAFTS - REMOVAL).

5 - 56

BRAKES - BASE - SERVICE INFORMATION

WK

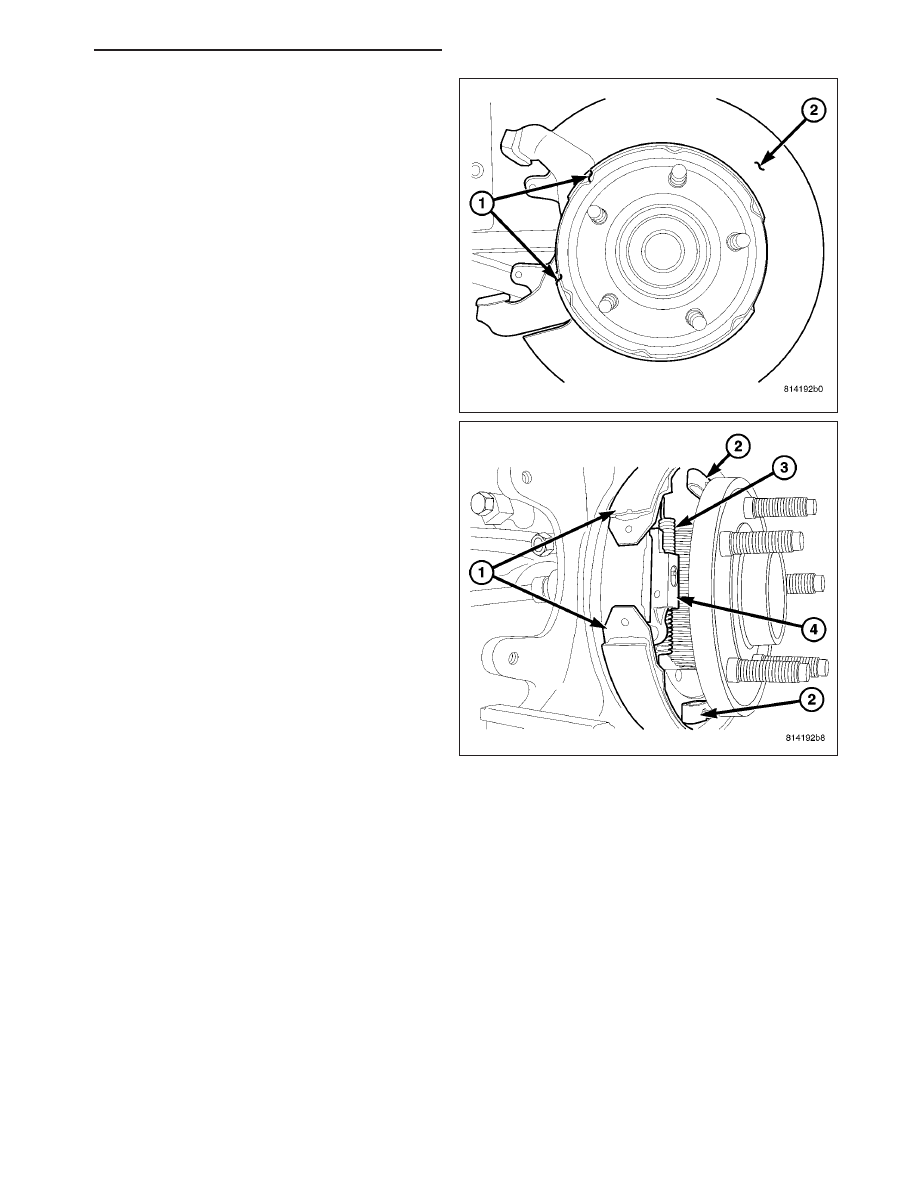

7. Remove the park brake shoes (1) (Refer to 5 -

BRAKES/PARKING BRAKE/SHOES - REMOVAL).

8. Remove the parking brake cable from the brake

actuator lever (4).

9. Remove the support plate from the axle tube.

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 57
