STANDARD PROCEDURE

MANUAL BLEEDING

Use Mopar brake fluid, or an equivalent quality fluid meeting SAE J1703-F and DOT 3 standards only. Use fresh,
clean fluid from a sealed container at all times.

Do not pump the brake pedal at any time while bleeding. Air in the system will be compressed into small bubbles
that are distributed throughout the hydraulic system. This will make additional bleeding operations necessary.

Do not allow the master cylinder to run out of fluid during bleed operations. An empty cylinder will allow additional
air to be drawn into the system. Check the cylinder fluid level frequently and add fluid as needed.

Bleed only one brake component at a time in the following sequence:

1. Fill the master cylinder reservoir with brake fluid.

2. If calipers are overhauled, open all caliper bleed screws. Then close each bleed screw as fluid starts to drip from

it. Top off master cylinder reservoir once more before proceeding.

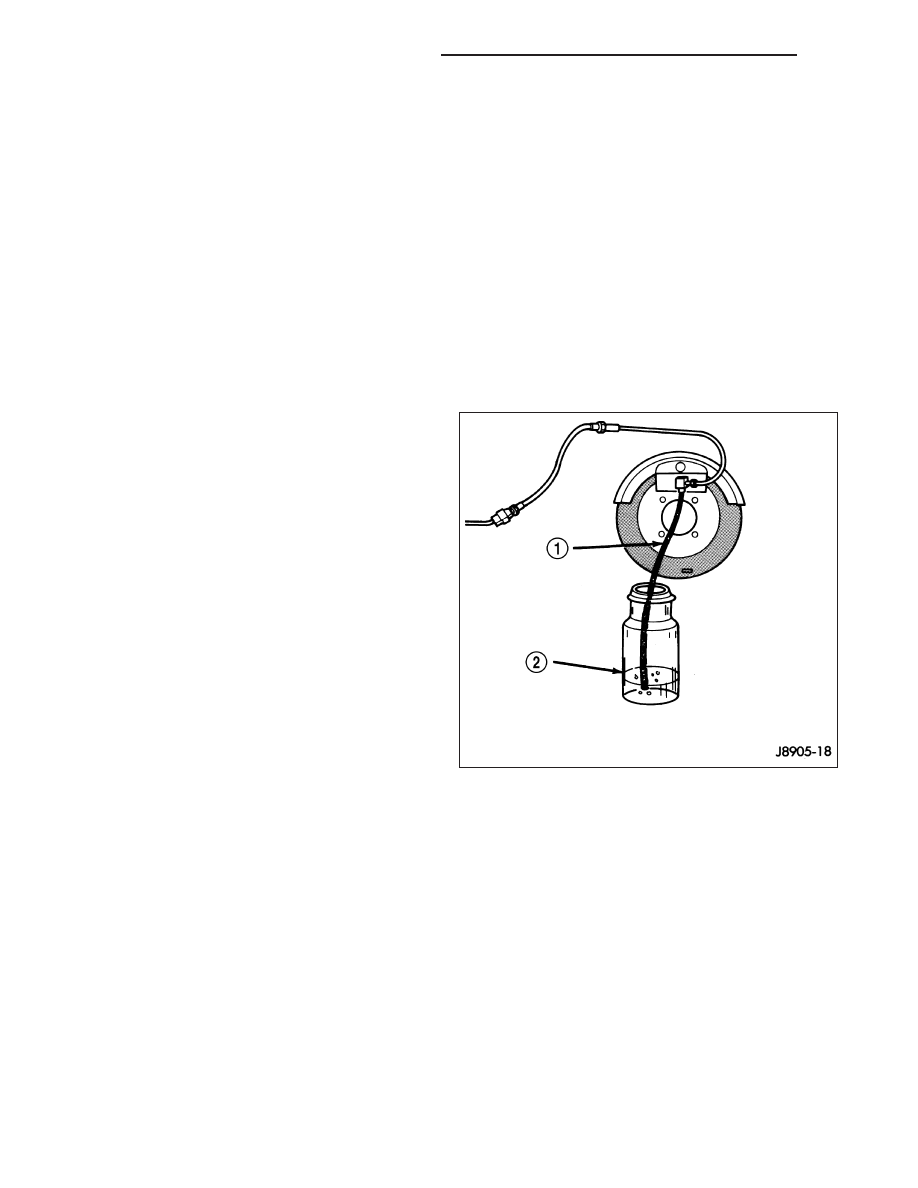

3. Attach one end of bleed hose to bleed screw and insert opposite end in glass container partially filled with brake

fluid. Be sure end of bleed hose is immersed in fluid.

4. Open up bleeder, then have a helper press down

the brake pedal. Once the pedal is down close the
bleeder. Repeat bleeding until fluid stream is clear
and free of bubbles. Then move to the next wheel.

PRESSURE BLEEDING

Use Mopar brake fluid, or an equivalent quality fluid
meeting SAE J1703-F and DOT 3 standards only. Use
fresh, clean fluid from a sealed container at all times.

Do not pump the brake pedal at any time while bleed-
ing. Air in the system will be compressed into small
bubbles that are distributed throughout the hydraulic
system. This will make additional bleeding operations
necessary.

Do not allow the master cylinder to run out of fluid
during bleed operations. An empty cylinder will allow
additional air to be drawn into the system. Check the
cylinder fluid level frequently and add fluid as needed.

Bleed only one brake component at a time in the fol-
lowing sequence:

Follow the manufacturers instructions carefully when using pressure equipment. Do not exceed the tank manufac-
turers pressure recommendations. Generally, a tank pressure of 51-67 kPa (15-20 psi) is sufficient for bleeding.

Fill the bleeder tank with recommended fluid and purge air from the tank lines before bleeding.

Do not pressure bleed without a proper master cylinder adapter. The wrong adapter can lead to leakage, or drawing
air back into the system. Use adapter provided with the equipment or Adapter 6921.

5 - 6

BRAKES - BASE - SERVICE INFORMATION

WK

SPECIFICATIONS

BRAKE COMPONENTS

SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Front Disc Brake Caliper Type

Floating

Front Disc Brake Caliper Piston

48 mm (1.889 in.)

Front Disc Brake Rotor Type

Ventilated

Front Disc Brake Rotor Diameter

328 mm (12.91 in.)

Front Disc Brake Rotor Max. Runout

0.02 mm (0.00079 in.)

Front Disc Brake Rotor Max. Thickness Variation

0.009 mm (0.00035 in.)

Front Disc Brake Rotor Min. Thickness

28.5 mm (1.122 in.)

Rear Disc Brake Caliper Type

Floating

Rear Disc Brake Caliper Piston

48 mm (1.889 in.)

Rear Disc Brake Rotor Type

Solid

Rear Disc Brake Rotor Diameter

320 mm (12.6 in.)

Rear Disc Brake Rotor Max. Runout

0.02 mm (0.00079 in.)

Rear Disc Brake Rotor Max. Thickness Variation

0.009 mm (0.00035 in.)

Rear Disc Brake Rotor Min. Thickness

12.5 mm (0.4921 in.)

Rear Disc Brake Rotor Drum Max. Diameter

206.5 mm (8.13 in.)

Brake Booster Type

Dual Diaphragm

TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Brake Pedal Support Bolt

24

17

Brake Pedal Pivot Nut

31

23

Brake Pedal Bracket

Adjustable pedals

28

21

250

Brake Pedal Bracket To Dash

28

250

Brake Booster Mounting Nuts

39

29

Master Cylinder Mounting Nuts

25

18

Master Cylinder Primary Brake Line

23

200

Master Cylinder Secondary Brake Line

23

200

Front Caliper Slide Pins

25

18

221

Front Caliper Anchor Bolts

169

125

Front Caliper Brake Hose Banjo Bolt

31

23

275

Front Caliper Bleed Screw

10

88

Rear Caliper Slide Pins

25

18

221

Rear Caliper Brake Hose Banjo Bolt

31

23

275

Rear Caliper Bleed Screw

16

144

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 7

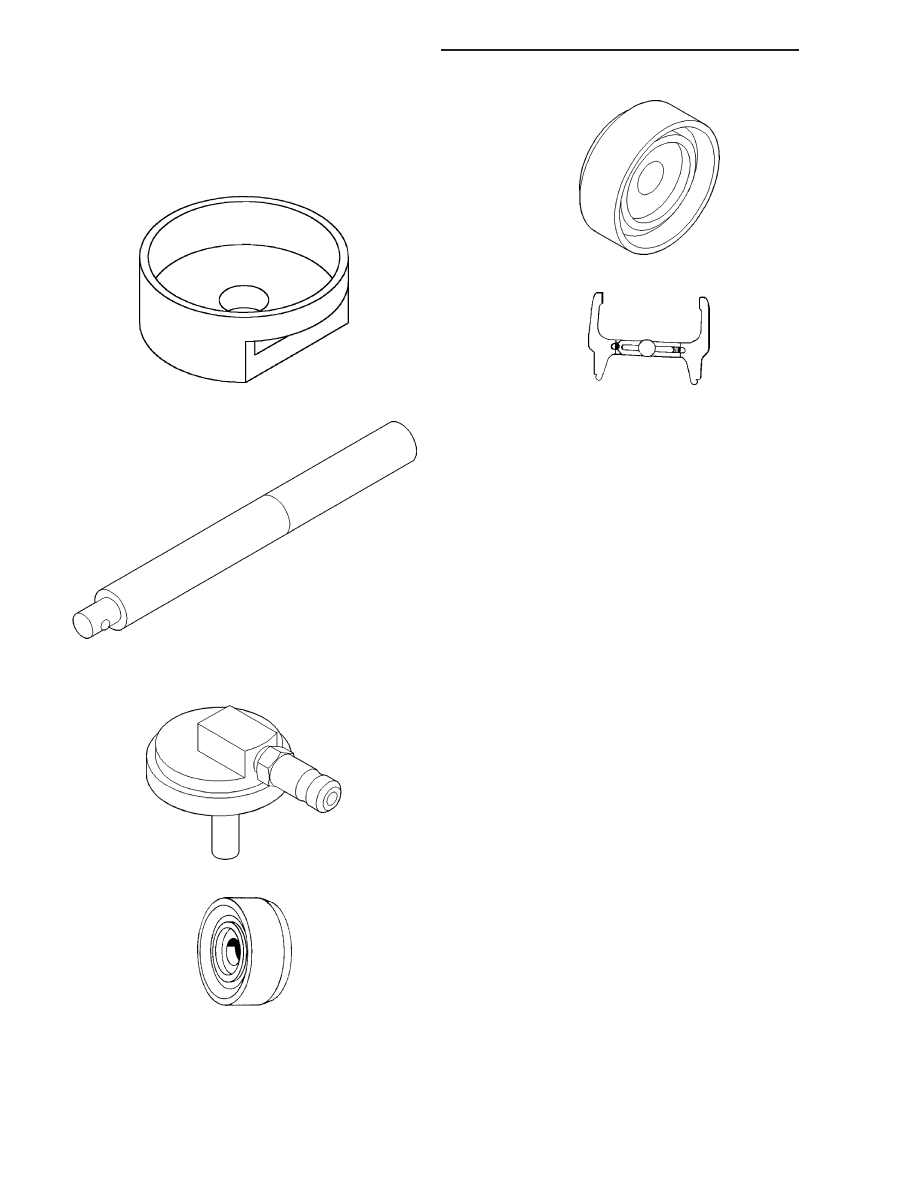

SPECIAL TOOLS

BASE BRAKES

Handle C-4171

5 - 8

BRAKES - BASE - SERVICE INFORMATION

WK

SENSOR-BRAKE FLUID LEVEL

REMOVAL

1. Remove the wire connector from the fluid level

sensor (2).

2. From the same side of the master cylinder reser-

voir (1) release the sensor locking taps with a small
screw driver.

3. Pull the sensor (1) out of the reservoir (2) from the

connector side of the sensor.

WK

BRAKES - BASE - SERVICE INFORMATION

5 - 9
