CAUTION: Suspension components with rubber/urethane bushings should be tightened with the vehicle at
normal ride height. It is important to have the springs supporting the weight of the vehicle when the fas-
teners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.

WARNING

WARNING: Suspension components with rubber bushings must be tightened with the vehicle at normal ride
height. It is important to have the springs supporting the weight of the vehicle when the fasteners are
torqued. If springs are not at their normal ride position, vehicle ride comfort will be affected and cause
premature bushing wear.

DIAGNOSIS AND TESTING - REAR SUSPENSION

CONDITION

POSSIBLE CAUSES

CORRECTION

VEHICLE INSTABILITY

1. Loose or worn wheel bearings.

1. Replace wheel bearings.

2. Loose, worn or bent suspension
components.

2. Inspect, tighten or replace components
as necessary.

3. Tire pressure.

3. Adjust tire pressure.

VEHICLE PULLS TO ONE
SIDE

1. Weak or broken spring.

1. Replace spring.

2. Alignment.

2. Align vehicle to specifications.

3.Tires.

3. Replace tires.

4. Brakes.

4. Repair as necassary.

KNOCKING, RATTLING
OR SQUEAKING

1. Worn shock bushings.

1. Replace shock.

2. Loose shock mounting.

2. Tighten to specifications.

3. Shock valve.

3. Replace shock.

4. Weak or broken spring.

4. Replace spring.

5. Loose, worn or bent suspension
components.

5. Inspect, tighten or replace components
as necessary.

IMPROPER TRACKING

1. Loose, worn or bent suspension
components.

1. Inspect, tighten or replace components
as necessary.

2. Bent axle.

2.Replace axle.

2 - 48

REAR

WK

SPECIFICATIONS

TORQUE CHART

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Shock Absorber Upper Bolt

95

70

Shock Absorber Lower Bolt

115

85

Suspension Arms Lower Axle Bracket Nut

210

155

Suspension Arms Lower Frame Bracket Nut

176

130

Suspension Arms Upper Axle Bracket Nut

136

100

Suspension Arms Upper Frame Bracket Nut

129

95

Track Bar to Axle

190

140

Track Bar to Rear Structure

190

140

Stabilizer Bar Retainer Bolts

46

34

Stabilizer Link Nut to Stabilizer Bar

88

65

Stabilizer Link to Body

Bolt

102

75

Jounce Bumper Bolt to Body

54

40

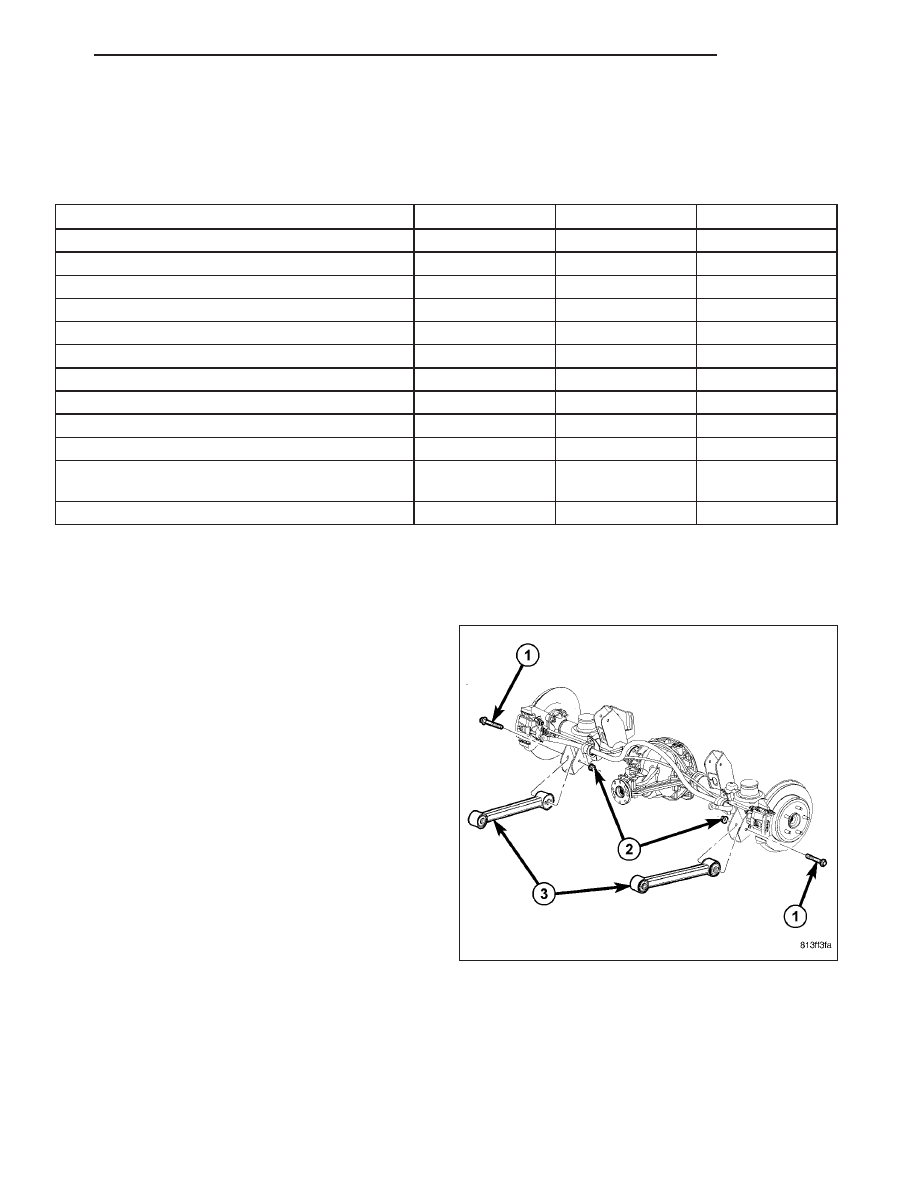

LOWER CONTROL ARM

DESCRIPTION

The lower suspension arms (3) are tubular steel and
use a voided oval bushing at the arm on the axle side.

OPERATION

The bushings provide isolation from the axle. The arms mount to the unibody frame rail bracket and the axle brack-
ets. The arm and bushings provide location and react to loads.

WK

REAR

2 - 49

REMOVAL

LEFT SIDE

1. Raise the vehicle and support the rear axle.

2. Remove the fuel tank (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/FUEL TANK - REMOVAL).

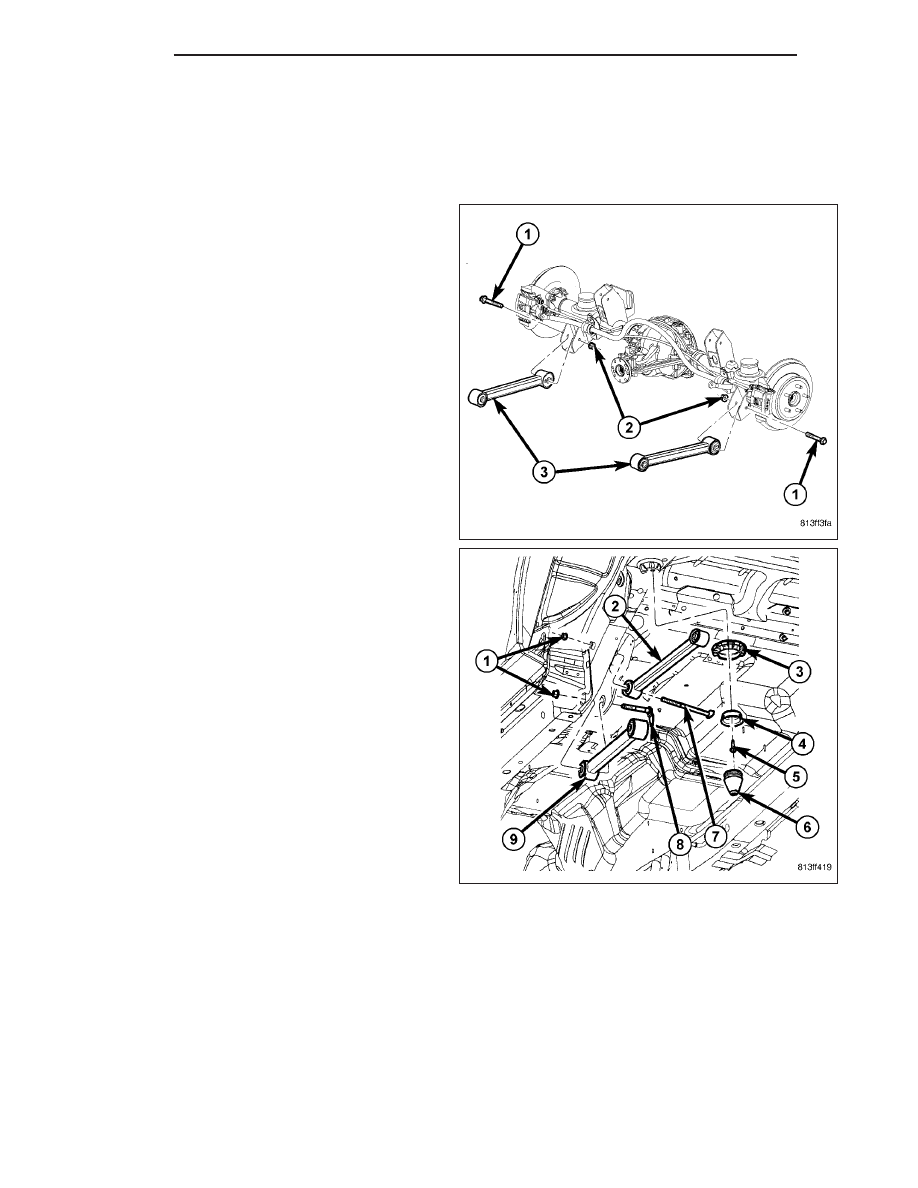

3. Remove the lower suspension arm nut (2) and bolt

(1) from the axle bracket.

4. Remove the nut (1) and bolt (8) from the frame rail

and remove the lower suspension arm (9).

RIGHT SIDE

1. Raise the vehicle and support the rear axle.

2 - 50

REAR

WK

2. Remove the lower suspension arm nut (2) and bolt

(1) from the axle bracket.

3. Remove the nut (1) and bolt (8) from the frame rail

and remove the lower suspension arm (9).

INSTALLATION

LEFT SIDE

NOTE: All torques should be done with vehicle on the ground with full vehicle weight.

WK

REAR

2 - 51
