Jeep Grand Cherokee WJ. Manual - part 721





REMOVAL

The water pump on 4.7L engines is bolted directly

to the engine timing chain case/cover.

A gasket is used as a seal between the water pump

and timing chain case/cover.

The water pump can be removed without discharg-

ing the air conditioning system (if equipped).

(1) Disconnect negative battery cable from battery.
(2) Drain cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE). Do not waste reusable
coolant. If solution is clean, drain coolant into a clean
container for reuse.

WARNING: CONSTANT TENSION HOSE CLAMPS
ARE USED ON MOST COOLING SYSTEM HOSES.
WHEN REMOVING OR INSTALLING, USE ONLY
TOOLS DESIGNED FOR SERVICING THIS TYPE OF
CLAMP, SUCH AS SPECIAL CLAMP TOOL (NUMBER
6094). SNAP-ON CLAMP TOOL (NUMBER HPC-20)
MAY BE USED FOR LARGER CLAMPS. ALWAYS
WEAR SAFETY GLASSES WHEN SERVICING CON-
STANT TENSION CLAMPS.

CAUTION: A number or letter is stamped into the
tongue of constant tension clamps. If replacement
is necessary, use only an original equipment clamp
with matching number or letter.

(3) Remove accessory drive belt (Refer to 7 -

COOLING/ACCESSORY

DRIVE/DRIVE

BELTS

-

REMOVAL).

(4) Remove lower radiator hose clamp and remove

lower hose at water pump.

(5) Remove seven water pump mounting bolts and

one stud bolt.

CAUTION: Do not pry water pump at timing chain
case/cover. The machined surfaces may be dam-
aged resulting in leaks.

(6) Remove water pump and gasket. Discard gas-

ket.

CLEANING

Clean the gasket mating surface. Use caution not

to damage the gasket sealing surface.

INSPECTION

Inspect the water pump assembly for cracks in the

housing, Water leaks from shaft seal, Loose or rough
turning bearing or Impeller rubbing either the pump
body or timing chain case/cover.

INSTALLATION

(1) Clean gasket mating surfaces.
(2) Using a new gasket, position water pump and

install mounting bolts as shown. (Fig. 14). Tighten
water pump mounting bolts to 54 N·m (40 ft. lbs.)
torque.

(3) Spin water pump to be sure that pump impel-

ler does not rub against timing chain case/cover.

(4) Connect radiator lower hose to water pump.
(5) Install accessory drive belt (Refer to 7 - COOL-

ING/ACCESSORY DRIVE/DRIVE BELTS - INSTAL-
LATION).

CAUTION: When installing the serpentine accessory
drive belt, belt must be routed correctly. If not,
engine may overheat due to water pump rotating in
wrong direction.

(6) Refill cooling system (Refer to 7 - COOLING -

STANDARD PROCEDURE).

(7) Connect negative battery cable.
(8) Start and warm the engine. Check for leaks.

Fig. 14 Water Pump Installation

1 - WATER PUMP
2 - TIMING CHAIN COVER

WG

ENGINE 4.7L

7s - 29

WATER PUMP - 4.7L (Continued)

2001 JEEP GRAND CHEROKEE

ENGINE COOLANT TEMP
SENSOR

REMOVAL - 4.7L ENGINE

WARNING: HOT, PRESSURIZED COOLANT CAN
CAUSE INJURY BY SCALDING. COOLING SYSTEM
MUST BE PARTIALLY DRAINED BEFORE REMOV-
ING THE ENGINE COOLANT TEMPERATURE (ECT)
SENSOR. REFER TO GROUP 7, COOLING.

The ECT sensor is located near the front of the

intake manifold (Fig. 15).

(1) Partially drain cooling system. (Refer to 7 -

COOLING - STANDARD PROCEDURE).

(2) Disconnect electrical connector from ECT sen-

sor.

(3) Remove sensor from intake manifold.

INSTALLATION - 4.7L ENGINE

(1) Install sensor.
(2) Tighten to 11 N·m (8 ft. lbs.) torque.
(3) Connect electrical connector to sensor.
(4) Replace any lost engine coolant. (Refer to 7 -

COOLING - STANDARD PROCEDURE).

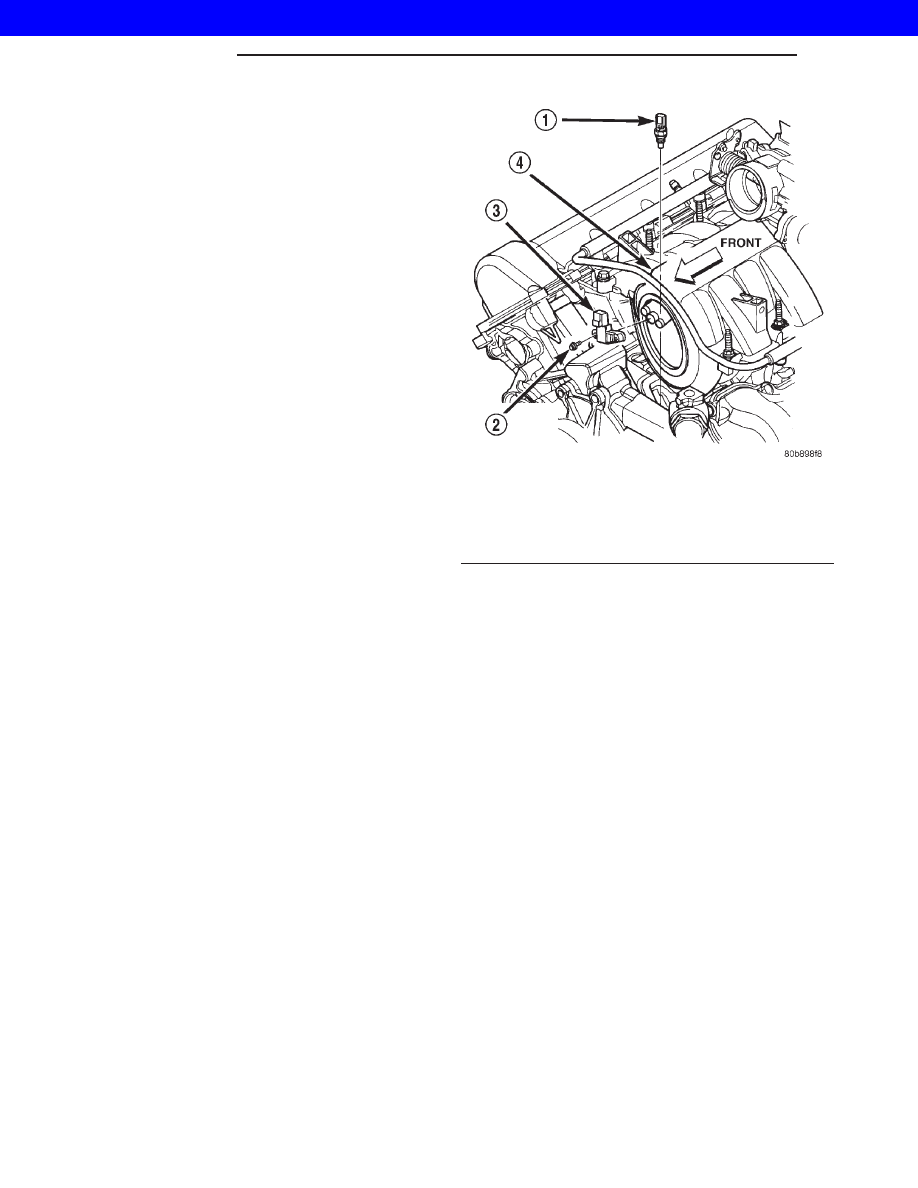

Fig. 15 Engine Coolant Temperature Sensor

1 - ECT SENSOR
2 - MOUNTING BOLTS (2)
3 - MAP SENSOR
4 - INTAKE MANIFOLD

7s - 30

ENGINE 4.7L

WG

2001 JEEP GRAND CHEROKEE

AUDIO

TABLE OF CONTENTS

page

page

QUARTER GLASS INTEGRAL ANTENNA

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DIAGNOSIS AND TESTING . . . . . . . . . . . . . . . . . . 1

QUARTER GLASS INTEGRAL ANTENNA . . . . . . 1

ANTENNA MODULE

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
DIAGNOSIS AND TESTING . . . . . . . . . . . . . . . . . . 2

ANTENNA MODULE . . . . . . . . . . . . . . . . . . . . . . 2

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

QUARTER GLASS INTEGRAL
ANTENNA

DESCRIPTION

The integral radio antenna element is bonded to

the right rear quarter glass and is replaced with the
glass assembly only.

OPERATION

The integral antenna receives RF (Radio Frequen-

cies) and sends them to the antenna module for
amplification.

DIAGNOSIS AND TESTING - QUARTER GLASS
INTEGRAL ANTENNA

For complete circuit diagrams, refer to the Appro-

priate Wiring Information. To detect breaks in the
integral antenna elements, the following procedure is
required:

(1) Disconnect the antenna module connector from

the antenna.

(2) Using a Ohmmeter, place both leads onto the

connector pins on the integral antenna. If continuity
is present antenna grid is Okay. If continuity is not
present move one lead through the grid in progres-
sion until continuity is detected. A break in the
antenna grid can be repaired using a Mopar Rear
Window Defogger Repair Kit (Part Number 4267922)
or equivalent. (Refer to 8 - ELECTRICAL/WINDOW
DEFOGGER/REAR WINDOW DEFOGGER GRID -
STANDARD PROCEDURE)

ANTENNA MODULE

DESCRIPTION

The antenna module (Fig. 1) is an electromagnetic

circuit component designed to capture and enhance

RF (Radio Frequency) signals in both the AM and
FM

broadcast

bands.

The

antenna

module

is

mounted to the right rear roof rail under the head-
liner. The modules mounting brackets also double as
the ground circuit. The module has a two wire elec-
trical connector that connects to the electric backlite
integral radio antenna, located on the right rear
quarter glass, a connector bore for the radio coax
cable and a connector for battery voltage.

Fig. 1 ANTENNA MODULE

1 - ANTENNA LEAD CONNECTOR
2 - ANTENNA MODULE
3 - ANTENNA MODULE MOUNT/GROUND BRACKETS
4 - BATTERY SUPPLY CONNECTION POINT
5 - COAX CONNECTION POINT

WG

AUDIO

8As - 1

2001 JEEP GRAND CHEROKEE

OPERATION

The antenna module receives both AM and FM

radio signals supplied by the side window integral
radio antenna system and selectively amplifies them

while

at

the

same

time

avoiding

unusable

or

unwanted signals. The amplified signal is then sent
through the body length coax cable to the radio
input.

DIAGNOSIS AND TESTING - ANTENNA MODULE

CONDITION

POSSIBLE CAUSES

CORRECTION

NO AM RECEPTION,

WEAK FM RECEPTION

1. Antenna module to antenna
connector open or disconnected.

1. Repair open, reconnect
antenna module connector to
glass mounted antenna.

2. Coax open or disconnected.

2. Repair open, reconnect coax.

3. No battery power at antenna
module.

3. Check fuse. if okay, repair
open in battery voltage circuit.

NO AM OR FM

RECEPTION

1. Coax disconnected at radio.

1. Reconnect coax.

2. Coax shorted to ground.

2. Repair or Replace coax.

REMOVAL

(1) Remove the headliner. (Refer to 23 - BODY/IN-

TERIOR/HEADLINER - REMOVAL)

(2) Disconnect the battery power lead connector

from the antenna module.

(3) Disconnect the antenna module connector from

the integral antenna (Fig. 2).

(4) Remove the mounting screws and the antenna

module.

(5) Disconnect the coax lead from the antenna

module.

INSTALLATION

(1) Plug coax into antenna module.
(2) Position antenna module onto right side upper

roof rail and install screws. Tighten screws.

(3) Connect antenna module lead to the integral

antenna.

(4) Connect battery power supply lead to antenna

module.

(5) Install headliner. (Refer to 23 - BODY/INTERI-

OR/HEADLINER - INSTALLATION)

8As - 2

AUDIO

WG

ANTENNA MODULE (Continued)

2001 JEEP GRAND CHEROKEE
