REARVIEW MIRROR

REMOVAL

(1) If equipped, disconnect mirror harness connec-

tor.

(2) Loosen the mirror base setscrew (Fig. 68).
(3) Slide the mirror base upward and off the

bracket.

INSTALLATION

(1) Position the mirror base at the bracket and

slide it downward onto the support bracket.

(2) Tighten the setscrew 1 N·m (15 in. lbs.) torque.
(3) If equipped, connect mirror harness connector.

REARVIEW MIRROR SUPPORT BRACKET

INSTALLATION

(1) Mark the position for the mirror bracket on the

outside of the windshield glass with a wax pencil.

(2) Clean the bracket contact area on the glass.

Use a mild powdered cleanser on a cloth saturated
with isopropyl (rubbing) alcohol. Finally, clean the
glass with a paper towel dampened with alcohol.

(3) Sand the surface on the support bracket with

fine grit-sandpaper. Wipe the bracket surface clean
with a paper towel.

(4) Apply accelerator to the surface on the bracket

according to the following instructions:

• Crush the vial to saturate the felt applicator.

• Remove the paper sleeve.

• Apply accelerator to the contact surface on the

bracket.

• Allow the accelerator to dry for five minutes.

• Do not touch the bracket contact surface after

the accelerator has been applied.

(5) Apply adhesive accelerator to the bracket con-

tact surface on the windshield glass. Allow the accel-
erator to dry for one minute. Do not touch the glass
contact

surface

after

the

accelerator

has

been

applied.

(6) Install the bracket according to the following

instructions:

• Apply one drop of adhesive at the center of the

bracket contact-surface on the windshield glass.

• Apply an even coat of adhesive to the contact

surface on the bracket.

• Align the bracket with the marked position on

the windshield glass.

• Press and hold the bracket in place for at least

one minute.

NOTE: Verify that the mirror support bracket is cor-
rectly aligned, because the adhesive will cure rap-
idly.

(7) Allow the adhesive to cure for 8-10 minutes.

Remove any excess adhesive with an alcohol-damp-
ened cloth.

(8) Allow the adhesive to cure for an additional

8-10 minutes before installing the mirror.

SUNVISOR

REMOVAL

(1) Remove screws attaching sunvisor arm support

bracket to headliner and roof panel.

(2) Disengage electrical connections for vanity mir-

ror, if equipped.

(3) Detach sunvisor from support bracket.
(4) Remove sunvisor from vehicle.

Fig. 67 Cargo Area Carpet

1 – CARGO AREA CARPET
2 – RIVET
3 – CARGO TIE-DOWN LOOP

Fig. 68 Rearview Mirror

1 – CONNECTOR
2 – SCREW
3 – ELECTROCHOMATIC REAR VIEW MIRROR
4 – SUPPORT BUTTON
5 – WINDSHIELD

23 - 58

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

(5) Remove retaining screw and support bracket.

INSTALLATION

(1) Install

the

retaining

screw

and

support

bracket.

(2) Position the sunvisor in the vehicle.
(3) Connect the electrical harness for the lighted

vanity mirror, if equipped.

(4) Attach the sunvisor to the support bracket.
(5) Install the support bracket w/sunvisor onto the

headliner and roof panel.

HEADLINER

REMOVAL

CAUTION: The headliner is a one-piece, molded
component. It has limited flexibility and must not be
bent. Damage may possibly result.

(1) Record radio presets and disconnect negative

battery cable.

(2) Remove “A”, “B”, “C”, and “D” pillar trim mold-

ings.

(3) Remove the sun visors. Disconnect vanity lamp

wiring.

(4) Remove assist handles from roof rails.
(5) Remove dome lamp and overhead console, if

equipped.

(6) Remove rear cargo/dome lamp.
(7) Remove sun roof pinch welt, if equipped.
(8) Disengage rear washer hose from liftgate (Fig.

69).

(9) Disengage the wire harness connectors at rear

of headliner.

(10) Disconnect the rear washer hose at the left

“A” pillar (Fig. 70).

(11) Disengage the wire harness for the sunroof, if

equipped.

(12) Fold down the rear seats, move the front seats

full forward, and lower the front seat backs.

(13) Partially lower the headliner and disengage

the sunroof drain hoses, if equipped (Fig. 71).

(14) With the aid of an assistant, remove the head-

liner through the liftgate opening.

INSTALLATION

(1) With the aid of an assistant, position the head-

liner in the vehicle.

(2) Connect the sunroof drain hoses, if equipped.
(3) Connect the sunroof harness, the rear wire har-

nesses, and the washer hose at the “A” pillar and at
the liftgate.

(4) Install the sunroof pinch welt, if equipped.
(5) Install the roof rail assist handles.
(6) Install the sun visors and overhead console.
(7) Install the rear cargo/dome lamp.

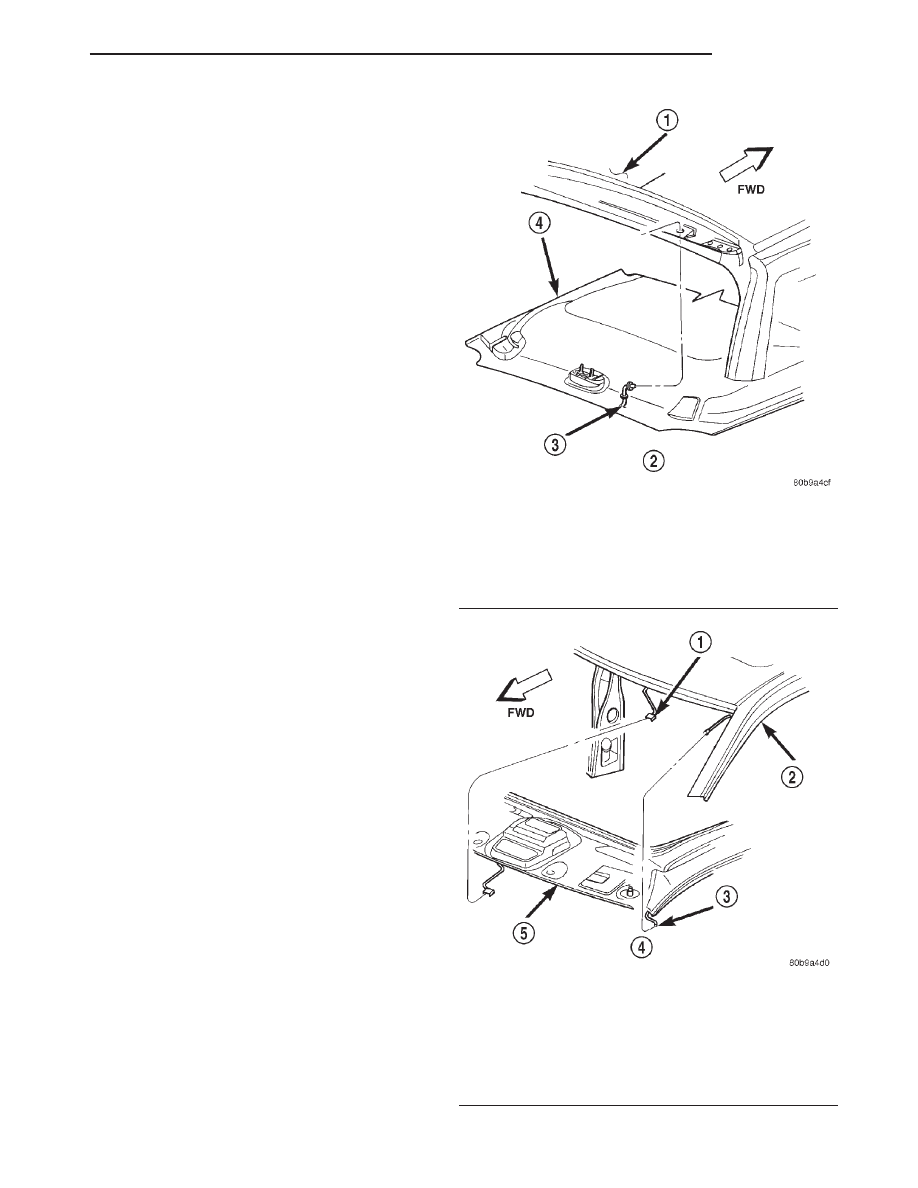

Fig. 69 Liftgate Washer Hose Routing at Rear of

Headliner

1 – ROOF
2 – REAR WASHER HOSE ROUTING
3 – REAR WASHER HOSE
4 – HEADLINER

Fig. 70 Rear Liftgate Washer Hose Routing at A

Pillar

1 – OVERHEAD CONSOLE WIRE HARNESS
2 – ROOF
3 – REAR WASHER HOSE
4 – REAR WASHER HOSE ROUTING
5 – HEADLINER

WJ

BODY

23 - 59

REMOVAL AND INSTALLATION (Continued)

(8) Install the “A”, “B”, “C”, and “D” pillar trim.
(9) Connect the negative battery cable.

LIFTGATE TRIM PANEL

NOTE: The liftgate trim panel is attached with
screws and spring clips.

REMOVAL

(1) Remove the screws securing the liftgate trim

panel to the liftgate (Fig. 72).

(2) Disconnect the rear window defroster wires.
(3) Using a trim stick, or other suitable tool, pry

the liftgate trim panel off the liftgate.

INSTALLATION

(1) Align the liftgate trim panel spring clips and

press the panel into the liftgate.

(2) Install the trim panel screws.
(3) Connect the rear defroster wires.

LOWER LIFTGATE OPENING TRIM PANEL

REMOVAL

(1) Remove screws at outboard end of lower lift-

gate trim panel.

(2) Open the spare tire cover and remove the

screws near the center of the lower liftgate trim
panel (Fig. 73).

(3) Remove the lower liftgate trim panel.

INSTALLATION

(1) Align the screw holes and locators to the holes

in the liftgate opening.

(2) Install the screws in the liftgate opening trim

panel.

(3) Install the spare tire cover.

LIFTGATE INSULATOR

REMOVAL

(1) Remove the liftgate trim panel.
(2) Separate the liftgate insulator from the liftgate

and trim panel (Fig. 74).

Fig. 71 Headliner

1 – SUNROOF PINCH WELT
2 – ROOF
3 – REAR WASHER HOSE

4 – HEADLINER
5 – SUNROOF

23 - 60

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Thoroughly clean the area of any adhesive or

insulation material.

(2) Install the insulator in the liftgate.
(3) Install the liftgate trim panel.
(4) Close the liftgate and check the operation of

the liftgate latch and rear wiper/washer, if equipped.

LIFTGATE

REMOVAL

CAUTION: DO NOT DISCONNECT THE SUPPORT
ROD CYLINDERS WITH THE LIFTGATE CLOSED.
THE SUPPORT ROD PISTONS ARE OPERATED BY
HIGH PRESSURE GAS. THIS PRESSURE COULD
CAUSE DAMAGE AND /OR PERSONAL INJURY IF
THEY ARE REMOVED WHILE THE PISTONS ARE
COMPRESSED.

(1) Open the liftgate. Support the liftgate for ease

of repair.

(2) Remove the liftgate trim panel.
(3) Remove the prop rods from the liftgate.
(4) Unplug the wire harnesses and disconnect the

washer hose.

(5) Mark the hinge location with a wax pencil or

other suitable device (Fig. 75).

(6) Remove the hinge screws and remove liftgate

from vehicle.

INSTALLATION

(1) Position the liftgate on the vehicle and align

the witness marks.

(2) Install the hinge screws at liftgate. Tighten

hinge screws to 28N·m (21ft. lbs.).

Fig. 72 Liftgate Trim Panel

1 – LIFTGATE
2 – LIFTGATE TRIM PANEL

Fig. 73 Liftgate Opening Trim Panel

1 – UPPER LIFTGATE OPENING TRIM PANEL
2 – LOWER LIFTGATE OPENING TRIM PANEL

Fig. 74 Liftgate Insulator Pad

1 – LIFTGATE
2 – INSULATION PAD

WJ

BODY

23 - 61

REMOVAL AND INSTALLATION (Continued)
