(3) Open liftgate.
(4) Remove upper and lower liftgate opening trim

panels.

(5) Remove D-pillar upper trim.
(6) Remove storage bin (right side only).
(7) Remove C-pillar upper trim panel.
(8) Remove mounting screws.
(9) Pull quarter trim panel forward and disengage

connectors for CD player and power outlet, if
equipped.

(10) Pull quarter trim panel extension in the rear

door opening upward.

(11) Remove rear quarter trim panel.

INSTALLATION

(1) Position quarter trim panel, engage connectors

for CD player and power outlet, if equipped, and
align screw holes.

(2) Install quarter trim panel.
(3) Install C-pillar upper trim panel.
(4) Install storage bin.
(5) Install D-pillar upper trim panel.
(6) Install upper and lower liftgate opening trim

panels.

(7) If equipped, install sunshade cover.
(8) Install cargo loops.
(9) Move the rear seat to the upright position.

STORAGE BIN

REMOVAL

(1) Open the storage bin lid and remove screws on

each side of the lid hinge.

(2) Pull upward sharply on the bottom of the bin

to disengage hooks.

(3) Raise bin and move inboard to disengage the

quarter trim panel.

INSTALLATION

(1) Position the bin hooks high in the slots on the

quarter trim panel.

(2) Push downward until the bin snaps into place.
(3) Install the hinge screws.

UPPER LIFTGATE OPENING TRIM

REMOVAL

(1) The upper liftgate opening trim is held on with

spring clips.

(2) Grasp the rear of the trim piece and pull down

and back to disengage clips (Fig. 61).

(3) Slide the trim piece to the rear to disengage

headliner locating hooks.

INSTALLATION

(1) The

liftgate

upper

opening

trim

piece

is

equipped with headliner locating hooks (Fig. 62).

(2) Align the locating hooks with the slots in the

headliner.

(3) Engage the spring clips and press the liftgate

upper opening trim panel into place.

D-PILLAR TRIM

REMOVAL

The D-pillar trim is attached to the D-pillar with

spring clips (Fig. 63).

(1) Remove liftgate opening upper trim panel. Con-

sult the appropriate procedure in this section.

(2) Grasp D-pillar trim and pull outward from

D-pillar.

(3) Separate D-pillar trim from D-pillar.

Fig. 61 Upper Liftgate Opening Trim

1 – UPPER LIFTGATE OPENING TRIM

Fig. 62 Headliner Locating Hooks

1 – UPPER LIFTGATE OPENING TRIM
2 – HEADLINER

23 - 54

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Position D-pillar trim panel at D-pillar and

press into place.

(2) Install upper liftgate opening trim panel.

FRONT SHOULDER BELT

REMOVAL

(1) Move the seat to the fully forward position.
(2) Unsnap turning loop cover.
(3) Remove upper anchor bolt.
(4) Remove the B pillar trim.
(5) Remove the bolt attaching the retractor to the

B pillar.

(6) Remove the bolt attaching the belt anchor to

the B pillar.

(7) Disengage retractor wire harness.
(8) Remove the belt and retractor assembly.

INSTALLATION

(1) Position the belt and retractor assembly on the

B pillar.

(2) Install the bolt attaching the belt anchor to the

B pillar.

(3) Install the bolt attaching the retractor to the B

pillar.

(4) Tighten the anchor bolts to 37N·m (27ft. lbs.).
(5) Install the B pillar trim.
(6) Install the upper anchor bolt. Tighten the

anchor bolt to 37N·m (27ft. lbs.).

(7) Close the turning loop cover.

FRONT SHOULDER BELT BUCKLE

REMOVAL

(1) Move the seat to the fully forward position.

(2) Remove the bolt holding the seat belt buckle to

the floor.

(3) Separate the seat belt buckle from the vehicle.

INSTALLATION

(1) Position the seat belt buckle on the floor and

install the bolt.

(2) Tighten the anchor bolt to 37N·m (27 ft. lbs.).

REAR SEAT SHOULDER BELT

REMOVAL

(1) Move lower seat to cargo position.
(2) Remove lower seat/shoulder belt attaching bolt

(Fig. 64).

(3) Move seat back to cargo position.
(4) Remove seat/shoulder belt upper turning loop
(5) Remove C and D pillar trim. See appropriate

procedures in this section.

(6) Remove seat/shoulder belt reel attaching bolt.
(7) Remove seat/shoulder belt assembly.

INSTALLATION

(1) Position seat/shoulder belt reel assembly using

locating pin (Fig. 65).

(2) Install reel bolt and tighten to 37 N·m (27

ft.lbs.).

(3) Route seat/shoulder belt through upper C pillar

trim.

(4) Install removed trim.
(5) Install seat/shoulder belt turning loop.
(6) Install lower seat/shoulder belt attaching bolt

and tighten to 37 N·m (27ft.lbs.).

(7) Move rear seat to upright position.

REAR SEAT BELT BUCKLE

The rear seat belt buckle is integral with the seat

frame and not serviced as a separate part.

FLOOR CONSOLE

CAUTION: The ACM should be depowered by dis-
connecting the negative battery cable in any opera-
tion requiring the key to be turned “ON”, while
working in the console area. E.G. console, carpet,
or seat removal or installation; shifter linkage
adjustment or replacement; parking brake cable
replacement or adjustment. Failure to take proper
precautions

could

result

in

accidental

airbag

deployment and possible personal injury.

REMOVAL

(1) Set park brake.
(2) Place transmission shift lever and transfer case

lever in full rearward position.

Fig. 63 D Pillar Upper Trim

1 – D PILLAR UPPER TRIM

WJ

BODY

23 - 55

REMOVAL AND INSTALLATION (Continued)

(3) Remove mat from front bin and remove screws

attaching front of console to floor (Fig. 66).

(4) Remove screws attaching rear bin to console.
(5) Remove rear bin.

(6) Pull rear passenger cupholder outward to

access screws.

(7) Remove screws attaching rear of console to

floor.

(8) Lift the console upward and rearward.
(9) Remove console from vehicle.

INSTALLATION

(1) Position console in vehicle. Ensure rear passen-

ger HEVAC duct is engaged.

(2) Install screws attaching rear of console to floor.
(3) Position rear bin in console.
(4) Install screws attaching rear bin to console.
(5) Install screws attaching front of console to floor

and place front bin mat in front bin.

(6) Return transmission shift lever and transfer

case lever to original position.

(7) Release park brake.

FRONT CARPET

REMOVAL

(1) Remove door sill trim and lower “B” pillar trim.
(2) Remove front seats and lower cushions of rear

seats.

(3) Remove center floor console.

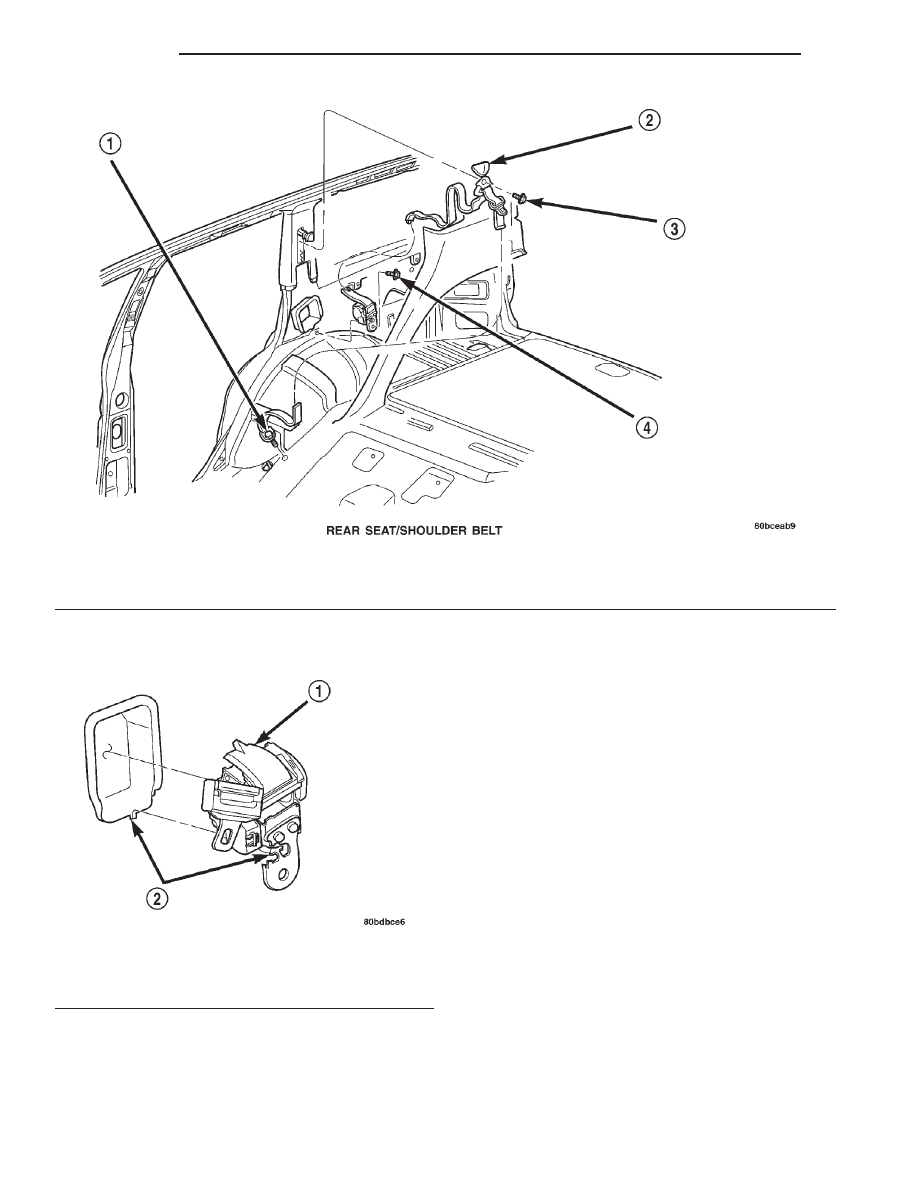

Fig. 64 Rear Seat/Shoulder Belt

1 – LOWER BELT BOLT
2 – TURNING LOOP COVER

3 – TURNING LOOP BOLT
4 – REEL BOLT

Fig. 65 Rear Seat/Shoulder Belt Reel Locater

1 – SEAT/SHOULDER BELT REEL
2 – INDEX TAB

INDEX SLOT

23 - 56

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

(4) Remove any other interfering trim or molding.
(5) Lift carpet and mat from floor panel.

INSTALLATION

(1) Clean the floor panel area as necessary.
(2) Carefully lay the carpet and mat on the floor

panel. Align the carpet to allow installation of the
components fastened to the floor panel.

(3) Install the center console.
(4) Install the front and rear seat units.
(5) Install the lower “B” pillar trim and the door

sill trim.

(6) Install any other moldings or trim panels

removed.

CARGO AREA CARPET

REMOVAL

(1) Lift tailgate.
(2) Fold rear seat cushions forward.
(3) Remove rear seat backs, shoulder belts and

buckles.

(4) Remove the retractable security cargo cover

assembly.

(5) Remove the spare tire cover.
(6) Remove the rear cargo tie down footman loops.

The side mounted footman loops are retained by
screws. The floor footman loops are riveted (Fig. 67).

(7) Remove the “C” pillar trim and CD changer, if

equipped.

(8) Remove the Infinity amp, if equipped.
(9) Lift the carpet.

INSTALLATION

(1) Thoroughly clean the area with Mopar Super

Kleen, or equivalent.

(2) Lay the new carpet in.
(3) Install the “C” pillar trim and CD changer, if

equipped.

(4) Install the footman loops.
(5) Install the seat backs, shoulder belts and buck-

les.

(6) Install the Infinity amp, if equipped.
(7) Install the spare tire cover.
(8) Install the retractable security cover.

Fig. 66 Floor Console

1 – REAR BIN
2 – CONSOLE LID
3 – SHIFTER CONSOLE
4 – BRACKET

5 – PARKING BRAKE
6 – FRONT BIN
7 – MAT

WJ

BODY

23 - 57

REMOVAL AND INSTALLATION (Continued)
