Jeep Grand Cherokee WJ. Manual - part 537





(3) Remove B-pillar lower trim.
(4) Remove screws at front of quarter trim panel.
(5) Pull weatherstrip from door opening flange.

INSTALLATION

(1) Position weatherstrip at corners.
(2) Move upward and around edge of door opening

seating weatherstrip onto flange (Fig. 28).

(3) Engage connector plug with each end of weath-

erstrip at bottom of door opening.

(4) Install screws at front of quarter trim panel.
(5) Install B-pillar lower trim.
(6) Install B-pillar upper trim.
(7) Install C-pillar trim.

REAR DOOR SECONDARY WEATHERSTRIP

REMOVAL

The rear door secondary weatherstrip is attached

to the door shutface with push-in fasteners.

(1) Open door.
(2) Using a trim panel removal tool, remove

push-in fasteners attaching secondary weatherstrip
to door shutface.

(3) Separate secondary weatherstrip from door

(Fig. 45).

INSTALLATION

(1) Clean contact area as necessary.
(2) Position secondary weatherstrip on door shut-

face.

(3) Install push-in fasteners attaching secondary

weatherstrip to door shutface.

REAR DOOR WINDOW REGULATOR

REMOVAL

(1) Remove door trim panel and waterdam. Discon-

nect the speaker harness and power window harness,
if equipped. If necessary, refer to removal procedure.

(2) Lower window glass.
(3) Pull run weatherstrip from fixed glass.
(4) Remove fasteners retaining fixed glass module.
(5) Remove the fixed glass module.
(6) Raise the door glass and support.
(7) Remove the window clips retaining regulator

(Fig. 46).

(8) Remove the door glass.
(9) Remove the fasteners retaining the regulator

(Fig. 47).

(10) Remove the regulator.

INSTALLATION

(1) Position the window regulator in the door.
(2) Install the fasteners retaining the regulator.
(3) Install the door glass.
(4) Install the window clips retaining regulator.
(5) Lower the door glass.
(6) Install the fixed glass module. Tighten the fas-

teners.

(7) Install the run weatherstrip.
(8) Install the waterdam, door panel, and connect

the power window and speaker harness if equipped.

(9) Cycle the glass and check for proper operation.

Fig. 45 Rear Door Secondary Weatherstrip

1 – SECONDARY WEATHERSTRIP

Fig. 46 Window Regulator Retainer Clips

1 – GLASS
2 – RETAINER
3 – CLIP
4 – LIFT PLATE
5 – REGULATOR
6 – CLIP

23 - 46

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

REAR DOOR WINDOW GLASS

REMOVAL

(1) Lower window glass.
(2) Remove trim panel.
(3) Remove waterdam.
(4) Remove inner belt weatherstrip.
(5) Remove stationary glass.
(6) Disengage clips attaching window glass to lift

plate.

(7) Press studs out of lift plate.
(8) Lift window glass from door (Fig. 48).

INSTALLATION

(1) Position window glass in door.
(2) Engage studs into lift plate.
(3) Engage clips attaching window glass to lift

plate.

(4) Install stationary glass.
(5) Install inner belt weatherstrip.
(6) Install waterdam.
(7) Install trim panel.

REAR DOOR STATIONARY GLASS

REMOVAL

(1) Remove door trim panel.
(2) Remove waterdam.
(3) Remove inner belt weatherstrip.

(4) Remove bolt attaching bottom of rear glass run

channel to door.

(5) Pull run channel downward and separate from

door.

(6) Remove screws attaching stationary door glass

frame to door (Fig. 49) and (Fig. 50).

(7) Separate stationary door glass from door.

INSTALLATION

(1) Position stationary door glass in door.
(2) Install screws attaching stationary door glass

frame to door.

(3) Install glass run channel.
(4) Install inner belt weatherstrip.
(5) Install waterdam.
(6) Install door trim panel.

Fig. 47 Rear Door Window Regulator

1 – DOOR
2 – REGULATOR

Fig. 48 Glass Channel

1 – GLASS
2 – REGULATOR

Fig. 49 Stationary Door Glass

1 – DOOR
2 – STATIONARY DOOR GLASS

WJ

BODY

23 - 47

REMOVAL AND INSTALLATION (Continued)

ROOF RAIL WEATHERSTRIP W/RETAINER

REMOVAL

(1) Open front and rear doors.
(2) Remove secondary seal from retainer to access

the screws holding the retainer to the A pillar and
roof panel.

(3) Remove the screws holding the retainer in

place (Fig. 51).

(4) Remove the retainer.

INSTALLATION

(1) Position the retainer on the A pillar and roof

panel.

(2) Align the screw holes and install the screws.
(3) Install secondary seal.

FUEL FILL DOOR

REMOVAL

(1) Open the fuel filler door.
(2) Remove the screws attaching the door to the

quarter panel (Fig. 52).

(3) Remove the door from the panel.

INSTALLATION

(1) Position the fuel filler door on the quarter

panel with the screw holes aligned.

(2) Install the screws attaching the fuel filler door

to the quarter panel.

BODY SIDE CLADDING

REMOVAL–FENDER/QUARTER PANEL

(1) Remove the screws at wheel opening (Fig. 53).

(2) Using a trim stick, gently pry bottom of clad-

ding up.

(3) Lift upwards and remove cladding.

INSTALLATION–FENDER/QUARTER PANEL

(1) Thoroughly clean the area with Mopar Super

Kleen or equivalent.

(2) Align the cladding with the screw holes in the

fender.

(3) Press the cladding in place.
(4) Install the screws at the wheel opening.

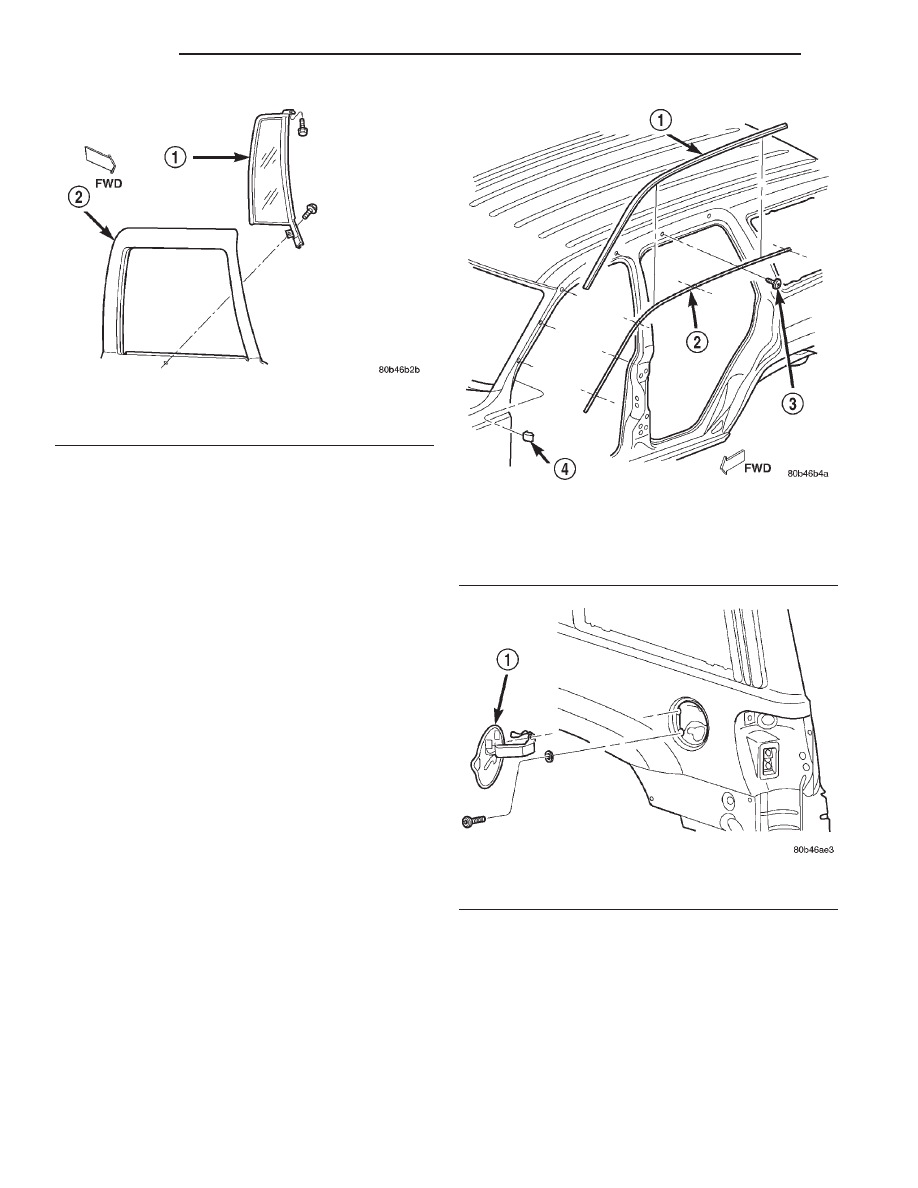

Fig. 50 Stationary Door Glass

1 – STATIONARY DOOR GLASS
2 – DOOR

Fig. 51 Upper Body Seal With Retainer

1 – ROOF RAIL WEATHERSTRIP
2 – RETAINER
3 – SCREW
4 – BLOCKER

Fig. 52 Fuel Filler Door

1 – FUEL FILL DOOR

23 - 48

BODY

WJ

REMOVAL AND INSTALLATION (Continued)

REMOVAL–REAR DOOR

(1) Open the rear door.
(2) Using a trim stick, pry the upper rear edge off

the door. Continue towards the front edge of the rear
door (Fig. 54).

(3) Using a heat gun, warm the adhesive tape on

the bottom of the cladding and remove the cladding.

INSTALLATION–REAR DOOR

(1) Clean the area thoroughly with Mopar Super

Kleen, or equivalent.

(2) Align the body side cladding with the slots in

the door. Press the adhesive pad to the door and snap
the retainers into the slots.

REMOVAL–FRONT DOOR

(1) Open the front door.
(2) Using a trim stick, pry the upper rear edge off

the door. Continue to the front edge of the front door
(Fig. 55).

(3) Using a heat gun, warm the adhesive tape on

the lower edge of the cladding and pull the cladding
from the door.

INSTALLATION–FRONT DOOR

(1) Clean the area thoroughly with Mopar Super

Kleen, or equivalent.

(2) Align the body side cladding with the slots in

the door. Press the adhesive pad to the door and snap
the retainers into the slots.

SILL MOLDING

REMOVAL

The sill trim molding is held in place with molded

in snap retainers (Fig. 56).

(1) Using a trim stick or other suitable device,

carefully pry up one corner of the sill trim.

Fig. 53 Front Fender/ Quarter Panel

1 – SCREW
2 – QUARTER PANEL CLADDING
3 – FRONT FENDER CLADDING
4 – SCREW

Fig. 54 Rear Door Cladding

1 – CLADDING

Fig. 55 Front Door Cladding

1 – CLADDING

WJ

BODY

23 - 49

REMOVAL AND INSTALLATION (Continued)
