Jeep Grand Cherokee WJ. Manual - part 506





Lubricate

the

transmission

components

with

Mopar

t transmission fluid during reassembly. Use

Mopar

t Door Ease, or Ru-Glyde on seals and O-rings

to ease installation.

Petroleum jelly can also be used to hold thrust

washers, thrust plates and gaskets in position during
assembly. However, do not use chassis grease, bear-
ing grease, white grease, or similar lubricants on any
transmission part. These types of lubricants can
eventually block or restrict fluid passages and inter-
fere with valve operation. Use petroleum jelly only.

Do not force parts into place. The transmission

components and subassemblies are easily installed by
hand when properly aligned.

If a part seems extremely difficult to install, it is

either misaligned or incorrectly assembled. Also ver-
ify that thrust washers, thrust plates and seal rings
are correctly positioned before assembly. These parts
can interfere with proper assembly if mis-positioned.

The planetary geartrain, front/rear clutch assem-

blies and oil pump are all much easier to install
when the transmission case is upright.

(1) Install rear servo piston, spring and retainer

(Fig. 131). Install spring on top of servo piston and
install retainer on top of spring.

(2) Install

front

servo

piston

assembly,

servo

spring and rod guide (Fig. 132).

(3) Compress front/rear servo springs with Valve

Spring Compressor C-3422-B and install each servo
snap ring (Fig. 133).

Fig. 131 Rear Servo Components

1 – SERVO PISTON
2 – PISTON SPRING
3 – SNAP RING
4 – RETAINER
5 – PISTON SEAL

Fig. 132 Front Servo Components

1 – PISTON SEAL RINGS
2 – SERVO PISTON
3 – SNAP RING
4 – ROD GUIDE
5 – SPRING
6 – ROD

Fig. 133 Compressing Front/Rear Servo Springs

1 – SPRING COMPRESSOR TOOL C-3422–B
2 – ROD GUIDE SNAP RING

21 - 74

TRANSMISSION AND TRANSFER CASE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

(4) Lubricate clutch cam rollers with transmission

fluid.

(5) Install rear band in case (Fig. 134). Be sure

twin lugs on band are seated against reaction pin.

(6) Install low-reverse drum and check overrun-

ning clutch operation as follows:

(a) Lubricate overrunning clutch race (on drum

hub) with transmission fluid.

(b) Guide drum through rear band.
(c) Tilt drum slightly and start race (on drum

hub) into overrunning clutch rollers.

(d) Press drum rearward and turn it in clock-

wise direction until drum seats in overrunning
clutch (Fig. 135).

(e) Turn drum back and forth. Drum should

rotate freely in clockwise direction and lock
in

counterclockwise

direction

(as

viewed

from front of case).
(7) Install snap ring that secures low-reverse drum

to hub of overdrive piston retainer (Fig. 136).

(8) Install rear band lever and pivot pin (Fig. 137).

Align lever with pin bores in case and push pivot pin
into place.

(9) Install planetary geartrain assembly (Fig. 138).

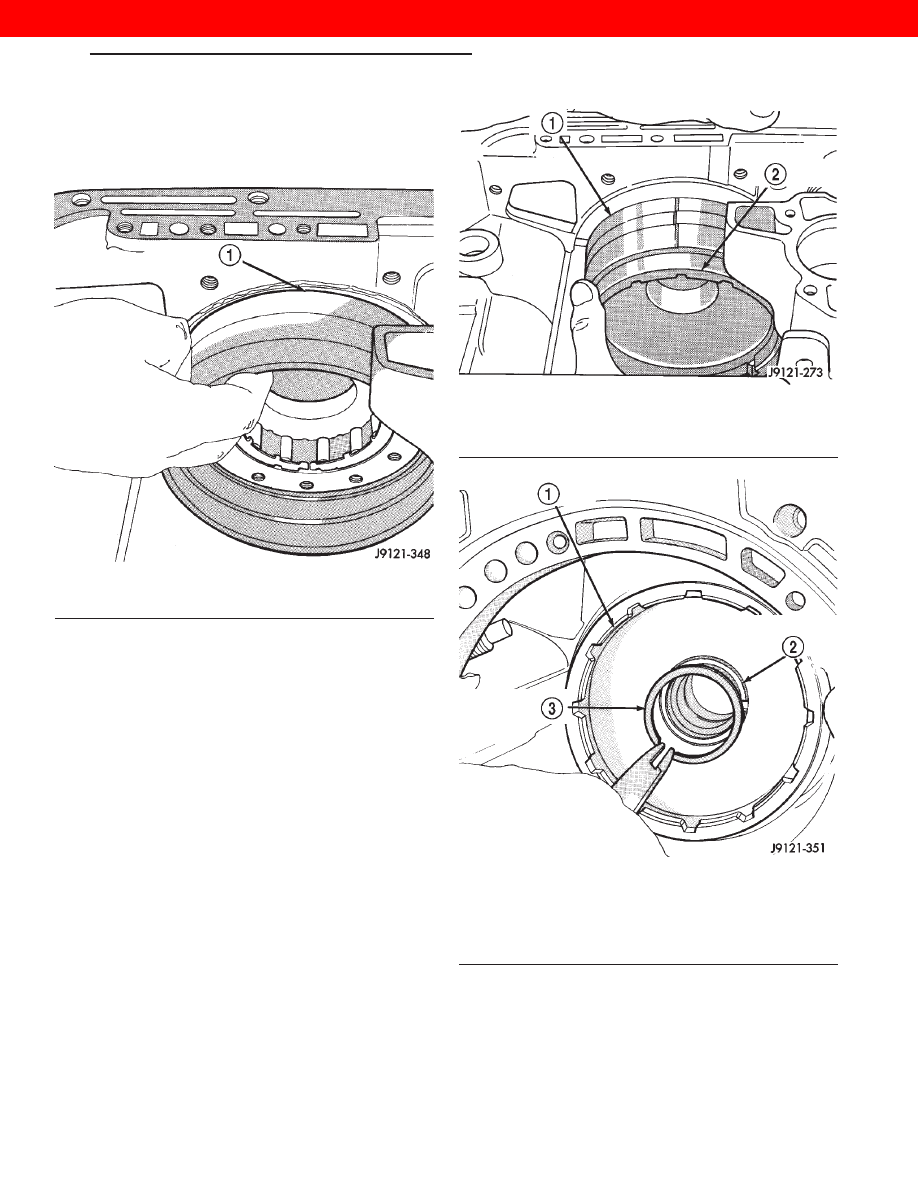

Fig. 134 Rear Band Installation

1 – REAR BAND

Fig. 135 Installing Low-Reverse Drum

1 – REAR BAND
2 – LOW-REVERSE DRUM

Fig. 136 Installing Low-Reverse Drum Retaining

Snap Ring

1 – LOW-REVERSE DRUM
2 – HUB OF OVERDRIVE PISTON RETAINER
3 – LOW-REVERSE DRUM SNAP RING

WJ

TRANSMISSION AND TRANSFER CASE

21 - 75

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

(10) Install thrust plate on intermediate shaft hub

(Fig. 139). Use petroleum jelly to hold thrust plate in
place.

(11) Check seal ring on rear clutch retainer hub

and seal rings on input shaft (Fig. 140). Also verify
that shaft seal rings are installed in sequence shown.

(12) Install rear clutch thrust washer (Fig. 141).

Use additional petroleum jelly to hold washer in
place if necessary.

Fig. 137 Rear Band Lever And Pivot Pin Installation

1 – REAR BAND LEVER
2 – LEVER PIVOT PIN

Fig. 138 Installing Planetary Geartrain

1 – PLANETARY GEARTRAIN AND INTERMEDIATE SHAFT

ASSEMBLY

Fig. 139 Installing Intermediate Shaft Thrust Plate

1 – INTERMEDIATE SHAFT HUB
2 – INTERMEDIATE SHAFT THRUST PLATE

Fig. 140 Input Shaft Seal Ring Location

1 – INPUT SHAFT
2 – TEFLON SEAL RING
3 – METAL SEAL RING
4 – REAR CLUTCH RETAINER

21 - 76

TRANSMISSION AND TRANSFER CASE

WJ

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE

(13) Align clutch discs in front clutch and install

front clutch on rear clutch (Fig. 142). Rotate front
clutch retainer back and forth until completely
seated on rear clutch retainer.

(14) Coat intermediate shaft thrust washer with

petroleum jelly. Then install washer in rear clutch
hub (Fig. 143). Use enough petroleum jelly to hold
washer in place. Be sure grooved side of washer
faces rearward (toward output shaft) as shown.
Also note that washer only fits one way in
clutch hub.
Note thickness of this washer. It is a
select fit part and is used to control transmission end
play.

(15) Align drive teeth on rear clutch discs with

small screwdriver (Fig. 144). This makes installation
on front planetary easier.

(16) Raise front end of transmission upward as far

as possible and support case with wood blocks. Front/
rear clutch and oil pump assemblies are easier to
install if transmission is as close to upright position
as possible.

(17) Slide front band into case.
(18) Install front and rear clutch units as assembly

(Fig. 145). Align rear clutch with front annulus gear
and install assembly in driving shell. Be sure out-
put shaft thrust washer and thrust plate are
not displaced during installation.

(19) Carefully work assembled clutches back and

forth to engage and seat rear clutch discs on front
annulus gear. Also be sure front clutch drive lugs are
fully engaged in slots of driving shell after installa-
tion.

Fig. 141 Installing Rear Clutch Thrust Washer

1 – REAR CLUTCH RETAINER
2 – REAR CLUTCH THRUST WASHER (FIBER)

Fig. 142 Assembling Front And Rear Clutch Units

1 – TURN FRONT CLUTCH BACK & FORTH UNTIL SEATED
2 – REAR CLUTCH ASSEMBLY

Fig. 143 Installing Intermediate Shaft Thrust Plate

1 – INTERMEDIATE SHAFT THRUST WASHER
2 – INPUT SHAFT
3 – REAR CLUTCH RETAINER HUB

WJ

TRANSMISSION AND TRANSFER CASE

21 - 77

DISASSEMBLY AND ASSEMBLY (Continued)

2000 JEEP GRAND CHEROKEE
