(3) Remove the top cover from the instrument

panel.

INSTALLATION

(1) If the vehicle is not equipped with the optional

ultra light sensor, be certain that the ultra light sen-
sor plug is installed in the hole to the left of the
driver side defroster outlet in the instrument panel
top cover.

(2) Before installing the top cover to the instru-

ment panel top pad, be certain that the rubber top
cover seal is properly positioned on the forward edge
of the top cover panel.

(3) Position the top cover on the instrument panel

top pad.

(4) Align the four snap clips on the top cover with

the snap clip receptacles in the instrument panel top
pad.

(5) Press firmly downward on the top cover over

each of the four snap clip locations until each of the
snap clips is fully seated in their receptacles in the
instrument panel top pad.

(6) Reconnect the battery negative cable.

INSTRUMENT PANEL TOP PAD

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, REFER TO GROUP 8M - PASSIVE RESTRAINT
SYSTEMS BEFORE ATTEMPTING ANY STEERING
WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT

PANEL COMPONENT DIAGNOSIS OR SERVICE. FAIL-
URE TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the trim from the right and left A-pil-

lars. Refer to A-Pillar Trim in the Removal and
Installation section of Group 23 - Body for the proce-
dures.

(3) Remove the top cover from the instrument

panel. Refer to Instrument Panel Top Cover in the
Removal and Installation section of this group for the
procedures.

(4) Remove the four nuts that secure the instru-

ment panel top pad to the studs on the dash panel
near the windshield fence line (Fig. 28).

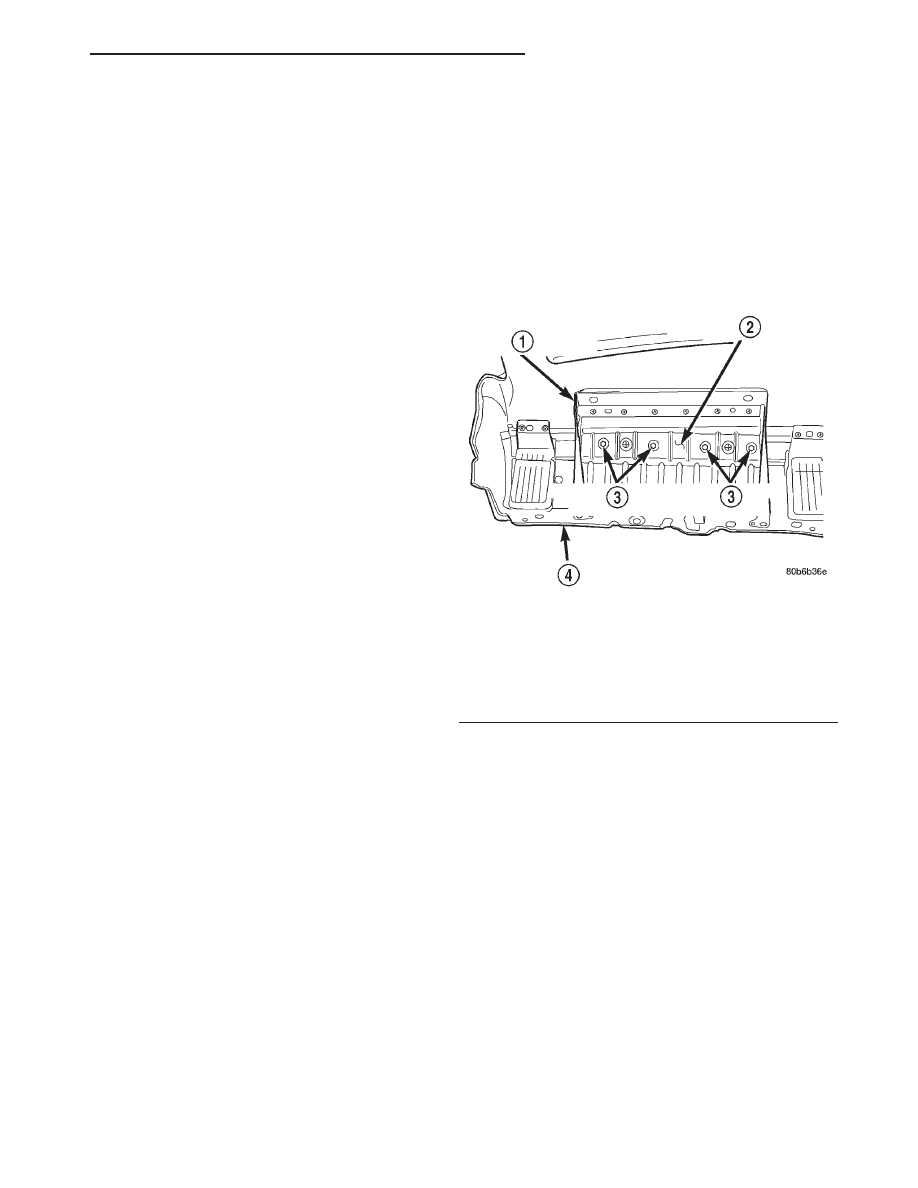

Fig. 28 Instrument Panel Top Pad to Dash Panel Mounting

1 – STUD (4)
2 – NUT (4)

3 – INSTRUMENT PANEL
4 – DASH PANEL

8E - 30

INSTRUMENT PANEL SYSTEMS

WJ

REMOVAL AND INSTALLATION (Continued)

(5) If the vehicle is so equipped, remove the speak-

ers from the instrument panel top pad. Refer to
Instrument Panel Speakers in the Removal and
Installation section of Group 8F - Audio Systems for
the procedures.

(6) If the vehicle is so equipped, disengage the

retainer that secures each of the two instrument
panel wire harness speaker takeouts to the mounting
hole in the instrument panel top pad. Tuck the loose
ends of the wire harness speaker takeouts down the
defroster ducts to keep them out of the way for the
remainder of the procedure.

(7) If the vehicle is so equipped, remove the two

screws that secure the security set lamp/ultra light
sensor unit to the instrument panel top pad just out-
board of the left defroster outlet. Move the security
set lamp/ultra light sensor unit towards the wind-
shield to keep it out of the way for the remainder of
the procedure.

(8) Remove the cluster bezel from the instrument

panel. Refer to Cluster Bezel in the Removal and
Installation section of this group for the procedures.

(9) Remove the instrument cluster from the instru-

ment panel. Refer to Instrument Cluster in the
Removal and Installation section of this group for the
procedures.

(10) Remove the steering column opening cover

from the instrument panel. Refer to Steering Col-
umn Opening Cover
in the Removal and Installa-
tion section of this group for the procedures.

(11) Roll the glove box down from the instrument

panel. Refer to Glove Box - Roll Down in the
Removal and Installation section of this group for the
procedures.

(12) Remove the end cap from the passenger side

lower outboard end of the instrument panel. Refer to
Instrument Panel End Cap in the Removal and
Installation section of this group for the procedures.

(13) Remove the lower right center bezel from the

instrument

panel.

Refer

to

Instrument

Panel

Lower Right Center Bezel in the Removal and
Installation section of this group for the procedures.

(14) Remove the glove box lamp and switch from

the instrument panel. Refer to Glove Box Lamp
and Switch
in the Removal and Installation section
of this group for the procedures.

(15) Remove the two large screws on the glove box

opening upper reinforcement that secure the top pad
to the instrument panel structural duct (Fig. 29).

(16) Remove the two small screws on the glove box

opening upper reinforcement that secure the panel
outlets to the instrument panel structural duct.

(17) Remove the center upper bezel from the

instrument panel. Refer to Instrument Panel Cen-
ter Upper Bezel
in the Removal and Installation
section of this group for the procedures.

(18) Remove the center lower bezel from the

instrument panel. Refer to Instrument Panel Cen-
ter Lower Bezel
in the Removal and Installation
section of this group for the procedures.

(19) Remove the four screws that secure the radio

to the instrument panel structural support. Pull the
radio out of the instrument panel far enough to
access the screws that secure the top pad to the
instrument panel structural duct.

(20) Remove the four screws that secure the heat-

er-A/C control to the instrument panel structural
duct. Pull the heater-A/C control out of the instru-
ment panel far enough to access the screws that
secure the top pad to the instrument panel structural
duct.

(21) Remove all of the screws that secure the

perimeter of the top pad to the instrument panel
structural duct.

(22) Remove the front bin from the floor console.

Refer to Floor Console in the Removal and Instal-
lation section of Group 23 - Body for the procedures.

(23) Reach through the front bin opening of the

floor console to access and remove the two screws
that secure the center floor tunnel bracket to the
instrument panel.

(24) Reach through the front bin opening of the

floor console to access and loosen the two nuts that
secure the center floor tunnel bracket to the studs on
the floor panel transmission tunnel.

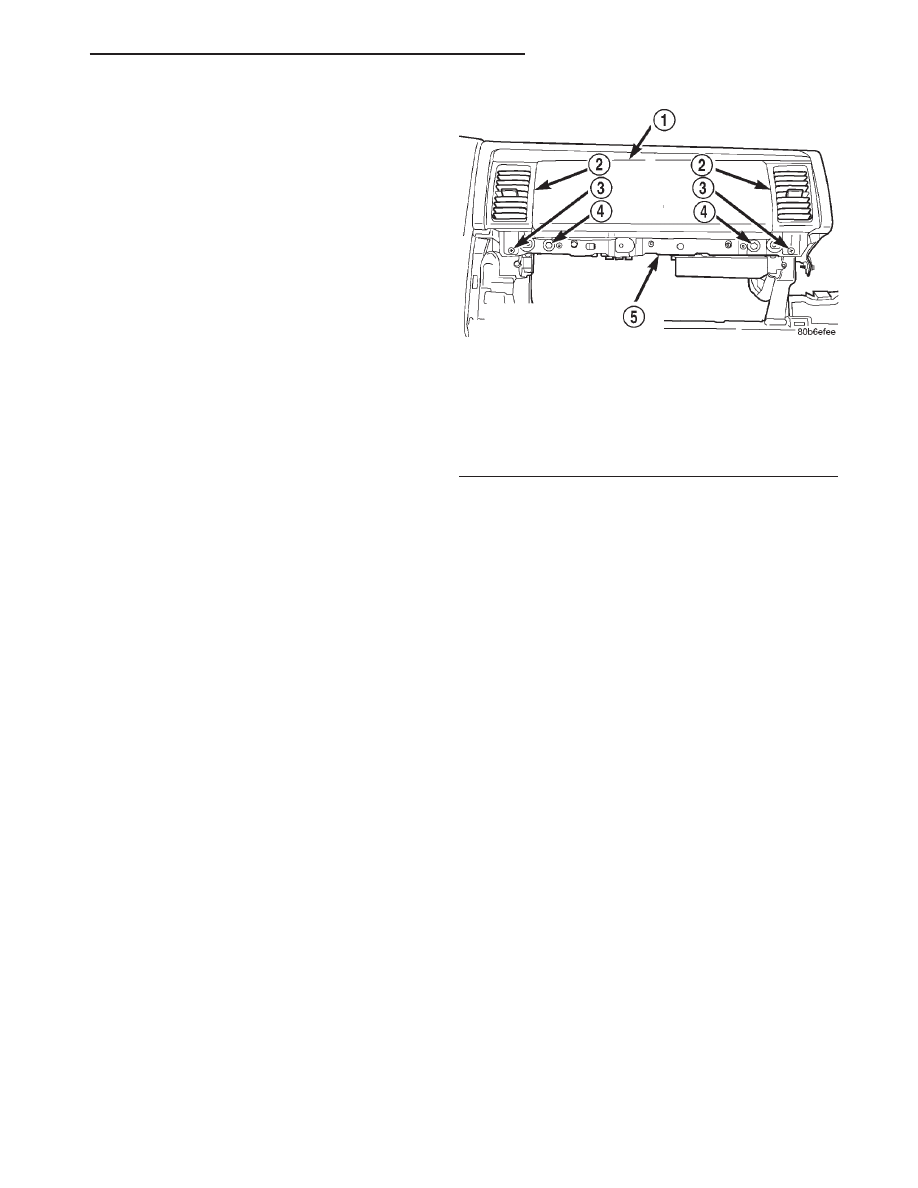

Fig. 29 Instrument Panel Top Pad to Glove Box

Opening Mounting

1 – PASSENGER SIDE BEZEL
2 – PANEL OUTLETS
3 – SMALL SCREWS
4 – LARGE SCREWS
5 – GLOVE BOX OPENING UPPER REINFORCEMENT

WJ

INSTRUMENT PANEL SYSTEMS

8E - 31

REMOVAL AND INSTALLATION (Continued)

(25) Slide the center floor tunnel bracket rearward

in the vehicle far enough to disengage the locating
hole in the lower flange of the top pad from the locat-
ing pin on the instrument panel structural duct (Fig.
30).

(26) Remove the instrument panel top pad from

the instrument panel structural duct.

INSTALLATION

If the top pad is being replaced with a new unit, be

certain to transfer or install the panel outlets and
the passenger side bezel to the new unit before it is
installed on the instrument panel structural duct.
Refer to Ducts and Outlets in the Removal and
Installation section of Group 24 - Heating and Air
Conditioning for the panel outlet service procedures.
Refer to Instrument Panel Passenger Side Bezel
in the Removal and Installation section of this group
for the passenger side bezel service procedures.

(1) Position the instrument panel top pad over the

instrument panel structural duct and the studs on
the dash panel near the windshield fence line.

(2) Route the instrument panel wire harness take-

out for the glove box lamp and switch unit to the
switch mounting hole in the upper glove box opening
reinforcement.

(3) Reach through the front bin opening of the

floor console to engage the locating hole in the lower
flange of the top pad with the locating pin on the
instrument panel structural duct.

(4) Reach through the front bin opening of the

floor console to slide the center floor tunnel bracket
forward in the vehicle far enough to capture the
lower flange of the top pad between the bracket and
the structural duct.

(5) Reach through the front bin opening of the

floor console to install and tighten the two screws
that secure the center floor tunnel bracket to the
instrument panel. Tighten the screws to 11.8 N·m
(105 in. lbs.).

(6) Reach through the front bin opening of the

floor console to access and tighten the two nuts that
secure the center floor tunnel bracket to the studs on
the floor panel transmission tunnel. Tighten the nuts
to 11.8 N·m (105 in. lbs.).

(7) Install the front bin into the floor console.

Refer to Floor Console in the Removal and Instal-
lation section of Group 23 - Body for the procedures.

(8) Install and tighten all of the screws that secure

the perimeter of the top pad to the instrument panel
structural duct. Tighten the screws to 2.2 N·m (20 in.
lbs.).

(9) Install and tighten the four screws that secure

the heater-A/C control to the instrument panel struc-
tural support. Tighten the screws to 2.2 N·m (20 in.
lbs.).

(10) Install and tighten the four screws that secure

the radio to the instrument panel structural support.
Tighten the screws to 2.2 N·m (20 in. lbs.).

(11) Install the center lower bezel onto the instru-

ment panel. Refer to Instrument Panel Center
Lower Bezel
in the Removal and Installation sec-
tion of this group for the procedures.

(12) Install the center upper bezel onto the instru-

ment panel. Refer to Instrument Panel Center
Upper Bezel
in the Removal and Installation sec-
tion of this group for the procedures.

(13) Install and tighten the two large screws on

the glove box opening upper reinforcement that
secure the top pad to the instrument panel structural
duct. Tighten the screws to 11.8 N·m (105 in. lbs.).

(14) Install and tighten the two small screws on

the glove box opening upper reinforcement that
secure the panel outlets to the instrument panel
structural duct. Tighten the screws to 2.2 N·m (20 in.
lbs.).

(15) Install the glove box lamp and switch into the

instrument panel. Refer to Glove Box Lamp and
Switch
in the Removal and Installation section of
this group for the procedures.

(16) Install the lower right center bezel onto the

instrument

panel.

Refer

to

Instrument

Panel

Lower Right Center Bezel in the Removal and
Installation section of this group for the procedures.

(17) Install the end cap onto the instrument panel.

Refer to Instrument Panel End Cap in the

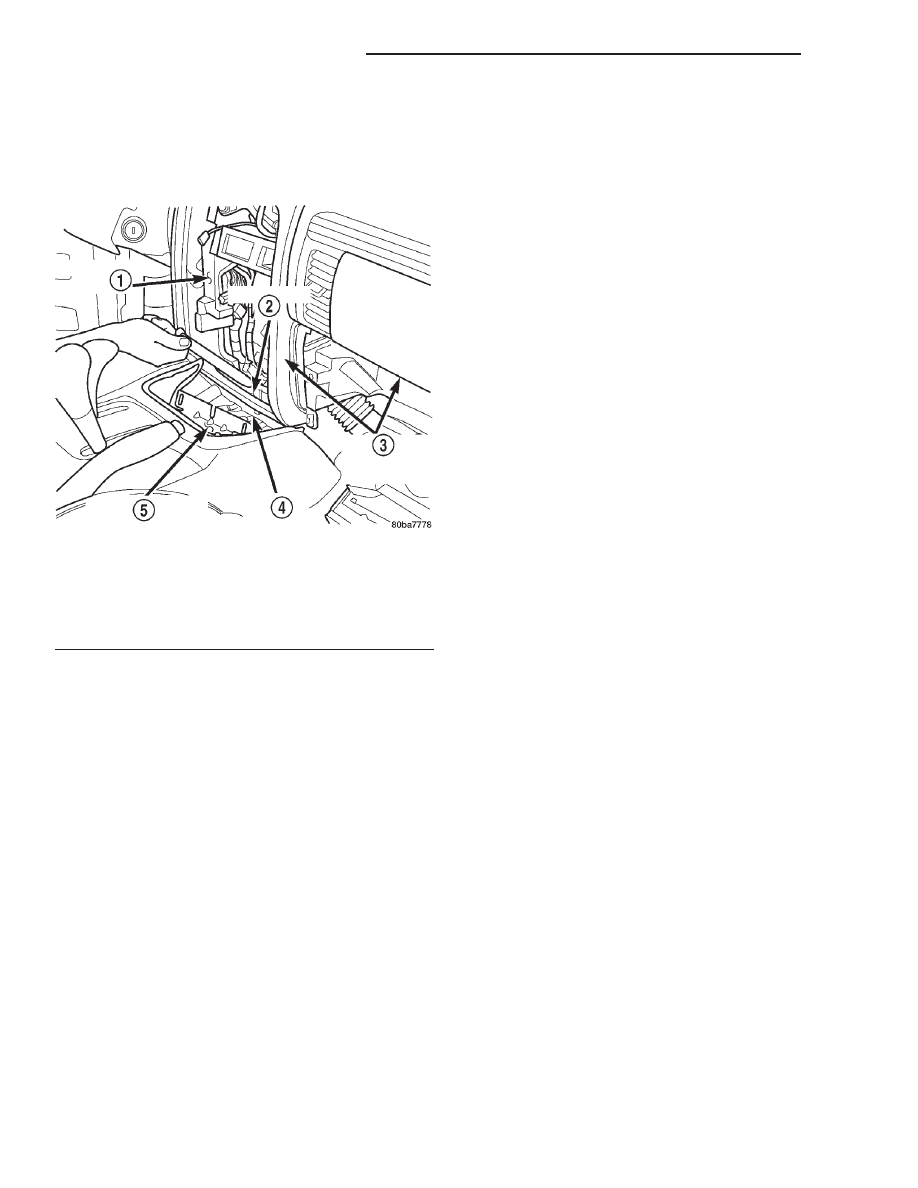

Fig. 30 Instrument Panel Top Pad Remove/Install

1 – STRUCTURAL DUCT
2 – LOCATING PIN
3 – INSTRUMENT PANEL TOP PAD
4 – LOWER FLANGE
5 – CENTER FLOOR TUNNEL BRACKET

8E - 32

INSTRUMENT PANEL SYSTEMS

WJ

REMOVAL AND INSTALLATION (Continued)

Removal and Installation section of this group for the
procedures.

(18) Roll the glove box back up into the instrument

panel. Refer to Glove Box - Roll Down in the
Removal and Installation section of this group for the
procedures.

(19) Install the steering column opening cover onto

the instrument panel. Refer to Steering Column
Opening Cover
in the Removal and Installation sec-
tion of this group for the procedures.

(20) Install the instrument cluster into the instru-

ment panel. Refer to Instrument Cluster in the
Removal and Installation section of this group for the
procedures.

(21) Install the cluster bezel onto the instrument

panel. Refer to Cluster Bezel in the Removal and
Installation section of this group for the procedures.

(22) If the vehicle is so equipped, position the secu-

rity set lamp/ultra light sensor unit to the instru-
ment panel top pad just outboard of the left defroster
outlet. Install and tighten the two screws that secure
it there. Tighten the screws to 2.2 N·m (20 in. lbs.).

(23) If the vehicle is so equipped, engage the

retainer that secures each of the two instrument
panel wire harness speaker takeouts to the mounting
hole in the instrument panel top pad.

(24) If the vehicle is so equipped, install the speak-

ers onto the instrument panel top pad. Refer to
Instrument Panel Speakers in the Removal and
Installation section of Group 8F - Audio Systems for
the procedures.

(25) Install and tighten the four nuts that secure

the instrument panel top pad to the studs on the
dash panel near the windshield fence line. Tighten
the nuts to 11.8 N·m (105 in. lbs.).

(26) Install the top cover onto the instrument

panel. Refer to Instrument Panel Top Cover in the
Removal and Installation section of this group for the
procedures.

(27) Install the trim onto the right and left A-pil-

lars. Refer to A-Pillar Trim in the Removal and
Installation section of Group 23 - Body for the proce-
dures.

(28) Reconnect the battery negative cable.

INSTRUMENT PANEL PASSENGER SIDE BEZEL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

TO

GROUP

8M

-

PASSIVE

RESTRAINT SYSTEMS BEFORE ATTEMPTING ANY
STEERING

WHEEL,

STEERING

COLUMN,

OR

INSTRUMENT PANEL COMPONENT DIAGNOSIS OR
SERVICE. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the top pad from the instrument panel.

Refer to Instrument Panel Top Pad in the
Removal and Installation section of this group for the
procedures.

(3) From the underside of the top pad, remove the

four screws from the top of the passenger side airbag
door that secure the passenger side bezel to the
instrument panel (Fig. 31).

(4) Remove the passenger side bezel from the

instrument panel top pad.

INSTALLATION

(1) Position the passenger side bezel to the instru-

ment panel top pad.

(2) From the underside of the top pad, install and

tighten the four screws through the top of the pas-
senger side airbag door that secure the passenger
side bezel to the instrument panel. Tighten the
screws to 11.8 N·m (105 in. lbs.).

(3) Install the top pad onto the instrument panel.

Refer to Instrument Panel Top Pad in the
Removal and Installation section of this group for the
procedures.

(4) Reconnect the battery negative cable.

Fig. 31 Instrument Panel Passenger Side Bezel

Remove/Install

1 – INSTRUMENT PANEL AIRBAG DOOR REINFORCEMENT
2 – PASSENGER SIDE AIRBAG DOOR
3 – PASSENGER SIDE INSTRUMENT PANEL BEZEL SCREWS

(4)

4 – INSTRUMENT PANEL TOP PAD

WJ

INSTRUMENT PANEL SYSTEMS

8E - 33

REMOVAL AND INSTALLATION (Continued)















Content   ..  105  106  107  108   ..
