Jeep Grand Cherokee WJ. Manual - part 55





(4) Have an assistant pry down the lock out spring

through the hole in the side of the park brake lever
(Fig. 54) with a small screw driver. Then slowly
release the front cable.

NOTE: Their should be slack in the cable if the lock
out spring is engaged.

(5) Disengage rear cables ends from the equalizer.
(6) Compress the cable retainers with a 13 mm

wrench (Fig. 55) and remove the cable from equalizer
bracket.

(7) Raise and support the vehicle.
(8) Remove the wheel and tire assemblies.
(9) Remove the brake calipers, caliper anchors and

rotors.

(10) Remove the ABS sensor wiring harness (Fig.

56) from the rear brake cables.

(11) Remove the cable retainer bolts (Fig. 56) from

the rear spring pads.

(12) Pull the cables out of the upper suspension

arm brackets.

(13) Push the cable in and lift up the end of cable

with a small screw driver to disengage the cable from
the parking brake actuator (Fig. 57).

(14) Remove the cable from the vehicle.

Fig. 53 Front Cable Eyelet

1 – REAR CABLES
2 – FRONT CABLE EYELET
3 – FRONT CABLE
4 – EQUALIZER

Fig. 54 Lock Out Spring

1 – LOCK OUT SPRING

Fig. 55 Cable Retainers

1 – CABLE RETAINER
2 – WRENCH
3 – FRONT CABLE
4 – REAR CABLES

Fig. 56 Left Rear Parking Brake Cable

1 – CABLE BRACKET
2 – UPPER SUSPENSION ARM
3 – PARKING BRAKE CABLE
4 – CABLE RETAINER
5 – ABS SENSOR WIRING

5 - 28

BRAKES

WJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Install the cables through the caliper anchor

mount. Then push the end of cable strand in to
engage the cable end to the parking brake actuator.

(2) Feed the other end of the cables through the

body and into the equalizer bracket (Fig. 58).

(3) Push the cables into the upper suspension arm

brackets.

(4) Install the cable retainer bolts to the rear

spring pads.

(5) Install the ABS sensor wiring harness to the

rear brake cables.

(6) Install the rotors, caliper anchors and brake

calipers.

(7) Install the wheel and tire assemblies.
(8) Remove support and lower the vehicle.
(9) Engage the cable ends into the parking brake

equalizer.

(10) Pull on the lever to release the lock out

spring.

(11) Install center console, refer to Group 23 Body.
(12) Fold down the rear carpet cover and rear seat.
(13) Verify parking brake operation.

PARKING BRAKE SHOES

REMOVAL

(1) Lock out park brake lever (Fig. 59).

(2) Raise vehicle.
(3) Remove rear wheel and tire assembly.
(4) Remove caliper and anchor as an assembly.
(5) Remove rubber access plug from back of rear

disc brake splash shield.

(6) If necessary retract parking brake shoes with

brake adjuster tool (Fig. 60). Position tool at top of
star wheel and rotate wheel.

(7) Remove rotor from axle hub flange.
(8) Remove the lower shoe to shoe spring/adjuster

spring with needle nose pliers (Fig. 61).

(9) Remove the upper shoe to shoe spring/return

spring with brake pliers (Fig. 62).

(10) Remove shoe hold-down clips and pins (Fig.

63). Clip is held in place by pin which fits in clip

Fig. 57 Parking Brake Actuator

1 – CABLE END
2 – SCREW DRIVER
3 – PARKING BRAKE ACTUATOR
4 – BRAKE SHOES

Fig. 58 Equalizer Bracket

1 – EQUALIZER
2 – RIGHT REAR CABLE
3 – LEFT REAR CABLE
4 – FRONT CABLE

Fig. 59 Lock Out Spring

1 – LOCK OUT SPRING

WJ

BRAKES

5 - 29

REMOVAL AND INSTALLATION (Continued)

notch. To remove clip, first push clip ends together
and slide clip until head of pin clears narrow part of
notch. Then remove clip and pin.

(11) Remove shoes and adjuster.

INSTALLATION

(1) Install shoes on splash shield with hold down

clips and pins. Be sure shoes are properly engaged in
the park brake actuator.

(2) Lubricate and install adjuster screw assembly.

Be sure notched ends of screw assembly are properly
seated on shoes and that star wheel is aligned with
access hole in shield.

(3) Install

lower

shoe

to

shoe

spring/adjuster

spring. Needle nose pliers can be used to connect
spring to each shoe.

(4) Install the upper shoe to shoe spring/return

spring with brake pliers (Fig. 61).

(5) Install rotor and caliper anchor assembly.
(6) Install anchor bolts and tighten to 90-115 N·m

(66-85 ft. lbs.).

(7) Actuate park brake lever to unlock the park

brake system.

(8) Adjust the parking brake shoes (Fig. 60).

Fig. 60 Retracting Parking Brake Shoes

1 – ACCESS HOLE
2 – BRAKE ADJUSTING TOOL
3 – SPLASH SHIELD

Fig. 61 Lower Spring

1 – REAR SHOE
2 – NEEDLENOSE PLIERS
3 – ADJUSTER SCREW
4 – LOWER SPRING

Fig. 62 Upper Spring

1 – BRAKE PLIERS
2 – REAR SHOE
3 – UPPER SPRING

Fig. 63 Hold-Down Clip And Pin

1 – HOLD-DOWN CLIP
2 – HOLD-DOWN PIN

5 - 30

BRAKES

WJ

REMOVAL AND INSTALLATION (Continued)

(9) Install wheel and tire assembly.
(10) Lower vehicle and verify correct parking

brake operation.

DISASSEMBLY AND ASSEMBLY

FRONT DISC BRAKE CALIPER

DISASSEMBLY

(1) Drain the brake fluid from caliper.
(2) C-clamp a block of wood over one piston (Fig.

64).

(3) Take another piece of wood and pad it with

one-inch thickness of shop towels. Place this piece in
the outboard shoe side of the caliper in front of the
other piston. This will cushion and protect caliper
piston during removal (Fig. 65).

(4) To remove the caliper piston direct short

bursts of low pressure air with a blow gun
through the caliper brake hose port. Use only enough
air pressure to ease the piston out.

CAUTION: Do not blow the piston out of the bore
with sustained air pressure. This could result in a
cracked piston.

WARNING: NEVER ATTEMPT TO CATCH THE PIS-
TON AS IT LEAVES THE BORE. THIS COULD
RESULT IN PERSONAL INJURY.

(5) Remove the C-clamp and block of wood from

the caliper and clamp it over the dust boot of the
first piston removed. This will seal the empty piston
bore.

(6) Move the padded piece of wood in front of the

other piston.

(7) Remove the second piston using the same pro-

cedure with short bursts of low pressure air.

(8) Remove piston dust boots with a suitable pry

tool (Fig. 66) and discard.

(9) Remove piston seals from caliper (Fig. 67) and

discard.

CAUTION: Do not scratch piston bore while remov-
ing the seals.

(10) Remove caliper slide pin bushings (Fig. 68).
(11) Remove caliper bleed screw.

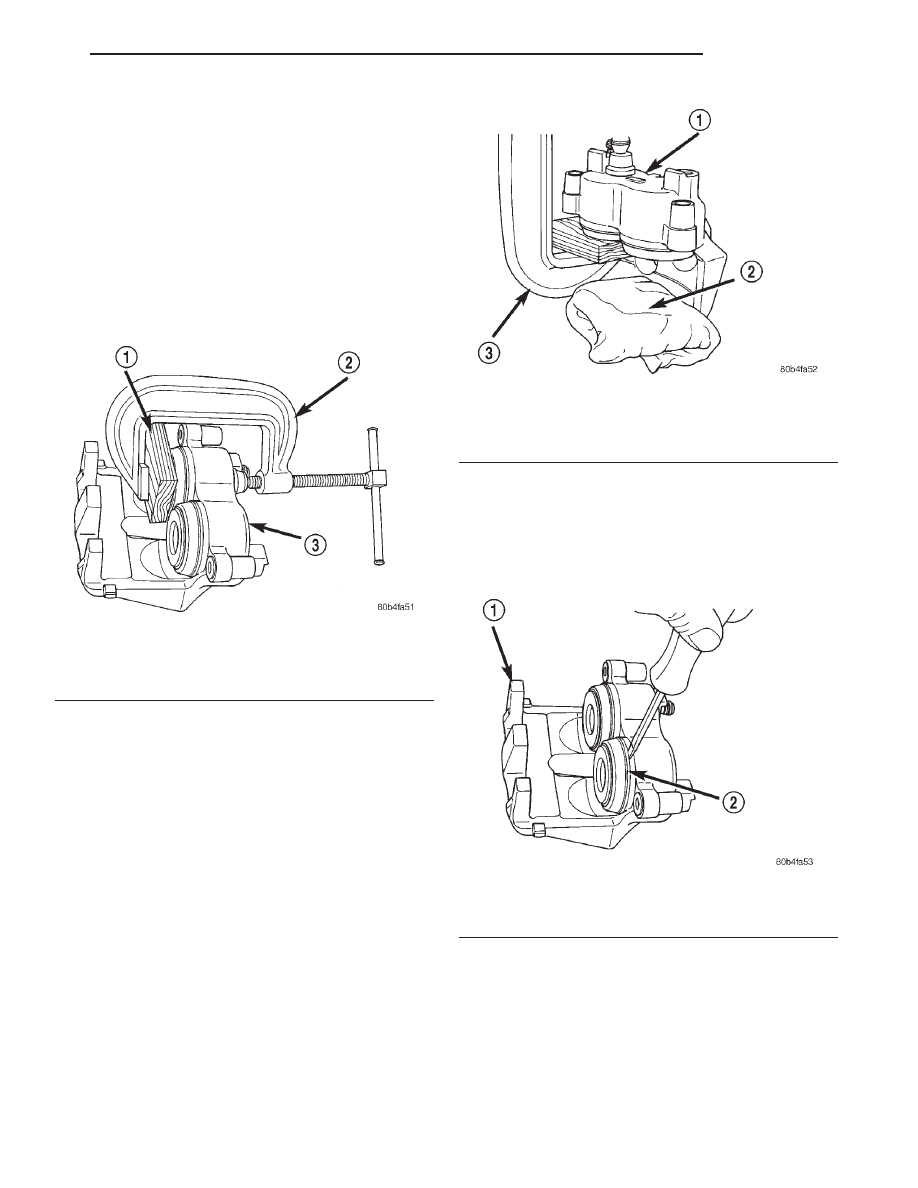

Fig. 64 C-Clamp One Piston

1 – BLOCK OF WOOD
2 – C-CLAMP
3 – CALIPER

Fig. 65 Protect Caliper Piston

1 – CALIPER
2 – PADDED BLOCK OF WOOD
3 – C-CLAMP

Fig. 66 Piston Dust Boot Removal

1 – CALIPER
2 – PISTON DUST BOOT

WJ

BRAKES

5 - 31

REMOVAL AND INSTALLATION (Continued)
