Jeep Grand Cherokee WJ. Manual - part 53





Fig. 28 Bottoming Caliper Piston

1 – ROTOR
2 – CALIPER

Fig. 29 Caliper Support Spring

1 – SUPPORT SPRING
2 – CALIPER

Fig. 30 Caliper Slide Pins

1 – SLIDE PIN
2 – SLIDE PIN
3 – CALIPER

Fig. 31 Inboard Brake Shoe

1 – CALIPER
2 – INBOARD SHOE

5 - 20

BRAKES

WJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

(1) Install the inboard brake shoe onto the caliper

(Fig. 31).

(2) Install the outboard shoe onto the caliper

anchor (Fig. 32).

(3) Lubricate the slide pins and slide pin bushings

with Dow Corning

t grease G807 or the grease pro-

vided with the brake shoes.

(4) Install caliper on the caliper anchor.
(5) Install the caliper slide pin and tighten to

29-41 N·m (21-30 ft. lbs.).

(6) Install the caliper slide pin bushing caps.
(7) Install the caliper support spring in the top

end of the caliper and under the anchor. Then install
other end into the lower caliper hole. Hold the spring
into the caliper hole with your thumb while prying
the end of the spring out and down under the anchor
with a screw drive.

(8) Install wheel and tire assembly.
(9) Remove support and lower vehicle.
(10) Pump brake pedal until caliper pistons and

brake shoes are seated and a firm brake pedal is
obtained.

(11) Fill brake fluid.

FRONT DISC BRAKE ROTOR

REMOVAL

NOTE: Front rotors and hub/bearings are matched
mounted for minimum lateral runout. Before remov-
ing the rotor, mark the rotor and hub/bearing to
maintain original orientation.

(1) Raise and support the vehicle.
(2) Remove wheel and tire assembly.
(3) Remove the caliper anchor bolts (Fig. 33) and

remove the caliper and anchor as an assembly from
the steering knuckle.

(4) Secure caliper anchor assembly to nearby sus-

pension part with a wire. Do not allow brake hose
to support caliper weight.

(5) Mark the rotor and hub/bearing to maintain

original orientation. Remove retainers securing rotor
to hub studs.

(6) Remove rotor from hub/bearing.

INSTALLATION

NOTE: If a new rotor is installed it must be match
mounted to the hub/bearing.

(1) Install rotor on hub studs in its original loca-

tion.

Fig. 32 Outboard Brake Shoe

1 – CALIPER ANCHOR
2 – OUTBOARD BRAKE SHOE

Fig. 33 Caliper Anchor Bolts

1 – KNUCKLE
2 – ANCHOR
3 – ANCHOR BOLTS
4 – ROTOR

WJ

BRAKES

5 - 21

REMOVAL AND INSTALLATION (Continued)

(2) Install the caliper anchor assembly on the

knuckle. Install anchor bolts and tighten to 90-115
N·m (66-85 ft. lbs.).

(3) Install wheel and tire assembly.
(4) Remove support and lower the vehicle.
(5) Pump brake pedal to seat caliper pistons and

brake shoes. Do not move vehicle until firm brake
pedal is obtained.

REAR DISC BRAKE CALIPER

REMOVAL

(1) Raise and support vehicle.
(2) Remove rear wheel and tire assembly.
(3) Drain small amount of fluid from master cylin-

der brake reservoir with a clean suction gun.

(4) Bottom caliper pistons into the caliper by pry-

ing the caliper over (Fig. 34).

(5) Remove brake hose banjo bolt and discard gas-

ket washers.

(6) Remove the caliper support spring by prying

the spring out of the caliper (Fig. 35).

(7) Remove the caliper slide pin bushing caps and

remove the slide pins (Fig. 36).

(8) Remove caliper from the anchor.
(9) Remove the inboard brake shoe (Fig. 37).

INSTALLATION

(1) Install the inboard brake shoe (Fig. 37).

(2) Lubricate the slide pins and slide pin bushings

with Dow Corning

t grease G807 or the grease pro-

vided with the caliper.

Fig. 34 Bottoming Caliper Piston

1 – CALIPER
2 – CALIPER ANCHOR

Fig. 35 Caliper Support Spring

1 – CALIPER
2 – ANCHOR
3 – SUPPORT SPRING

Fig. 36 Caliper Slide Pins

1 – CALIPER
2 – SLIDE PINS

5 - 22

BRAKES

WJ

REMOVAL AND INSTALLATION (Continued)

(3) Install the caliper on the anchor.
(4) Install the caliper slide pin and tighten to

29-41 N·m (21-30 ft. lbs.).

(5) Install the caliper slide pin caps.
(6) Install the caliper support spring in the top

end of the caliper and under the anchor. Then install
other end into the lower caliper hole. Hold the spring
into the caliper hole with your thumb while prying
the end of the spring out and down under the anchor
with a screw drive.

(7) Install brake hose to caliper with new gasket

washers and tighten banjo bolt to 31 N·m (23 ft. lbs.).

CAUTION: Verify brake hose is not twisted or
kinked before tightening fitting bolt.

(8) Fill and bleed brake system.
(9) Install wheel and tire assemblies.
(10) Remove supports and lower vehicle.

REAR DISC BRAKE SHOES

REMOVAL

(1) Raise and support vehicle.
(2) Remove rear wheel and tire assembly.
(3) Drain small amount of fluid from master cylin-

der brake reservoir with a clean suction gun.

(4) Bottom caliper pistons into the caliper by pry-

ing the caliper over (Fig. 38).

(5) Remove the caliper support spring by prying

the spring out of the caliper (Fig. 39).

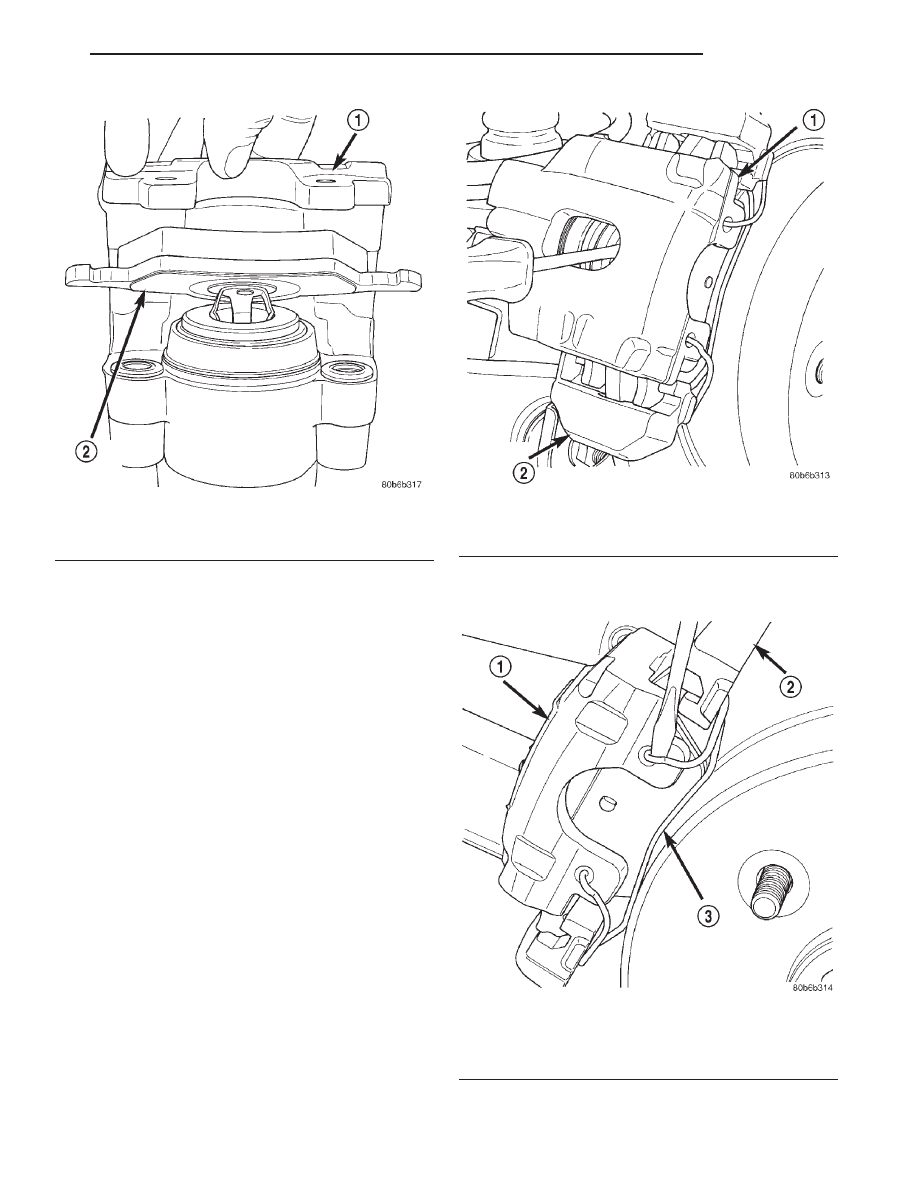

Fig. 37 Inboard Brake Shoe

1 – CALIPER
2 – INBOARD SHOE

Fig. 38 Bottoming Caliper Piston

1 – CALIPER
2 – CALIPER ANCHOR

Fig. 39 Caliper Support Spring

1 – CALIPER
2 – ANCHOR
3 – SUPPORT SPRING

WJ

BRAKES

5 - 23

REMOVAL AND INSTALLATION (Continued)
