Manual Transmission/Transaxle External Controls - Gearshift CablesVehicles With:
5-Speed Manual Transmission - MT75

Removal and Installation

Special Tool(s)

Powertrain assembly jack

HTJ1200-2

Removal

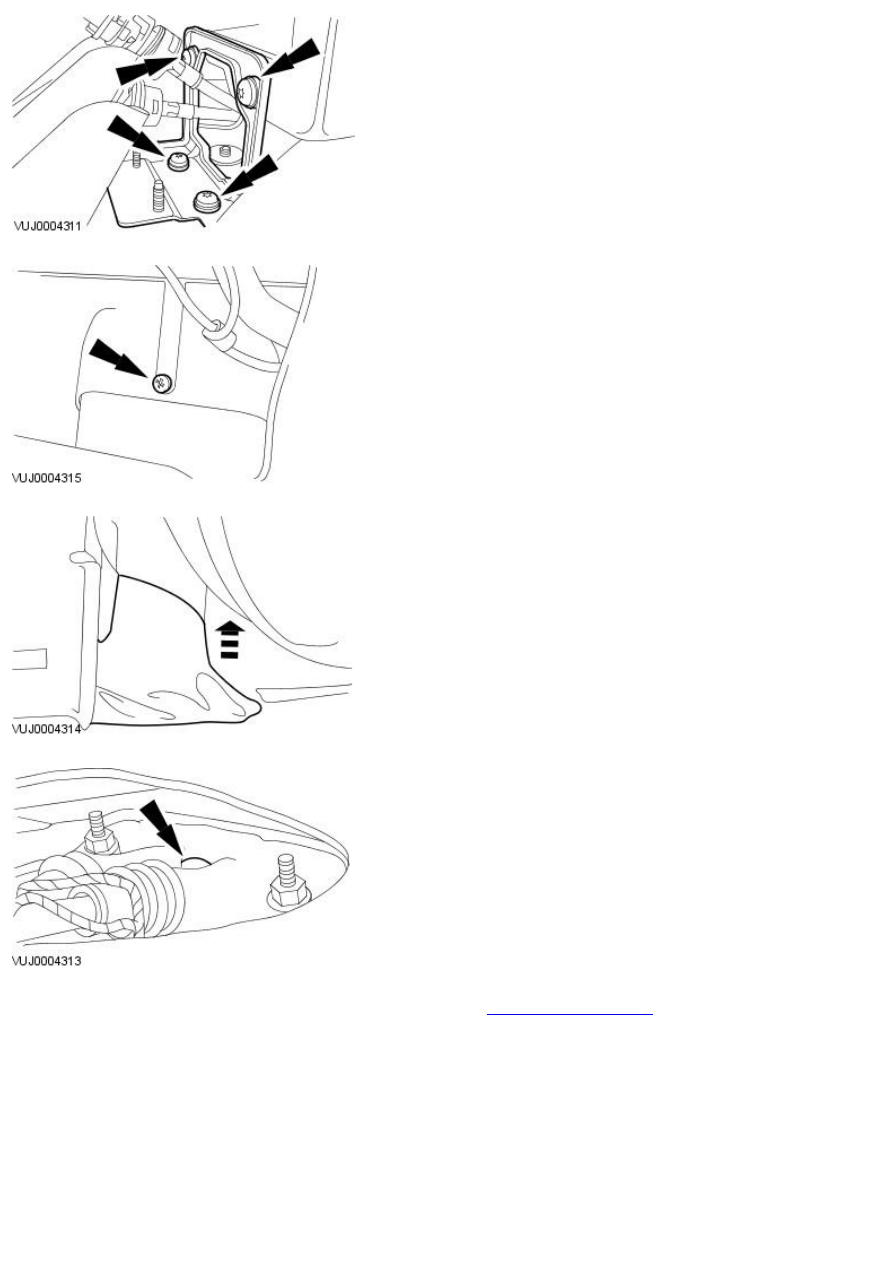

1. Remove the center console right-hand side panel.

2. NOTE: Press the button to release the cable fitting before disconnecting
the cable.

Disconnect the gearshift selector cables.

3. Disconnect the gearshift selector cables.

4. Remove the instrument panel center mount bracket.

5. Remove the center air duct retaining screw.

6. Reposition the center air duct upwards.

7. Detach the gearshift selector cable grommet.

8. Raise and support the vehicle. For additional information, refer

toSection

 100-02 Jacking and Lifting

.

9. Detach the exhaust heat shield.

10.

CAUTION: Using the powertrain assembly jack, support the rear

of the subframe.

• NOTE: Left-hand shown, right-hand similar.

Remove the subframe reinforcement plate retaining bolts.

11. NOTE: Left-hand shown, right-hand similar.

Loosen the subframe rear mount retaining bolt.

12. NOTE: Press the button to release the cable fitting before
disconnecting the cable.

Detach the gearshift selector cables.

13. NOTE: Press the button to release the cable fitting before
disconnecting the cable.

Remove the gearshift selector cable.

Installation

1. To install, reverse the removal procedure.

2. Tighten to 60 lb/in.

3. Check and adjust the gearshift cables. For additional information, refer

toSection

 308-00 Manual Transmission/Transaxle and Clutch - General

Information

.

4. Tighten the subframe rear mount retaining bolt.

Tighten to 142 Nm.

5. Tighten the front subframe reinforcement plate retaining bolts.

Tighten to 35 Nm.

6. Carry out front subframe alignment procedure. For additional

information, refer toSection

 502-00 Uni-Body, Subframe and Mounting

System

.
