Engines Iveco C87 / Cursor 87. Manual - part 44
Figure 4
119973
Replace fuel tank prefilter

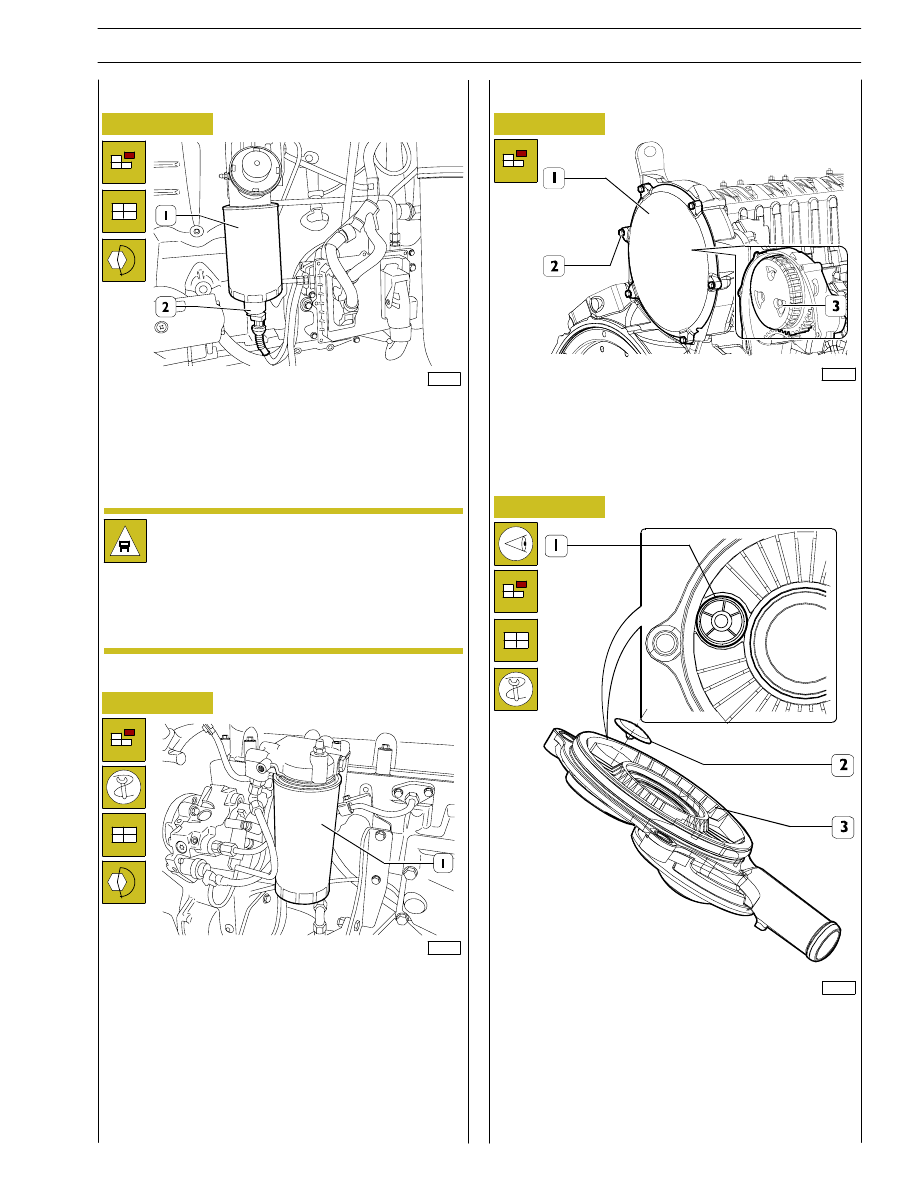

Disconnect electric connector (2). Unlock prefilter (1) and
change it. Before refitting a new cartridge, wet seal with fuel
oil or engine oil. Lock cartridge by hand till in contact with
support, then lock it by
¾ of a rev. at predefined tightening
torque.
At change, filter cartridge must not be prefilled to
prevent
circulating
dirt
that
could damage
injector/pump system components. Bleed air from
fuel filter as described in previous pages.
Figure 5
119972
Fuel filter change
Use tool 99360314 to remove fuel filter (1).
Before fitting the new cartridge, wet seal with fuel oil or engine
oil. Lock the new one by hand and carefully check that rubber
seal and contact surface are clean and in perfect conditions.
Lock cartridge by hand till contact with support and then lock
it for
¾ of a rev. at prescribed tightening torque. Bleed air from
supply system as described in paragraph below:
Figure 6
Figure 7
114018
117692
Unlock screws (1) and remove cover (2). Remove the
centrifugal filter (3) underneath and replace it.
Fuel Blow-by filter
Install blow-by body (1) with related seal and lock screws (2)
at required torque.
Install cover (3) and lock screws (4) at required torque.
