9A–12

SEAT BELT SYSTEM

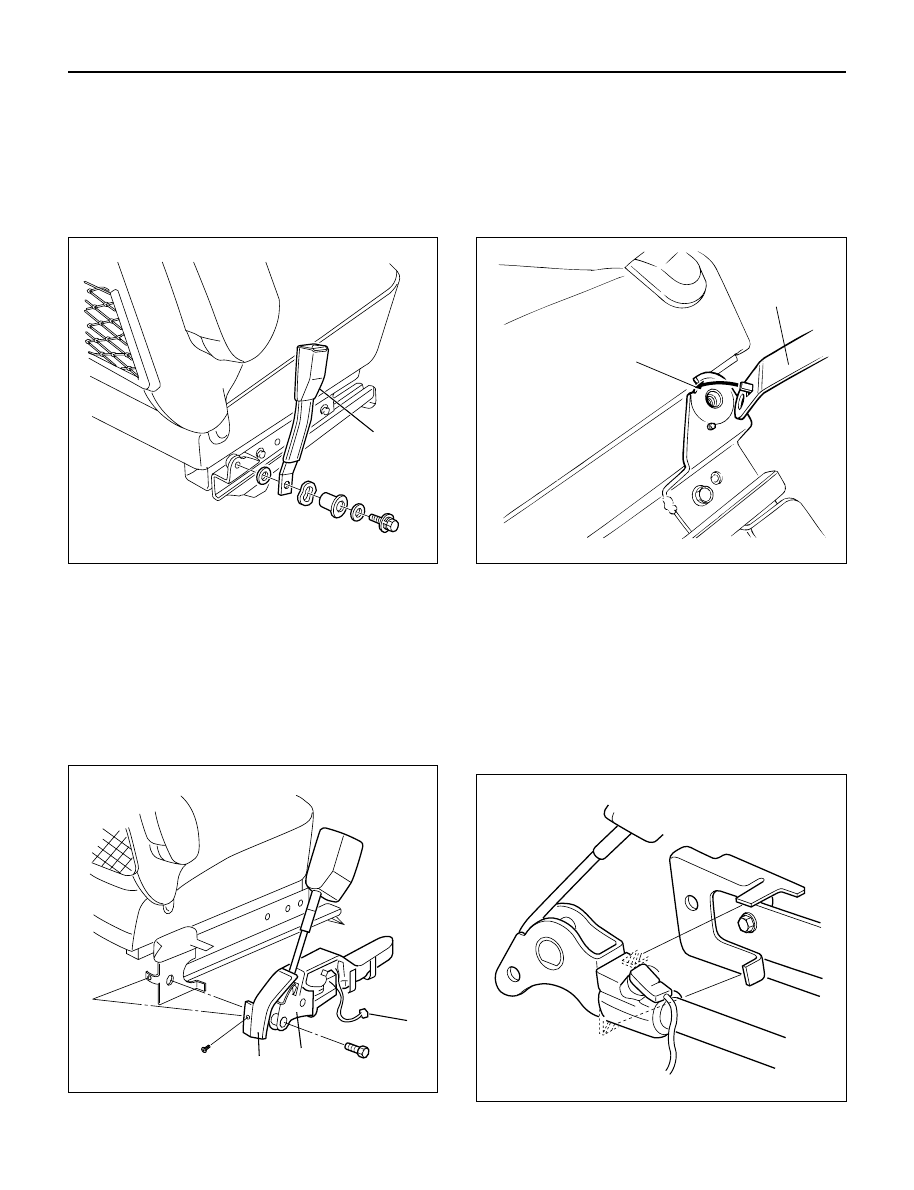

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.
2. Disconnect the seat belt warning connector (If so

equipped).

3. Remove the front seat buckle assembly(1).

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Fix the buckle to the rotation – stop position(2)

securely to install the front seat buckle assembly(1).

2. Tighten the buckle anchor bolt to the specified torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

1

760RW023

1

2

760RS005

Front Seat Buckle Assembly (W/Pretensioner)

Removal

1. Disconnect the battery ground cable.
2. Disconnect the pretensioner harness connector(3).
3. Remove the pretensioner cover(1).
4. Remove the front seat buckle assembly(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Fix the buckle to the rotation – stop position securely

to install the front seat buckle assembly.

2. Connect the pretensioner harness connector.

3. Tighten the buckle anchor bolt to the specified torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

1

2

3

760RW030

760RW029

SEAT BELT SYSTEM

9A–13

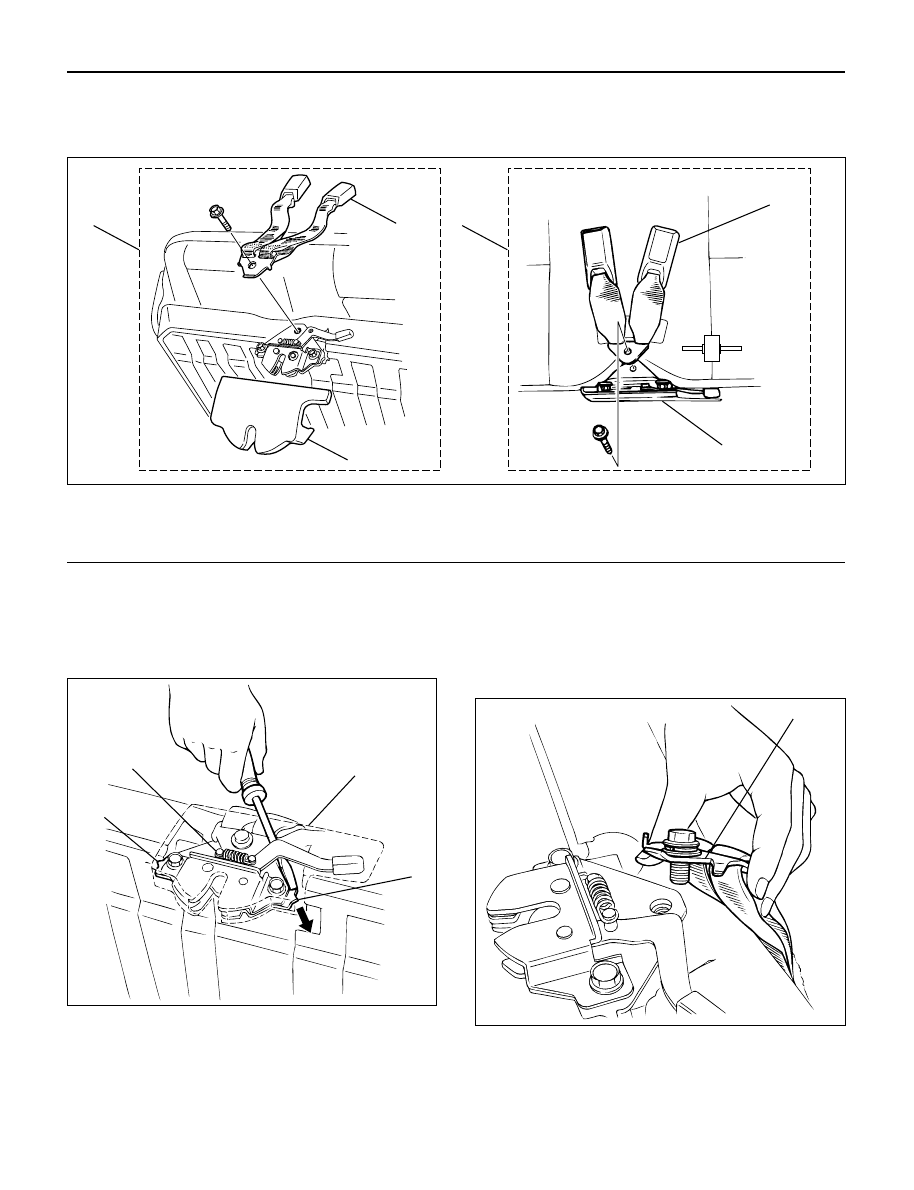

Rear Center Seat Belt Buckle Assembly

Rear Center Seat Belt Buckle Assembly and Associated Parts

2

2

1

4

3

3

760RW026

Legend

(1)

Long Wheel Base

(2)

Rear Seat Belt Buckle Assembly

(3)

Seat Lock Cover

(4)

Short Wheel Base

Removal

1. Remove the catch portions(2) & (3) of the seat lock

assembly(4) from the cover, and then remove the seat
lock cover(1).

2. Remove the rear seat buckle assembly.

Installation

1. Fix the rear seat belt buckle assembly(1) to the

rotation stopper and tighten the anchor bolt to the
specified torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

2. Install the seat lock cover.

1

2

4

3

760RW016

1

760RW013

9A–14

SEAT BELT SYSTEM

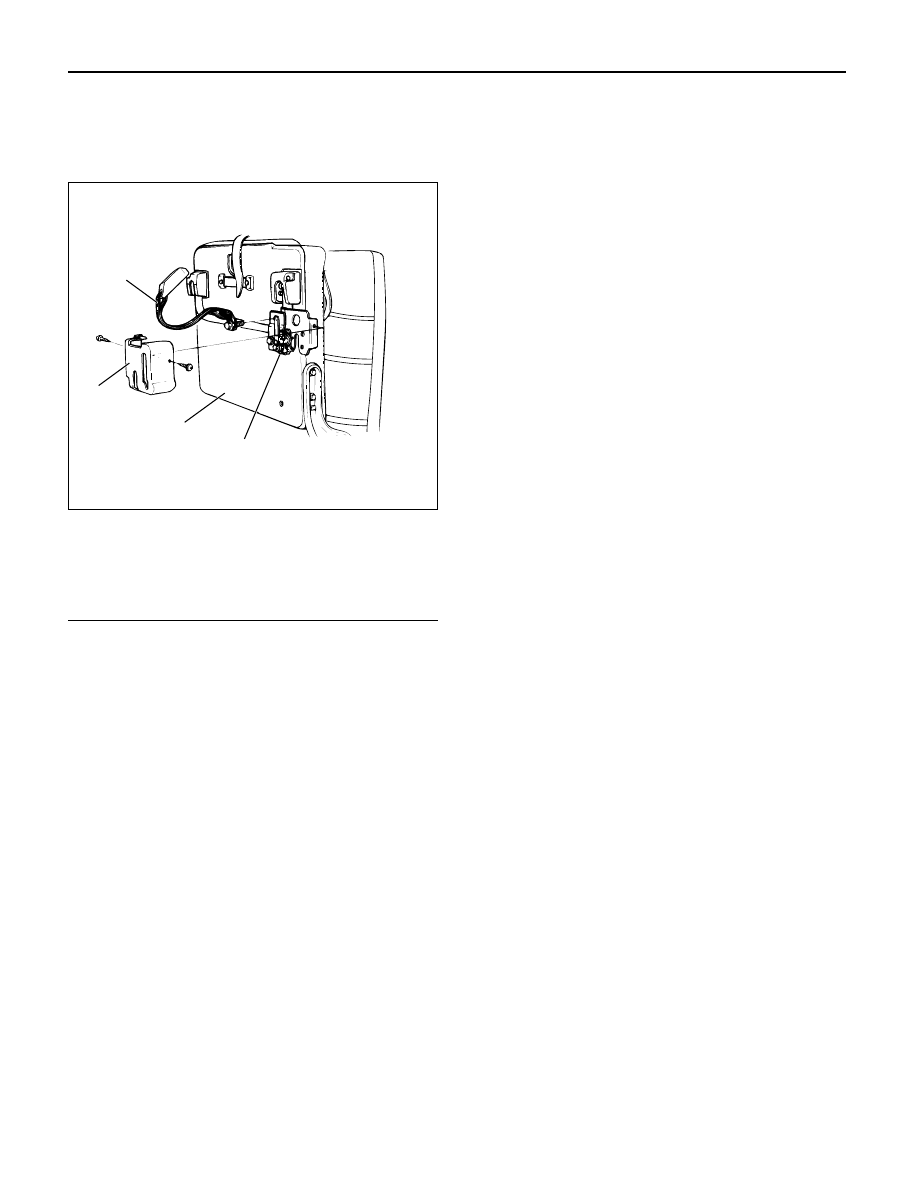

Third Seat Belt Buckle and Lock Assembly

Third Seat Belt Buckle and Lock
Assembly and Associated Parts

Removal

1. Disconnect the battery ground cable.
2. Remove seat lock cover.
3. Remove third seat belt buckle assembly.
4. Remove third seat lock assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the lock assembly fixing bolts to the specified

torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

2. Tighten the buckle assembly fixing bolt to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

1

4

3

2

755RW042

Legend

(1)

Third Seat Belt Buckle Assembly

(2)

Third Seat Lock Assembly

(3)

Third Seat

(4)

Seat Lock Cover

SEAT BELT SYSTEM

9A–15

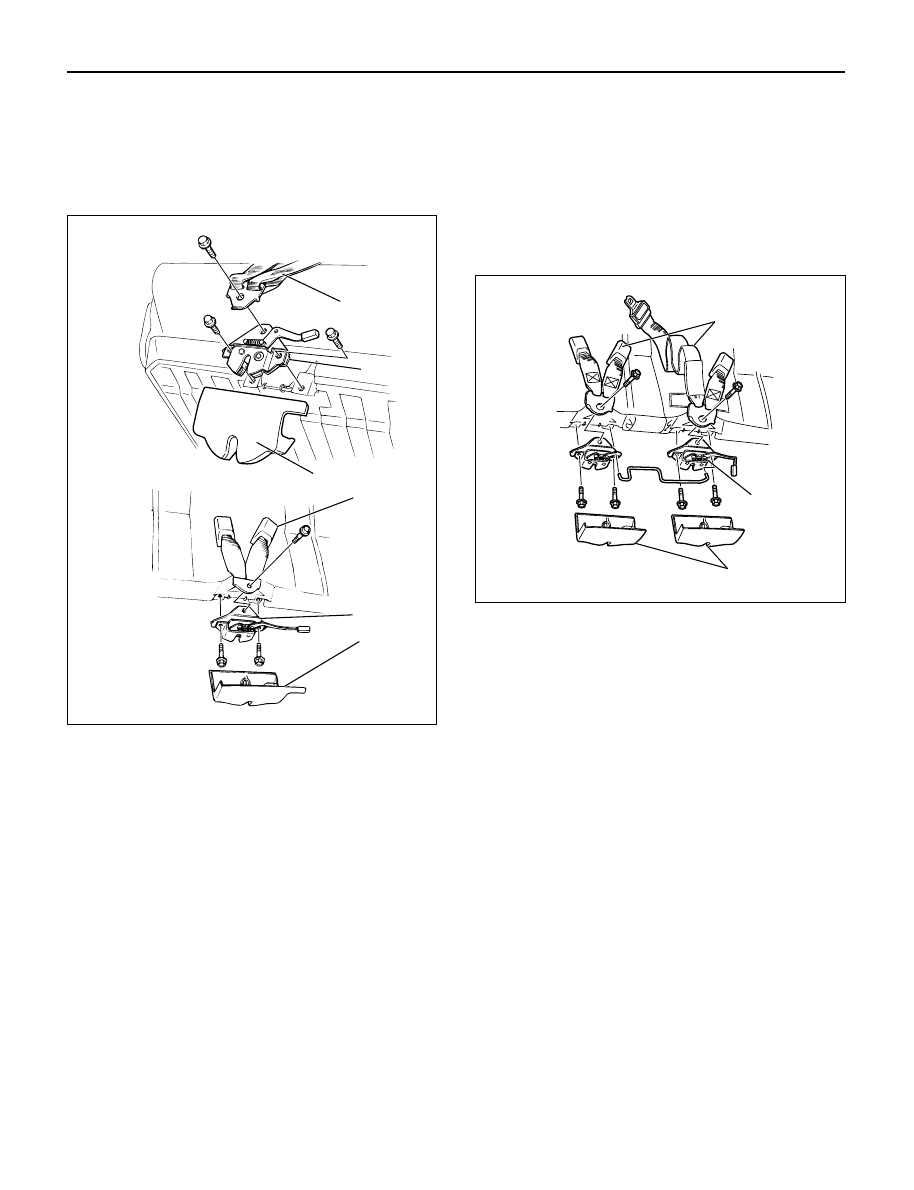

Rear Seat Lock Assembly

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt buckle assembly(1).
3. Remove the rear seat lock assembly(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque: 42 N·m (4.3 kg·m/31 lb ft)

L.W.B

1

2

S.W.B

1

2

3

3

755RW040

Rear Seat Lock Assembly

(Bench Type)

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt/buckle assembly(1).
3. Disconnect the link connecting the lock assemblies on

the both sides, and then remove the rear seat lock
assembly(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque: 42 N·m (4.3 kg·m/31 lb ft)

1

2

3

760RW003
