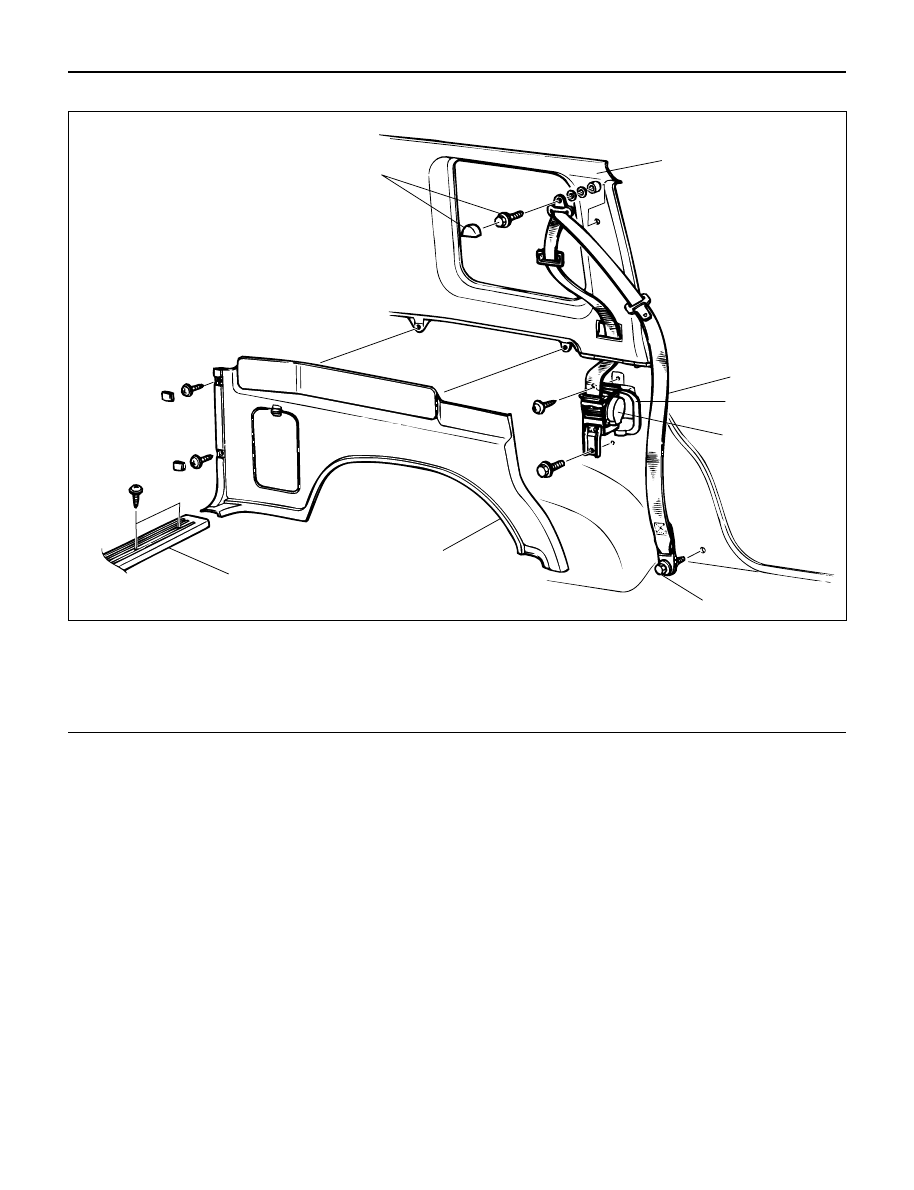

9A–4 SEAT BELT SYSTEM 760RW024 Legend (1) Quarter Upper Trim Cover (2) Front Seat Belt Anchor Bolt Cover and Anchor (3) Adjust Shoulder Anchor Assembly/Seat Belt (4) Front Seat Belt Assembly (5) Retractor (6) Dust Cover (7) Anchor Bolt (Lower) (8) Luggage Side Trim Cover (9) Rear End Floor Trim Cover Front Seat Belt and Associated Parts (Short Wheel Base) 3 4 5 6 7 8 9 1 2 Removal 1. Disconnect the battery ground cable. ● Refer to Luggage Side and Quarter Upper Trim 4. Remove the front seat belt anchor bolt cover and anchor bolt (Upper Side). 5. Remove the seat belt lower anchor bolt and the retractor and then remove the front seat belt. 6. Remove the adjust shoulder anchor assembly/seat belt anchor plate. ● Refer to Luggage Side and Quarter Upper Trim Inspection If any of the following abnormalities is found, replace on ● Deform and malfunction of adjustable shoulder ● No smooth move of upper/lower anchors in the ● Damaged and/or deformed through ring. ● Damaged and/or deformed tongue. ● Damaged and/or frayed of webbing. ● Deformed retractor bracket. ● Seat belt not rewound up. ● Resistance or abnormal sound when seat belt is ● Retractor abnormality. |
