Infiniti QX56 (JA60). Manual - part 665





LAN

CAN COMMUNICATION SYSTEM

LAN-59

< COMPONENT DIAGNOSIS >

[CAN]

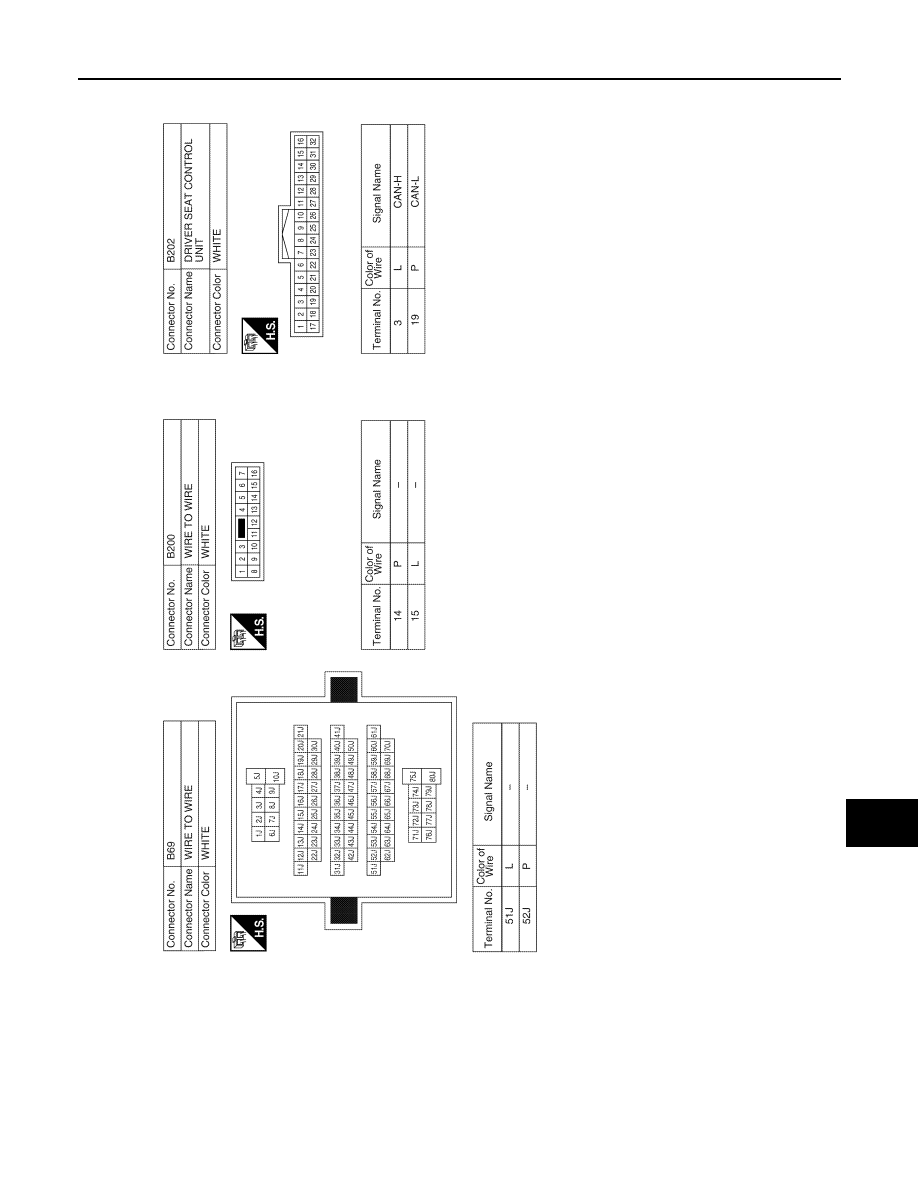

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA0016GB

LAN-60

< COMPONENT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

MALFUNCTION AREA CHART

Main Line

INFOID:0000000005146468

Branch Line

INFOID:0000000005146469

Short Circuit

INFOID:0000000005146470

Malfunction area

Reference

Main line between TCM and driver seat control unit

LAN-61, "Diagnosis Procedure"

Main line between TCM and ICC sensor

LAN-63, "Diagnosis Procedure"

Main line between ICC sensor and ICC unit

LAN-64, "Diagnosis Procedure"

Main line between ICC unit and driver seat control unit

LAN-65, "Diagnosis Procedure"

Main line between driver seat control unit and AV control unit

LAN-66, "Diagnosis Procedure"

Main line between AV control unit and data link connector

LAN-67, "Diagnosis Procedure"

Main line between data link connector and combination meter

LAN-68, "Diagnosis Procedure"

Main line between combination meter and ABS actuator and
electric unit (control unit)

LAN-69, "Diagnosis Procedure"

Main line between combination meter and transfer control unit

LAN-70, "Diagnosis Procedure"

Main line between transfer control unit and ABS actuator and
electric unit (control unit)

LAN-71, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-72, "Diagnosis Procedure"

TCM branch line circuit

LAN-73, "Diagnosis Procedure"

ICC sensor branch line circuit

LAN-74, "Diagnosis Procedure"

ICC unit branch line circuit

LAN-75, "Diagnosis Procedure"

Driver seat control unit branch line circuit

LAN-76, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-77, "Diagnosis Procedure"

BCM branch line circuit

LAN-78, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-79, "Diagnosis Procedure"

A/C auto amp. branch line circuit

LAN-80, "Diagnosis Procedure"

Intelligent Key unit branch line circuit

LAN-81, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-82, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-83, "Diagnosis Procedure"

Transfer control unit branch line circuit

LAN-84, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-85, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-86, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-87, "Diagnosis Procedure"

LAN

MAIN LINE BETWEEN TCM AND ADP CIRCUIT

LAN-61

< COMPONENT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

MAIN LINE BETWEEN TCM AND ADP CIRCUIT

Diagnosis Procedure

INFOID:0000000005146471

1.

CHECK CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the following terminals and connectors for damage, bend and loose connection (connector side

and harness side).

-

Harness connector F14

-

Harness connector E5

-

Harness connector E34

-

Harness connector B40

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the harness connectors F14 and E5.

2. Check the continuity between the harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the A/T assembly and the harness connector F14.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the harness connectors E34 and B40.

2. Check the continuity between the harness connectors.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair the main line between the harness connectors E5 and E34.

4.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the harness connectors B37 and B200.

2. Check the continuity between the harness connectors.

Is the inspection result normal?

YES (Present error)>>Check the following items again.

• Decision of CAN system type.

• Not received CONSULT-III data [SELF-DIAG RESULTS, CAN DIAG SUPPORT MNTR (“ECU

list” included)].

• Procedure for detecting root cause.

YES (Past error)>>Error was detected in the main line between the TCM and the driver seat control unit.

Connector No.

Terminal No.

Continuity

F14

3

5

Existed

14

15

Existed

Harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E5

5

E34

24

Existed

15

23

Existed

Harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

B40

24

B37

15

Existed

23

14

Existed

LAN-62

< COMPONENT DIAGNOSIS >

[CAN]

MAIN LINE BETWEEN TCM AND ADP CIRCUIT

NO

>> Repair the main line between the harness connectors B40 and B37.
