Never replace the unit even when “NG” is indicated on the “INITIAL DIAG” at this stage. Follow the trouble diagnosis proce-
dures.
IPDM E/R
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF
→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

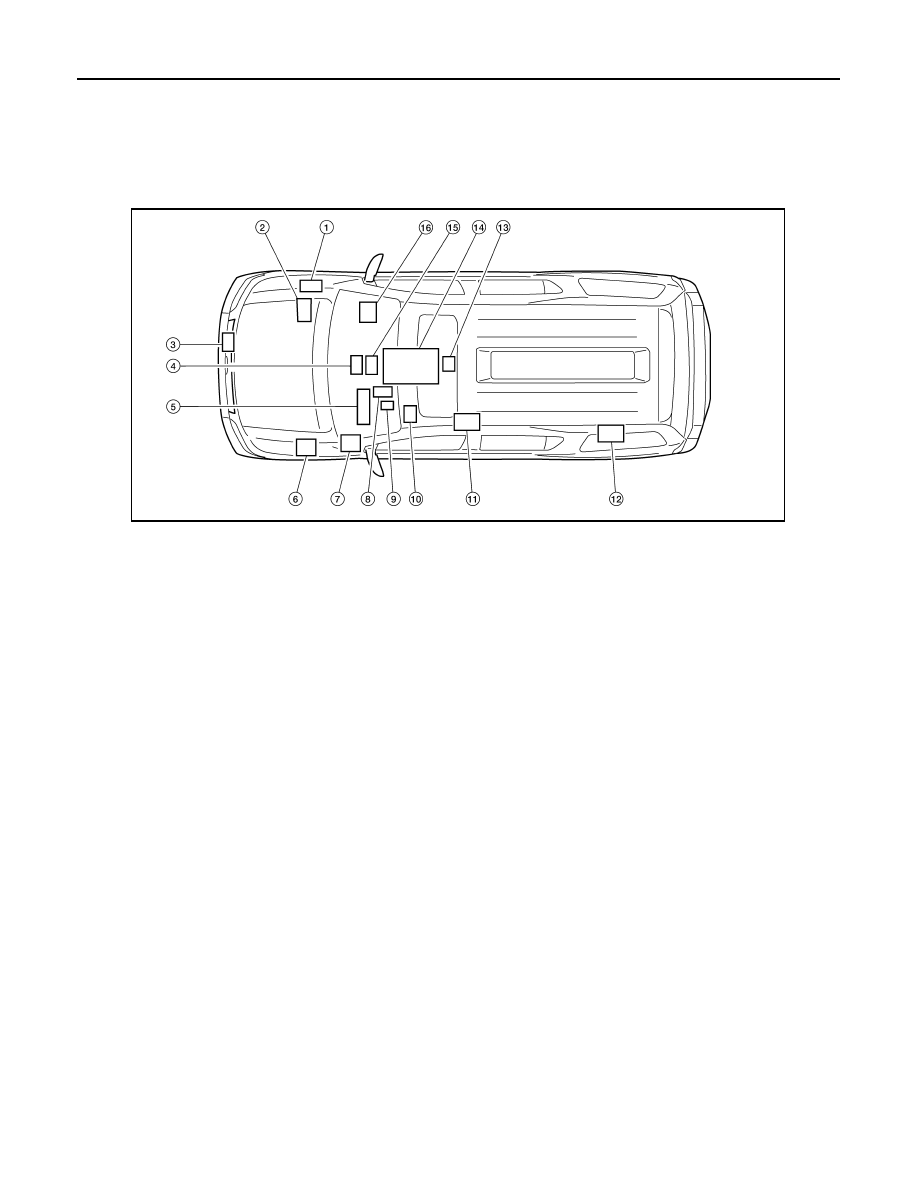

DTC Index
INFOID:0000000005152903
ITEM
CAN DIAG SUP-
PORT MNTR
Description
Normal
Error
PRSNT
PAST
PRSNT
PAST
IPDM-E
TRANSMIT DIAG
Signal transmission status
OK
OK
or
1 – 39
*
UNKWN
0
ECM
Signal receiving status from the ECM
BCM/SEC
Signal receiving status from the BCM
DTC
Self-diagnosis item
(CONSULT-III indication)
DTC detection condition
Inspection/Action
U0101
LOST COMM (TCM)
When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
TCM for 2 seconds or more.
Start the inspection. Refer
to the applicable section
of the indicated control
unit.
U0140
LOST COMM (BCM)
When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
BCM for 2 seconds or more.
U0164
LOST COMM (HVAC)
When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
A/C auto amp. or unified meter and A/C amp. for 2 sec-
onds or more.

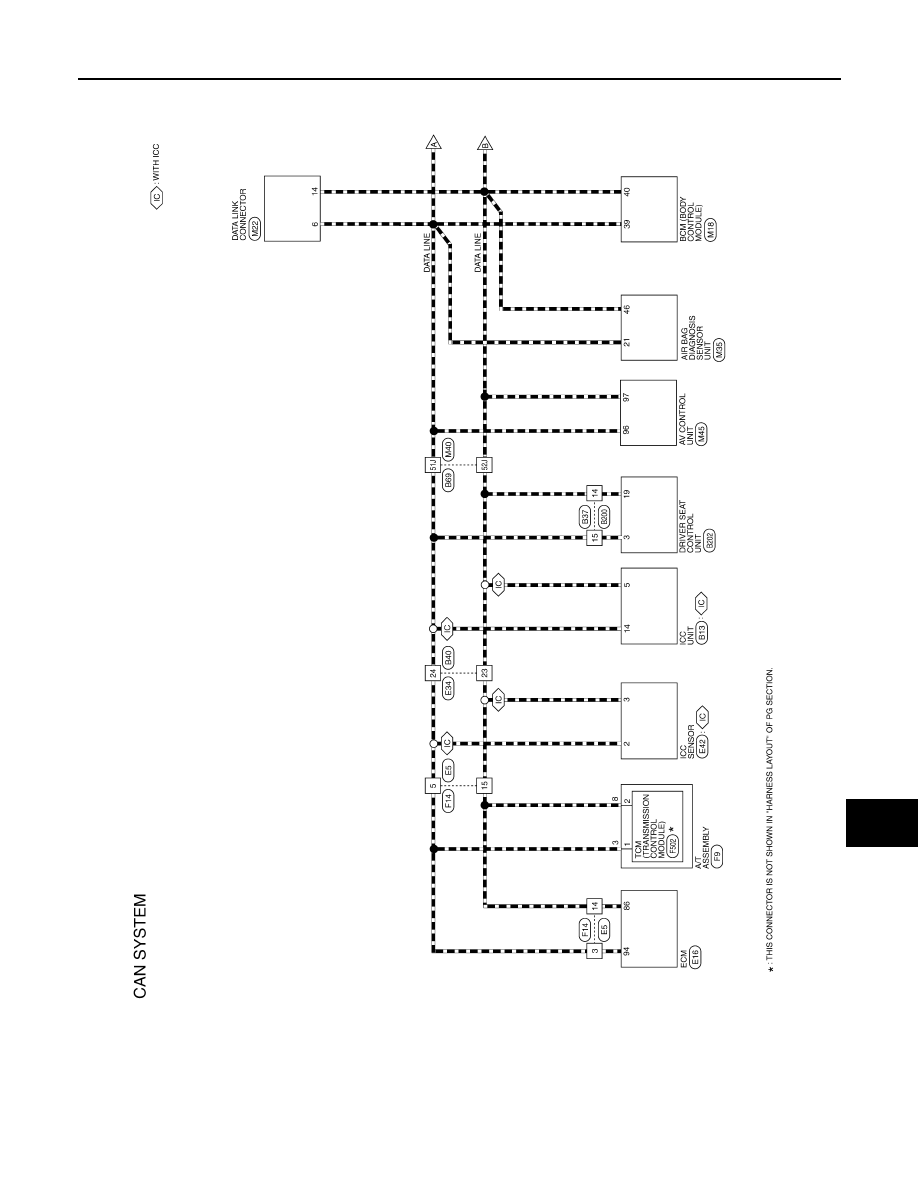

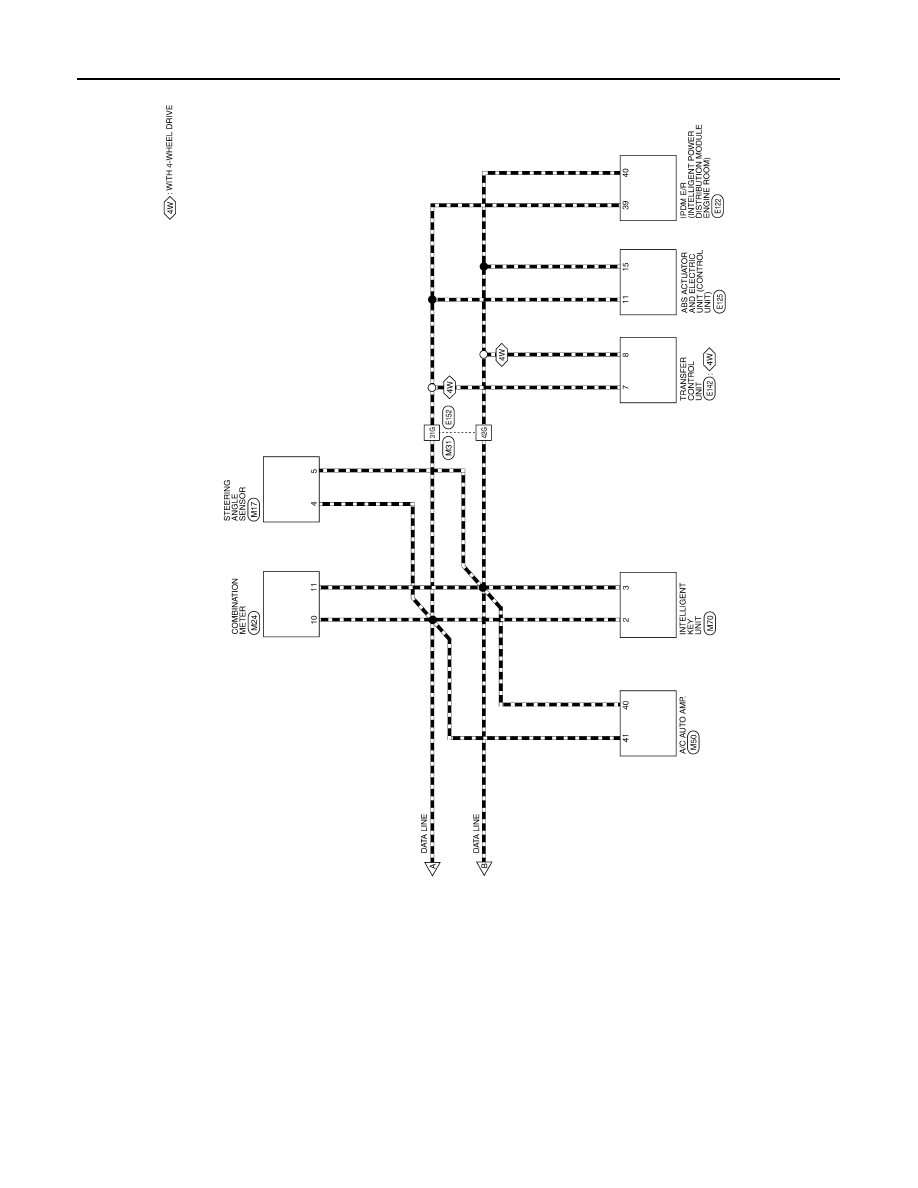

U1000
CAN COMM CIRCUIT
ECM
When ECM is not transmitting or receiving
CAN communication signal of OBD (emission-
related diagnosis) for 2 seconds or more.
Except
for ECM
When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.
U1001
CAN COMM CIRCUIT
When ECM is not transmitting or receiving CAN commu-
nication signal other than OBD (emission-related diagno-
sis) for 2 seconds or more.
U1002
SYSTEM COMM
When a control unit is not transmitting or receiving CAN
communication signal for 2 seconds or less.
U1010
CONTROL UNIT(CAN)
When an error is detected during the initial diagnosis for
CAN controller of each control unit.
Replace the control unit
indicating “U1010” or
“P0607”.
P0607
ECM
