Infiniti QX56 (JA60). Manual - part 1052

WW-84

< ON-VEHICLE REPAIR >

FRONT WASHER PUMP

FRONT WASHER PUMP

Washer Motor

INFOID:0000000005146806

REMOVAL AND INSTALLATION

Removal

1. Remove washer fluid reservoir. Refer to

WW-83, "Washer Fluid Reservoir"

.

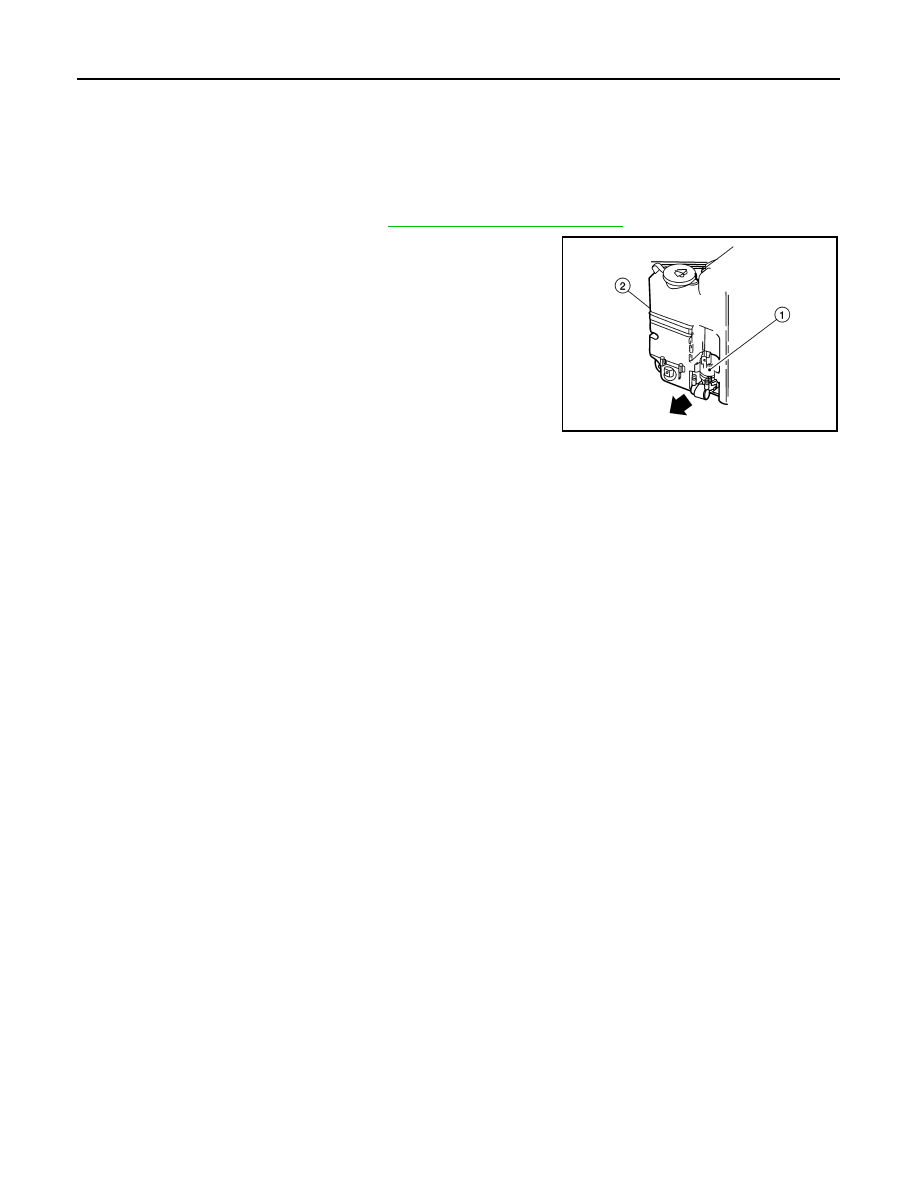

2. Remove washer motor (1) in the direction of the arrow as

shown, and remove from washer fluid reservoir (2).

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing front and rear washer motor, there should be no packing twists, etc.

WKIA4564E

FRONT WIPER AND WASHER SWITCH

WW-85

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WIPER AND WASHER SWITCH

Wiper and Washer Switch

INFOID:0000000005146807

REMOVAL AND INSTALLATION

Removal

1. Remove steering column covers.
2. Remove wiper washer switch connector.

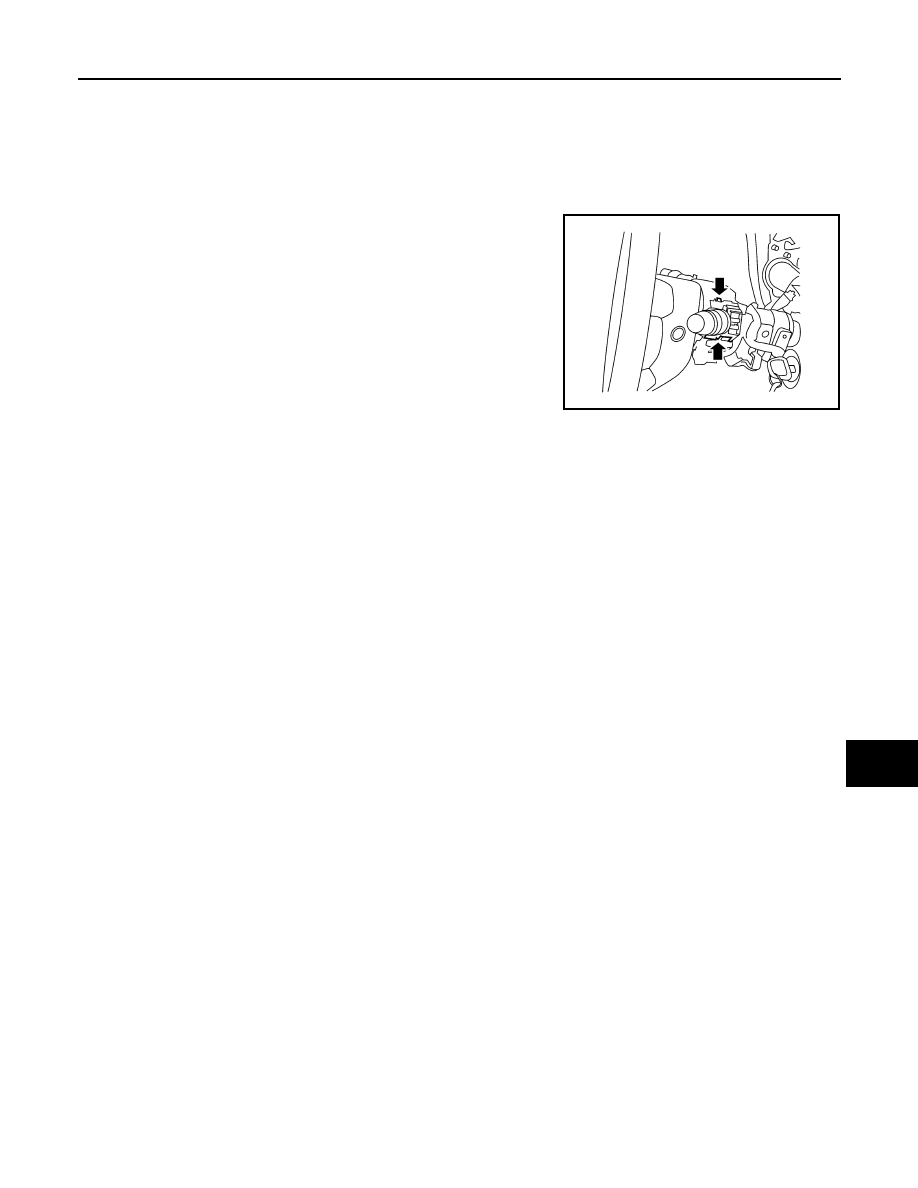

3. Pinch tabs at wiper and washer switch base and slide switch

away from steering column to remove.

Installation

Installation is in the reverse order of removal.

WKIA0071E

WW-86

< ON-VEHICLE REPAIR >

REAR WIPER AND WASHER SYSTEM

REAR WIPER AND WASHER SYSTEM

Rear Wiper Arm

INFOID:0000000005146808

REMOVAL AND INSTALLATION

Removal

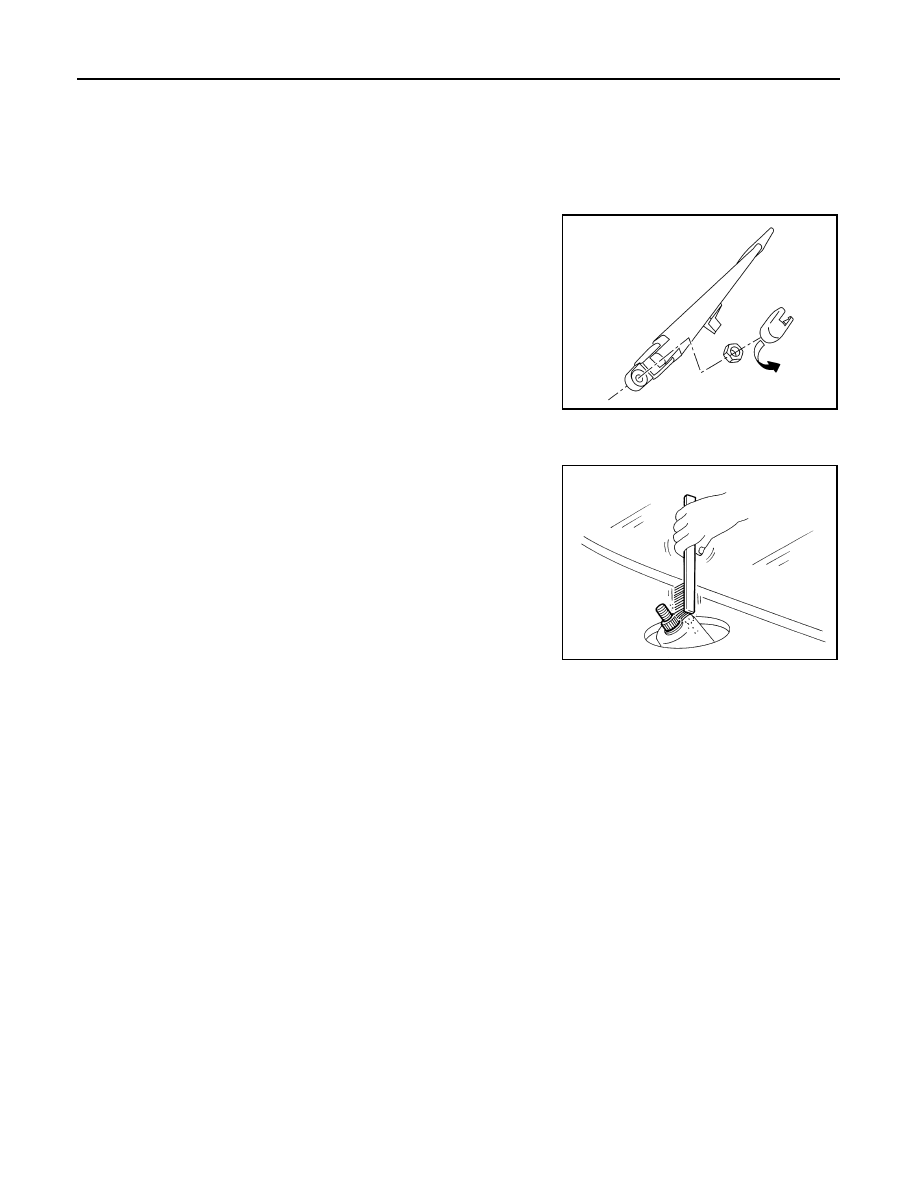

1. Remove wiper arm cover, and remove rear wiper arm nut.
2. Remove the wiper arm.
3. Remove wiper blade.

Installation

1. Operate rear wiper motor one full cycle, then turn "off " (Auto Stop).
2. Clean up the pivot area as illustrated. This will reduce the possi-

bility of wiper arm looseness.

3. Install wiper blade.
4. Install rear wiper arm so that the arm rests in the stopper and

tighten rear wiper arm nut.

5. Install wiper arm cover.

Rear Wiper Motor

INFOID:0000000005146809

REMOVAL AND INSTALLATION

LKIA0608E

SEL024J

REAR WIPER AND WASHER SYSTEM

WW-87

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Removal

1. Remove wiper arm. Refer to

WW-86, "Rear Wiper Arm"

.

2. Remove pivot cap.
3. Remove back door lock assembly. Refer to

DLK-248, "Door Lock Assembly"

.

4. Disconnect rear wiper motor connector.
5. Remove rear wiper motor bolts, and remove rear wiper motor.

Installation

CAUTION:

Do not drop the wiper motor or cause it to contact other parts.
1. Install rear wiper motor to the vehicle.
2. Connect rear wiper motor connector.
3. Install back door lock assembly. Refer to

DLK-248, "Door Lock Assembly"

.

4. Install pivot cap.
5. Install wiper arm. Refer to

WW-86, "Rear Wiper Arm"

.

Rear Washer Nozzle Adjustment

INFOID:0000000005146810

• This vehicle is equipped with a non-adjustable rear washer nozzle.

• If not satisfied with washer fluid spray coverage, confirm that the washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid spray coverage is not satisfactory, replace the

washer nozzle.

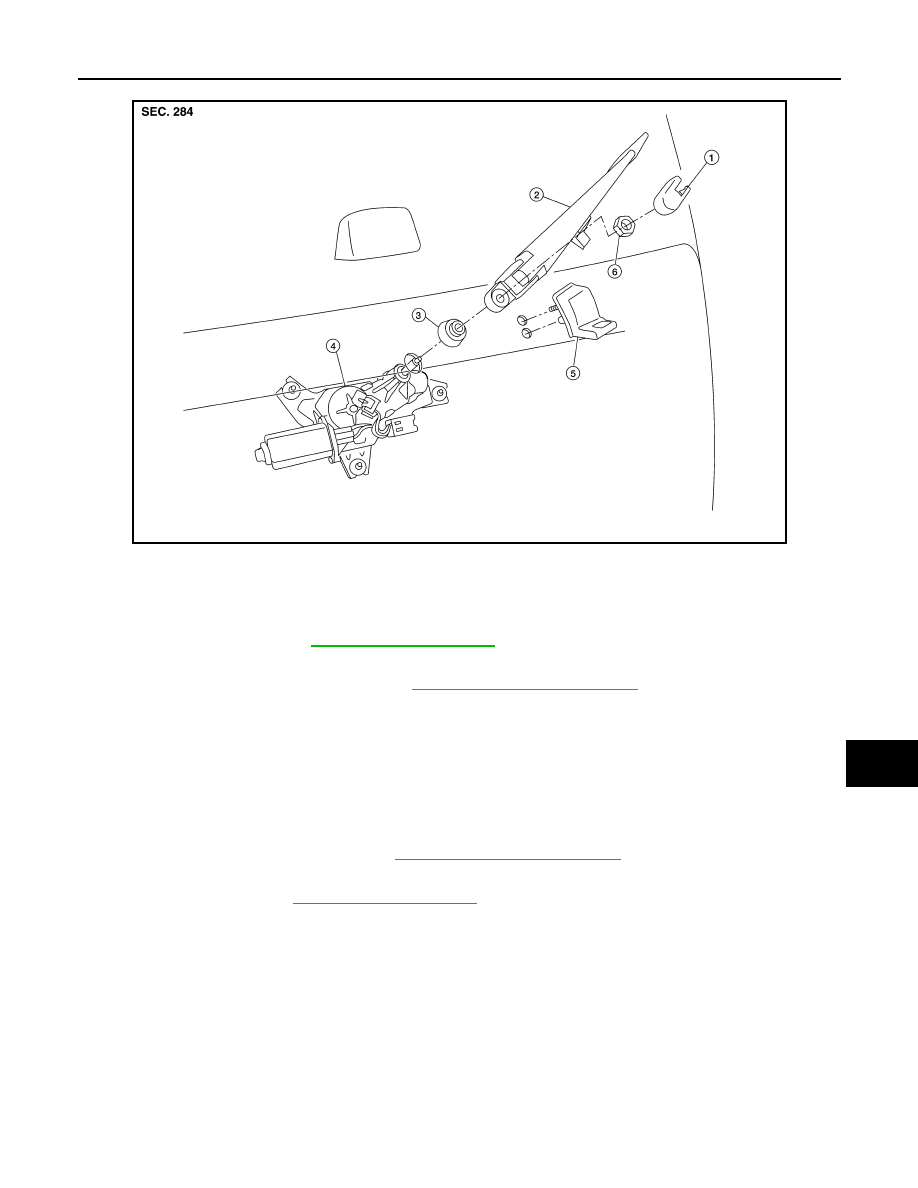

WKIA4567E

1.

Wiper arm cover

2.

Wiper arm and blade

3.

Pivot cap

4.

Rear wiper motor

5.

Wiper arm stop

6.

Rear wiper arm nut
