WW-80

< ON-VEHICLE REPAIR >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

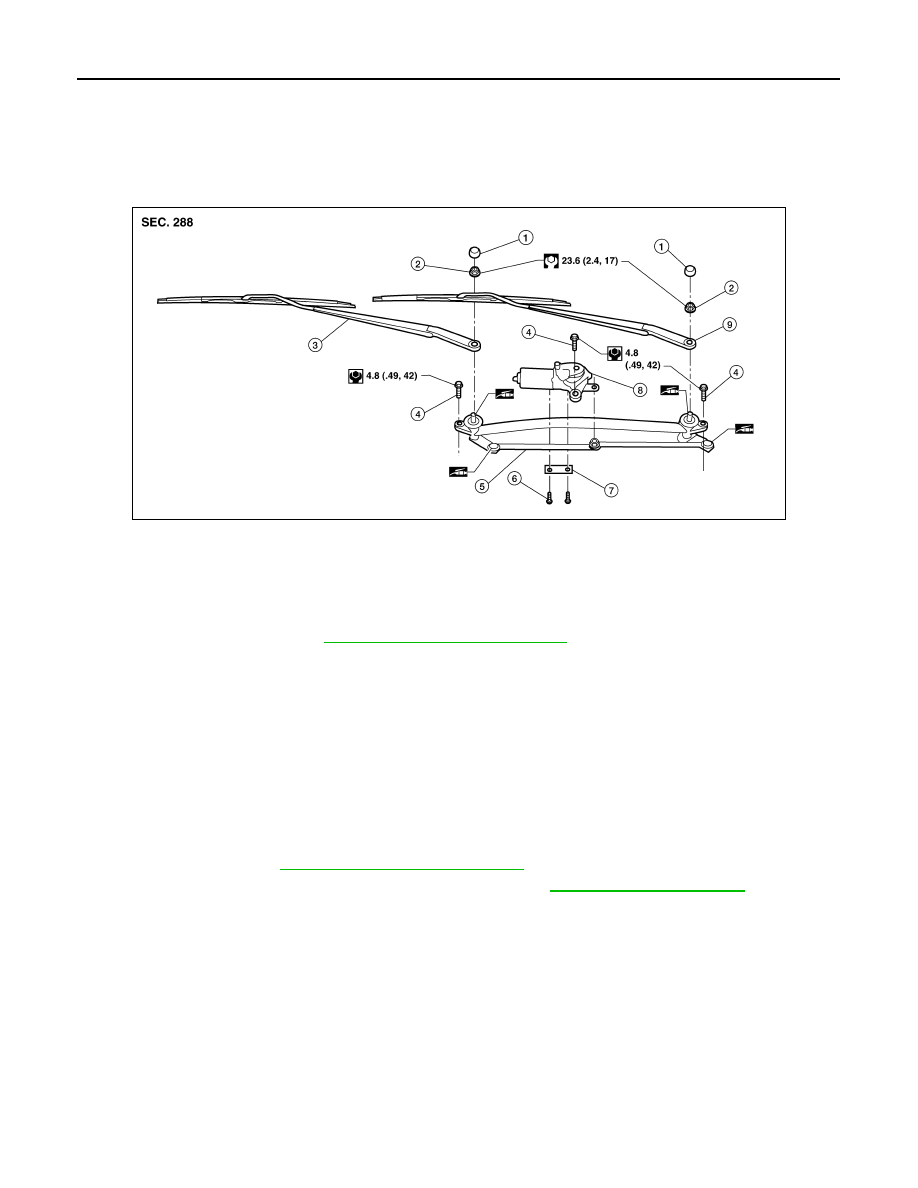

Wiper Motor and Linkage

INFOID:0000000005146802

REMOVAL AND INSTALLATION

Removal

1. Remove the cowl top. Refer to

EXT-18, "Removal and Installation"

.

2. Remove wiper frame bolts, and remove wiper frame assembly.
3. Remove wiper motor from wiper frame assembly.

Installation

CAUTION:

• Do not drop the wiper motor or cause it to contact other parts.

• Check the grease conditions of the motor arm and wiper link joint(s). Apply grease if necessary.
1. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper

switch OFF (auto stop).

2. Disconnect wiper motor connector.
3. Install wiper motor to wiper frame assembly, and install wiper frame assembly.
4. Install cowl top. Refer to

EXT-18, "Removal and Installation"

.

5. Ensure that wiper blades stop within proper clearance. Refer to

WW-79, "Front Wiper Arms"

.

ALLIA0369GB

1.

Wiper arm covers

2.

Wiper arm nuts

3.

Front RH wiper arm and blade assembly

4.

Wiper frame bolts

5.

Wiper frame assembly

6.

Wiper motor to frame bolts

7.

Wiper motor spacer

8.

Wiper motor

9.

Front LH wiper arm and blade assembly

FRONT WASHER TUBE

WW-81

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

FRONT WASHER TUBE

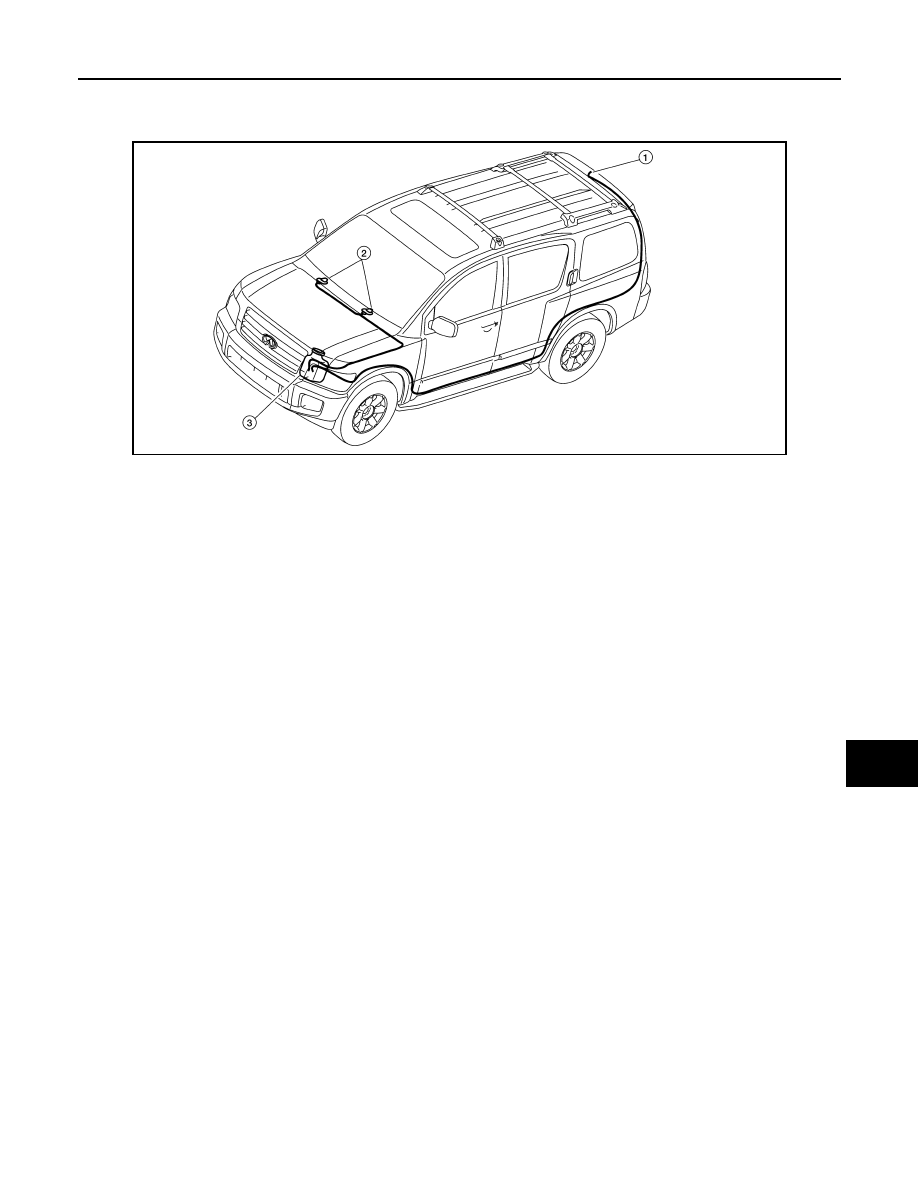

Washer Tube Layout

INFOID:0000000005146803

WKIA4465E

1.

Rear washer nozzle

2.

Washer nozzles

3.

Washer fluid reservoir

WW-82

< ON-VEHICLE REPAIR >

FRONT WASHER NOZZLE

FRONT WASHER NOZZLE

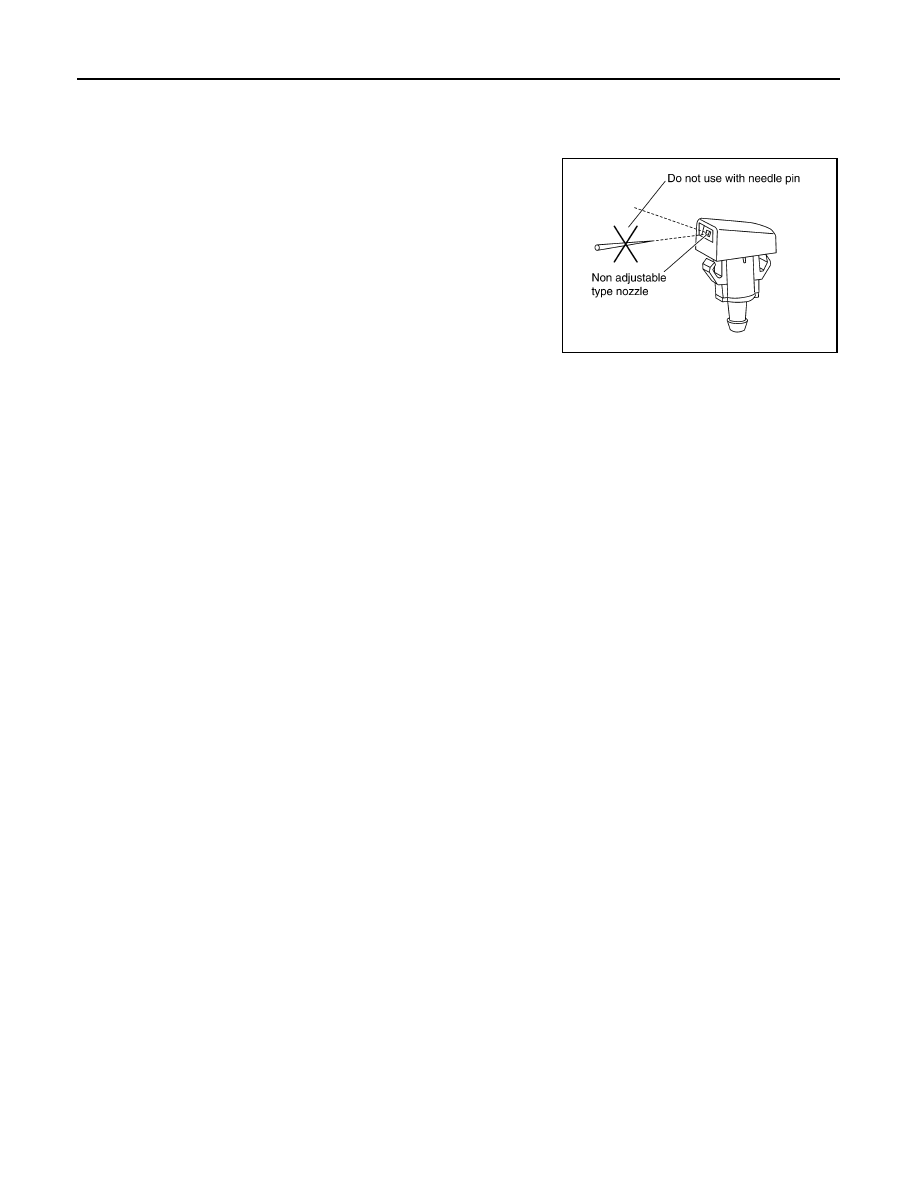

Washer Nozzle Adjustment

INFOID:0000000005146804

• This vehicle is equipped with non-adjustable washer nozzles.

• If not satisfied with washer fluid spray coverage, confirm that the

washer nozzle is installed correctly.

• If the washer nozzle is installed correctly, and the washer fluid

spray coverage is not satisfactory, replace washer nozzle.

PKIA2552E

WASHER TANK

WW-83

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER TANK

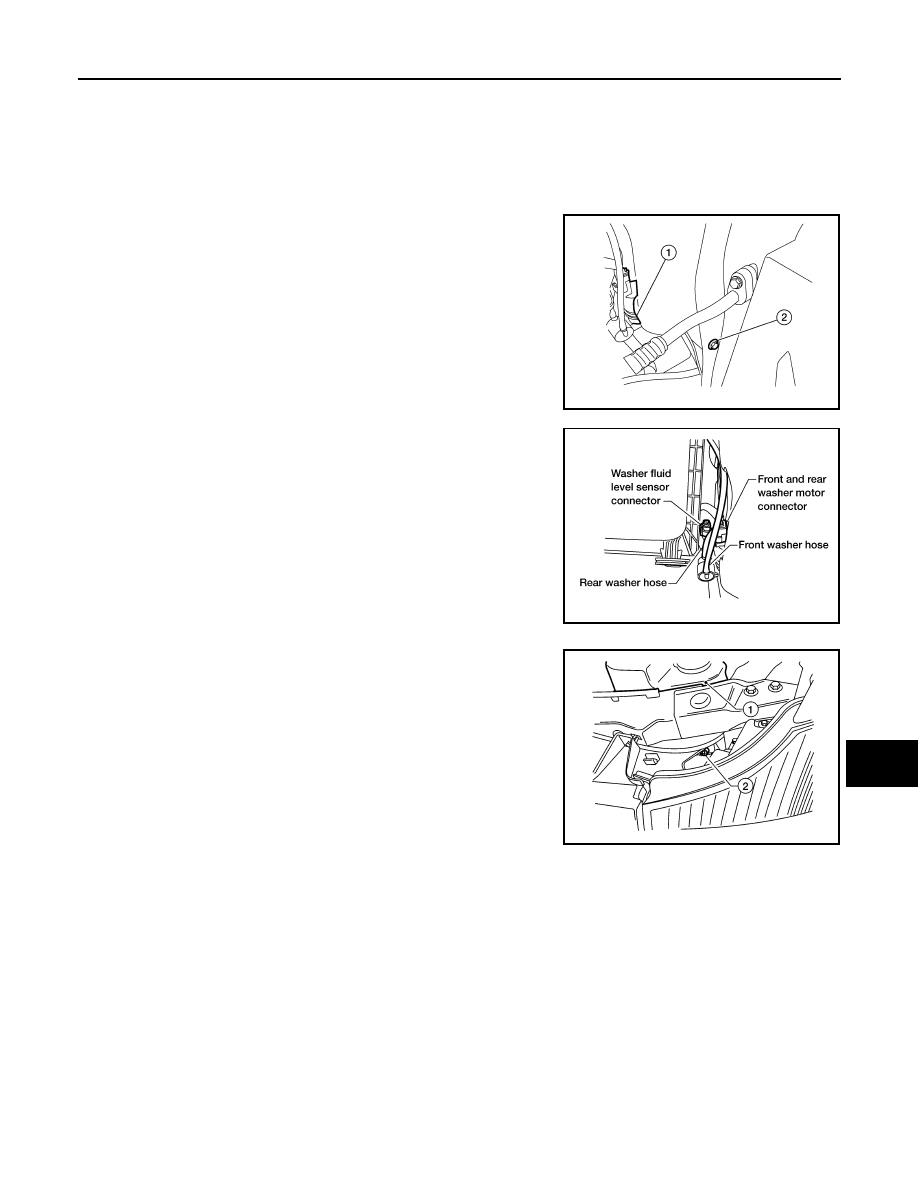

Washer Fluid Reservoir

INFOID:0000000005146805

REMOVAL AND INSTALLATION

Removal

1. Remove side washer fluid reservoir screw (2).

• Front and rear washer motor (1).

2. Remove front and rear washer motor connector.
3. Remove washer fluid level sensor connector.
4. Disconnect front and rear washer hoses.

5. Remove front washer fluid reservoir screw (2).
6. Remove washer fluid reservoir (1) from the vehicle.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installation, add washer fluid up to the upper level of the washer fluid reservoir inlet and check

for leaks.

ALLIA0372ZZ

LKIA0412E

WKIA4563E
