Infiniti QX56 (JA60). Manual - part 1050





WW-76

< SYMPTOM DIAGNOSIS >

FRONT WIPER DOES NOT OPERATE

1. Turn the ignition switch ON.

2. Select "FRONT WIPER" of IPDM E/R active test item.

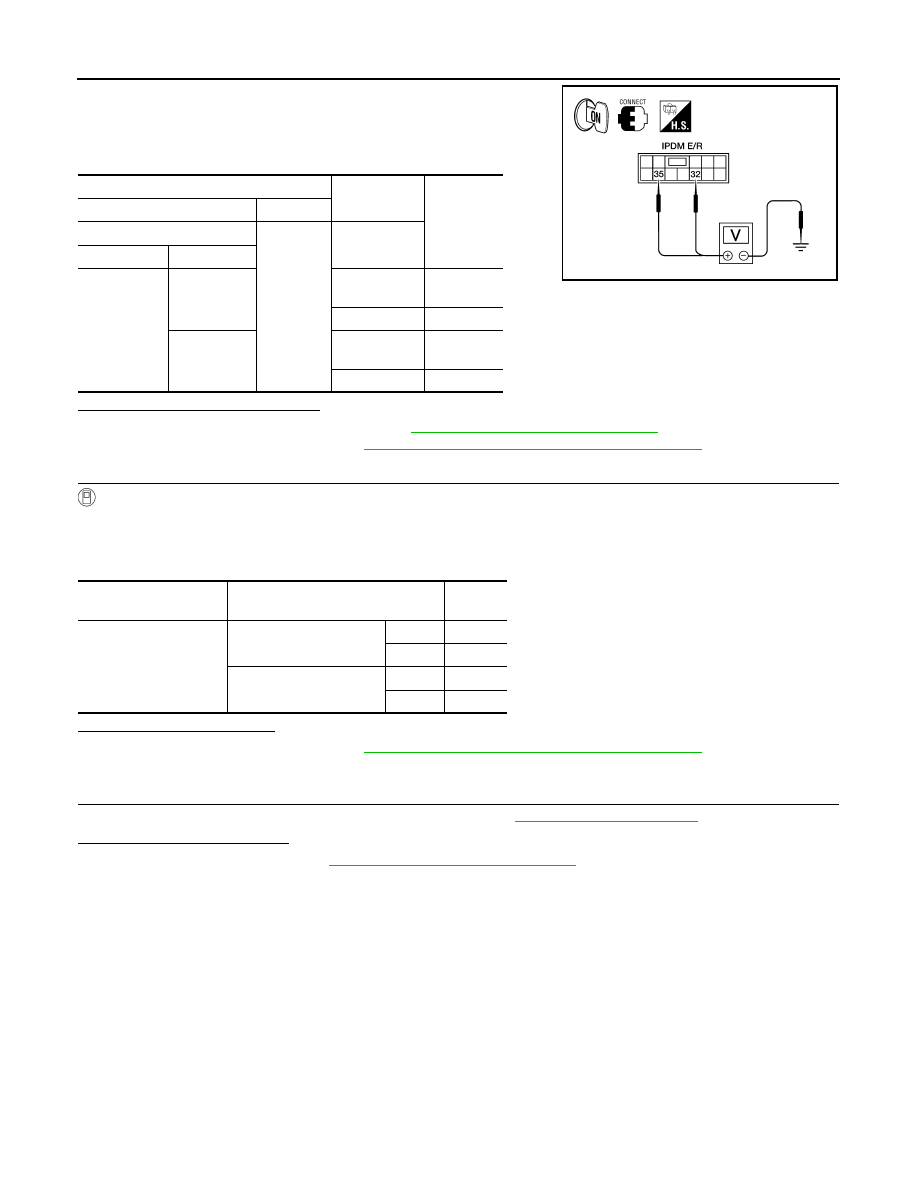

3. With operating the test item, check voltage between IPDM E/R

harness connector and ground.

Is the measurement value normal?

YES

>> Replace front wiper motor. Refer to

WW-80, "Wiper Motor and Linkage"

.

NO

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation of IPDM E/R"

.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR WIP REQ" of IPDM E/R data monitor item.

2. Switch the front wiper switch to HI and LO.

3. With operating the front wiper switch, check the status of "FR WIP REQ".

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation of IPDM E/R"

.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH

1. Perform the inspection of the combination switch. Refer to

BCS-56, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

NO

>> Repair or replace the applicable parts.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−)

IPDM E/R

Ground

FRONT WIP-

ER

Connector

Terminal

E121

32

LO

Battery
voltage

OFF

0 V

35

HI

Battery
voltage

OFF

0 V

WKIA1427E

Monitor item

Condition

Monitor

status

FR WIP REQ

Front wiper switch HI

HI

ON

STOP

OFF

Front wiper switch LO

1LOW

ON

STOP

OFF

PRECAUTION

WW-77

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTION

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005238167

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005403312

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″LOCK″ position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″ACC″ position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

WW-78

< PRECAUTION >

PRECAUTION

5. When the repair work is completed, return the ignition switch to the

″LOCK″ position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

FRONT WIPER ARM

WW-79

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ON-VEHICLE REPAIR

FRONT WIPER ARM

Front Wiper Arms

INFOID:0000000005146801

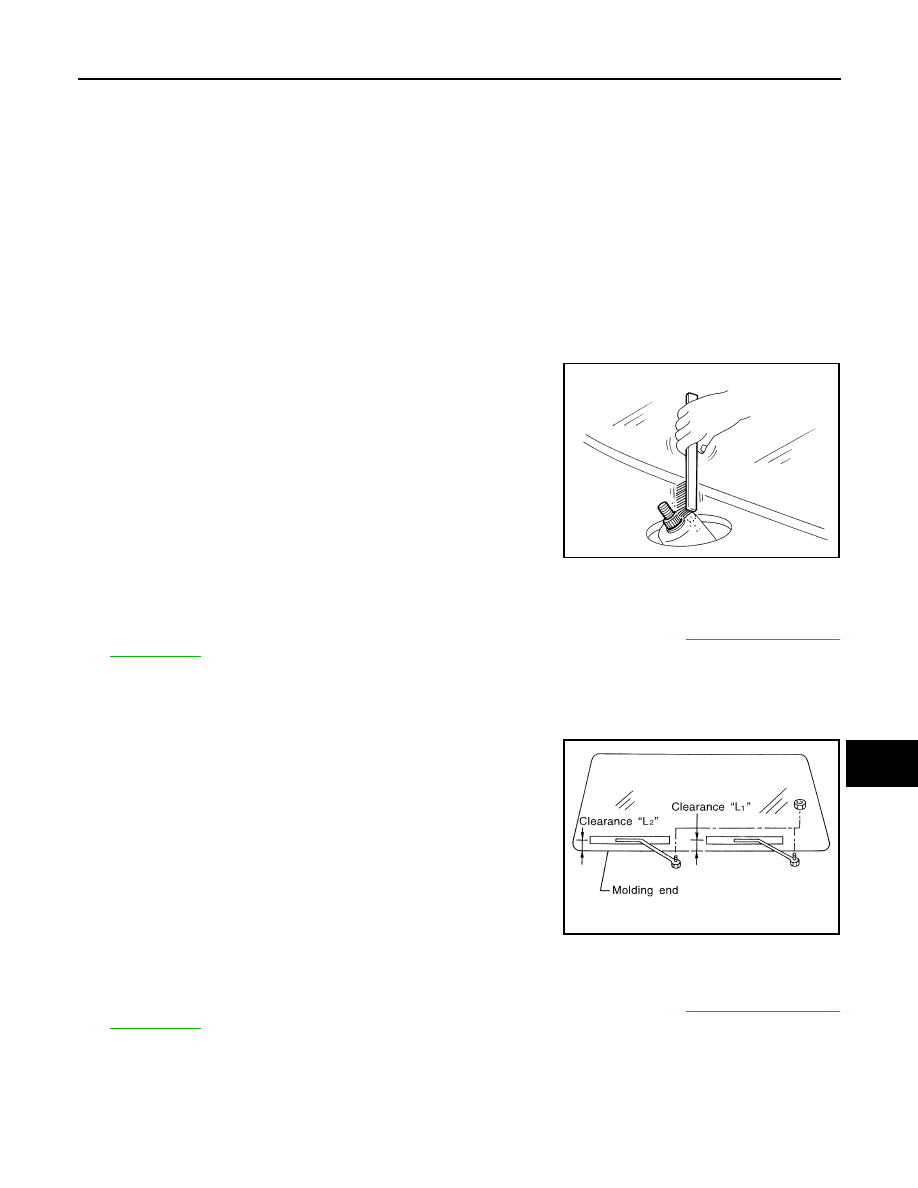

REMOVAL AND INSTALLATION

Removal

1. Remove wiper arm covers and wiper arm nuts.
2. Remove front RH wiper arm and front LH wiper arm.
3. Remove front RH blade assembly and front LH blade assembly.

Installation

1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Clean up the pivot area as shown. This will reduce possibility of

wiper arm looseness.

3. Install front RH blade assembly and front LH blade assembly on the wiper arms.
4. Install front RH wiper arm and front LH wiper arm.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-80, "Wiper Motor

and Linkage"

.

6. Ensure that wiper blades stop within proper clearance. Refer to "FRONT WIPER ARM ADJUSTMENT".

FRONT WIPER ARM ADJUSTMENT

1. Operate wiper motor one full cycle, then turn "OFF" (Auto Stop).
2. Lift the wiper blade up and then rest it onto glass surface, check

the blade clearance "L1" and "L2".

3. Remove wiper arm covers and wiper arm nuts.
4. Adjust front wiper arms on wiper motor pivot shafts to obtain above specified blade clearances.
5. Tighten wiper arm nuts to specified torque, and install wiper arm covers. Refer to

WW-80, "Wiper Motor

and Linkage"

.

SEL024J

Clearance "L1"

: 41.5 - 56.5 mm (1.634 - 2.224 in)

Clearance "L2"

: 52.5 - 67.5 mm (2.067 - 2.657 in)

SEL543TA
