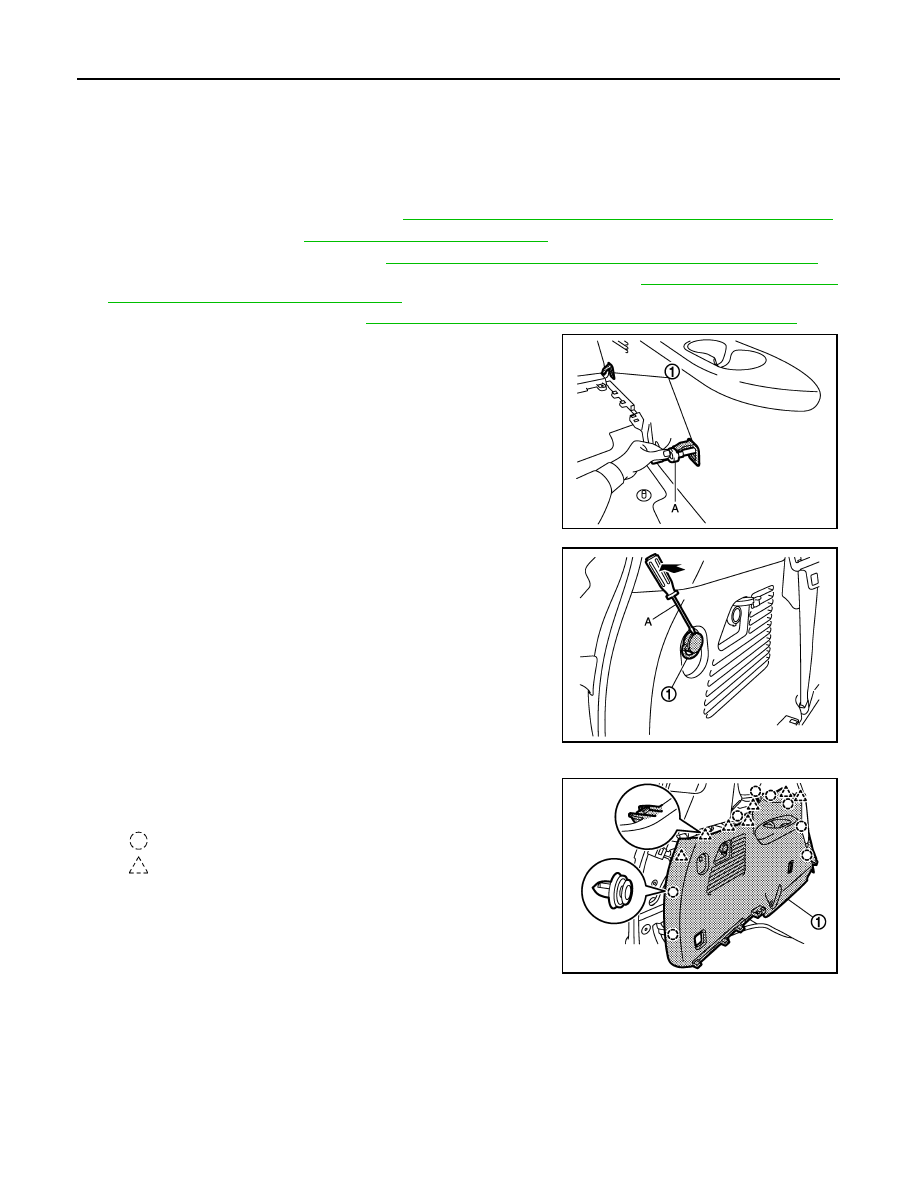

INT-36

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

LUGGAGE SIDE LOWER FINISHER

LUGGAGE SIDE LOWER FINISHER : Removal and Installation

INFOID:0000000006220261

REMOVAL

1.

Lift up the seat base, tilt seatback forward, and fold down second seat forward.

2.

Remove second seat belt anchor. Refer to

SB-13, "SEAT BELT RETRACTOR : Removal and Installation"

.

3.

Remove third seat. Refer to

SE-138, "Removal and Installation"

.

4.

Remove third seat belt anchor. Refer to

SB-19, "SEAT BELT RETRACTOR : Removal and Installation"

.

5.

Remove luggage floor board center and both luggage lower boards. Refer to

INT-34, "LUGGAGE FLOOR

REAR BOARD : Removal and Installation"

.

6.

Remove luggage rear plate. Refer to

INT-35, "LUGGAGE REAR PLATE : Removal and Installation"

.

7.

Remove rope hook (1) mounting bolt using a socket wrench (A),
and then remove rope hook.

8.

Disengage luggage side lower finisher fixing clip (1) using a
small flat-bladed screwdriver (A) as shown by the arrow in the
figure, and then remove clip.

9.

Remove luggage side lower finisher.
1.

Disengage luggage side lower finisher (1) fixing clips and
pawls.

2.

Disconnect luggage room power socket harness connector (LH side only).

3.

Disconnect fold down switch harness connector (RH side only).

4.

Disconnect reclining switch harness connector (LH and RH).

5.

Remove luggage side lower finisher.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

JMJIA4043ZZ

JMJIA4042ZZ

: Clip

: Pawl

JMJIA4044ZZ

LUGGAGE FLOOR TRIM

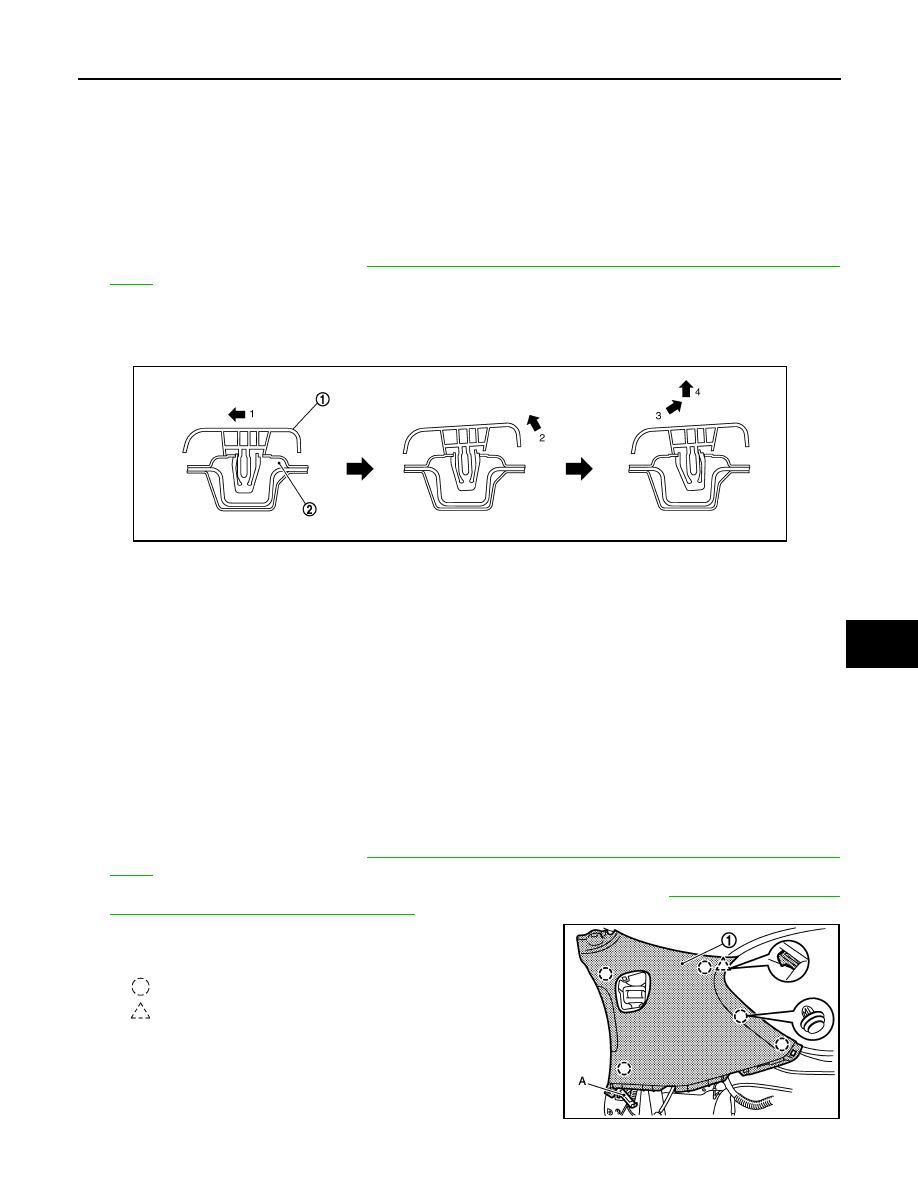

INT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing luggage side lower finisher, check that clips and pawls are securely fitted in body

panel holes, and press them in.

REAR PILLAR FINISHER

REAR PILLAR FINISHER : Removal and Installation

INFOID:0000000006220262

REMOVAL

1.

Remove luggage side lower finisher.

INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal and Instal-

lation"

.

2.

Disengage lower side of rear pillar finisher fixing clip.

3.

Pull rear pillar upper garnish (1) from inside passenger room, disengage rear pillar upper garnish upper
side fixing pawl as shown in the following figure, and then remove rear pillar upper garnish from body
panel (2).

CAUTION:

Be careful not to apply excessive force when removing rear pillar finisher. Otherwise, pawl may be
damaged and fragments may drop in body panel holes on body.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Replace rear pillar finisher with a new part after removal. Never reuse rear pillar finisher.
• Visually check the clip and pawl for deformation and damage during installation. Replace with new

ones if necessary.

• When installing rear pillar finisher, check that clip and pawl are securely fitted in body panel holes,

and press them in.

BACK PILLAR GARNISH

BACK PILLAR GARNISH : Removal and Installation

INFOID:0000000006220263

REMOVAL

1.

Remove luggage side lower finisher.

INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal and Instal-

lation"

.

2.

Remove cap of back door finisher side (LH), and then remove stud ball. Refer to

DLK-247, "BACK DOOR

SUPPORT ROD : Removal and Installation"

 (LH side only).

3.

Disengage back pillar garnish (1) fixing clips and pawl using a
remover tool (A), and then remove back pillar garnish.

JMJIA1176ZZ

: Clip

: Pawl

JMJIA4045ZZ

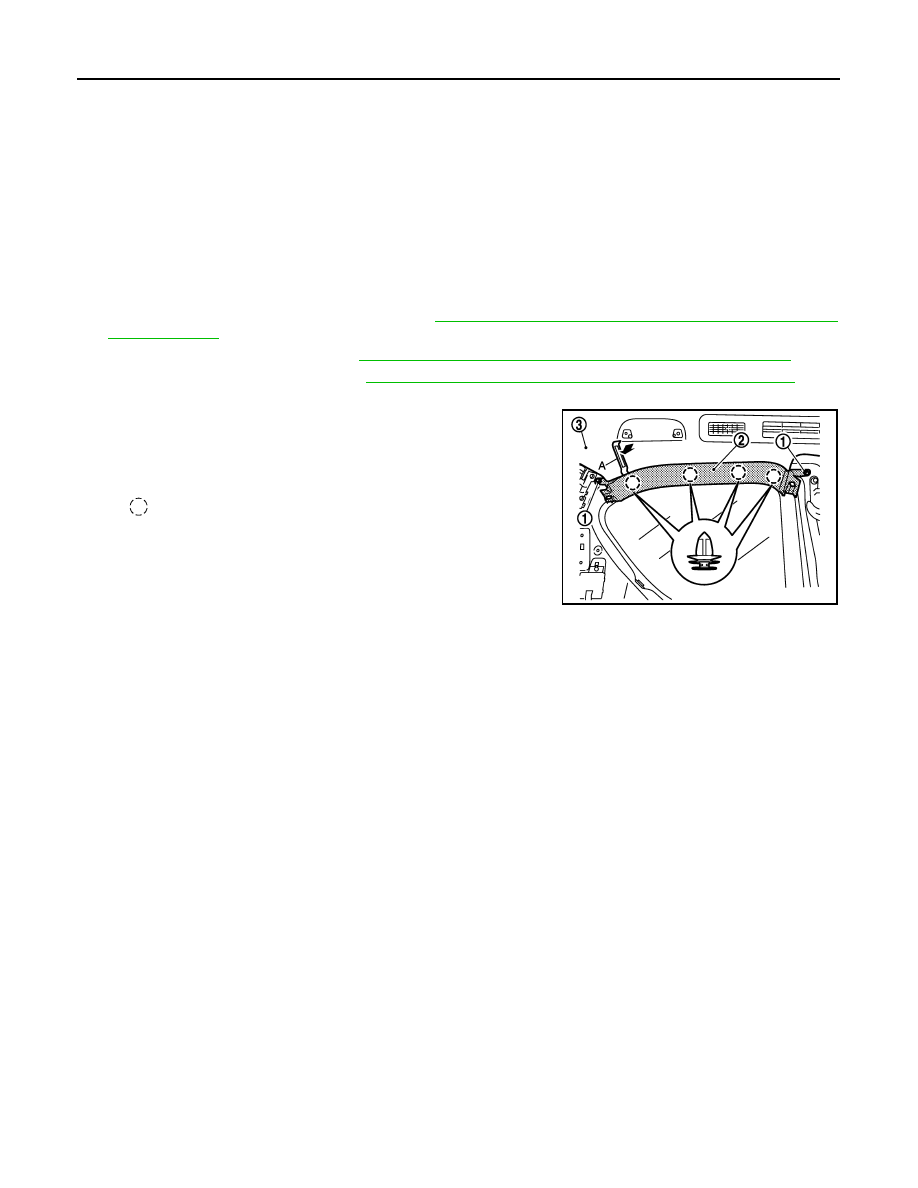

INT-38

< REMOVAL AND INSTALLATION >

LUGGAGE FLOOR TRIM

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips and pawl for deformation and damage during installation. Replace with new

ones if necessary.

• When installing back pillar garnish, check that clips and pawl are securely fitted in body panel holes,

and press them in.

LUGGAGE SIDE UPPER FINISHER

LUGGAGE SIDE UPPER FINISHER : Removal and Installation

INFOID:0000000006220264

REMOVAL

1.

Remove luggage side lower finisher. Refer to

INT-36, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2.

Remove rear pillar finisher. Refer to

INT-37, "REAR PILLAR FINISHER : Removal and Installation"

.

3.

Remove back pillar garnish. Refer to

INT-37, "BACK PILLAR GARNISH : Removal and Installation"

.

4.

Remove luggage side upper finisher.
1.

Remove mounting bolts (1).

2.

Disengage luggage side upper finisher (2) fixing clips using
a remover tool (A), and then remove luggage side upper fin-
isher (3).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing luggage side upper finisher, check that clips are securely fitted in body panel holes,

and press them in.

: Clip

JMJIA4046ZZ

BACK DOOR TRIM

INT-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BACK DOOR TRIM

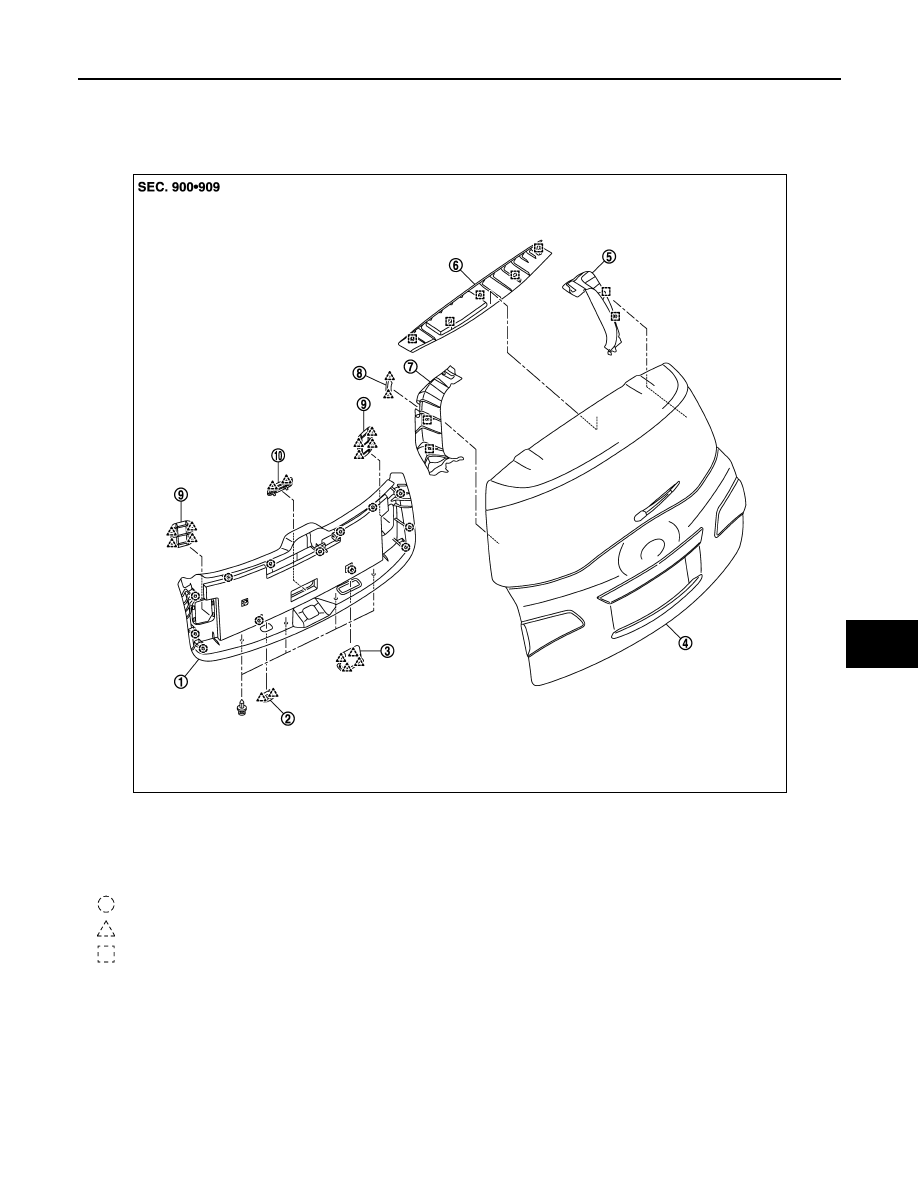

Exploded View

INFOID:0000000006220265

Removal and Installation

INFOID:0000000006220266

REMOVAL

1.

Fully open back door.

1.

Back door finisher lower

2.

Auto back door switch finisher

3.

Pull handle

4.

Back door assembly

5.

Back door finisher side RH

6.

Back door finisher upper

7.

Back door finisher side LH

8.

Cap

9.

Lamp mask

10. Emergency handle mask

: Clip

: Pawl

: Metal clip

JMJIA4421ZZ
