DOOR PARTING SEAL

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

• When installing, check visually the clips, then replace them with new parts if they have been dam-

aged.

• When installing door parting seal, check that blind clips are securely fitted in panel holes on body,

and then press them in.

• Always replace double-sided tape with a new one, if door parting seal.

EXT-36

< REMOVAL AND INSTALLATION >

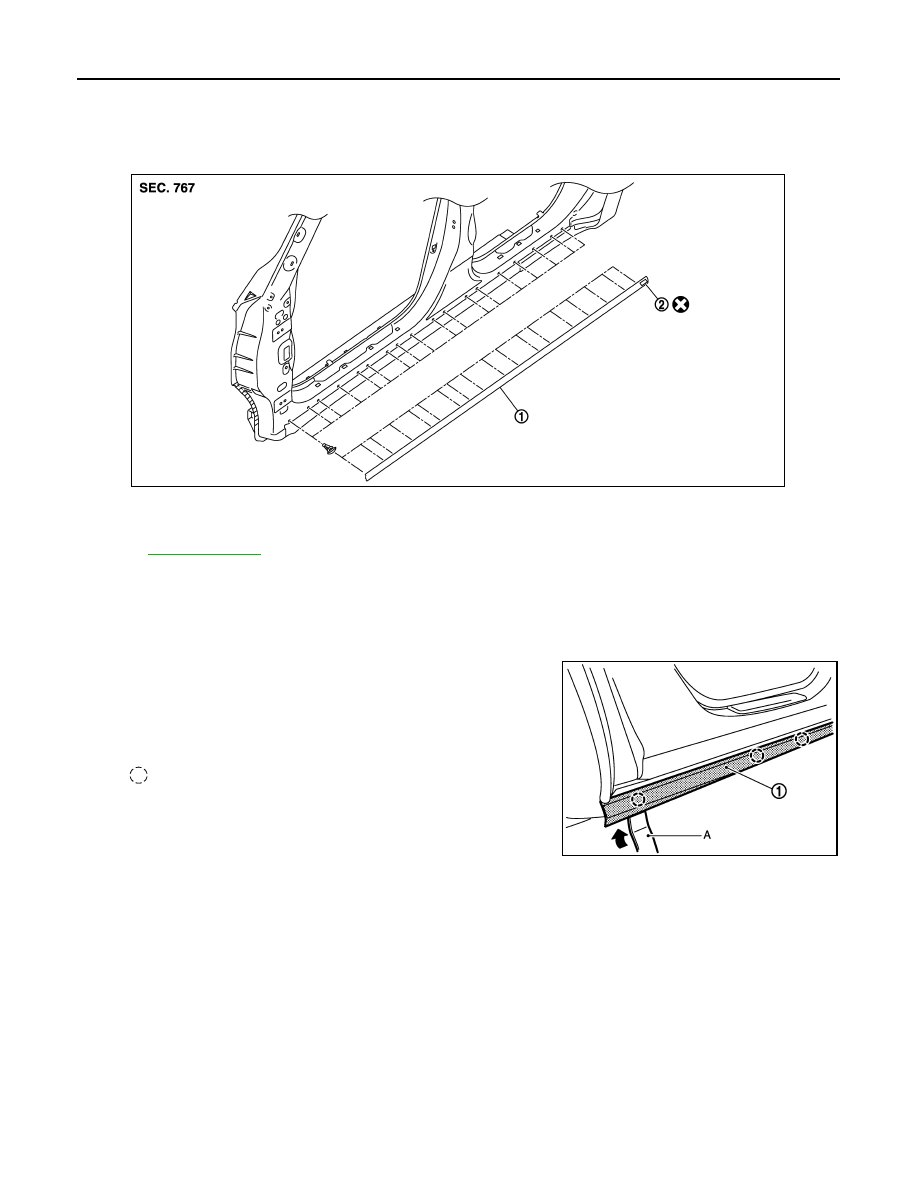

SILL MOLDING

SILL MOLDING

Exploded View

INFOID:0000000006367621

Removal and Installation

INFOID:0000000006367622

REMOVAL

1.

Fully open front and rear door.

2.

Disengage sill molding (1) fixing clips with a remover tool (A),
and then remove sill molding.

CAUTION:

• Disengage the clips slowly and carefully.
• Never pull the sill molding strongly.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, check visually the sill molding and the clips, then replace them with new parts if

they have been damaged.

• When installing the sill molding, check that blind clips are securely fitted in panel holes on body, and

then press them in.

1.

Sill molding

2.

Double-sided tape
[t: 1.2 mm (0.047) in]

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5380ZZ

: Clip

JMKIA2029ZZ

DOOR SASH COVER

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

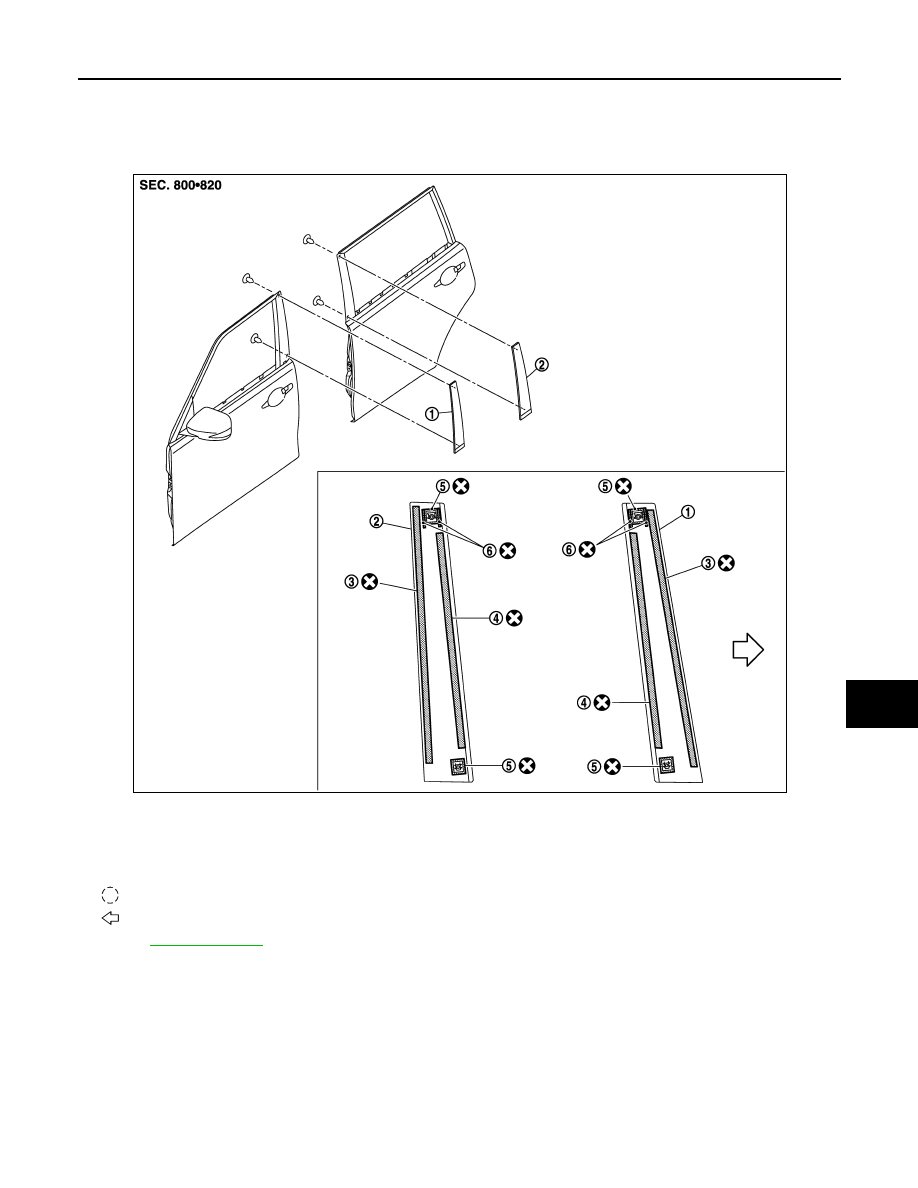

DOOR SASH COVER

Exploded View

INFOID:0000000006367623

Removal and Installation

INFOID:0000000006367624

FRONT DOOR SASH COVER

Removal

1.

Remove front door sash cover fixing clips.

1.

Front door sash cover

2.

Rear door sash cover

3.

Double sided tape
[1.2 mm (0.047) in]

4.

 Double sided tape
[2.0 mm (0.079) in]

5.

 Double sided tape
[1.6 mm (0.063) in]

6.

EPT seal
[1.6 mm (0.063) in]

: Clip

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5312ZZ

EXT-38

< REMOVAL AND INSTALLATION >

DOOR SASH COVER

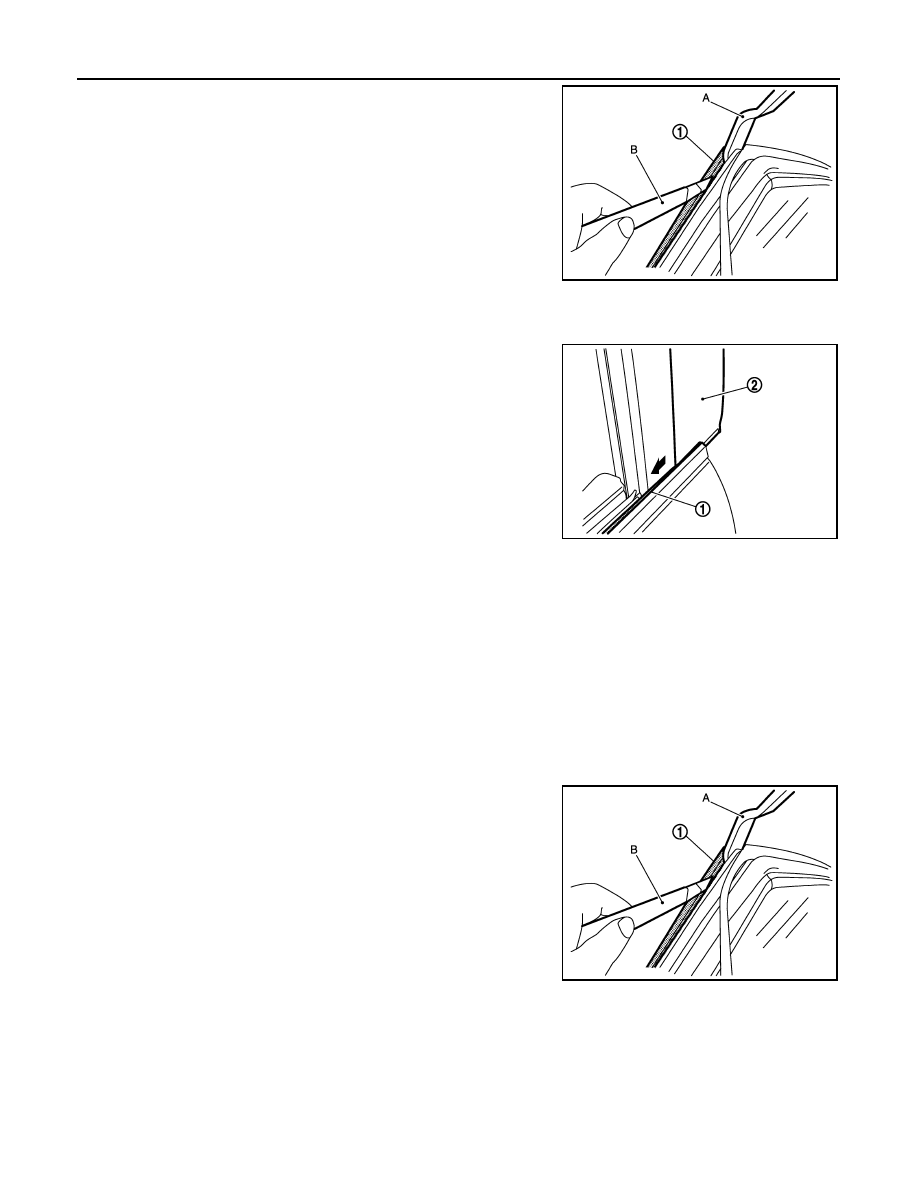

2.

Insert a remover tool (A) between front door sash cover (1) and
door panel, cut double-sided tape using a cutter (B) while lifting
front door sash cover, and remove front door sash cover.

CAUTION:

• Use a remover tool which is made of a material that does

not damage door panel.

• Never lift front door sash cover with excessive force.

Installation

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, slide and install front door sash cover (2)

from door rear side, so that front door outside molding (1) is
not deformed.

• Replace double-sided tape on back of front door sash cover with a new double-sided adhesive tape

if front door sash cover is reused.

• Replace EPT sealer of front door sash cover with a new EPT sealer if front door sash cover is

reused.

• Remove double-sided adhesive tape remaining on body and back of front door sash cover using

double-sided adhesive tape remover when removing front door sash molding.

• Install after cleaning adhesive parts of door side and back of front door sash cover.
• To secure contact, do not wash vehicle within 24 hours after installation.

REAR DOOR SASH COVER

Removal

1.

Remove rear door sash cover fixing clips.

2.

Insert a remover tool (A) between rear door sash cover (1) and
door panel, cut double-sided tape using a cutter (B) while lifting
rear door sash cover, and remove rear door sash cover.

CAUTION:

• Never use an item as a remover tool that could damage

door panel.

• Never lift rear door sash cover with excessive force.

Installation

Note the following items, and install in the reverse order of removal.

CAUTION:
