• When installing, slide and install rear door sash cover (2) from

door front, so that rear door outside molding (1) is not
deformed.

• Replace double-sided adhesive tape on back of rear door sash cover with a new double-sided adhe-

sive tape if rear door sash cover is reused.

• Replace EPT sealer of rear door sash cover with a new EPT sealer if rear door sash cover is reused.
• Remove double-sided adhesive tape remaining on body and back of rear door sash cover using dou-

ble-sided adhesive tape remover when removing rear door sash cover.

• Install after cleaning adhesive parts of door side and back of rear door sash cover.
• To secure contact, do not wash vehicle within 24 hours after installation.

JMKIA5007ZZ

EXT-40

< REMOVAL AND INSTALLATION >

FRONT PILLAR FINISHER

FRONT PILLAR FINISHER

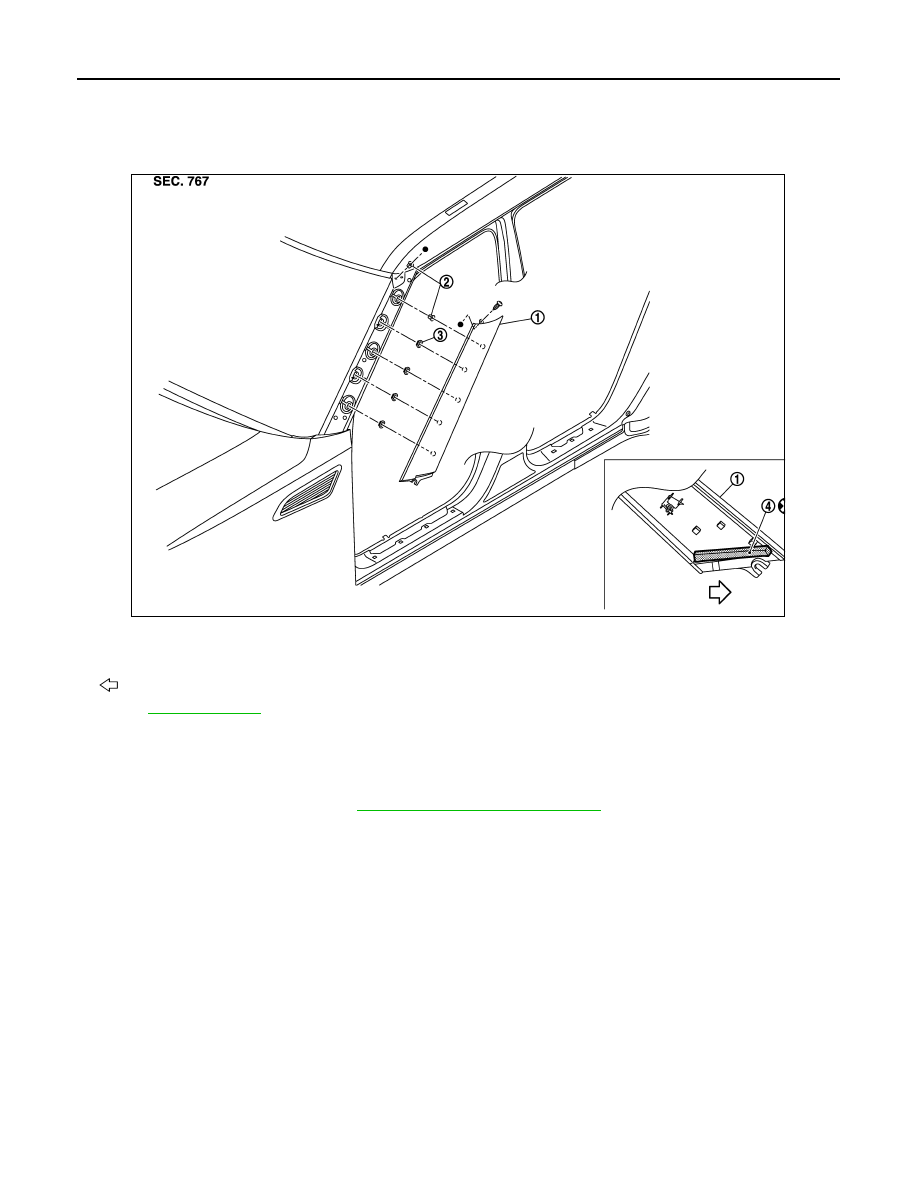

Exploded View

INFOID:0000000006367625

Removal and Installation

INFOID:0000000006367626

REMOVAL

1.

Remove roof drip molding. Refer to

EXT-43, "Removal and Installation"

.

2.

Remove front pillar finisher fixing screw.

3.

Disengage clips with remover tool, and then remove front pillar finisher.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing front pillar finisher, check that clips are securely fitted in body panel holes, and

press them it.

1.

Front pillar finisher

2.

Grommet

3.

Grommet

4.

EPT sealer [t: 12.0 mm (0.472 in)]

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5311ZZ

REAR SPOILER

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR SPOILER

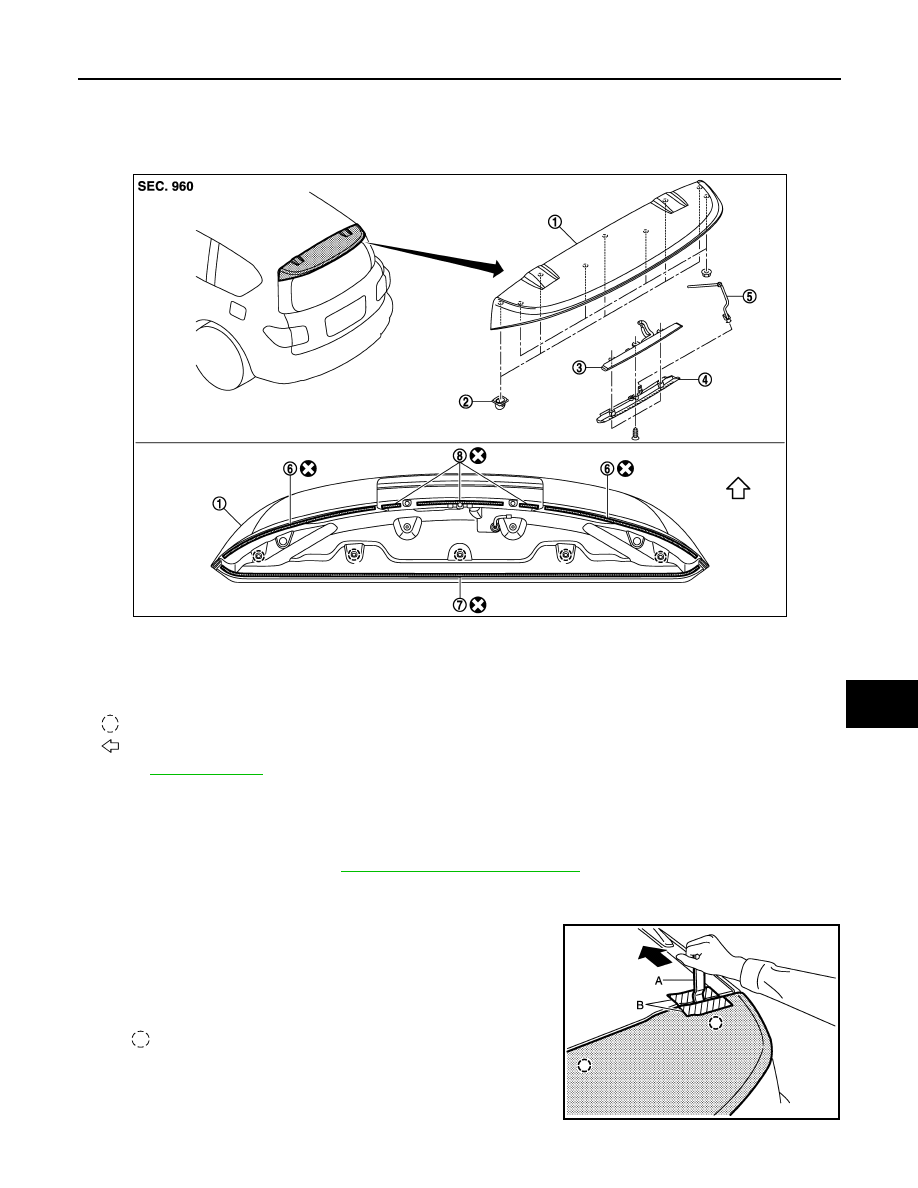

Exploded View

INFOID:0000000006367627

Removal and Installation

INFOID:0000000006367628

REMOVAL

1.

Remove back door trim. Refer to

INT-39, "Removal and Installation"

.

2.

Remove rear spoiler mounting nuts.

3.

Cut rear spoiler fixing double-sided tape with cutter knife.

4.

Disengage rear spoiler fixing clips with remover tool (A), and
then remove rear spoiler.

CAUTION:

Apply a protective tape (B) on body panel and rear spoiler
to protect the painted surface from damage.

1.

Rear spoiler assembly

2.

Grommet

3.

High-mounted stop lamp

4.

High-mounted stop lamp cover

5.

Washer nozzle

6.

EPT sealer [t: 5.0 mm (0.197 in)]

7.

Double-sided tape
[t: 1.6 mm (0.063 in)]

8.

EPT sealer [t: 4.0 mm (0.157 in)]

: Clip

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5322ZZ

: Clip

JMKIA5383ZZ

EXT-42

< REMOVAL AND INSTALLATION >

REAR SPOILER

5.

Remove following parts after removing rear spoiler.
• High-mounted stop lamp
• Grommets
• Washer nozzle

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Be careful no to damage the back door.
• Always replace double-sided tape with a new one, if rear spoiler is reused.
• Remove double-sided tape remaining on back door panel and back of rear spoiler with a double-

sided tape remover, after removing rear spoiler.

• When installing, visually check the rear spoiler and the clips, then replace them with new parts if

they are damaged.

• When installing rear spoiler, check that clips and bolts are securely fitted in back door panel holes,

and then press them in.

• Never wash the vehicle within 24 hours after installing so as to keep adhesive.
