OVER FENDER

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

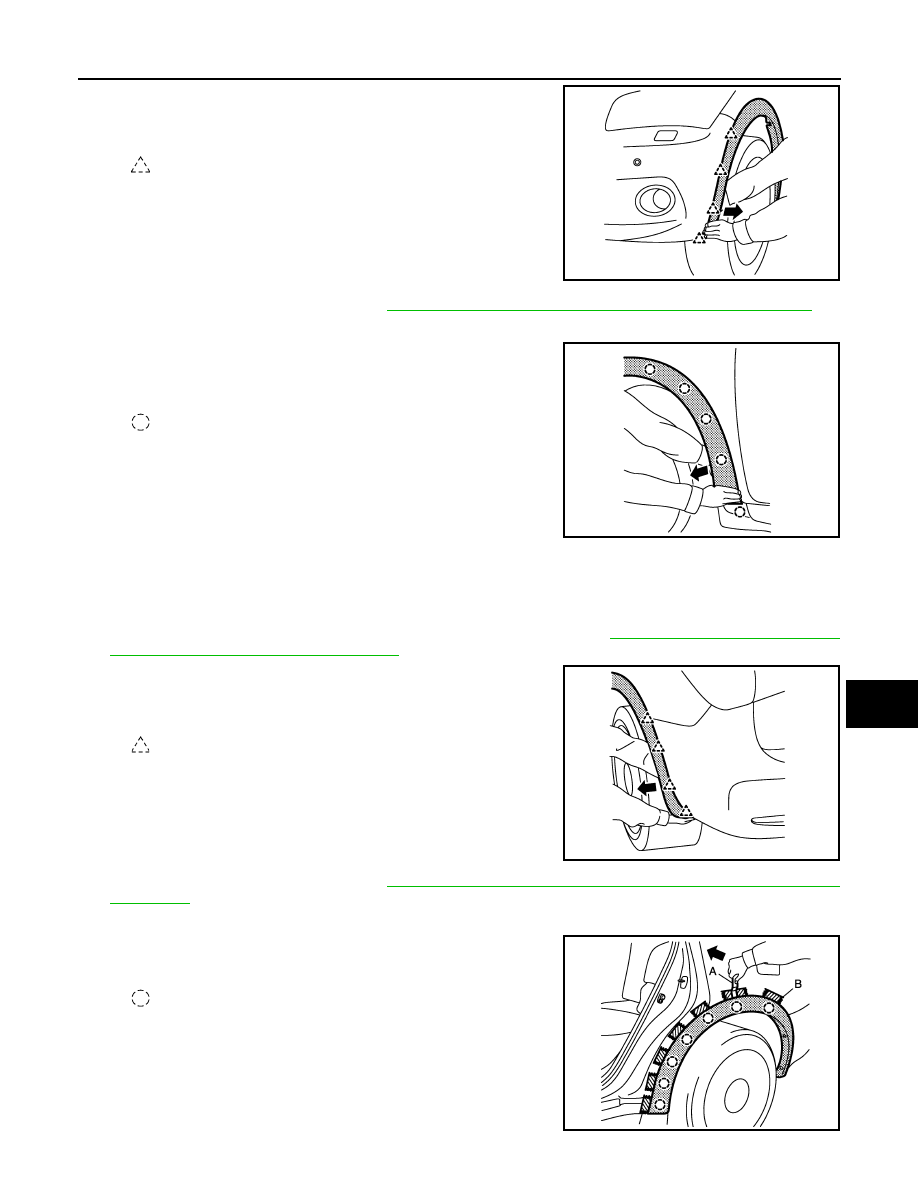

3.

Disengage front over fender rear side fixing pawls from behind
of front fender, and the pull front over fender front side toward
the direction shown in the figure.

CAUTION:

Never pull the front over fender strongly.

4.

Remove front fender protector. Refer to

EXT-23, "FENDER PROTECTOR : Removal and Installation"

5.

Remove side step front side fixing clips.

6.

Disengage front over fender rear side fixing pawls from behind
of fender, and then pull front over fender front side toward the
direction shown in the figure.

CAUTION:

Never pull the front over fender strongly.

7.

Remove front over fender.

Rear over fender

1.

Remove rear over fender rear side fixing screws and bolts.

2.

Remove rear fender protector rear side. Keep the service area. Refer to

EXT-24, "REAR WHEEL HOUSE

PROTECTOR : Removal and Installation"

.

3.

Disengage rear over fender rear side fixing pawls from behind of
rear fender, and the pull rear over fender rear side toward the
direction shown in the figure.

4.

Remove rear fender protctor. Refer to

EXT-24, "REAR WHEEL HOUSE PROTECTOR : Removal and

Installation"

.

5.

Remove rear over fender front side fixing screws and bolts.

6.

Using a remover tool (A), disengage the clips from the rear over
fender by starting from the rear.

CAUTION:

• Apply a protective tape (B) on the body to protect the

painted surface from damage.

• Disengage the clips slowly and carefully.
• Never pull the front over fender strongly.

: Pawl

JMKIA5452ZZ

: Clip

JMKIA5453ZZ

: Pawl

JMKIA5471ZZ

: Clip

JMKIA5472ZZ

EXT-28

< REMOVAL AND INSTALLATION >

OVER FENDER

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When installing, check visually the over fender and the clips, then replace them with new parts if

they have been damaged.

• When installing over fender, check that blind clips are securely fitted in panel holes on body, and

then press them in.

ROOF RAIL

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

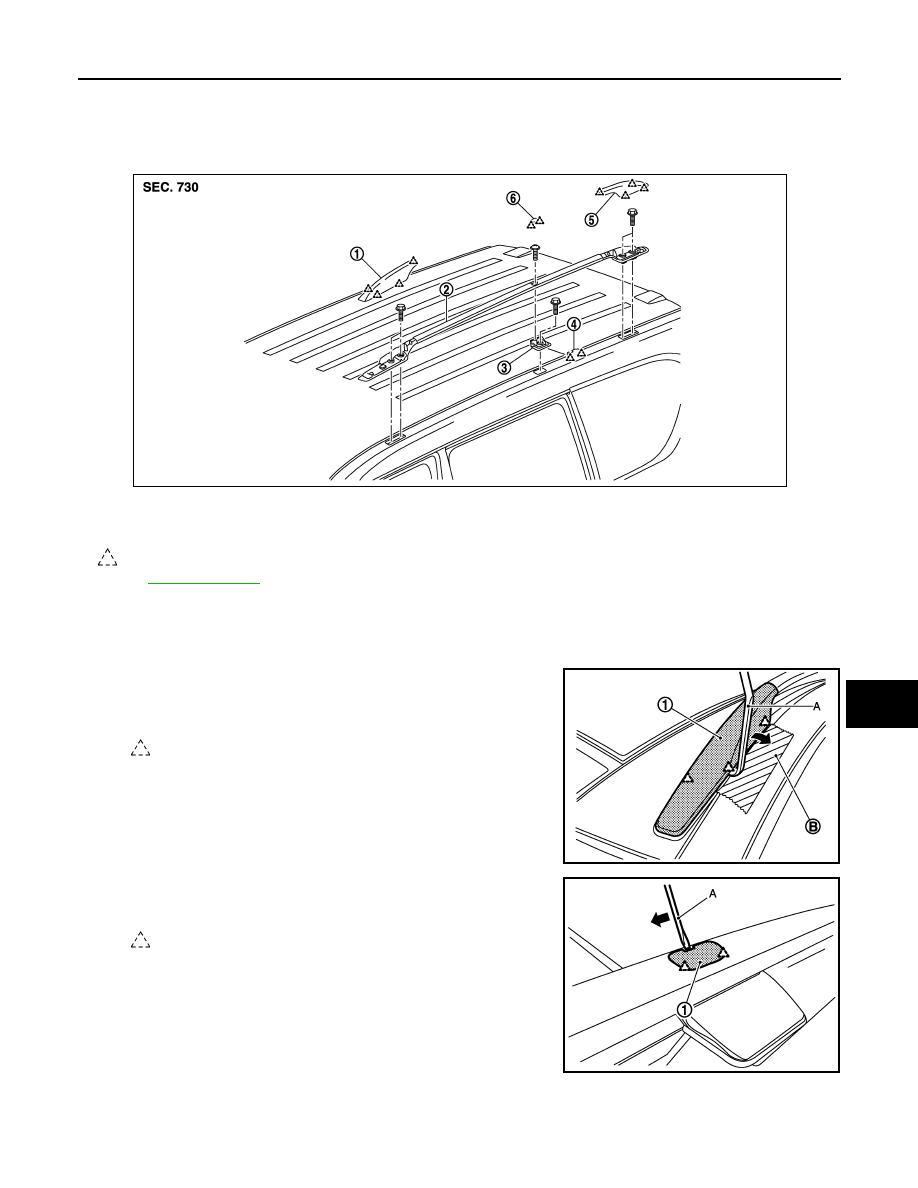

ROOF RAIL

Exploded View

INFOID:0000000006367613

Removal and Installation

INFOID:0000000006367614

REMOVAL

1.

Remove front roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

2.

Remove center roof rail cover (1) with flat-bladed screwdriver
(A).

1.

Front roof rail cover

2.

Roof rail assembly

3.

Center leg assembly

4.

Center leg cover

5.

Rear roof rail cover

6.

Center roof rail cover

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5277ZZ

: Pawl

JMKIA2014ZZ

: Pawl

JMKIA2015ZZ

EXT-30

< REMOVAL AND INSTALLATION >

ROOF RAIL

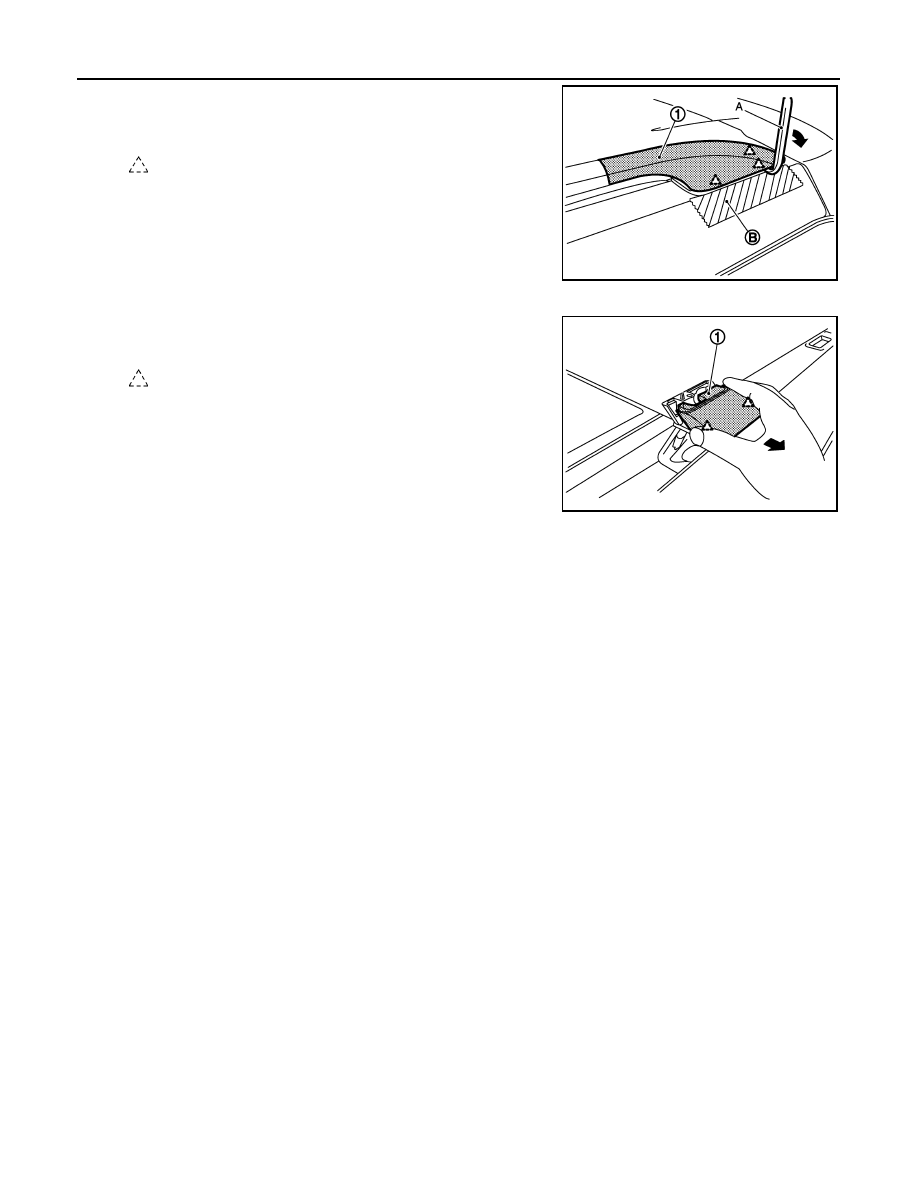

3.

Remove rear roof rail cover (1) with remover tool (A).

CAUTION:

Apply protective tape (B) around the roof rail.

4.

Remove roof rail mounting bolts, and then remove roof rail assembly.

5.

Pull to the side, disengage pawls and remove center leg cover
(1).

6.

Remove roof rail center leg assembly mounting bolt, and then remove roof rail center leg assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIA2016ZZ

: Pawl

JMKIA2017ZZ
