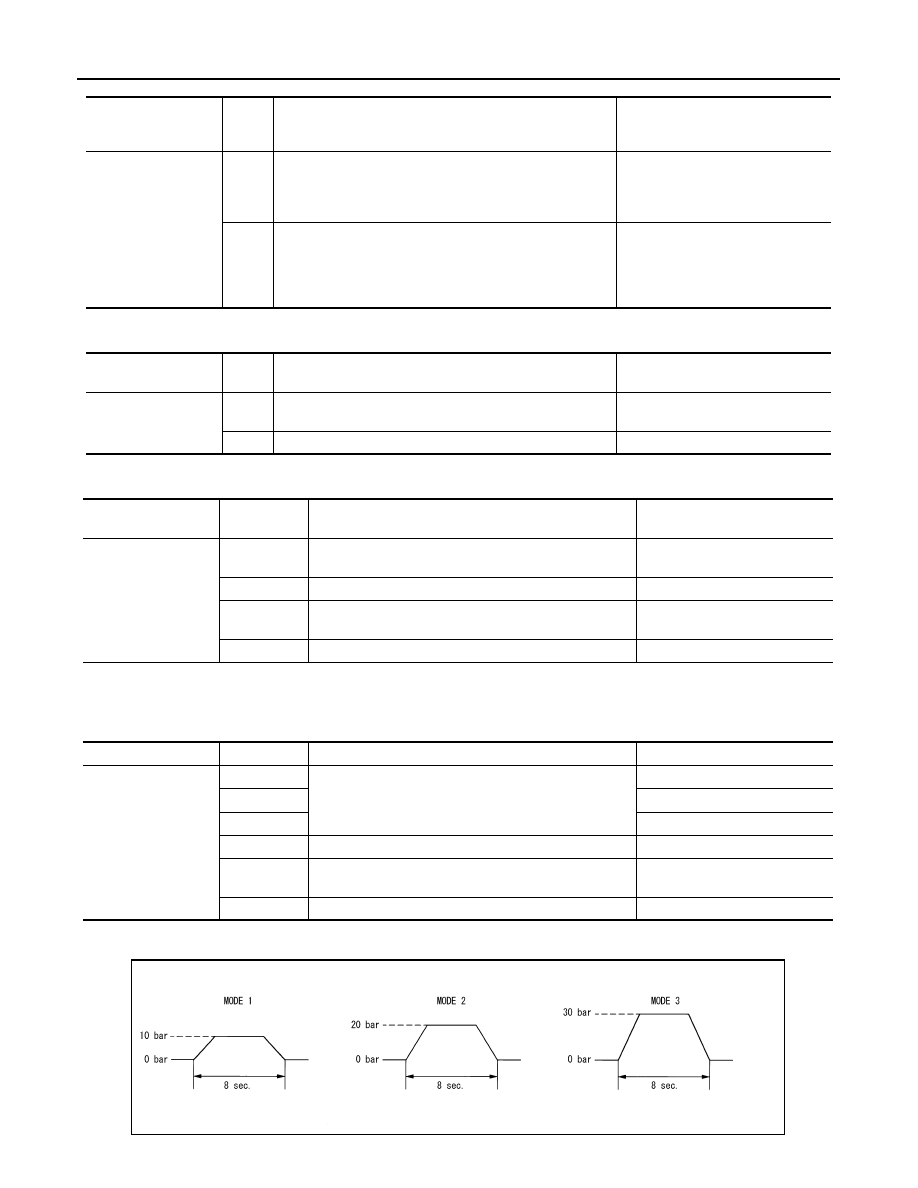

DAS DIAGNOSIS SYSTEM (ADAS CONTROL UNIT) DAS-229 < SYSTEM DESCRIPTION > [FCW] C D E F G H I J K L M B N P A NP RANGE SW × Indicates shift position signal read from ADAS control unit through CAN commu- PKB SW × Parking brake switch status [On/Off] judged from the parking brake switch signal PWR SUP MONI × × Indicates IGN voltage input by ADAS control unit VHCL SPD AT × Indicates vehicle speed calculated from A/T vehicle speed sensor read from THRTL OPENING × × Indicates throttle position read from ADAS control unit through CAN communica- GEAR × Indicates A/T gear position read from ADAS control unit through CAN communi- MODE SIG × Indicates the active mode from ICC or ASCD [conventional (fixed speed) cruise SET DISP IND × Indicates [On/Off] status of SET switch indicator output DISTANCE × Indicates the distance from the vehicle ahead RELATIVE SPD × Indicates the relative speed of the vehicle ahead DYNA ASIST SW × × × Indicates [On/Off] status as judged from ICC steering switch signal (ECM trans- DCA ON IND × The status [ON/OFF] of DCA system switch indicator output is displayed DCA VHL AHED × The status [ON/OFF] of vehicle ahead detection indicator output in DCA system IBA SW × × Indicates [On/Off] status of IBA OFF switch FCW SYSTEM ON × × Indicates [On/Off] status of FCW system APA TEMP ° C] × Accelerator pedal actuator integrated motor temperature that the ADAS control APA PWR × Accelerator pedal actuator power supply voltage that the ADAS control unit read- LDW SYSTEM ON × Indicates [On/Off] status of LDW system LDW ON LAMP × Indicates [On/Off] status of waning systems ON indicator output LDP ON IND × Indicates [On/Off] status of LDP ON indicator lamp (Green) output LANE DPRT W/L × Indicates [On/Off] status of lane departure warning lamp (Yellow) output LDW BUZER OUT- × Indicates [On/Off] status of warning buzzer output Monitored item [Unit] ALL SI G (ICC) M AIN SIG (ICC) M AIN SIG (LDW/LDP) M AIN SIG (B SW/BS I) Description |
