OPERATION

Switch Name and Function

INFOID:0000000006223676

Menu Displayed by Pressing Each Switch

INFOID:0000000006223677

DISPLAY AND WARNING LAMP

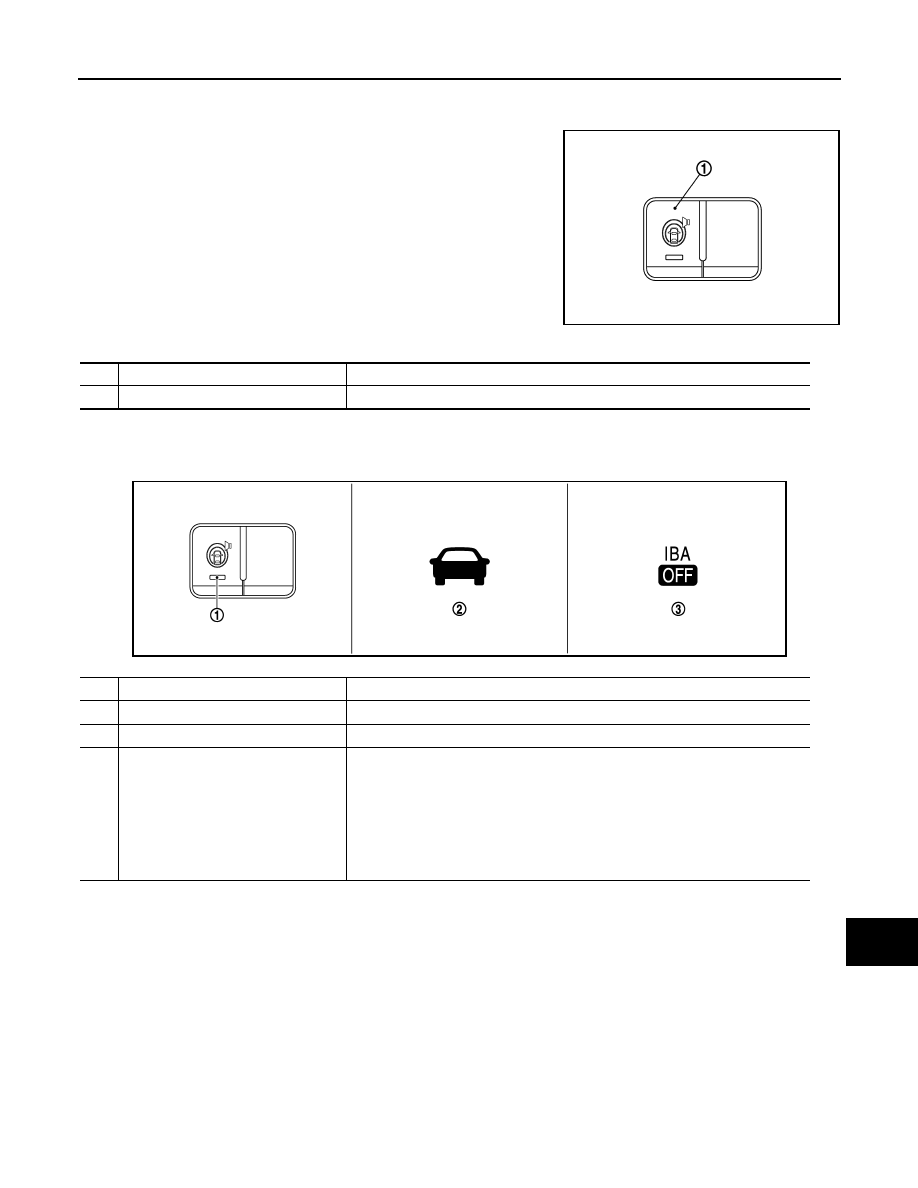

SYSTEM CONTROL CONDITION DISPLAY

JSOIA0277ZZ

No.

Switch name

Description

1

Warning systems switch

Turns FCW/LDW/BSW systems ON/OFF

JSOIA0278ZZ

No.

Display item

Description

1

Warning systems ON indicator

Indicates that FCW/LDW/BSW systems are ON

2

Vehicle ahead detection indicator

Vehicle ahead detection indicator blinks when the FCW system is activated

3

IBA OFF indicator lamp

IBA OFF indicator lamp turns ON when:
• FCW system has a malfunction
• ICC sensor window is too dirty to detect a vehicle ahead
• Subjected to a strong light (e.g. sunlight)
IBA OFF indicator lamp blinks when 4WD shift switch is set in a position other
than AUTO
NOTE:
Shared with IBA system

DAS-222

< SYSTEM DESCRIPTION >

[FCW]

OPERATION

Condition

Warning
systems

ON indica-

tor

Vehicle ahead detection indicator

(In the combination meter)

Buzzer

Set condition

ON

OFF

—

When own vehicle comes closer to
the vehicle ahead and it is judged that
the distance between the vehicles is
not sufficient

ON

Beep

JSOIA0134ZZ

DAS

HANDLING PRECAUTION

DAS-223

< SYSTEM DESCRIPTION >

[FCW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

HANDLING PRECAUTION

Precautions for Forward Collision Warning

INFOID:0000000006223678

FORWARD COLLISION WARNING (FCW)

• FCW system is intended to warn the driver before a collision but will not avoid a collision. It is the drive's

responsibility to stay alert, drive safely and be in control of the vehicle at all times.

• As there is a performance limit, the FCW system may not provide a warning in certain conditions.
• The FCW system will not detect the following objects.
- Pedestrians, animals, or obstacles in the roadway.
- Oncoming vehicles in the same lane
• FCW system will not detect under the following conditions.
- When the sensor gets dirty, it is impossible to detect the distance from the vehicle ahead.
- When driving into a strong light (i.e. sunlight)
• The sensor generally detects signals returned from the reflectors on a vehicle ahead. Therefore, the FCW

system may not warn properly under the following conditions:

- When the reflectors of the vehicle ahead are positioned high or close to each other (including a small vehicle

such as motorcycles).

- When the sensor gets dirty or it is impossible to detect the distance to the vehicle ahead.
- When the reflectors on the vehicle ahead is missing, damaged or covered.
- When the reflector of the vehicle ahead is covered with dirt, snow or road spray.
- When visibility is low (such as rain, fog, snow, etc.).
- When snow or road spray from traveling vehicles are splashed.
- When dense exhaust or other smoke (black smoke) from vehicles reduces the visibility of the sensor.
- When excessively heavy baggage is loaded in the rear seat or the luggage room of own vehicle.
- When abruptly accelerating or decelerating.
- On steep downhill or roads with sharp curves.
- When there is a highly reflective object near the vehicle ahead.

i.e.) very close to other vehicle, signboard, etc.

- When own vehicle are towing a trailer.
• Depending on certain road conditions (curved, beginning of a curve), vehicle conditions (steering position,

vehicle position), or preceding vehicle's conditions (position in lane, etc.), the FCW system may not function
properly. The FCW system may detect highly reflective objects such as reflectors, signs, white markers, and
other stationary objects on the road or near the traveling lane, and provide unnecessary warning.

• The FCW system may not function in offset conditions.
• The FCW system may not function when the distance to the vehicle ahead is extremely close.
• The FCW system is designed to automatically check the sensor's functionality. If the sensor is covered with

ice, a transparent or translucent plastic bag, etc., the system may not detect them. In these instances the
FCW system may not be able to warn properly. Be sure to check and clean the sensor regularly.

• Excessive noise will interfere with the warning chime sound, and the chime may not be heard.
• A sudden appearance of the vehicle in front (i.e.: when a vehicle abruptly cuts in) may not be detected and

the system may not warn soon enough.

• The FCW system will be canceled automatically with a chime sound and the IBA OFF indicator light will illu-

minate under the following conditions:

- When the sensor window is dirty
- When the FCW system malfunctions

DAS-224

< SYSTEM DESCRIPTION >

[FCW]

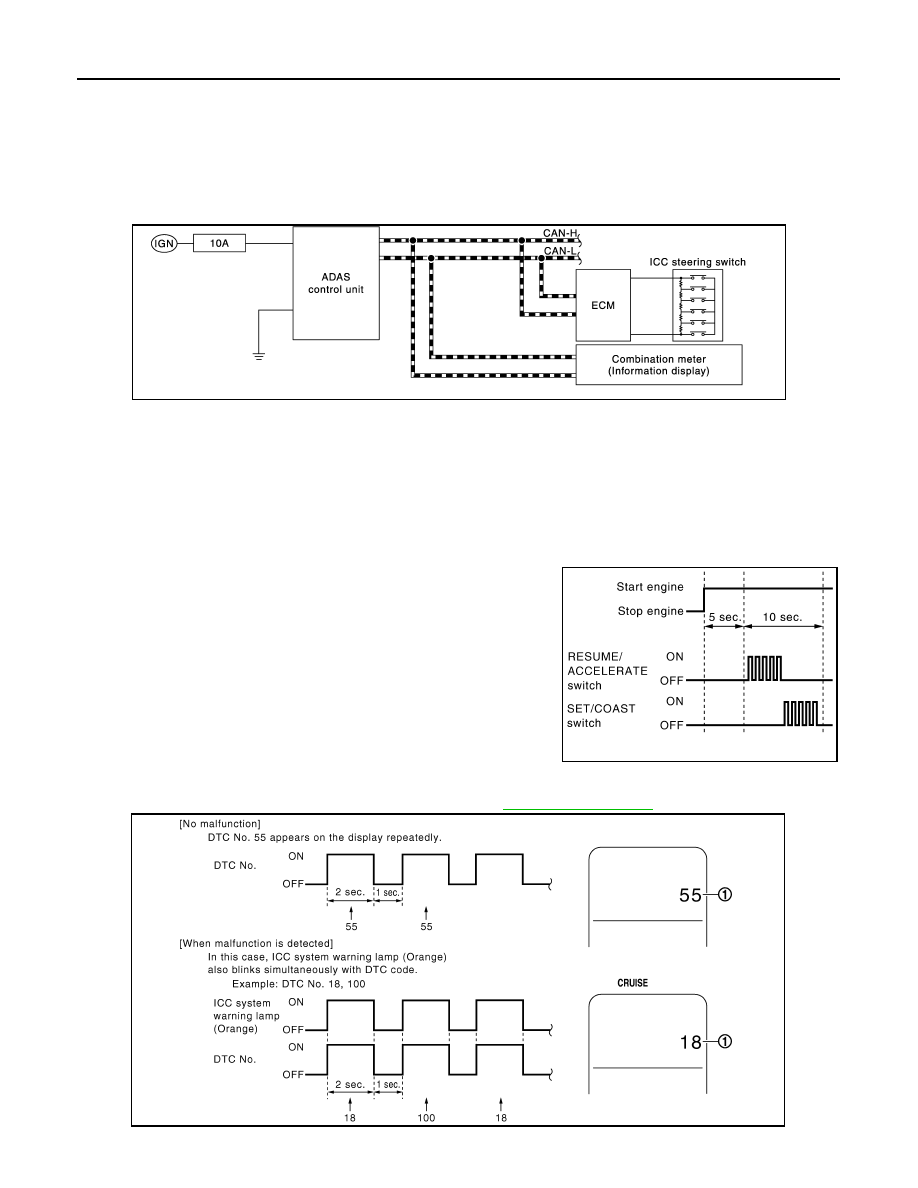

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

On Board Diagnosis Function

INFOID:0000000006223679

DESCRIPTION

The DTC is displayed on the information display by operating the ICC steering switch.

On Board Self-diagnosis System Diagram

METHOD OF STARTING

CAUTION:

Start condition of on board self-diagnosis
• ICC system OFF
• DCA system OFF
• Vehicle speed 0 km/h (0 MPH)
1.

Turn the ignition switch OFF.

2.

Start the engine.

3.

Wait for 5 seconds after starting the engine. Push up the
RESUME/ACCELERATE switch 5 times and push down the
SET/COAST switch 5 times within 10 seconds.
NOTE:
If the above operation cannot be performed within 10 seconds
after waiting for 5 seconds after starting the engine, repeat the
procedure from step 1.

4.

The DTC is displayed on the set vehicle speed indicator (1) on the ICC system display on the information
display when the on board self-diagnosis starts. Refer to

DAS-38, "DTC Index"

.

NOTE:

JSOIA0271GB

PKIB8371E

JSOIA0008GB
