Infiniti Q45. Manual - part 861





SRS-1

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

H  RESTRAINTS

CONTENTS

C

D

E

F

G

I

J

K

L

M

SECTION

SRS

A

B

SRS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

PRECAUTIONS .......................................................... 3

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Precautions for SRS “AIR BAG” and “SEAT BELT
PRE-TENSIONER” Service  ..................................... 3
Occupant Classification System Precaution  ............ 3

PREPARATION ........................................................... 4

Commercial Service Tools ........................................ 4

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)  ....... 5

SRS Configuration  ................................................... 5
Front Seat Belt Pre-Tensioner with Load Limiter ...... 6
Front Side Air Bag .................................................... 6
Side Curtain Air Bag ................................................. 6
Occupant Classification System (OCS)  ................... 7
Passenger Air Bag Status Condition  ........................ 7
Component Parts of Occupant Classification Sys-
tem ........................................................................... 7

TROUBLE DIAGNOSIS .............................................. 8

Trouble Diagnosis Introduction ................................. 8

DIAGNOSIS FUNCTION ....................................... 8
HOW TO PERFORM TROUBLE DIAGNOSES
FOR QUICK AND ACCURATE REPAIR  ............... 8
WORK FLOW ........................................................ 9

Component Parts Location ..................................... 10
Schematic ...............................................................11
Wiring Diagram — SRS —  ..................................... 12
CONSULT-II Function  ............................................ 19

DIAGNOSIS MODE FOR CONSULT-II  ............... 19
HOW TO CHANGE SELF-DIAGNOSIS MODE
WITH CONSULT-II  .............................................. 19
HOW TO ERASE SELF-DIAGNOSIS RESULTS

... 20

Self-Diagnosis Function (Without CONSULT-II) ..... 20

HOW TO CHANGE SELF-DIAGNOSIS MODE
WITHOUT CONSULT-II  ...................................... 20
HOW TO ERASE SELF-DIAGNOSIS RESULTS

... 20

SRS Operation Check  ............................................ 21

DIAGNOSTIC PROCEDURE 1 ........................... 21

Trouble Diagnosis with CONSULT-II  ...................... 23

DIAGNOSTIC PROCEDURE 2 ........................... 23

DIAGNOSTIC PROCEDURE 3  ........................... 27
DIAGNOSTIC PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE 2)  .............. 29
DIAGNOSTIC PROCEDURE 5  ........................... 29

Trouble Diagnosis without CONSULT-II  ................. 34

DIAGNOSTIC PROCEDURE 6  ........................... 34
WARNING LAMP FLASH CODE CHART  ........... 34

Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn OFF  ......................................................... 38

DIAGNOSTIC PROCEDURE 7  ........................... 38

Trouble Diagnosis: “AIR BAG” Warning Lamp Does
Not Turn ON  ........................................................... 39

DIAGNOSTIC PROCEDURE 8  ........................... 39

DRIVER AIR BAG MODULE  .................................... 40

Removal and Installation  ........................................ 40

REMOVAL ........................................................... 40
INSTALLATION ................................................... 41

SPIRAL CABLE  ........................................................ 43

Removal and Installation  ........................................ 43

REMOVAL ........................................................... 43
INSTALLATION ................................................... 43

FRONT PASSENGER AIR BAG MODULE  .............. 45

Removal and Installation  ........................................ 45

REMOVAL ........................................................... 45
INSTALLATION ................................................... 45

SIDE CURTAIN AIR BAG MODULE  ........................ 46

Removal and Installation  ........................................ 46

REMOVAL ........................................................... 46
INSTALLATION ................................................... 46

CRASH ZONE SENSOR ........................................... 47

Removal and Installation  ........................................ 47

REMOVAL ........................................................... 47
INSTALLATION ................................................... 47

SIDE AIR BAG (SATELLITE) SENSOR  ................... 48

Removal and Installation  ........................................ 48

REMOVAL ........................................................... 48
INSTALLATION ................................................... 48

FRONT SEAT BELT PRE-TENSIONER  ................... 49

Removal and Installation  ........................................ 49

PRECAUTIONS

SRS-3

C

D

E

F

G

I

J

K

L

M

A

B

SRS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NHS00045

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for SRS “AIR BAG” and “SEAT BELT PRE-TENSIONER” Service

NHS00046

Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt
pre-tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes
have passed.

Diagnosis sensor unit must always be installed with their arrow marks “

” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before instal-
lation and replace as required.

The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.

Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad
side facing upward and place front side air bag module standing with stud bolt side setting bottom.

Conduct self-diagnosis to check entire SRS for proper function after replacing any components.

After air bag inflates, the front instrument panel assembly should be replaced if damaged.

Occupant Classification System Precaution

NHS0006T

Replace occupant classification system control unit and passenger front seat cushion as an assembly.
Refer to

SE-182, "FRONT SEAT"

 .

SRS-4

PREPARATION

PREPARATION

PFP:00002

Commercial Service Tools

NHS00048

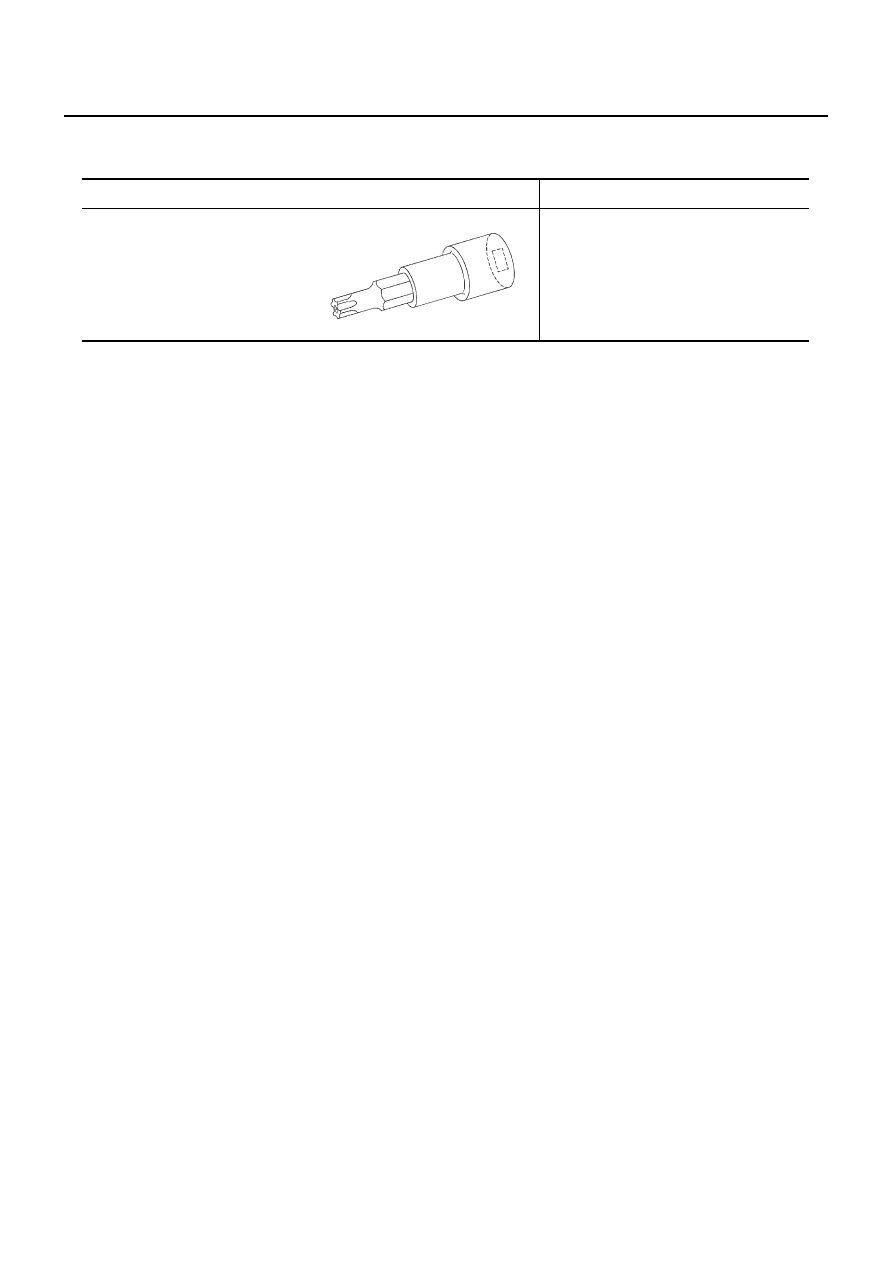

Tool name

Description

Tamper resistant TORX bit

Size: T30/T50

S-NT757
