HAZARD SWITCH

LT-101

C

D

E

F

G

H

I

J

L

M

A

B

LT

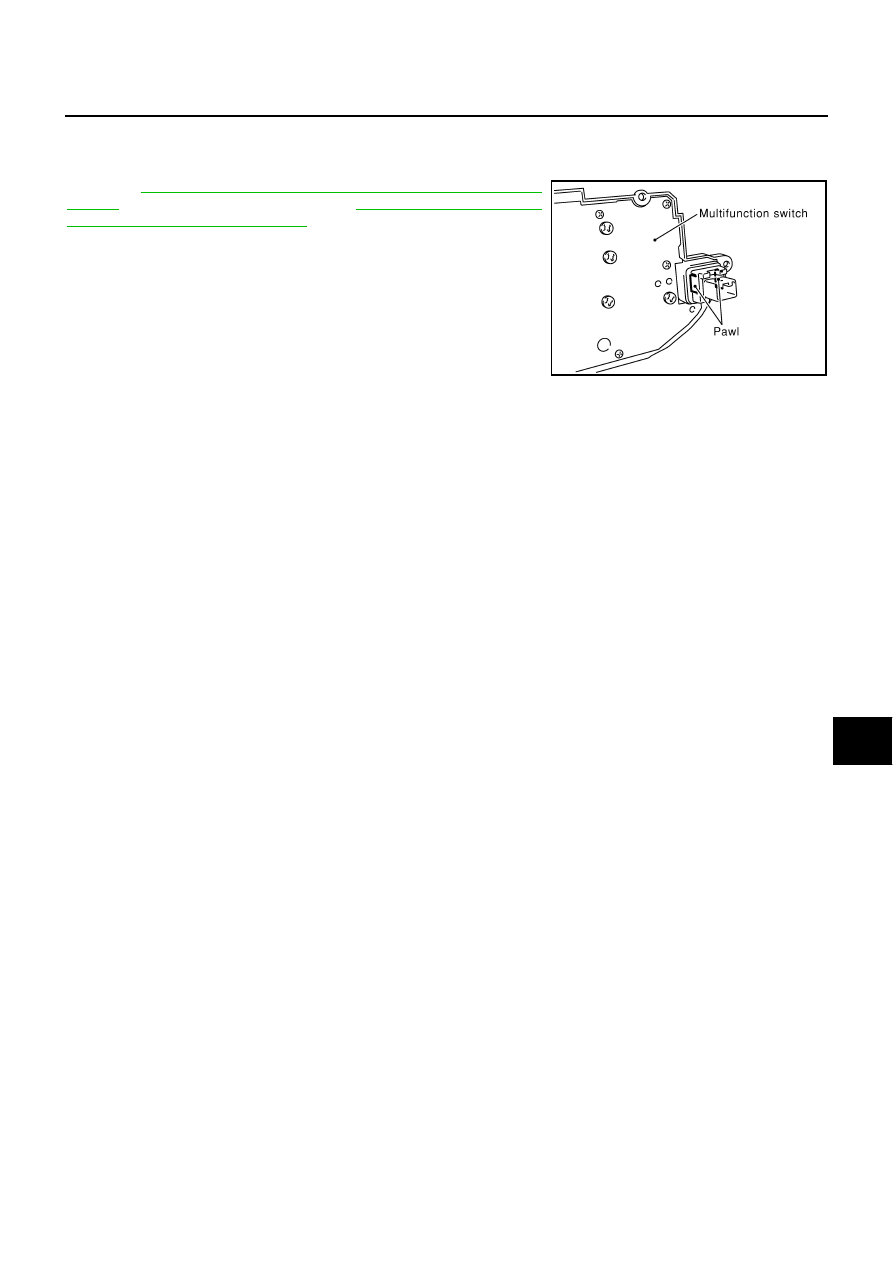

HAZARD SWITCH

PFP:25290

Removal and Installation

NKS0019A

Refer to

DI-150, "Disassembly and Assembly for Multifunction

Switch"

  (without navigation system) or

DI-171, "Disassembly and

Assembly for Multifunction Switch"

  (with navigation system).

PKIA0186E

LT-102

STOP LAMP

STOP LAMP

PFP:26550

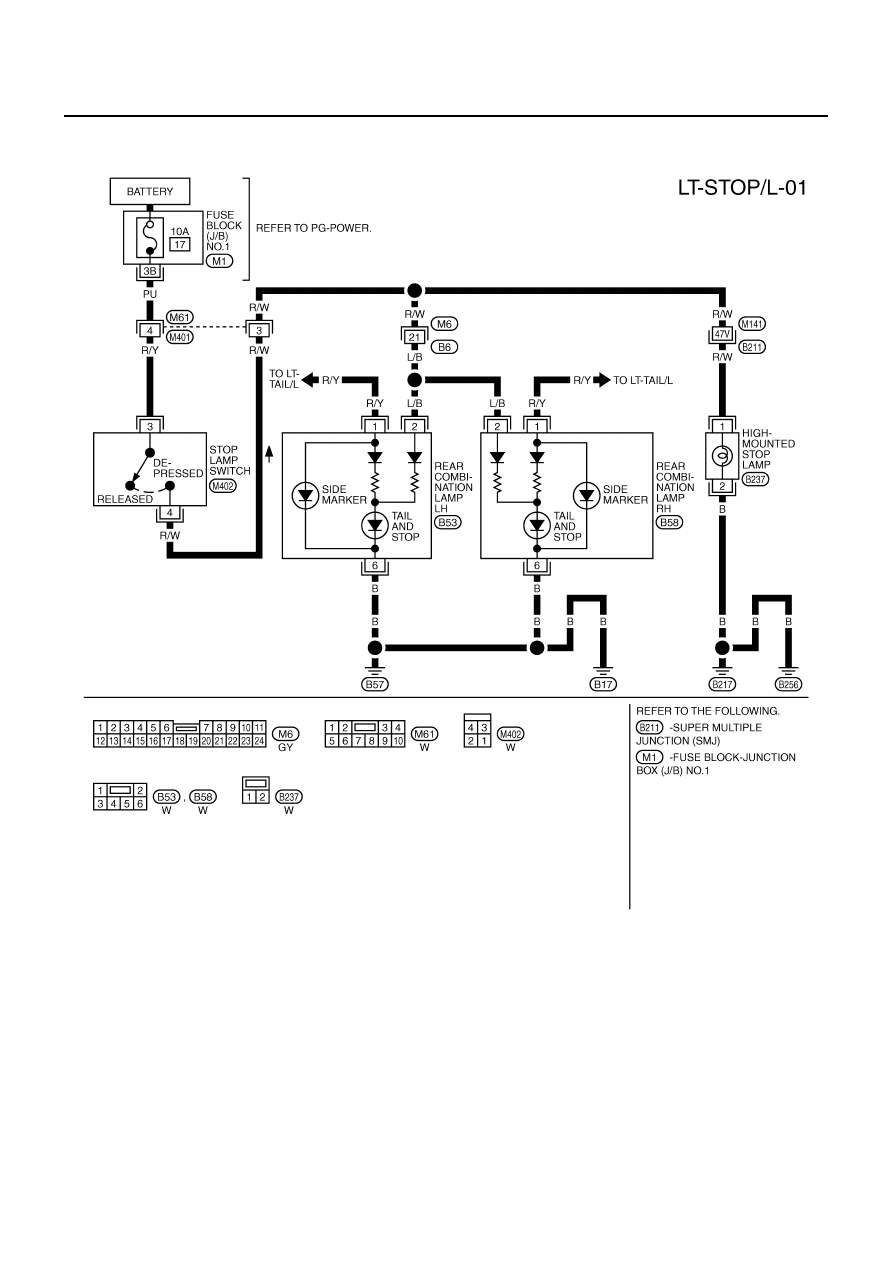

Wiring Diagram — STOP/L —

NKS0019B

TKWM3700E

STOP LAMP

LT-103

C

D

E

F

G

H

I

J

L

M

A

B

LT

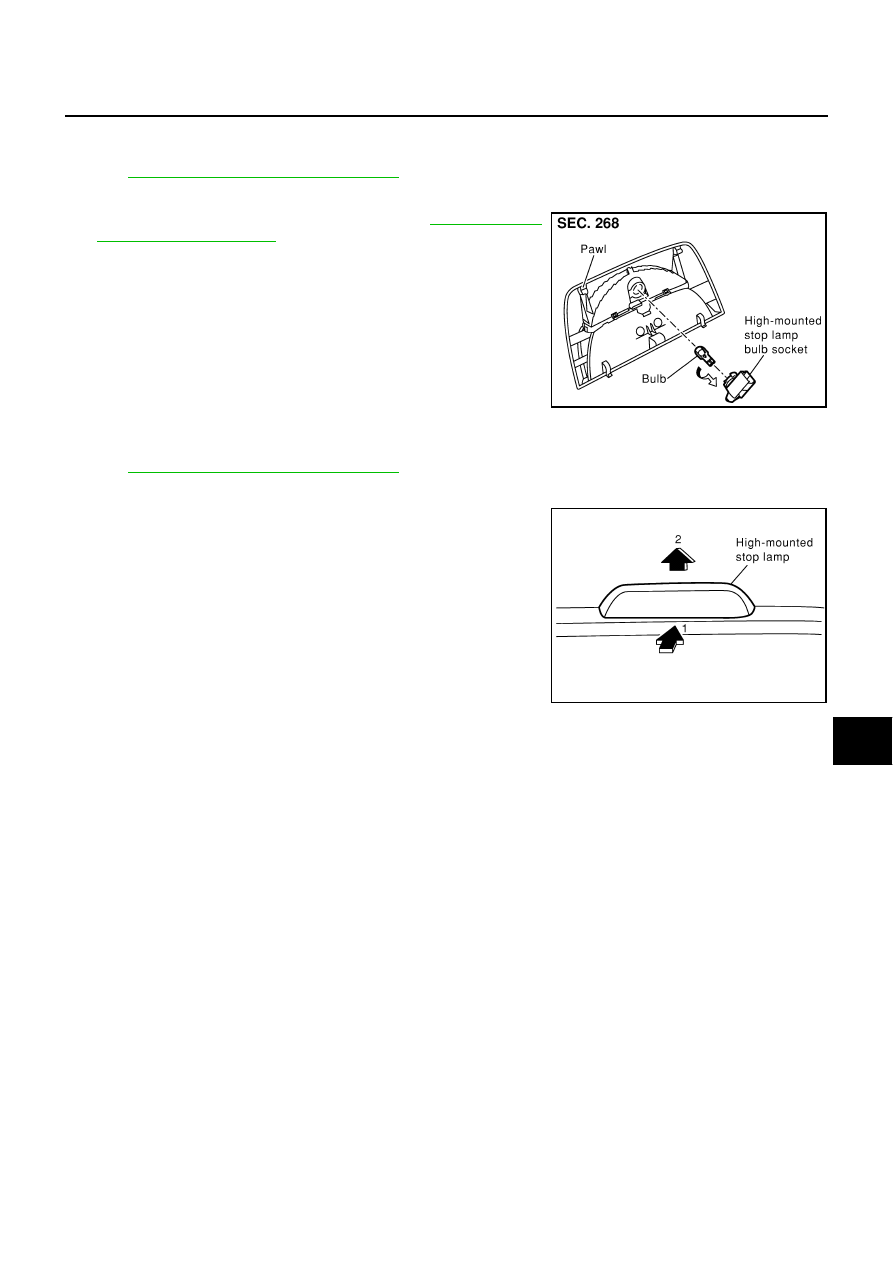

Bulb Replacement

NKS0019C

STOP LAMP

Refer to

LT-115, "REAR COMBINATION LAMP"

 .

HIGH-MOUNTED STOP LAMP

1.

Remove high-mounted stop lamp. Refer to

LT-103, "HIGH-

MOUNTED STOP LAMP"

 .

2.

Turn high-mounted stop lamp bulb socket counterclockwise and
unlock it.

3.

Remove bulb.

Removal and Installation

NKS0019D

STOP LAMP

Refer to

LT-116, "REAR COMBINATION LAMP"

 .

HIGH-MOUNTED STOP LAMP

1.

Pull up high-mounted stop lamp while pressing it toward rear of
the vehicle and remove from the vehicle.

2.

Disconnect high-mounted stop lamp connector.

High-mounted stop lamp

: 12V 18W

PKIA0056E

PKIA0057E

LT-104

BACK-UP LAMP

BACK-UP LAMP

PFP:26550

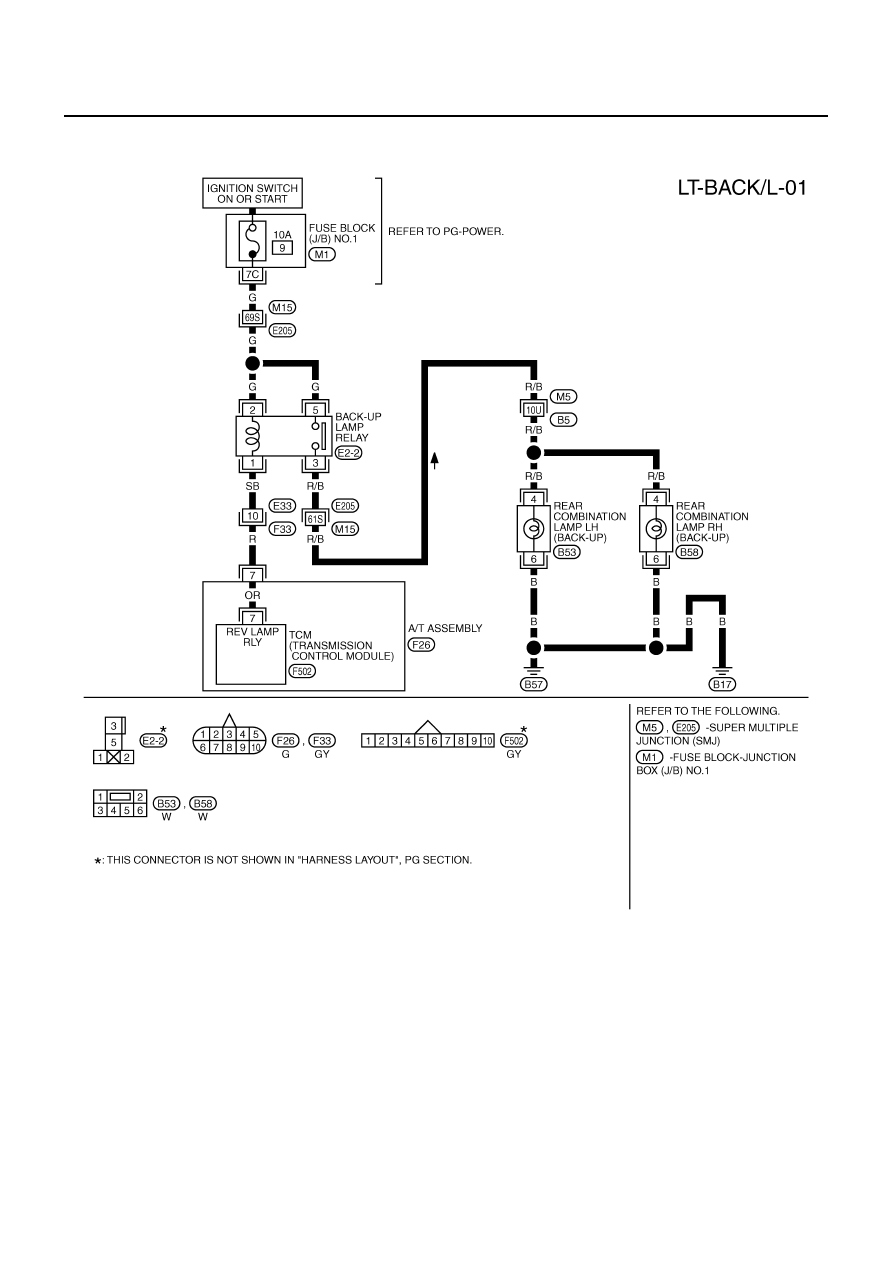

Wiring Diagram — BACK/L —

NKS0019E

TKWM3701E
