ENGINE ROOM COVER

EM-13

C

D

E

F

G

H

I

J

K

L

M

A

EM

ENGINE ROOM COVER

PFP:14049

Removal and Installation

NBS001OE

REMOVAL

Remove clips on back with clip driver for each cover.

CAUTION:

Do not damage or scratch cover when installing or removing.

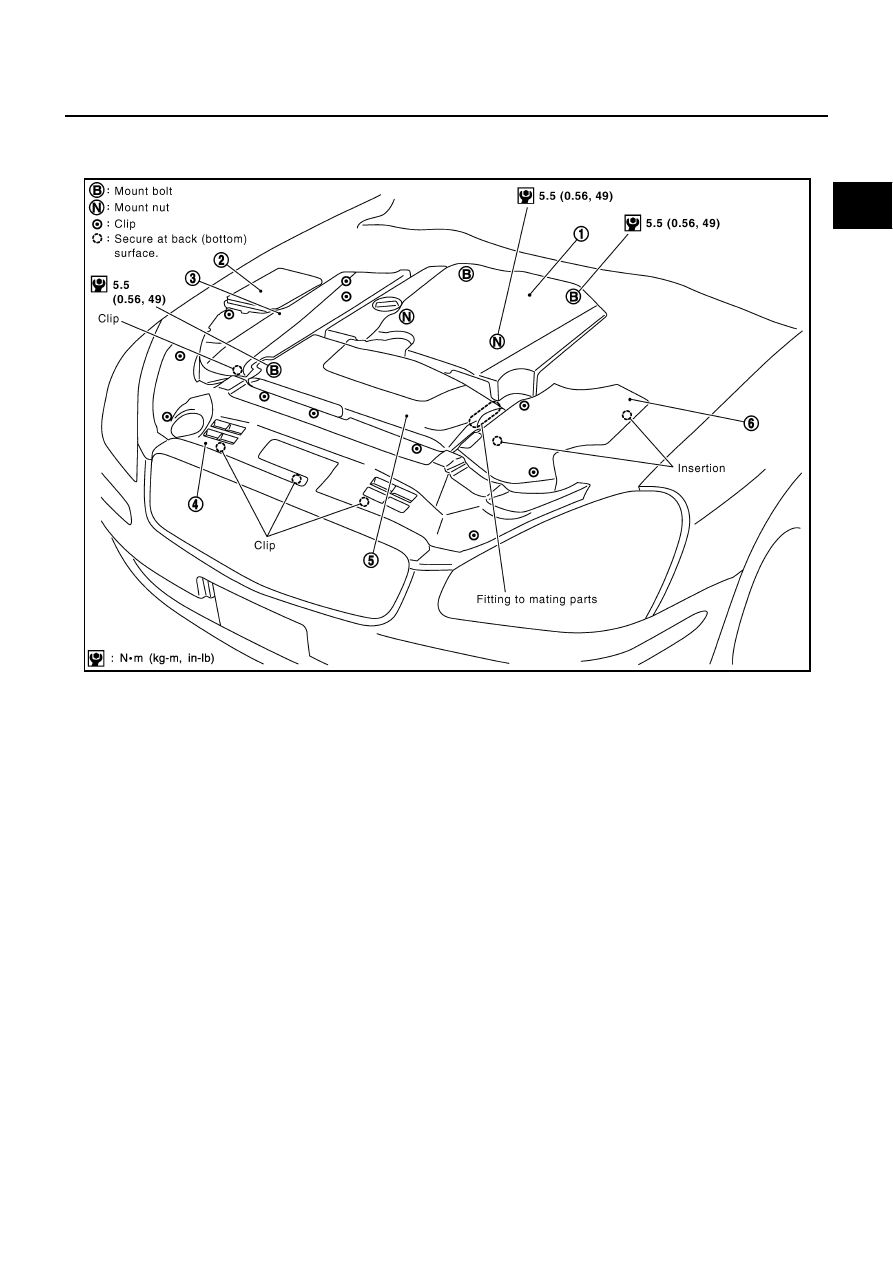

Major parts and inspection points under each cover are as follows; (numbered as in figure)

1.

Spark plug, intake manifold, fuel injector

2.

Relay

3.

Battery, relay box

4.

Power steering fluid cooling tube

5.

Engine assembly front side, drive belts, cooling fan

6.

Mass air flow sensor, air cleaner case

INSTALLATION

Install in the reverse order of removal.

1.

Engine cover

2.

Relay box

3.

Battery cover

4.

Front air guide

5.

Air duct (inlet)

6.

Air cleaner cover

PBIC2771E

EM-14

DRIVE BELTS

DRIVE BELTS

PFP:02117

Checking Drive Belts

NBS001OF

WARNING:

Be sure to perform when engine is stopped.

Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.

Remove engine undercover (with power tool) when inspecting power steering oil pump belt.

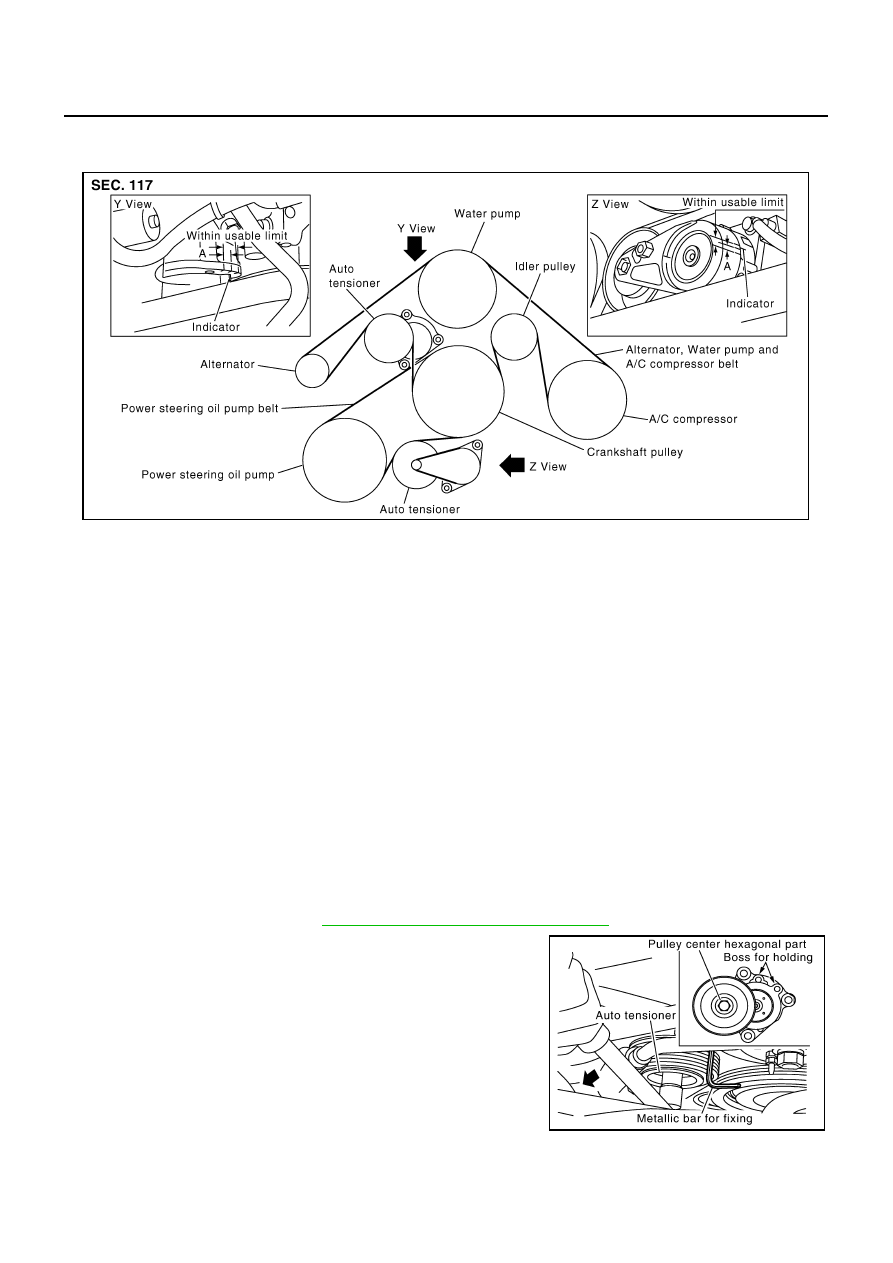

Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range
(between three line notches).

NOTE:

Check auto tensioner indication when engine is cold.

When new drive belt is installed, the range should be A.

The indicator notch is located on the moving side of auto tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.

Visually check entire belt for wear, damage or cracks.

If the indicator is out of allowable working range or belt is damaged, replace drive belt.

Tension Adjustment

NBS001OG

Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.

Removal and Installation

NBS001OH

REMOVAL
Alternator, Water Pump and A/C Compressor Belt

1.

Remove air duct (inlet). Refer to

EM-17, "AIR CLEANER AND AIR DUCT"

 .

2.

With box wrench, and while securely holding the hexagonal part
in pulley center of auto tensioner, move the wrench handle in the
direction of arrow (loosening direction of tensioner).

CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto–tensioner pulley (Do not turn it clockwise). If turned
clockwise, the complete drive belt auto–tensioner must
be replaced as a unit, including the pulley.

3.

Under the above condition, insert a metallic bar of approximately
6 mm (0.24 in) in diameter (hexagonal bar wrench shown as
example in the figure) through the holding boss to lock auto tensioner pulley arm.

PBIC2162E

PBIC2787E

DRIVE BELTS

EM-15

C

D

E

F

G

H

I

J

K

L

M

A

EM

Leave auto tensioner pulley arm locked until belt is installed again.

4.

Remove alternator, water pump and A/C compressor belt.

Power Steering Oil Pump Belt

1.

Remove air duct (inlet) and engine undercover (with power tool). Refer to

EM-17, "AIR CLEANER AND

AIR DUCT"

 .

2.

Remove alternator, water pump and A/C compressor belt. Refer to

EM-14, "Alternator, Water Pump and

A/C Compressor Belt"

 .

3.

While securely holding the hexagonal protrusion part of auto
tensioner pulley with box wrench, move the wrench handle in
the direction of arrow (loosening direction of tensioner).

CAUTION:

Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.

4.

Under the above condition, insert a metallic bar of approximately
6 mm (0.24 in) in diameter (hexagonal bar wrench shown as
example in the figure) through the holding boss to lock auto ten-
sioner pulley arm.

Leave auto tensioner pulley arm locked until belt is installed
again.

5.

Remove power steering oil pump belt.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Make sure belt is securely installed around all pulleys.

Unlock auto tensioner pulley arm to give tension to belt.

Rotate crankshaft pulley several turns clockwise to equalize belt tension between pulleys.

Make sure that belt tension is within the allowable working range, using indicator notch on auto tensioner.
Refer to

EM-14, "Checking Drive Belts"

 .

Drive Belt Auto Tensioner and Idler Pulley

NBS001OI

CAUTION:

The complete drive belt auto–tensioner must be replaced as a unit, including the pulley.

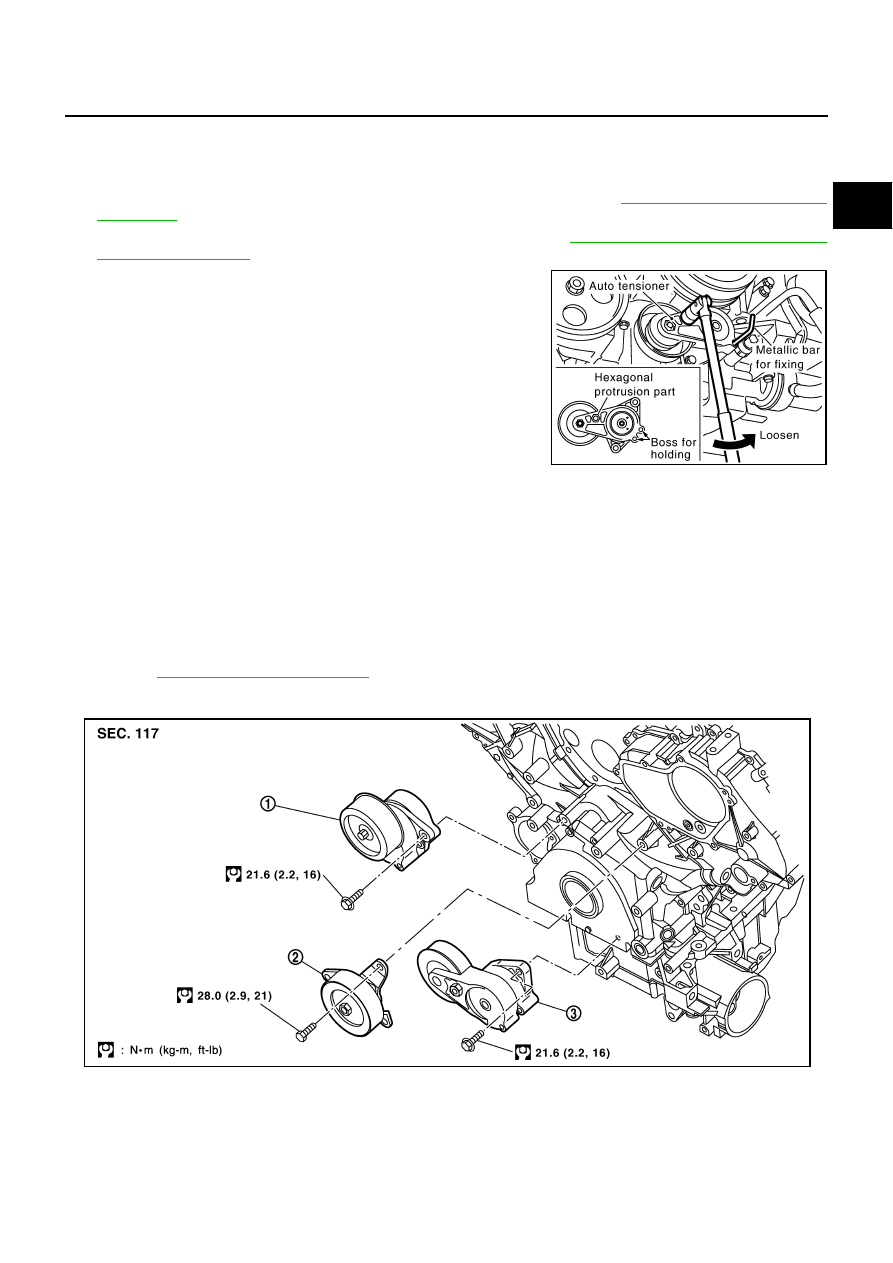

PBIC1543E

1.

Auto tensioner (Used for alternator,
water pump and A/C compressor
belt)

2.

Idler pulley

3.

Auto tensioner (Used for power
steering oil pump belt)

PBIC2788E

EM-16

DRIVE BELTS

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-17, "AIR CLEANER AND AIR DUCT"

 .

2.

Remove engine undercover (with power tool).

3.

Remove drive belts. Refer to

EM-14, "Removal and Installation"

 .

Keep auto tensioner pulley arm locked after belt is removed.

4.

Remove auto tensioner and idler pulley with power tool.

Keep auto tensioner pulley arm locked to install or remove auto tensioner.

CAUTION:

Do not loosen the hexagonal part in center of drive belt auto–tensioner pulley (Do not turn it clock-
wise). If turned clockwise, the complete drive belt auto–tensioner must be replaced as a unit,
including the pulley.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Do not swap the pulley between new and old drive belt auto–tensioner.
