Infiniti Q45. Manual - part 547





PRECAUTIONS

EM-5

C

D

E

F

G

H

I

J

K

L

M

A

EM

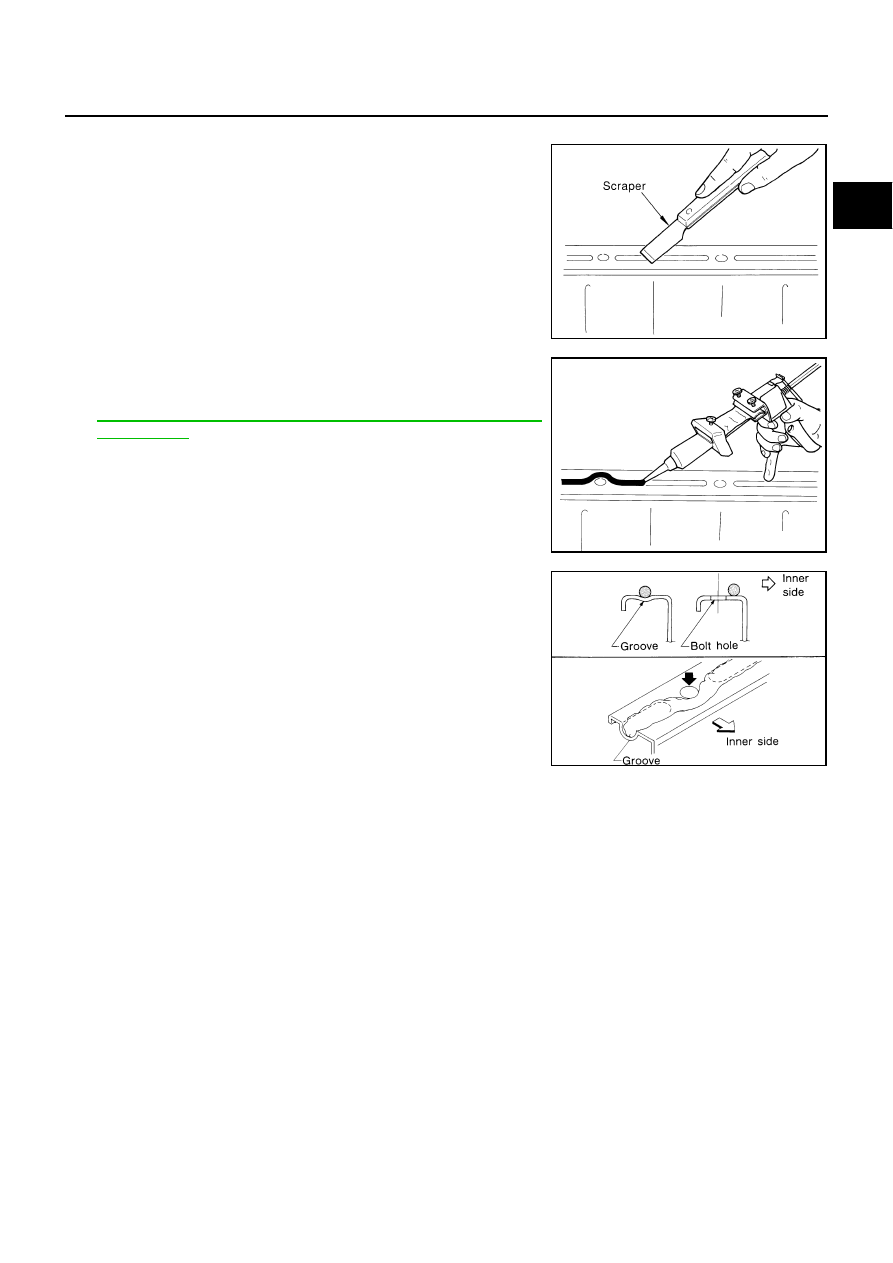

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts, and bolt
holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach the liquid gasket tube to tube presser [SST: WS39930000
(

)].

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-45, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

.

4.

Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. Occasionally, it should be applied outside the
holes. Make sure to read the text of this manual.

Within 5 minutes of liquid gasket application, install the mating
component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting nuts or bolts after the installation.

Wait 30 minutes or more after installing, refill the engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

PBIC0003E

EMA0622D

SEM159F

EM-6

PREPARATION

PREPARATION

PFP:00002

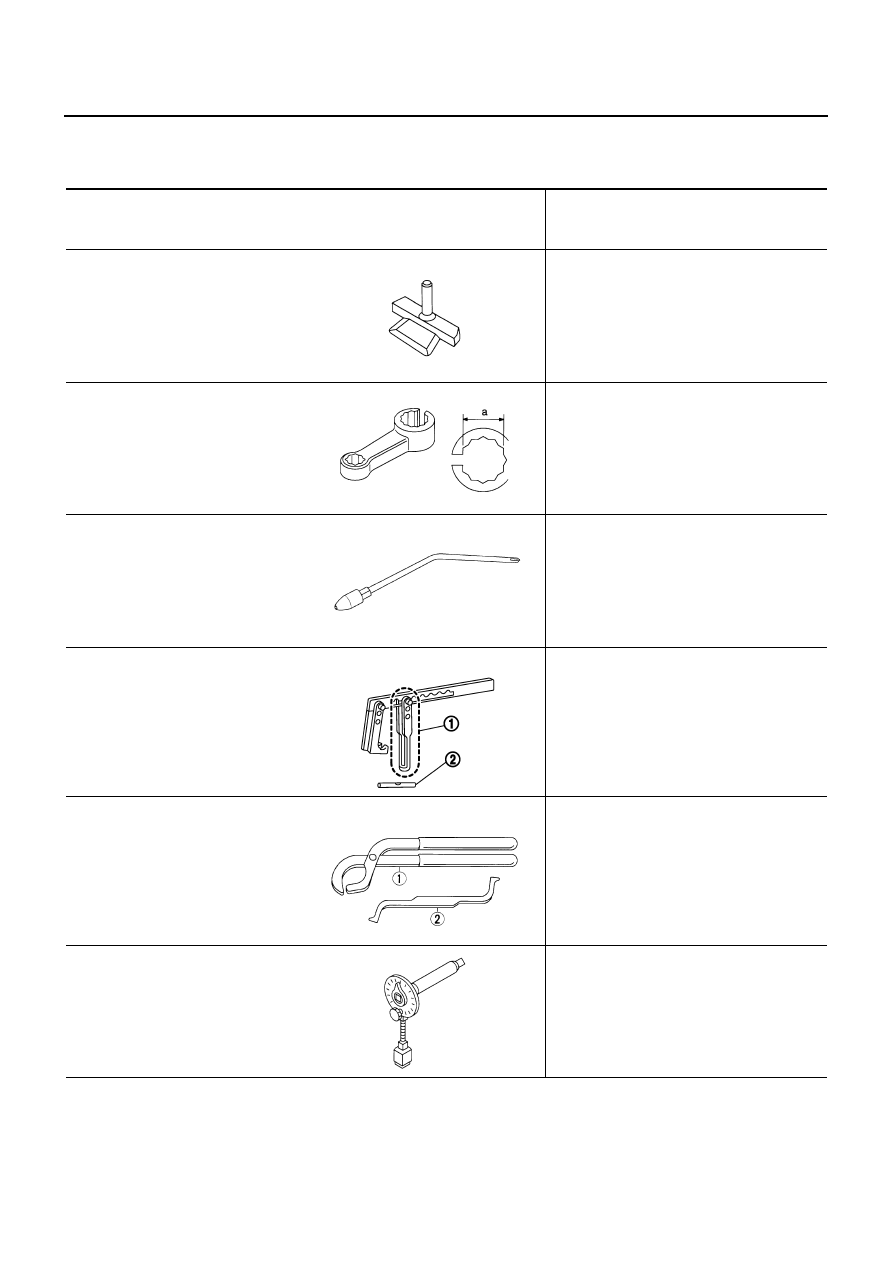

Special Service Tools

NBS001OA

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and front cover, etc.

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen
sensors
a: 22 mm (0.87 in)

EG15050500
(J-45402)
Compression gauge adapter

Inspection of compression pressure on No. 7
and No. 8 cylinders

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109230
(

)

Adapter

Disassembling and assembling valve
mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not so.

KV101151S0
(J-38972)
Lifter stopper set
1.  KV10115110
(J-38972-1)
Camshaft pliers
2.  KV10115120
(J-38972-2)
Lifter stopper

Changing adjusting shims

KV10112100
(BT8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc.

S-NT046

S-NT636

ZZA1225D

PBIC1650E

S-NT041

S-NT014

PREPARATION

EM-7

C

D

E

F

G

H

I

J

K

L

M

A

EM

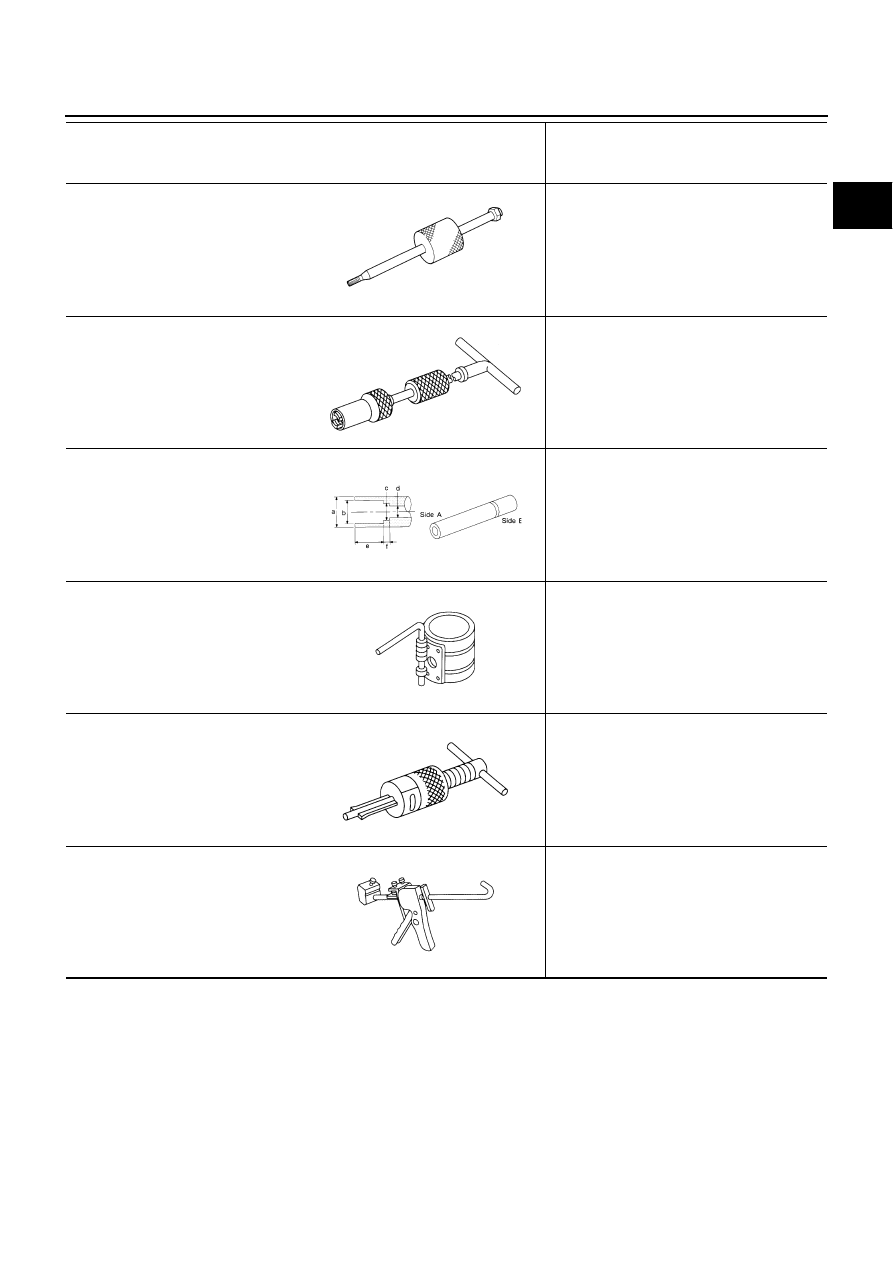

KV10114700
(J-38139)
Main bearing cap remover

Removing crankshaft main bearing cap

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia.         f: 5 (0.20) dia.
                                                   Unit: mm (in)

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot converter

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0023D

S-NT011

S-NT603

S-NT044

S-NT045

S-NT052

EM-8

PREPARATION

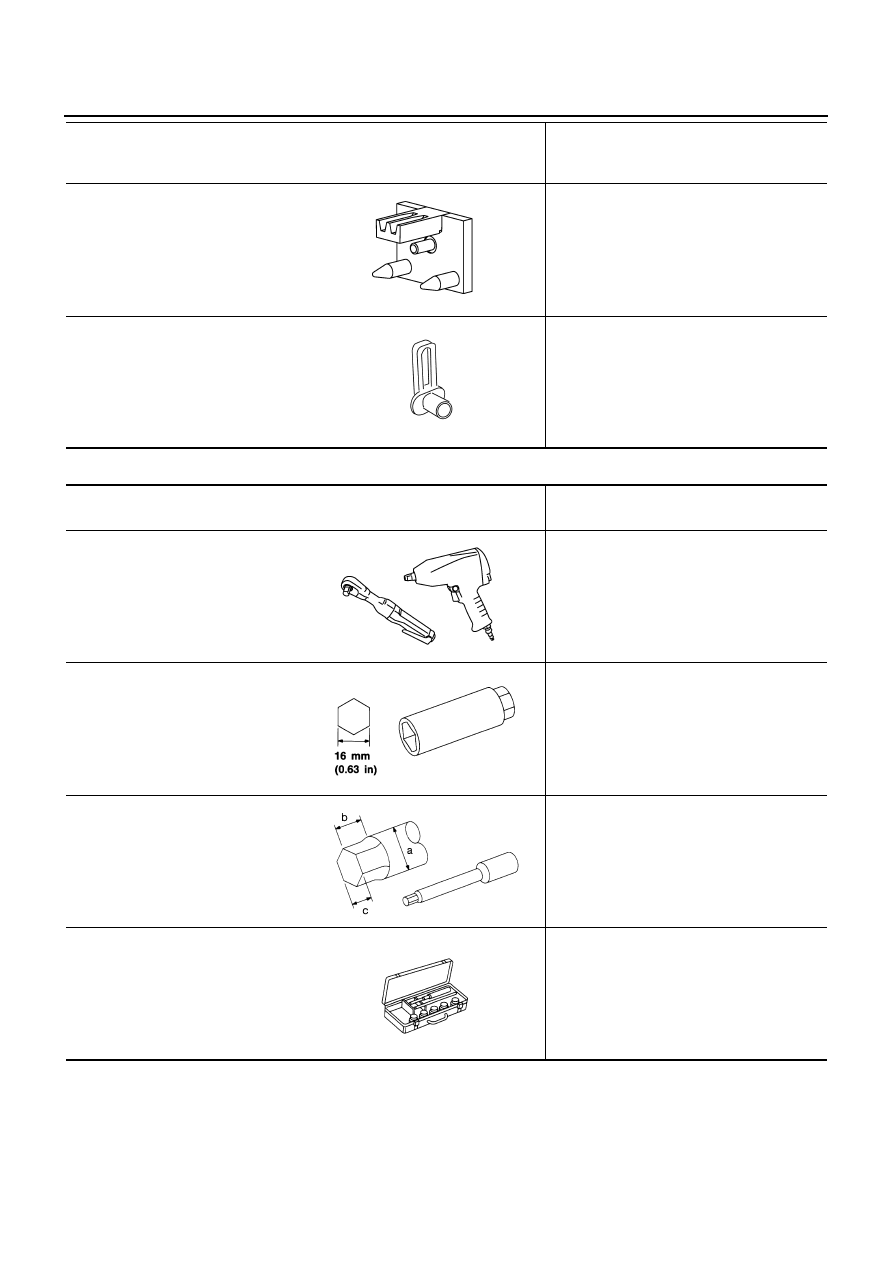

Commercial Service Tools

NBS001OB


(J- 45476)
Ring gear stopper

Removing and installing crankshaft pulley


(J-45488)
Quick connector release

Removing fuel tube quick connectors in
engine room

Tool number
(Kent-Moore No.)
Tool name

Description

PBIC1655E

PBIC0198E

(Kent-Moore No.)
Tool name

Description

(           —            )
Power tool

Loosening bolts and nuts

(

)

Spark plug wrench

Removing and installing spark plug

(J-24239-01)
Cylinder head bolt wrench

Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12
 (0.47)
c: 10 (0.39)
Unit: mm (in)

(

)

Valve seat cutter set

Finishing valve seat dimensions

PBIC0190E

S-NT047

NT583

S-NT048
