Infiniti Q45. Manual - part 544





SUNSHADE

EI-55

C

D

E

F

G

H

J

K

L

M

A

B

EI

Ter-

minal

Wire

color

Item

Signal

input/

output

Condition

Voltage (V)

(Approx.)

1

R/Y

Rear sunshade
front switch UP signal

Input

When rear sunshade front switch operates

 0

2

W/L

Rear sunshade
front switch DOWN signal

Input

When rear sunshade front switch operates

 0

3

W/B

Rear sunshade
rear switch UP signal

Input

When rear sunshade
rear switch operates

Rear control cancel switch (OFF)

 0

Rear control cancel switch (ON)

5

4

R/W

Rear sunshade
rear switch DOWN signal

Input

When rear sunshade
rear switch operates

Rear control cancel switch (OFF)

 0

Rear control cancel switch (ON)

5

5

P/B

Ignition switch ACC signal

Input

Battery voltage

6

B

Ground

0

EI-56

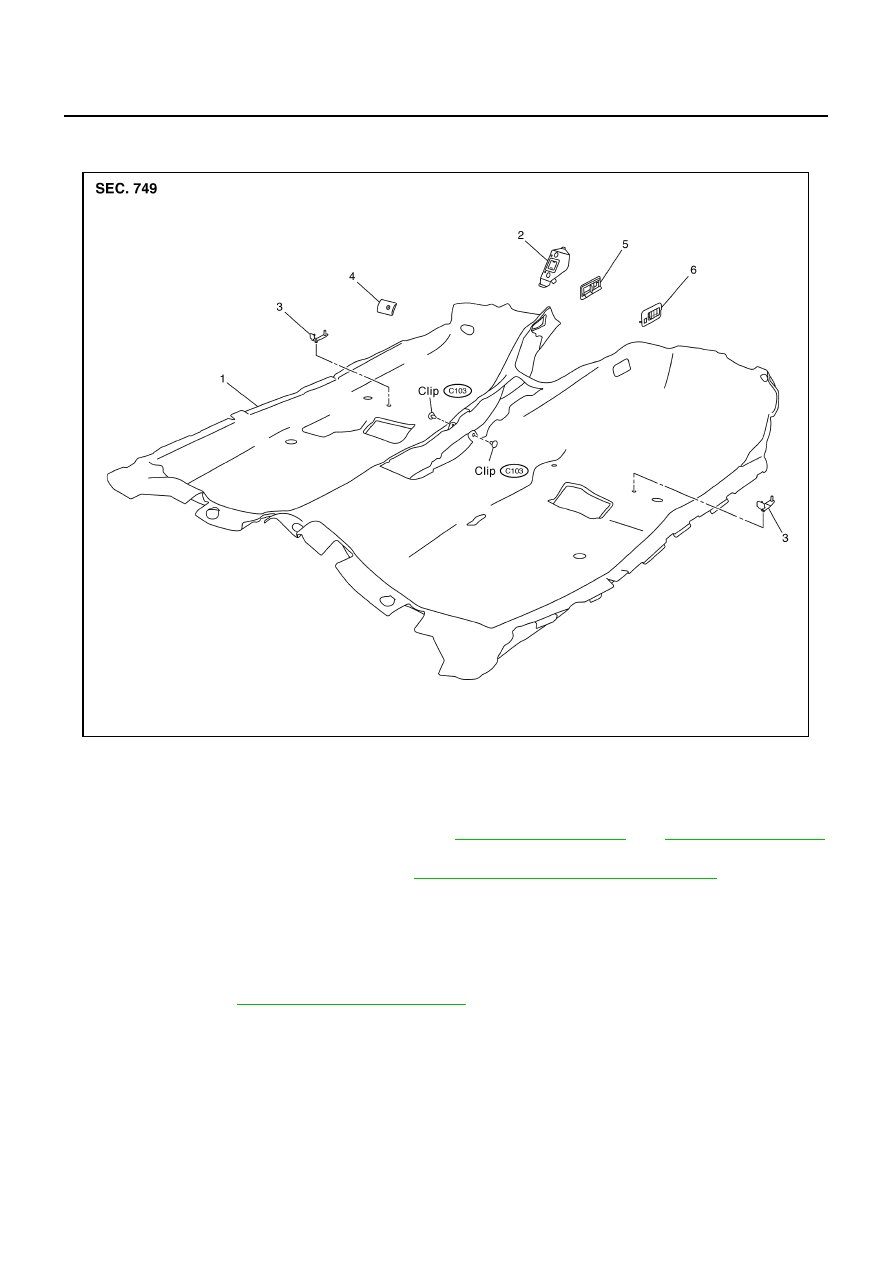

FLOOR TRIM

FLOOR TRIM

PFP:74902

Removal and installation

NIS0011U

REMOVAL

1.

Remove front seat and rear seat cushions. Refer to

SE-182, "FRONT SEAT"

  an

SE-191, "REAR SEAT"

2.

Remove center console and ashtray. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

Remove front and rear kicking plate.

4.

Remove front and rear body side welt.

5.

Remove center pillar lower garnish.

6.

Remove dash side finisher.

NOTE:
For steps 3 to 6, refer to

EI-43, "Removal and Installation"

 .

SIIA0816E

1.

Floor carpet

2.

Foot-rest

3.

Carpet hook

4.

Accelerator pedal stopper

5.

Heater nozzle (left)

6.

Heater nozzle (right)

FLOOR TRIM

EI-57

C

D

E

F

G

H

J

K

L

M

A

B

EI

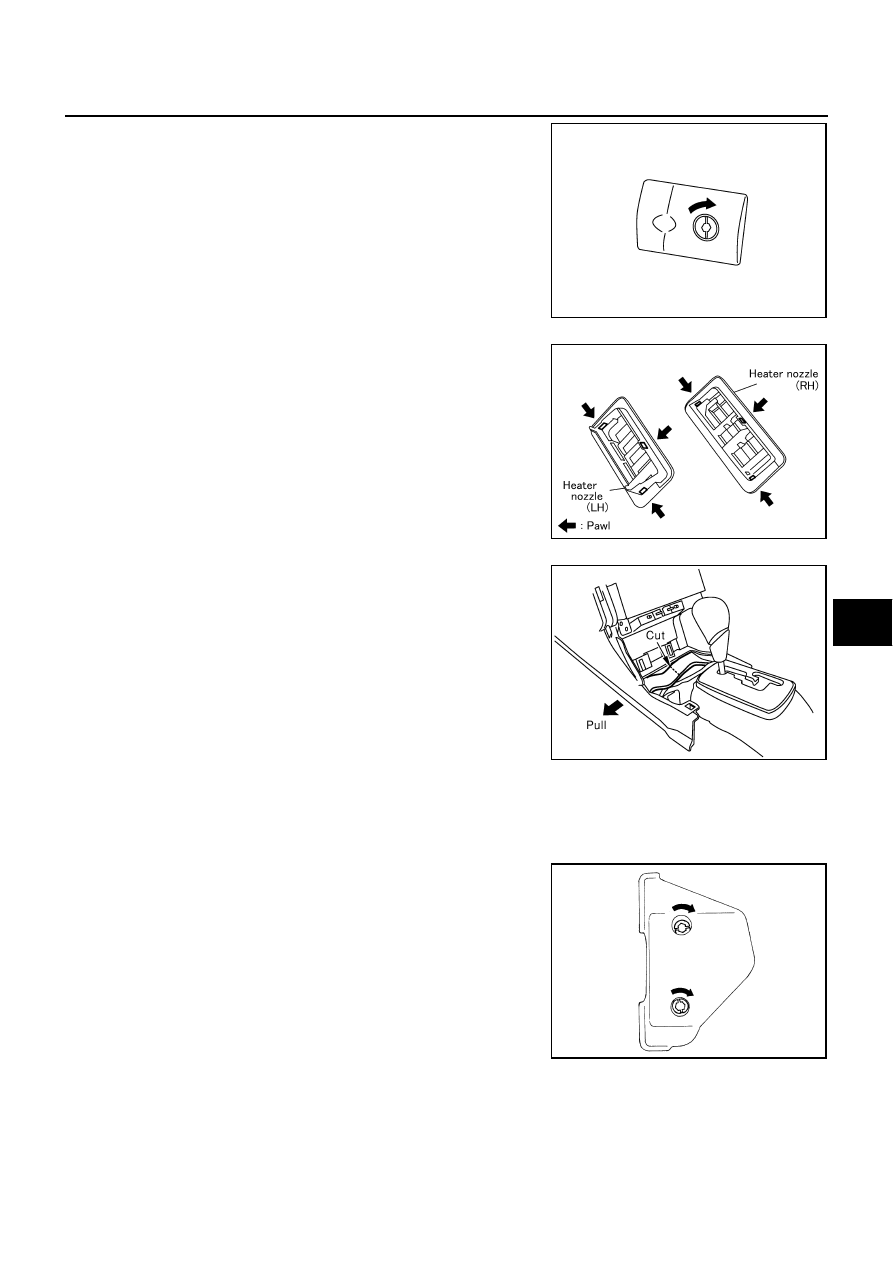

7.

Turn hexagon wrench in counterclockwise, and remove acceler-
ator pedal stopper from stud bolts on vehicle.

8.

Remove heater nozzle.

9.

Cut front part of carpet, and pull to both side. Pull carpet to rear
of vehicle, and remove.

INSTALLATION

Install in the reverse order of removal.

FOOT-REST
Removal

1.

Turn up floor carpet on driver's seat.

2.

Turn hexagon wrench to counterclockwise, and remove foot-rest
from stud bolts on vehicle.

Installation

Install in the reverse order of removal.

SIIA0817E

SIIA0359E

SIIA0818E

SIIA0819E

EI-58

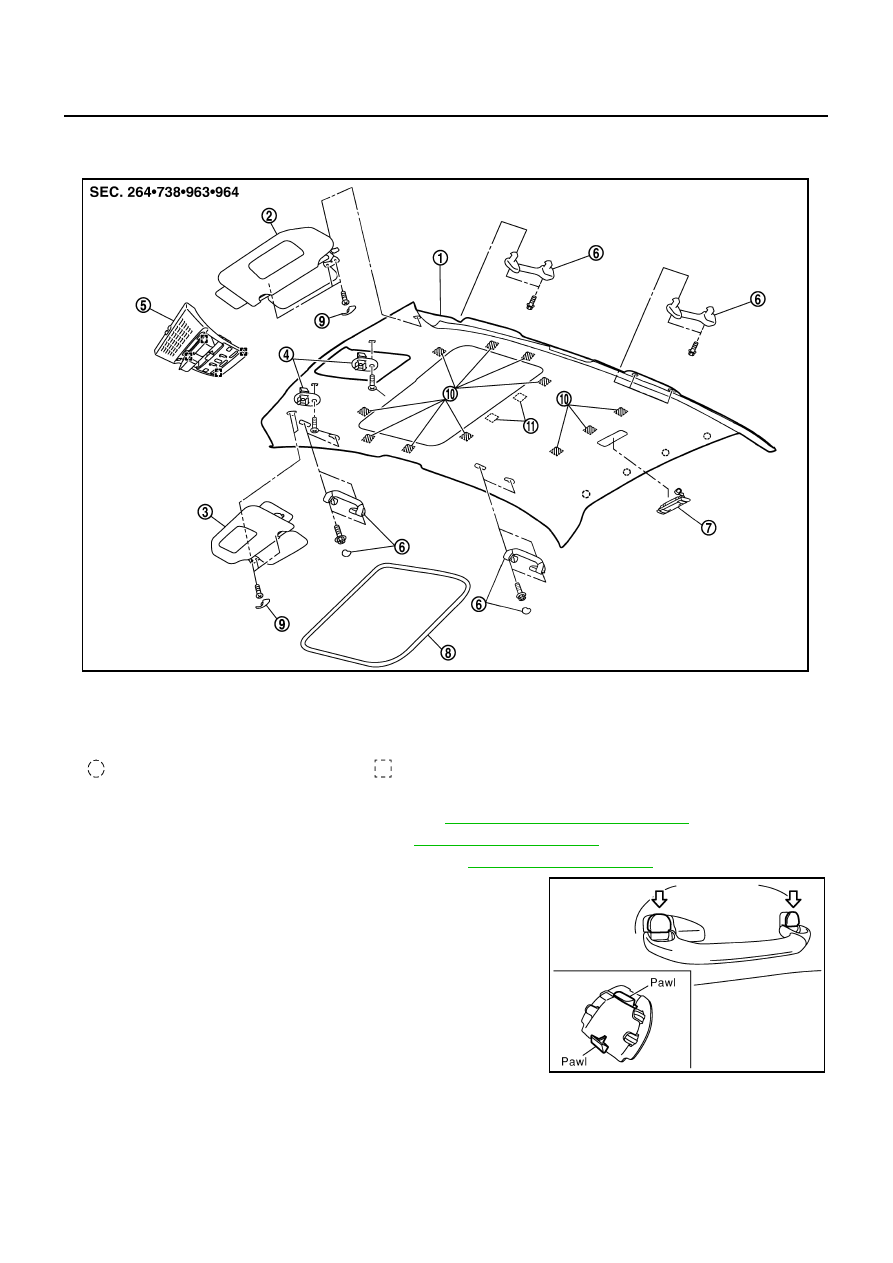

HEADLINING

HEADLINING

PFP:73910

Removal and Installation

NIS0011V

REMOVAL

1.

Remove rear seat cushion and seatback. Refer to

SE-191, "Removal and Installation"

 .

2.

Remove body side welt (front / rear). Refer to

EI-43, "BODY SIDE TRIM"

 .

3.

Remove front pillar and center pillar garnish. Refer to

EI-43, "BODY SIDE TRIM"

 .

4.

Remove assist grip.

NOTE:
To remove assist grip of roof, insert small screw driver rolled
with waste into dip on mask, pull it back to your side, remove it
and remove screws (one each for LH/RH).

1.

Headlining

2.

Sun-visor (LH)

3.

Sun-visor (RH)

4.

Holder retainer

5.

Map lamp assembly

6.

Assist grip

7

Personal lamp

8.

Sunroof welt

9.

Cap

10.

Dual lock fastener

11.

Hook

Clip

Metal clip

PIIB7404E

SIIA0823E
