BODY SIDE TRIM

EI-47

C

D

E

F

G

H

J

K

L

M

A

B

EI

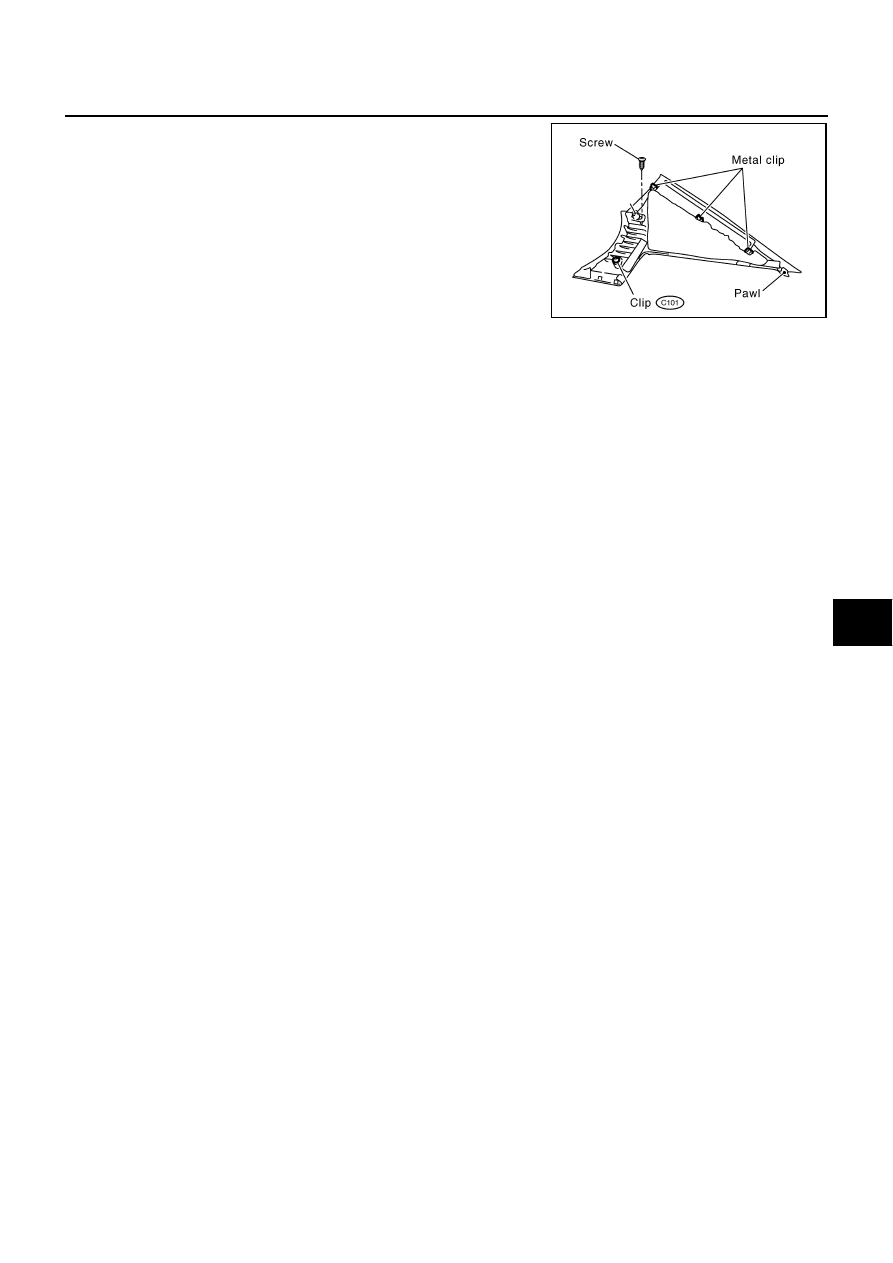

5.

Remove cap and screw of rear pillar finisher.

6.

Remove clips, and remove rear pillar finisher.

Installation

Install in the reverse order of removal.

CAUTION:

To install, check if all clips are matched over holes of panel on vehicle, then push on.

MUDGUARD FINISHER (FRONT/REAR)
Removal

1.

Remove clips of mudguard finisher.

2.

Remove pawls, and remove mudguard finisher (front/rear).

Installation

Install in the reverse order of removal.

PIIA9279E

EI-48

REAR PARCEL SHELF FINISHER

REAR PARCEL SHELF FINISHER

PFP:79910

Removal and Installation

NIS0011P

REMOVAL

1.

Remove rear seat. Refer to

SE-191, "Removal and Installation"

 .

2.

Remove rear seat belt floor anchor bolts. Refer to

SB-5, "Removal and Installation of Rear Seat Belt"

 .

3.

Remove rear pillar finisher. Refer to

EI-43, "Removal and Installation"

 .

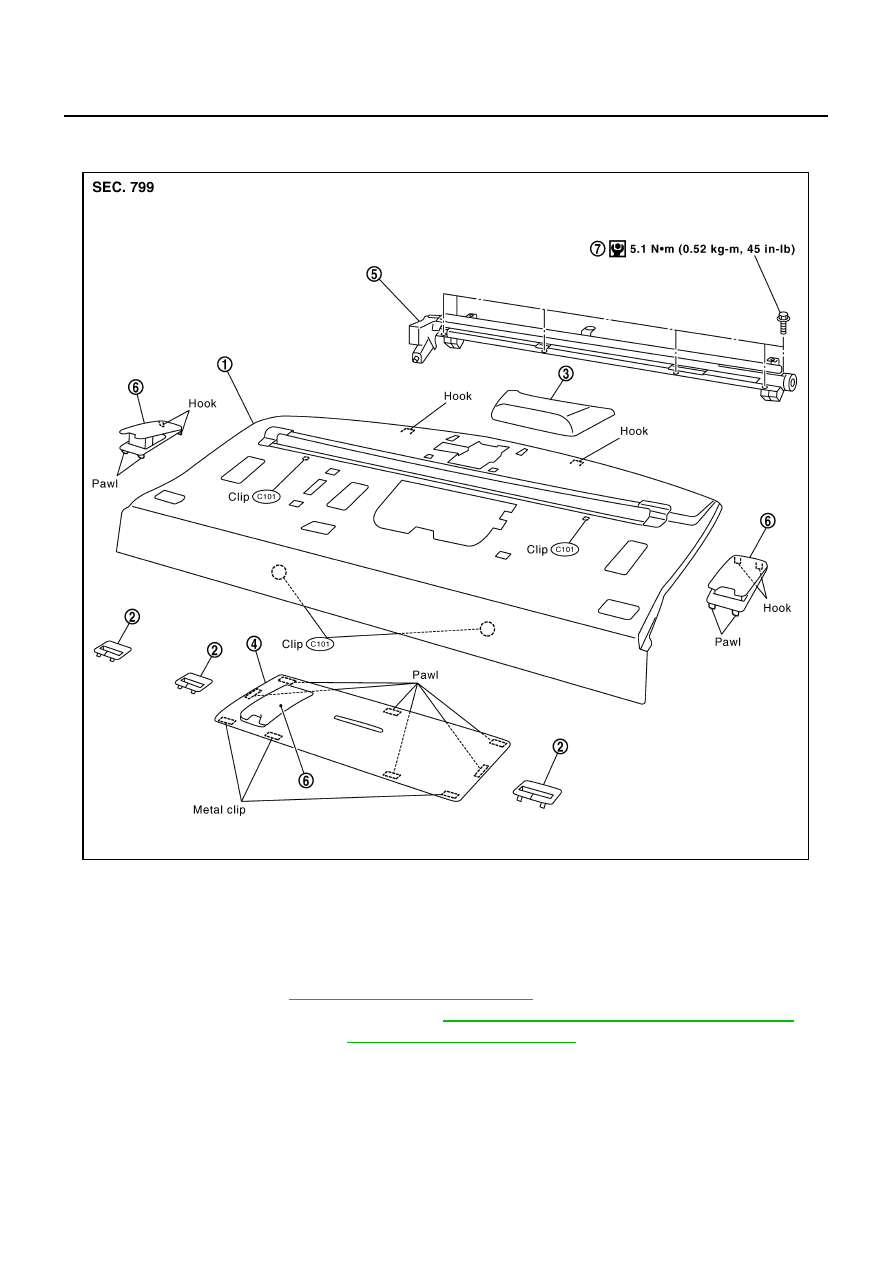

PIIB1961E

1.

Rear parcel shelf finisher

2.

Seat belt escutcheon

3.

High mounted stop lamp

4.

Woofer grille

5.

Rear sunshade

6.

Top tether strap child restraint
cover

7.

Bolt

REAR PARCEL SHELF FINISHER

EI-49

C

D

E

F

G

H

J

K

L

M

A

B

EI

4.

Remove high-mounted stop lamp, and disconnect harness con-
nector.

5.

Remove woofer grille.

6.

Remove seat belt escutcheon.

7.

Remove clips, and remove rear parcel shelf finisher.

INSTALLATION

Install in the reverse order of removal.

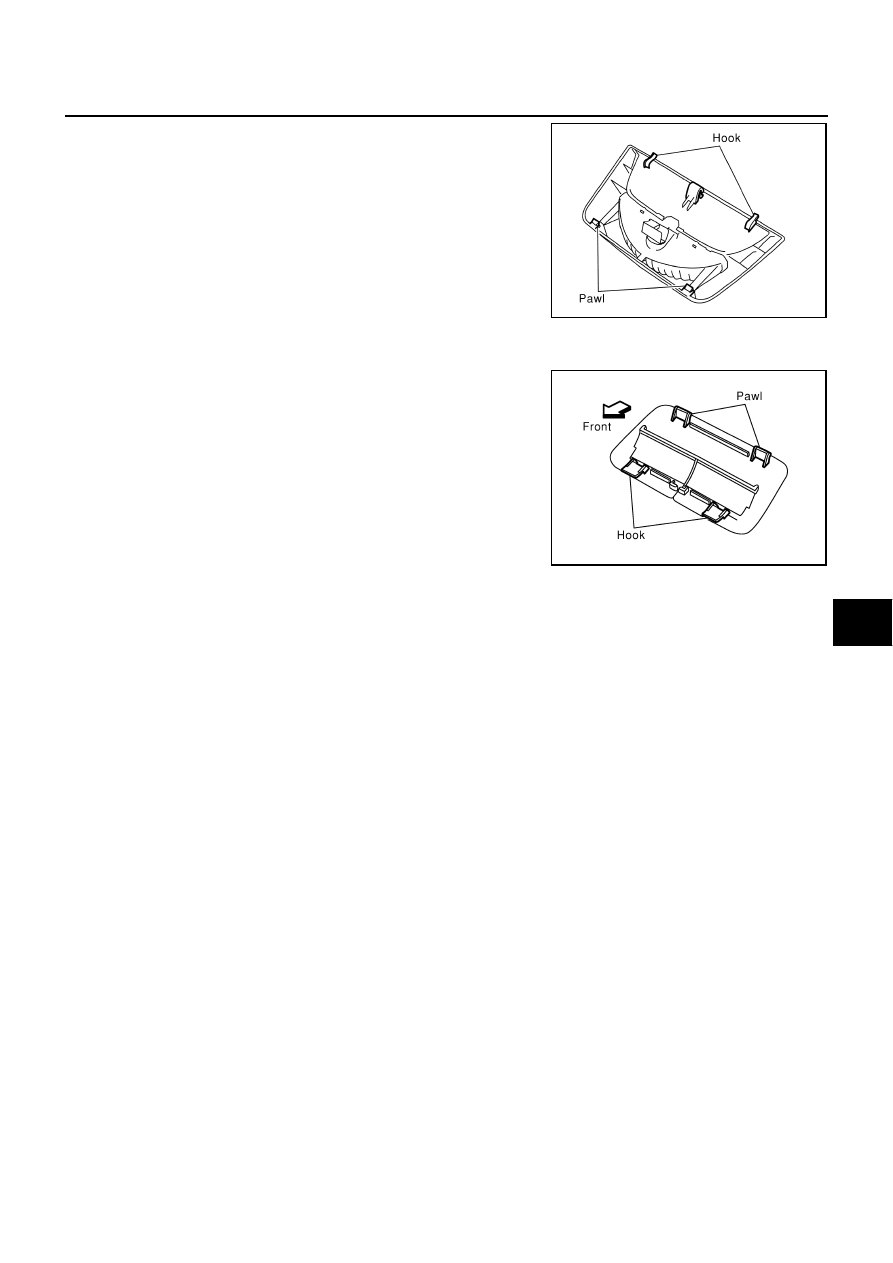

CAUTION:

Confirm hooks of rear parcel shelf finisher are completely inserted into holes on vehicle side.

Confirm clips are matched over holes on vehicle side, then push on.

Removal of rear sunshade

1.

Remove bolts of rear sunshade.

2.

Disconnect rear sunshade harness connector.

3.

Remove rear sunshade assembly.

Installation of rear sunshade

Install in the reverse order of removal.

SIIA0820E

SIIA0821E

EI-50

SUNSHADE

SUNSHADE

PFP:97580

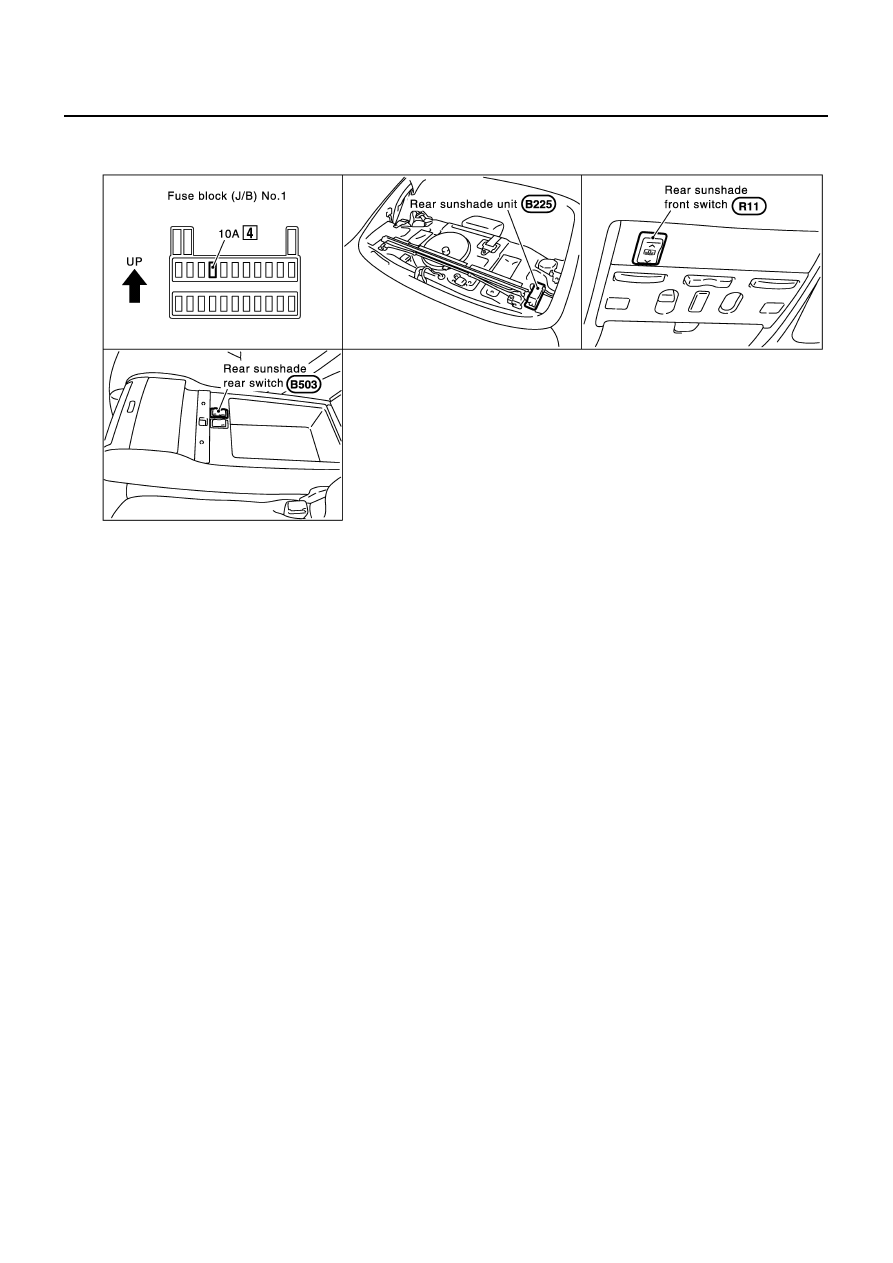

Component Parts and Harness Connector Location

NIS0011Q

CIIM0010E
